1. Adopting a composite seal of PTEE and rubber, it can maintain high vacuum degree.
2. Adopting multi-layer serpentine glass condenser tubes to ensure high recovery rate.
3. Can feed continuously.

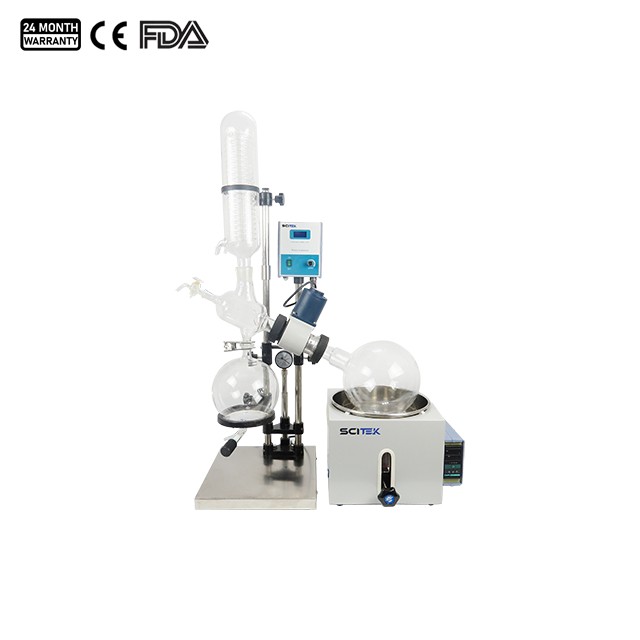

4. Equipped with a vacuum gauge, it can intuitively display the current vacuum level.
5. Digital display of water bath temperature, constant temperature control, and manual up and down adjustment.
6. The mechanical structure extensively uses stainless steel and aluminum alloy forging, while all glass parts are made of high-temperature resistant high boron glass.
7. The rotating flask is connected with nuts for easy loading and unloading. The bottom of the receiving flask is equipped with a piston, which makes the recovery of solvent very fast (only for RE-501R).
Specification:

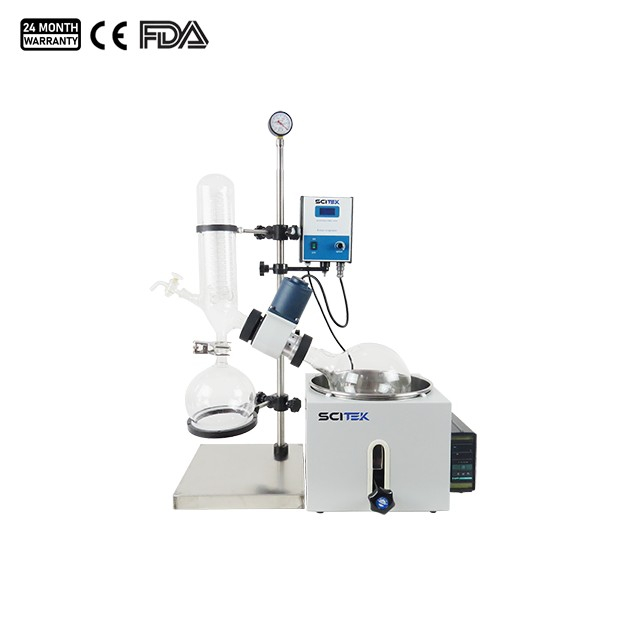

Model
RE-301R
RE-501R
Rotating Flask
Capacity
3 L
5 L
Caliber
50# flange port
Receiving Flask
Capacity
2 L
3 L
Caliber
35# spherical ground joint
Feeding Switch
19# standard ground joint，9mm barb fitting
Condenser
Vertical coiled tube
Vertical coiled tube with spherical ground joint
Condenser Size (Dia.×H)(mm)
90×430
97×460
Condensation Area (㎡)
≈0.2
≈0.27
Condenser Circulation Connection Port
11 mm OD barb fitting
Seal
Teflon and fluororubber combination double seal
Temperature Control Accuracy
±1℃
Rotational Speed (rpm)
0–120
0–90
Screen Display
Temperature and speed digital display
Temperature Control
Button
Speed Control
Knob
Motor Power
40 W
Lifting Method
Manual lifting
Lifting Travel Range (mm)
≈0–140
≈0–120
Maximum Evaporation Capacity (Water) (L/h)
About 1.5
About 2
Vacuum Degree
-0.098 Mpa
Power Supply
220 V, 50 Hz
Temperature Control Range
Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot
Inner Liner Material
304 stainless steel
Inner Liner Size (Dia.×H)
280×170 mm
Capacity
5 L
Heating Power
1.5 kW
Size (D×W×H)
360×330×260 mm
Size (D×W×H)(mm)
≈670×340×960
≈900×430×1100
Shipping Size (D×W×H)(mm)
710×560×660
G.W. (kg)
28
30
Recommended Equipment (excluding)
Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-530
Advantage:
1. Adopting a composite seal of PTEE and rubber, it can maintain high vacuum degree.
2. Adopting multi-layer serpentine glass condenser tubes to ensure high recovery rate.
3. Can feed continuously.
4. Equipped with a vacuum gauge, it can intuitively display the current vacuum level.
5. Digital display of water bath temperature, constant temperature control, and manual up and down adjustment.
6. The mechanical structure extensively uses stainless steel and aluminum alloy forging, while all glass parts are made of high-temperature resistant high boron glass.
7. The rotating flask is connected with nuts for easy loading and unloading. The bottom of the receiving flask is equipped with a piston, which makes the recovery of solvent very fast (only for RE-501R).
Specification:
Model
RE-301R
RE-501R
Rotating Flask
Capacity
3 L
5 L
Caliber
50# flange port
Receiving Flask
Capacity
2 L
3 L
Caliber
35# spherical ground joint
Feeding Switch
19# standard ground joint，9mm barb fitting
Condenser
Vertical coiled tube
Vertical coiled tube with spherical ground joint
Condenser Size (Dia.×H)(mm)
90×430
97×460
Condensation Area (㎡)
≈0.2
≈0.27
Condenser Circulation Connection Port
11 mm OD barb fitting
Seal
Teflon and fluororubber combination double seal
Temperature Control Accuracy
±1℃
Rotational Speed (rpm)
0–120
0–90
Screen Display
Temperature and speed digital display
Temperature Control
Button
Speed Control
Knob
Motor Power
40 W
Lifting Method
Manual lifting
Lifting Travel Range (mm)
≈0–140
≈0–120
Maximum Evaporation Capacity (Water) (L/h)
About 1.5
About 2
Vacuum Degree
-0.098 Mpa
Power Supply
220 V, 50 Hz
Temperature Control Range
Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot
Inner Liner Material
304 stainless steel
Inner Liner Size (Dia.×H)
280×170 mm
Capacity
5 L
Heating Power
1.5 kW
Size (D×W×H)
360×330×260 mm
Size (D×W×H)(mm)
≈670×340×960
≈900×430×1100
Shipping Size (D×W×H)(mm)
710×560×660
G.W. (kg)
28
30
Recommended Equipment (excluding)
Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-530
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
