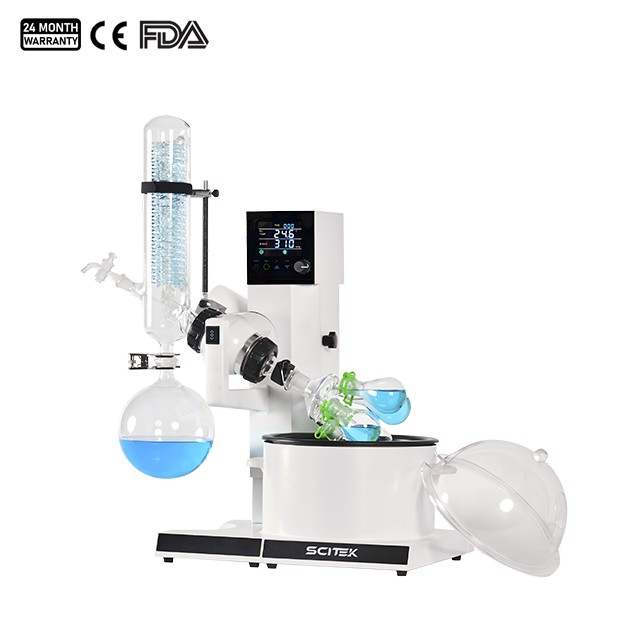

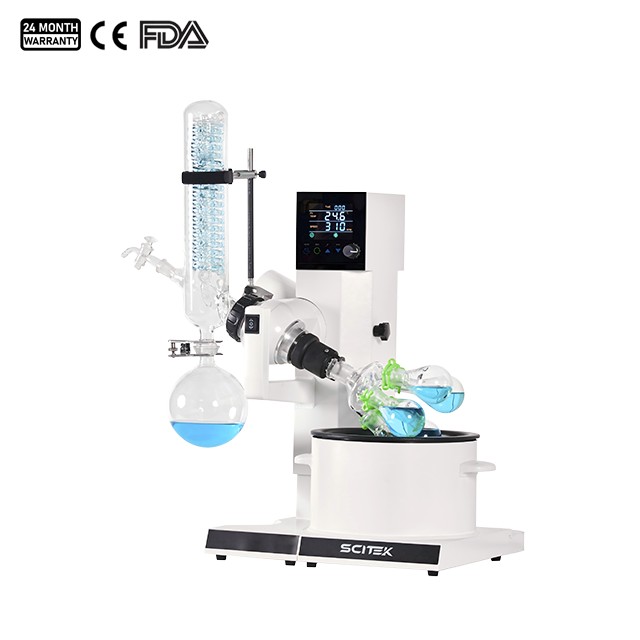

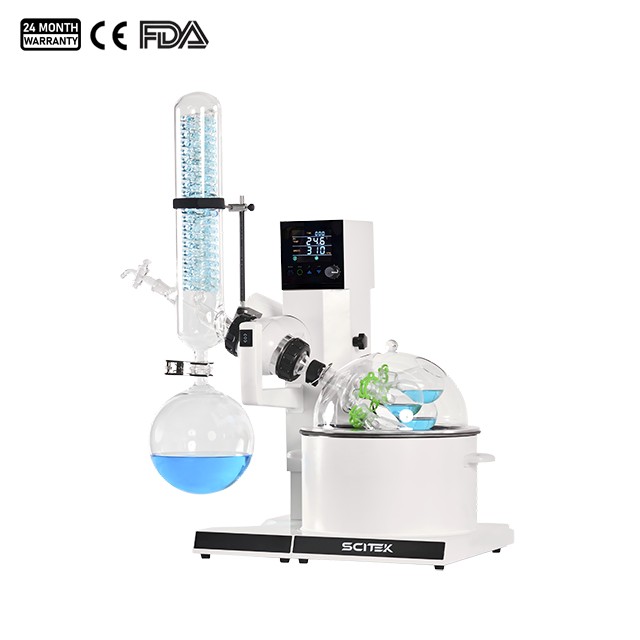

LCD Rotary Evaporator

Model : RE-2000M; RE-3000M; RE-5000M

Rotation Speed : 0–310 rpm/min
System Vacuum : 2 mbar
Oil bath : RT–210 °C ±2 °C
Temperature Range : Water bath: RT–99 °C ±0.5 °C
Evaporation Capacity : Max. 25; 100; 150 mL/min
The rotary evaporator provides an efficient, safe, and versatile solution for solvent evaporation, concentration, and distillation in various laboratory applications.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Application:

The Rotary Evaporator is a versatile and efficient laboratory instrument designed for solvent evaporation,

concentration, and distillation under reduced pressure. It is widely used in various scientific fields such as

chemistry, pharmaceuticals, food science, and environmental testing. This device is perfect for applications

requiring gentle evaporation of volatile solvents, especially when dealing with heat-sensitive compounds.

Advantage:

1. emperature Range: Room temperature–99 °C for water bath; room temperature – 210 °C for oil bath.

The heating tube automatically stops when the temperature exceeds the set point.

The heating pot features a safety handle, heat-insulated outer shell to prevent scalding, moderate capacity,

and rapid heating. The pot is made of Teflon composite material, offering high temperature resistance,

corrosion resistance, and easy cleaning.

2. Large LCD screen with multi-data display, rotary encoder for setting, rotation speed 0-310 rpm,

intermittent forward/reverse rotation function (0–60s), suitable for drying processes. Large condensation

area with drip point and anti-backflow design. (Effectively improves work efficiency).

3. Evaporation flask features a push-hand mechanical device for easy disassembly, safe and reliable.

4. Optional: Built-in vacuum controller (allows arbitrary control of required vacuum level for experiments,

setting range: 0 to –0.1MPa (0–1013 mbar); accuracy ±1).

5. Equipped with a protective cover for heat insulation, energy saving, splash prevention, and explosion protection.

Specification:

Model	RE-2000M	RE-3000M	RE-5000M
Rotation Speed	0–310 rpm/min
Evaporation Capacity	Max. 25 mL/min	Max. 100 mL/min	Max. 150 mL/min
System Vacuum	2 mbar
Temperature Range	Water bath: RT–99 °C ±0.5 °C; Oil bath: RT–210 °C ±2 °C
Bath Material/Size	φ23×13 cm (approx. 5.4 L)
Sample Flask Rotation	0–60 S
Rotary Glass Shaft	29#/42 ground joint, length 225mm
Lifting Stroke	150 mm
Temperature Control	Microcomputer PID Controller
Temperature Setting	Rotary Type
Package Dimensions (mm)	710×645×510	710×645×790	780×690×850
Gross Weight (kg)	30	35	42
