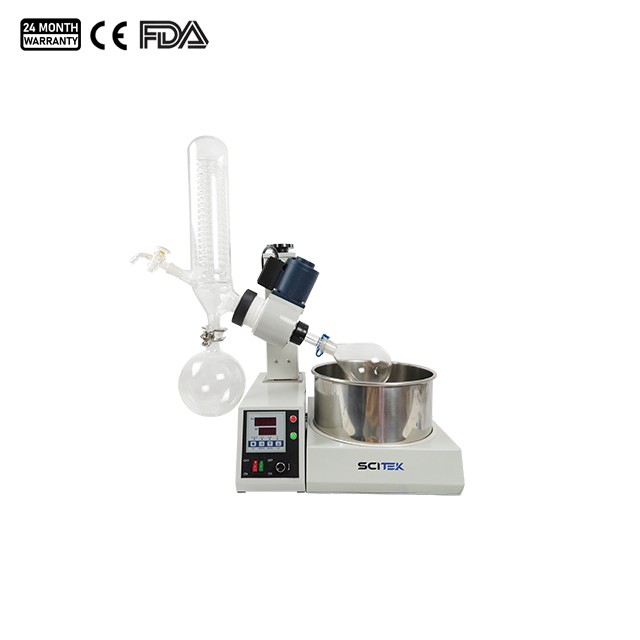

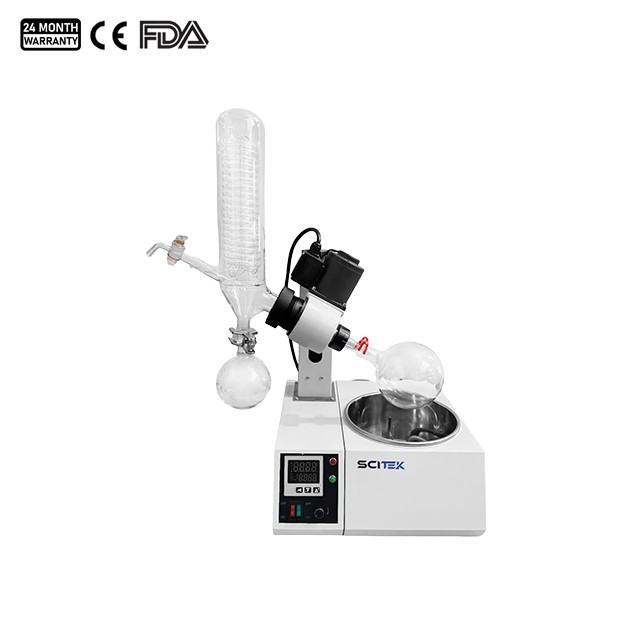

Rotating Flask Capacity: 500 mL Receiving Flask Capacity: 500 mL Condensation Area (㎡): About 0.17 ㎡ Maximum Evaporation Capacity (Water): About 0.9 L/h Rotational Speed: 0–120 rpm Lifting Travel Range: 0–120 mm Loose Phillips screw tilt the Rotary Evaporator RE-5300R freely within the range of 0–15 degree.
1. Host rotation: Composed of a stable and reliable set of micro motors, tachogenerator, and integrated circuits. Under the action of electronic speed regulation, it can achieve stepless speed regulation from 0 to 120 revolutions per minute.
2. Host lifting: Adopts a screw driven electric and manual lifting system. Simply rotate the handwheel on top of the column or press the lifting button to raise or lower the host, which is simple and reliable.
3. Loose Phillips screw tilt the machine head freely within the range of 0–15 degree. The condensation system can tilt accordingly, adjusting the angle of the rotating flask to the desired position.
4. A sealed resistance wire heating element is employed, integrated with PID automatic control to ensure stable and precise temperature regulation.
5. Double sealing with PTFE and fluorinated rubber, combined with glass shafts. It is corrosion-resistant, pollution-free, and can maintain a high vacuum.
Specification:
Model
RE-5300R
Rotating Flask
Capacity
500 mL
Caliber
24# standard ground joint
Receiving Flask
Capacity
500 mL
Caliber
24# standard ground joint
Feeding Switch
19# standard ground joint, 9mm barb fitting
Condenser
Vertical coiled tube
Condenser Size (Dia.×H)
85×360 mm
Condensation Area
About 0.17 ㎡
Condenser Circulation Connection Port
11mm OD barb fitting
Seal
Teflon and fluororubber dual sealing
Temperature Control Accuracy
±1℃
Rotational Speed
0–120 rpm
Screen Display
Temperature and speed digital display
Temperature Control
Button
Speed Control
Knob
Motor Power
30 W
Bath Pot Lifting Method
Electric lifting
Bath Pot Lifting Travel Range
0–120 mm
Maximum Evaporation Capacity (Water)
About 0.9 L/h
Vacuum Degree
-0.098 Mpa
Power Supply
220 V, 50 Hz
Temperature Control Range
Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot
Inner Liner Material
304 stainless steel
Inner Liner Size (Dia.×H)(mm)
220×125 mm
Capacity
About 1 L
Heating Power
1 kW
Size (D×W×H)(mm)
250×370×175 mm
Size (D×W×H)
≈660×420×860 mm
Shipping Size (D×W×H)
570×490×490 mm
G.W.
24 kg
Recommended Equipment (excluding)
Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-510
Advantage:
1. Host rotation: Composed of a stable and reliable set of micro motors, tachogenerator, and integrated circuits. Under the action of electronic speed regulation, it can achieve stepless speed regulation from 0 to 120 revolutions per minute.
2. Host lifting: Adopts a screw driven electric and manual lifting system. Simply rotate the handwheel on top of the column or press the lifting button to raise or lower the host, which is simple and reliable.
3. Loose Phillips screw tilt the machine head freely within the range of 0–15 degree. The condensation system can tilt accordingly, adjusting the angle of the rotating flask to the desired position.
4. A sealed resistance wire heating element is employed, integrated with PID automatic control to ensure stable and precise temperature regulation.
5. Double sealing with PTFE and fluorinated rubber, combined with glass shafts. It is corrosion-resistant, pollution-free, and can maintain a high vacuum.
Specification:
Model
RE-5300R
Rotating Flask
Capacity
500 mL
Caliber
24# standard ground joint
Receiving Flask
Capacity
500 mL
Caliber
24# standard ground joint
Feeding Switch
19# standard ground joint, 9mm barb fitting
Condenser
Vertical coiled tube
Condenser Size (Dia.×H)
85×360 mm
Condensation Area
About 0.17 ㎡
Condenser Circulation Connection Port
11mm OD barb fitting
Seal
Teflon and fluororubber dual sealing
Temperature Control Accuracy
±1℃
Rotational Speed
0–120 rpm
Screen Display
Temperature and speed digital display
Temperature Control
Button
Speed Control
Knob
Motor Power
30 W
Bath Pot Lifting Method
Electric lifting
Bath Pot Lifting Travel Range
0–120 mm
Maximum Evaporation Capacity (Water)
About 0.9 L/h
Vacuum Degree
-0.098 Mpa
Power Supply
220 V, 50 Hz
Temperature Control Range
Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot
Inner Liner Material
304 stainless steel
Inner Liner Size (Dia.×H)(mm)
220×125 mm
Capacity
About 1 L
Heating Power
1 kW
Size (D×W×H)(mm)
250×370×175 mm
Size (D×W×H)
≈660×420×860 mm
Shipping Size (D×W×H)
570×490×490 mm
G.W.
24 kg
Recommended Equipment (excluding)
Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-510
