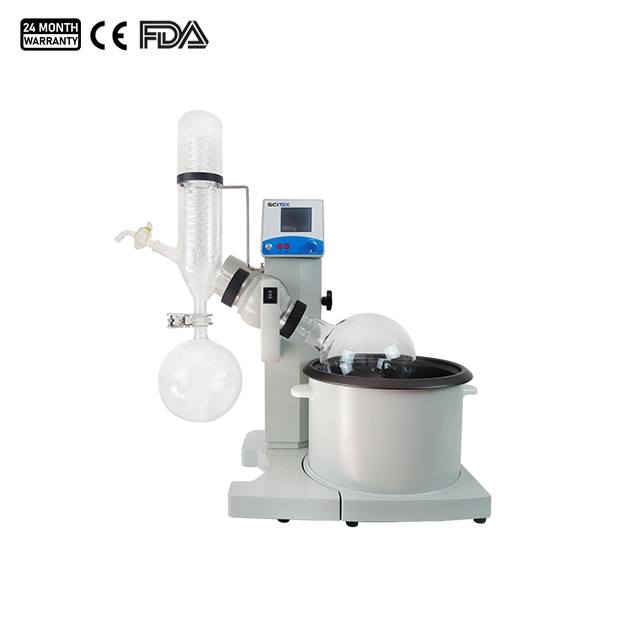

Rotating Flask Capacity: 5 L Receiving Flask Capacity: 3 L Condensation Area (㎡): About 0.27 ㎡ Maximum Evaporation Capacity (Water): About 2 L/h Rotational Speed: 20–200 rpm Lifting Travel Range: 0–150 mm
The electric lifting device enables the host to be lifted and lowered within the range of 0–150 mm.
1. Main components: Made of rust proof aluminum alloy, special engineering plastic, and high-temperature resistant glass. Compact structure, beautiful appearance, and durability.
2. Host drive: Adopts DC brushless motor, electronic stepless speed regulation, and synchronous belt drive device.
3. Increase the diameter of the transmission shaft tube, so the evaporation pipeline is 1.5 times larger than that of general instruments, improving evaporation efficiency.
4. Lifting structure: Rocker button, fast and automatic lifting from 0 to 150 millimeters.
5. Sealing component: A dual seal composed of Teflon and fluororubber, with good air tightness and long service life, which can be regularly disassembled, cleaned or replaced.
6. Condenser: Vertical integrated condenser made of high-temperature-resistant glass, featuring a double reflux design and spherical ground joints, paired with spherical ground joints receiving flask for quick and secure assembly and disassembly.
7. Heating pot: Using a PTFE and aluminum alloy composite pot, with fully enclosed electric heater installed on the aluminum alloy pot base, stable and reliable, and can be flexibly configured.
8. Integrated LCD screen, which is used for adjusting and displaying temperature and speed, clear and beautiful.
Specification:
Model
RE-5000R
Rotating Flask
Capacity
5 L
Caliber
50# flange port
Receiving Flask
Capacity
3 L
Caliber
35# spherical ground joint
Feeding Switch
19# standard ground joint, 9mm barb fitting
Condenser
Vertical coiled tube
Condenser Size (Dia.×H)
97×460 mm
Condensation Area
About 0.27 ㎡
Condenser Circulation Connection Port
11mm OD barb fitting
Seal
Teflon and fluororubber dual sealing
Temperature Control Accuracy
±1 ℃
Rotational Speed
20–200 rpm
Screen Display
Temperature and speed LCD display
Temperature Control
Knob
Speed Control
Knob
Motor Power
40 W
Lifting Method
Electric lifting
Lifting Travel Range
0–150 mm
Maximum Evaporation Capacity (Water)
About 2 L/h
Vacuum Degree
-0.098 Mpa
Power Supply
220 V, 50 Hz
Temperature Control Range
Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot
Inner Liner Material
Teflon aluminum alloy composite pot
Inner Liner Size (Dia.×H)(mm)
280×160 mm
Capacity
5 L
Heating Power
1.5 kW
Size (D×W×H)(mm)
400×360×280 mm
Size (D×W×H)
≈ 800×450×980 mm
Shipping Size (D×W×H)
690×610×650 mm
G.W.
36 kg
Recommended Equipment (excluding)
Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-530
Advantage:
1. Main components: Made of rust proof aluminum alloy, special engineering plastic, and high-temperature resistant glass. Compact structure, beautiful appearance, and durability.
2. Host drive: Adopts DC brushless motor, electronic stepless speed regulation, and synchronous belt drive device.
3. Increase the diameter of the transmission shaft tube, so the evaporation pipeline is 1.5 times larger than that of general instruments, improving evaporation efficiency.
4. Lifting structure: Rocker button, fast and automatic lifting from 0 to 150 millimeters.
5. Sealing component: A dual seal composed of Teflon and fluororubber, with good air tightness and long service life, which can be regularly disassembled, cleaned or replaced.
6. Condenser: Vertical integrated condenser made of high-temperature-resistant glass, featuring a double reflux design and spherical ground joints, paired with spherical ground joints receiving flask for quick and secure assembly and disassembly.
7. Heating pot: Using a PTFE and aluminum alloy composite pot, with fully enclosed electric heater installed on the aluminum alloy pot base, stable and reliable, and can be flexibly configured.
8. Integrated LCD screen, which is used for adjusting and displaying temperature and speed, clear and beautiful.
Specification:
Model
RE-5000R
Rotating Flask
Capacity
5 L
Caliber
50# flange port
Receiving Flask
Capacity
3 L
Caliber
35# spherical ground joint
Feeding Switch
19# standard ground joint, 9mm barb fitting
Condenser
Vertical coiled tube
Condenser Size (Dia.×H)
97×460 mm
Condensation Area
About 0.27 ㎡
Condenser Circulation Connection Port
11mm OD barb fitting
Seal
Teflon and fluororubber dual sealing
Temperature Control Accuracy
±1 ℃
Rotational Speed
20–200 rpm
Screen Display
Temperature and speed LCD display
Temperature Control
Knob
Speed Control
Knob
Motor Power
40 W
Lifting Method
Electric lifting
Lifting Travel Range
0–150 mm
Maximum Evaporation Capacity (Water)
About 2 L/h
Vacuum Degree
-0.098 Mpa
Power Supply
220 V, 50 Hz
Temperature Control Range
Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot
Inner Liner Material
Teflon aluminum alloy composite pot
Inner Liner Size (Dia.×H)(mm)
280×160 mm
Capacity
5 L
Heating Power
1.5 kW
Size (D×W×H)(mm)
400×360×280 mm
Size (D×W×H)
≈ 800×450×980 mm
Shipping Size (D×W×H)
690×610×650 mm
G.W.
36 kg
Recommended Equipment (excluding)
Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-530
