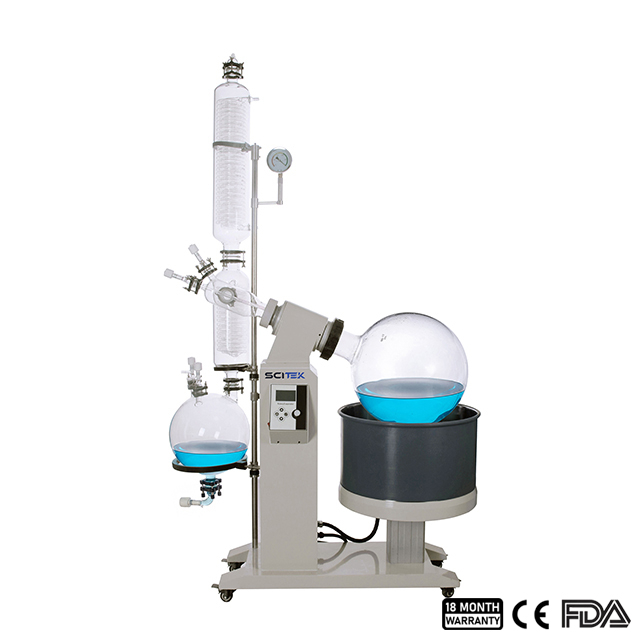

Rotary Evaporator, Triple-Coil Condenser

Rotary Evaporator Specifications:

Rotary Evaporator Features:

1. The components in contact with the material are crafted from high borosilicate glass (with an expansion coefficient of 3.3) and PTFE materials, ensuring stable performance and minimal reactivity with the substances.

2. Stand is composed of cold plate anti-corrosive spray and aluminum alloy material, while the bath is constructed from 304 stainless steel.

3. Sealing system employs a compound sealing of PTFE and fluororubber.

4. An oily vacuum pressure gauge provides real-time vacuum indication through a pointer.

5. Piston-type feeding valve is fitted with a PTFE extension tube, enabling continuous feeding to the evaporation bottle under vacuum conditions.

6. A vertical three-layer serpentine coil functions as the condenser, featuring both main and auxiliary condensing for enhanced efficiency.

7. Large LCD display allows simultaneous control of rotation, heating, and lifting.

8. Brushless deceleration booster motor is utilized as the rotary motor, ensuring spark-free and low-noise operation. The lifting motor also employs the deceleration booster motor.

9. A thermostat-controlled bath incorporates a PT100 sensor and stainless steel probe at the bath's base.

10. Bath can be electrically lifted, and a silicone cover offers heat insulation and anti-scalding protection.

11. Dual fuses provide safety protection for both rotation and heating.

12. Collection bottle features a lower discharging port connected to a glass and PTFE independent discharge valve.

13. A water discharge valve at the bottom of the bath facilitates liquid removal.

14. A vacuum switching valve enables continuous material collection and discharge without affecting system vacuum or solution distillation.

15. An over-temperature protection function automatically powers off the machine when the actual temperature exceeds the setting temperature by 5°C.

16. An anti-drying function automatically powers off the machine when the water level in the heating bath falls below the heating tube.

17. In case of a sudden power interruption during operation, the machine will automatically cease heating and resume when power is restored.
