Recirculating Chillers

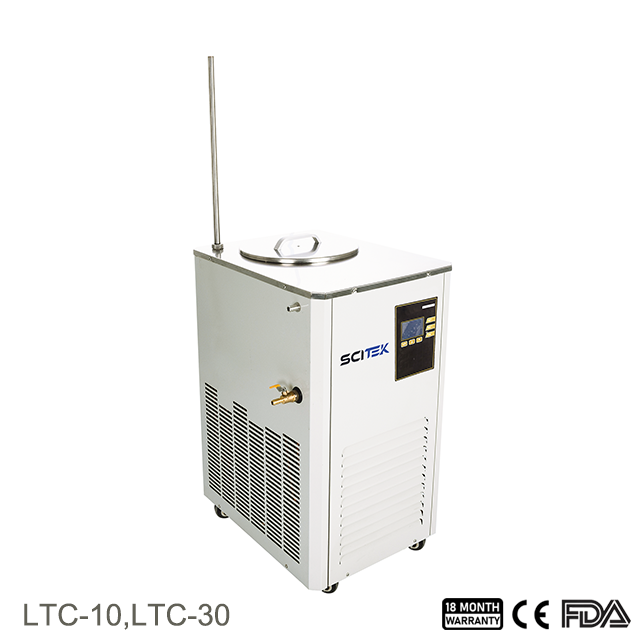

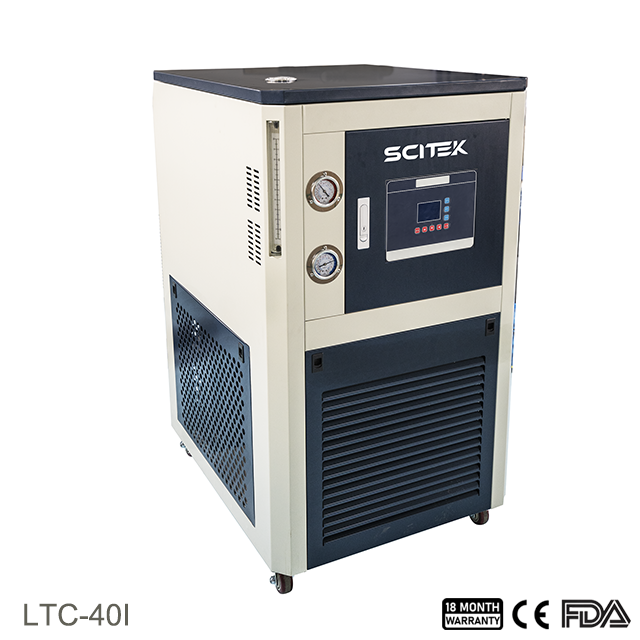

Model : LTC-10; LTC-30; LTC-40I

Usage Temperature Range : -10 ℃~room temperature / -30 ℃~room temperature / -40℃ ~room temperature
Water Tank Size & Volume : Φ220×180H(mm), 6.8L / Φ450×350H(mm), About 55L / Φ500×500H(mm), 98L
Available Size in Water Tank : Φ185mm / Φ350mm / Φ390mm
Cover Opening : Φ200mm / Φ350mm / Φ350mm

Availability:
Quantity:

Recirculating Chillers Specifications:

ModelLTC-10LTC-30LTC-40I
Usage Temperature Range-10 ℃~room temperature-30 ℃~room temperature-40℃ ~room temperature
Environment Temperature5 ~35 ℃
Environment Humidity≤70% ventilation
Power SupplySingle phase 220V/50HzSingle phase 220V 50Hz/110V 60HzThree phase 380V/50Hz
Safety ProtectionDelay, over-current, overheatDelay, overcurrent, overheating, phase sequence, phase loss protection
DisplayLCD display, key operation
Temperature Control
Accuracy
±0.1℃
SensorPT100
Total Power652W2485W7990W
CompressorSpecificationSmall 1PSpecification3PSpecification10P
Quantity1Quantity1Quantity1
Power500WPower2205WPower7350W

Cooling

capacity

1550WCooling capacity6972WCooling capacity23240W
Circulation PumpPower100WPower100WPower280W
Lift4-6MLift4-6MLift10-12M
Flow20-40L/minFlow20-40L/minFlow30-50 L/min
Pressure≤0.4MPaPressure≤0.4MPaPressure≤0.4MPa
Air-cooling CondenserPower52WPower180WPower360W
Heating exchange
area
4.2㎡Heating exchange area21.2㎡Heating exchange area39㎡
Air volume760m³/hAir volume3400m³/hAir volume6800m³/h
RefrigerantR134AR404AR22
Condensation CoilΦ8 copper tube plated by nickelΦ16 copper tube plated by nickelΦ19 copper tube plated by nickel
Equipment MaterialCold plate spray, anti-corrosion
Water Tank Size & Volume

Φ220×180H

(mm)

6.8L

Φ450×350H

(mm)

About 55L

Φ500×500H

(mm)

98L
Available Size in Water TankΦ185mmΦ350mmΦ390mm
Cover OpeningΦ200mmΦ350mmΦ350mm
Outer Circulation InterfacePagoda joint with Φ12mm outer diameter (facing the left side of the equipment)Pagoda joint with Φ16mm outer diameter (facing the left side of the equipment)Pagoda joint with Φ19mm outer diameter (facing the left side of the equipment)
Sizes(W×D×H)(mm)423×485×(760+400)795×770×(1150+pole 500)845×1100×(1365+pole 500)
Shipping Size
(W×D×H)(mm)
590×430×880mm carton package 0.21m³830×740×1280mm wooden package 0.79m³1190×880×1540mm  wooden package 1.61m³
N.W./G.W. (kg)56/58119/162250/290

Recirculating Chillers Feature:

  1. Precise temperature control range to meet different experimental needs

  2. Highly efficient cooling capacity, able to quickly reduce the temperature of the sample or equipment

  3. Stable performance and reliable operation to ensure the accuracy of experimental data

  4. A variety of safety protection functions to protect the equipment and the user's safety
