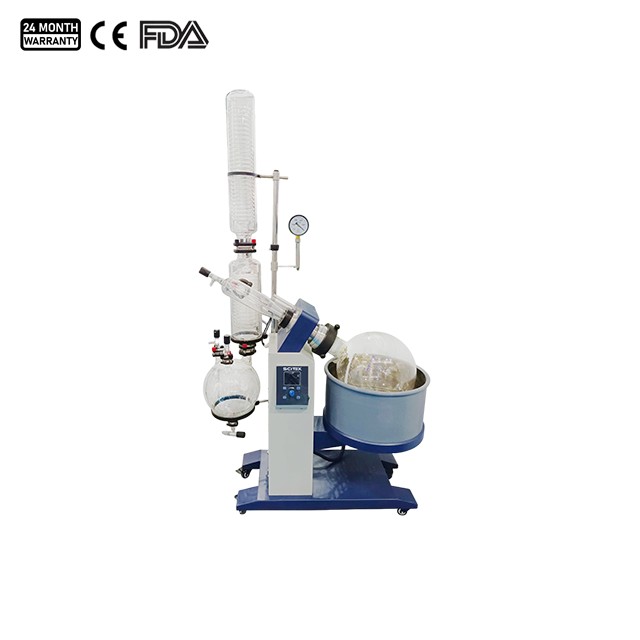

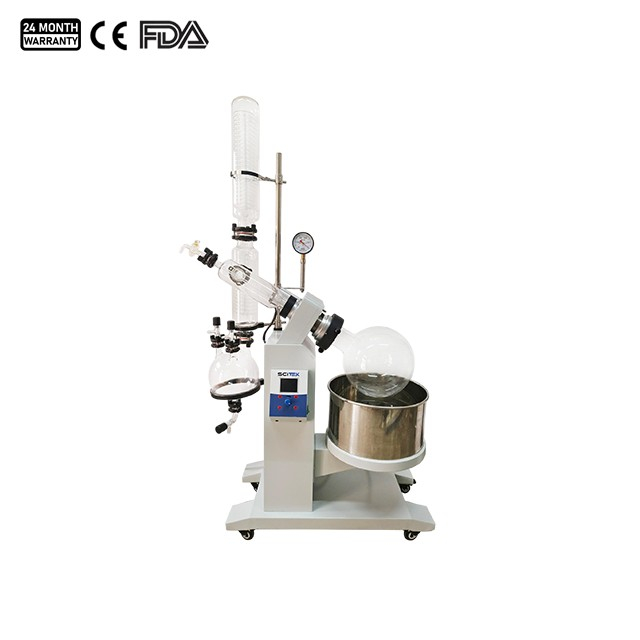

1. The design of structural adopts an upright style, making full use of space to arrange rotating, evaporating, condensing, and receiving devices, with a small footprint.
2. The sealing element is made of PTEE, which is corrosion-resistant and easy to clean.
3. The condenser is divided into two parts: main cooling and auxiliary cooling, using serpentine dual condensation to ensure high recovery rate. Quick open flange connection, easy to install and remove. The receiving flask is equipped with a check valve. The distillation and discharge can be carried out synchronously.
4. The connection between the evaporator flask and the host is made with a nut, which is convenient for loading and unloading.
5. Integrated LCD screen, used for displaying temperature and speed, capable of accurately setting heating temperature.
6. The speed adopts variable frequency speed regulation, and the LCD display is stable and reliable;
7. The constant temperature bath pot can be automatically adjusted to the appropriate position according to usage needs.
Specification:
Model
RE-5200R
RE-5220R
RE-5250R
Rotating Flask
Capacity
10 L
20 L
50 L
Caliber
F125 flange port
Receiving Flask
Capacity
5 L
10 L
20 L
Caliber
F50 flange port
F60 flange port
vent valve
F35 flange port*2
discharge valve
F50 flange port
Type
Normal
Feeding Switch
F35 flange port，11 mm barb fitting
Condenser
Vertical main and auxiliary condenser, double-layer serpentine coil
Condensation Area (㎡)
0.57
1.2
1.5
Condenser Size (Dia.×H)(mm)
Main condenser 125×560，secondary condensation 125×500
Main condenser 158×780，secondary condensation 158×530
Water bath, RT to 99 ℃; oil bath, RT to 180 ℃ (can customize higher temperature oil bath pot for RT to 260 ℃)
Bath Pot
Inner Liner Material
304 stainless steel
Inner Liner Size (Dia.×H)(mm)
400×240
450×260
550×320
Capacity (L)
About 10
About 20
About 50
Heating Power (kW)
4
6
Size (D×W×H)(mm)
≈970×550×1800
≈1300×780×2500
Shipping Size (D×W×H)(mm)
1000×600×1200
1050×620×1300
1150×700×1470
G.W. (kg)
108
125
155
Recommended Equipment (excluding)
Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-1040
Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-2040
Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-5040
Advantage:
1. The design of structural adopts an upright style, making full use of space to arrange rotating, evaporating, condensing, and receiving devices, with a small footprint.
2. The sealing element is made of PTEE, which is corrosion-resistant and easy to clean.
3. The condenser is divided into two parts: main cooling and auxiliary cooling, using serpentine dual condensation to ensure high recovery rate. Quick open flange connection, easy to install and remove. The receiving flask is equipped with a check valve. The distillation and discharge can be carried out synchronously.
4. The connection between the evaporator flask and the host is made with a nut, which is convenient for loading and unloading.
5. Integrated LCD screen, used for displaying temperature and speed, capable of accurately setting heating temperature.
6. The speed adopts variable frequency speed regulation, and the LCD display is stable and reliable;
7. The constant temperature bath pot can be automatically adjusted to the appropriate position according to usage needs.
Specification:
Model
RE-5200R
RE-5220R
RE-5250R
Rotating Flask
Capacity
10 L
20 L
50 L
Caliber
F125 flange port
Receiving Flask
Capacity
5 L
10 L
20 L
Caliber
F50 flange port
F60 flange port
vent valve
F35 flange port*2
discharge valve
F50 flange port
Type
Normal
Feeding Switch
F35 flange port，11 mm barb fitting
Condenser
Vertical main and auxiliary condenser, double-layer serpentine coil
Condensation Area (㎡)
0.57
1.2
1.5
Condenser Size (Dia.×H)(mm)
Main condenser 125×560，secondary condensation 125×500
Main condenser 158×780，secondary condensation 158×530
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
