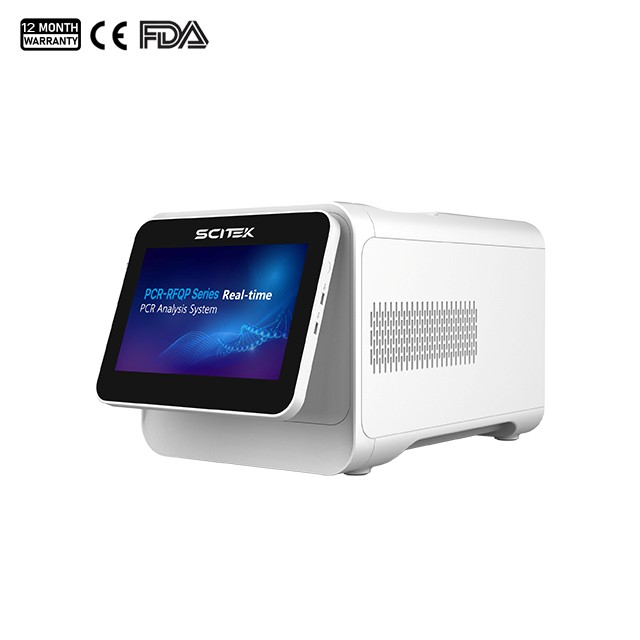

Real-time Fluorescence Quantitative PCR Detection System PCR-RFQP Series

Real-time Fluorescence Quantitative PCR Detection System PCR-RFQP Series

Model : PCR-RFQ962P; PCR-RFQ964P; PCR-RFQ966P

Display :12.1" touchscreen
Max. Heating/Cooling Rate : 8.0 °C/s
Thermal Gradient Block : 12 independent columns
Data Management : Audit trail system compliant
Calibration Requirement : ROX-calibration-free architecture

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Real-time Fluorescence Quantitative PCR Detection System Application:

The PCR-RFQP series features 192-fiber side-bottom optical detection and a ROX-free calibration architecture, effectively eliminating interference from condensation and edge effects. It combines ultra-fast temperature control (8.0°C/s) with 6-channel multiplexing capabilities, allowing for the detection of 5 targets in a single tube. Equipped with a 12.1-inch retractable touchscreen that supports standalone operation, PCR-RFQP serie is the smart choice for modern laboratories seeking to exponentially increase efficiency.

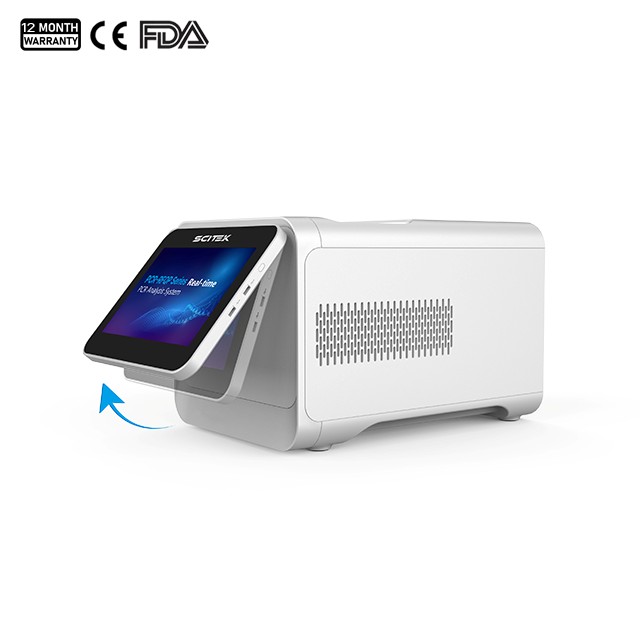

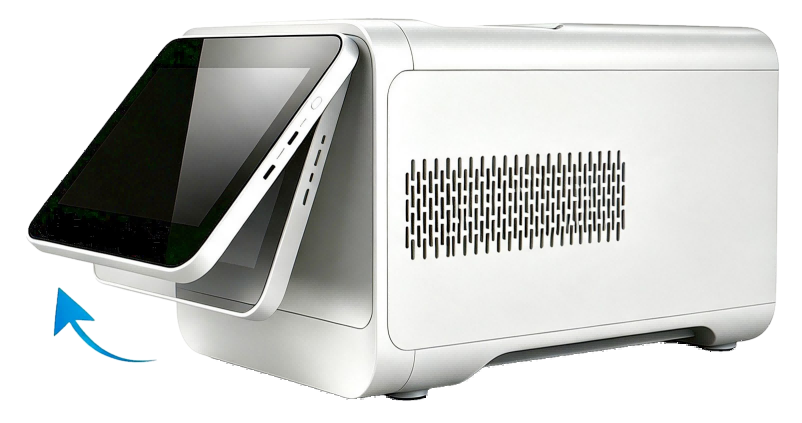

12.1" Retractable Touchscreen With Adjustable Viewing Angle

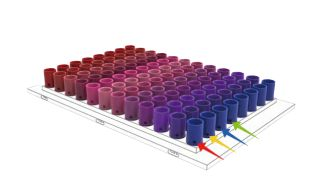

Side-Bottom Optical Detection via Optical Fiber

Real-time Fluorescence Quantitative PCR Detection System Feature:

12.1" retractable touchscreen with adjustable viewing angle, no PC required.
Ultra-fast ramp rates of 8°C/s, significantly boosting overall laboratory throughput and efficiency.
12-column temperature gradient settings, allowing for the precise optimization of PCR reaction conditions in a single run, completes 96-well detection in 5 seconds.
192 equidistant optical fibers and advanced side-bottom scanning provide optical uniformity and eliminate edge effects, ensuring superior signal consistency.
Ultra-high-precision optical alignment eliminates the need for expensive ROX reference dyes, significantly reducing daily operating costs.
Long-life, maintenance-free LED light source with strong fluorescence signal and extremely low background noise.
Up to 100 preset programmes, permitting one-touch execution of frequently used programmes, streamlining operations and maximising workflow efficiency.
Function: Qualitative/absolute quantification, relative quantitative, genotyping, HRM, melting curve, standard curve, allele identification, temperature gradient.

Real-time Fluorescence Quantitative PCR Detection System Specification:

Model	PCR-RFQ962P	PCR-RFQ964P	PCR-RFQ966P
Display	12.1" touchscreen with adjustable viewing angle
Channel	2-channel	4-channel	6-channel
Reaction Volume	10–100 μL

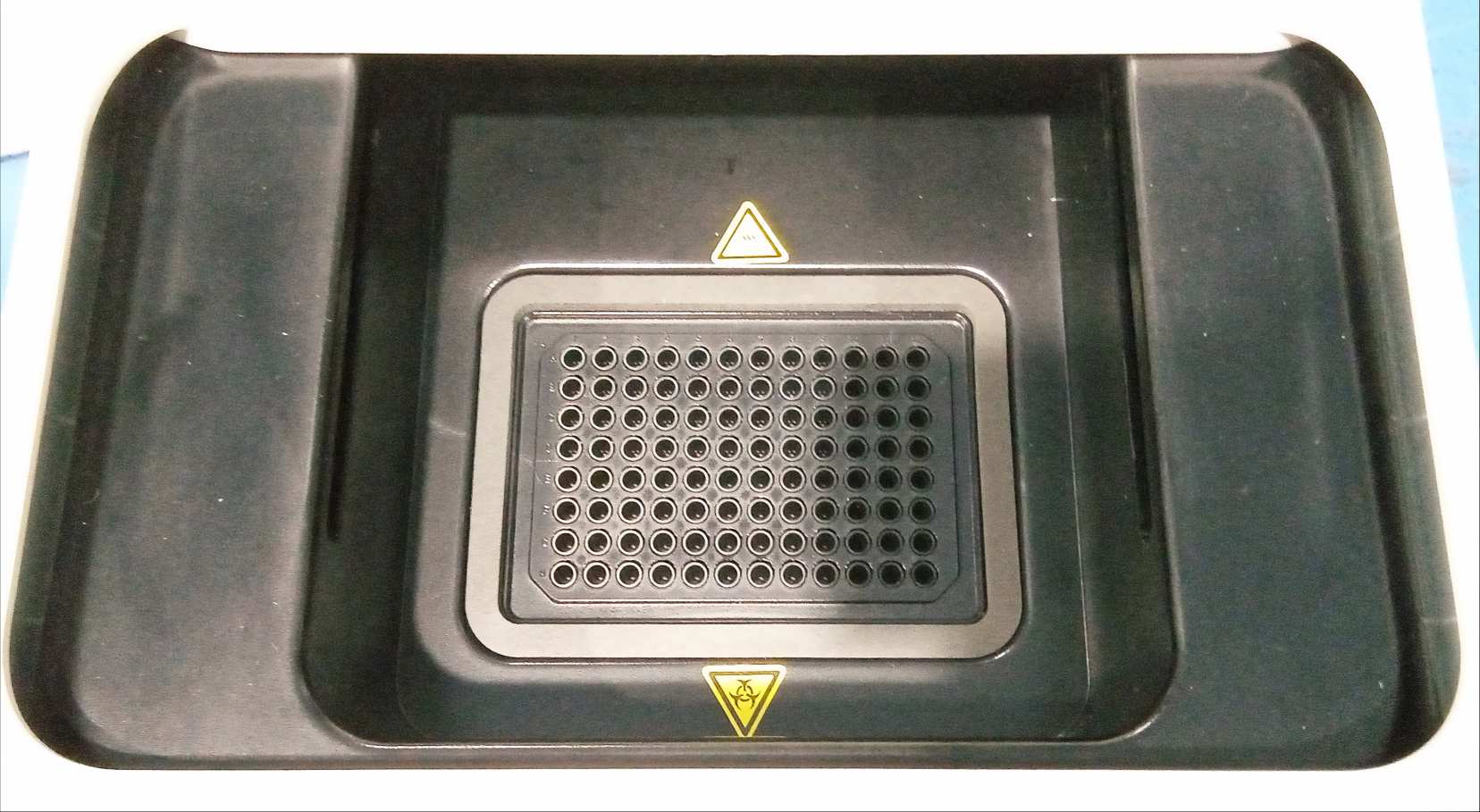

Compatible Consumable	0.2 mL tube, 0.2 mL 8-tube strips, 0.2 mL 96 well plate
Max. Heating/Cooling Rate	8.0 °C/s
Temp. Range	0–100 ℃
Temp. Uniformity	≤ ±0.2 ℃
Temp. Fluctuation	≤ ±0.1 ℃
Temp. Accuracy	≤ ±0.1 ℃
Thermal Gradient Range	0.1–42 ℃
Thermal Gradient Block	12 independent columns
Hot Lid Temp.	30 ℃–110 ℃ (Default 105 ℃)
Temp. Control Mode	Block/Tube mode
Excitation Light Source	LED, maintenance-free
Detector	High sensitivity photoelectric detector
Scan Time	5 s to complete 96 well test
Excitation Wavelength	300–810 nm
Emission Wavelength	500–810 nm
Dynamic Range	1–1010 Copies, with sensitivity of 1 copy
Calibration Requirement	ROX-calibration-free architecture
Compatible Fluorophore/Dye	F1: FAM, SYBR Green I, EvaGreen;	F1: FAM, SYBR Green I, EvaGreen;	F1: FAM, SYBR Green I, EvaGreen;
	F2: HEX, VIC, JOE, TET, Yellow dyes;	F2: HEX, VIC, JOE, TET, Yellow dyes;	F2: HEX, VIC, JOE, TET, Yellow dyes;
		F3: ROX, Texas Red;	F3: ROX, Texas Red;
		F4: Cy5;	F4: Cy5;
			F5: Cy5.5;
			F6: Cy3 (Replaceable upon request);
Analysis Mode	Qualitative / Absolute Quantification, Relative Quantification, Allelic Discrimination (Genotyping), HRM (High Resolution Melting), Melting Curve Genotyping, Standard Curve, Thermal Gradient Optimization, etc.
Operation System	Win 7, Win 10, Win 11
Data Export Format	xls, csv, txt, pdf, jpg
Data Management	Audit trail system compliant

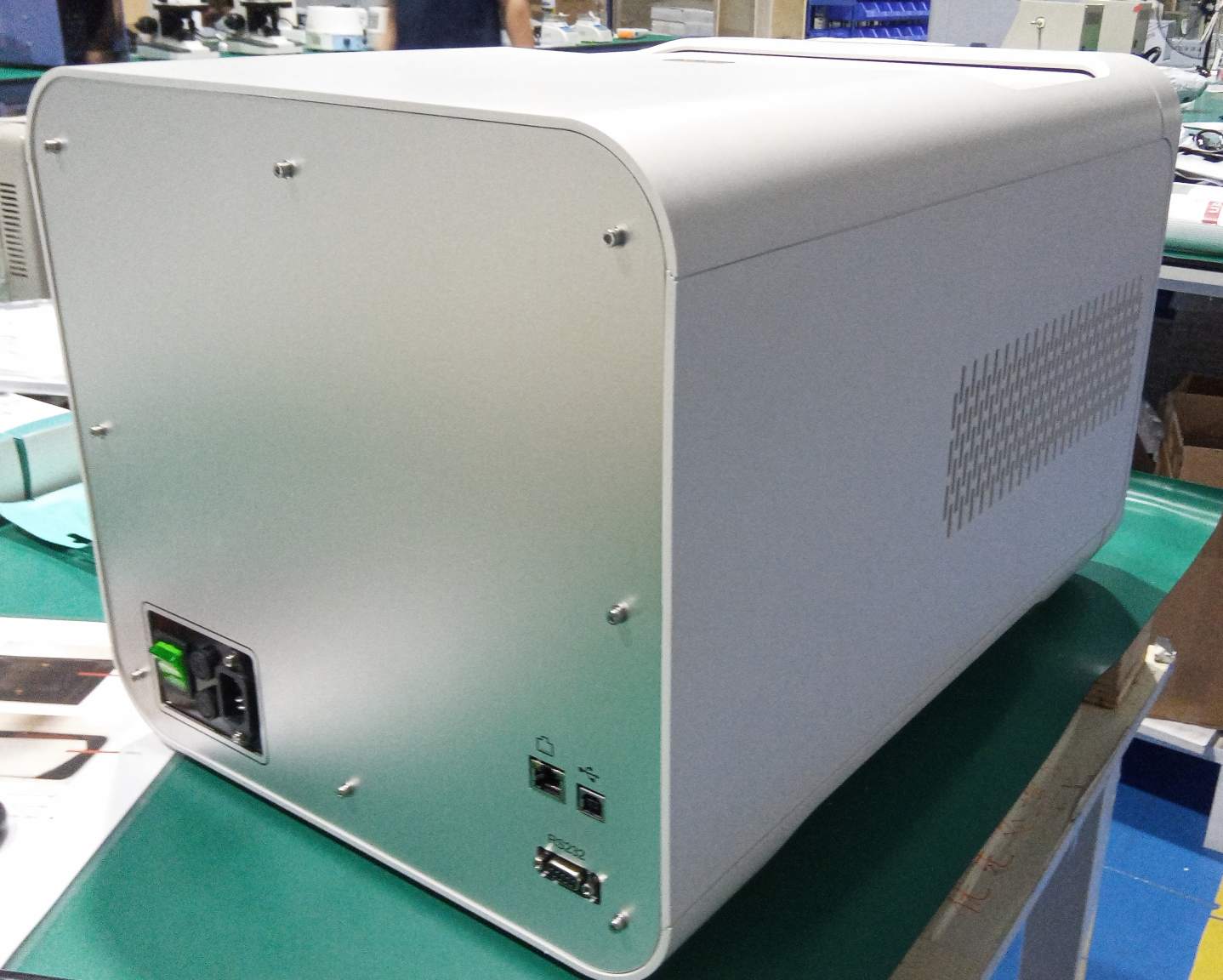

Interface	USB2.0, RS232
Power Supply	AC 220/110V, 50/60Hz
Consumption	1500 W
External Size (W×D×H)	520×350×330 mm

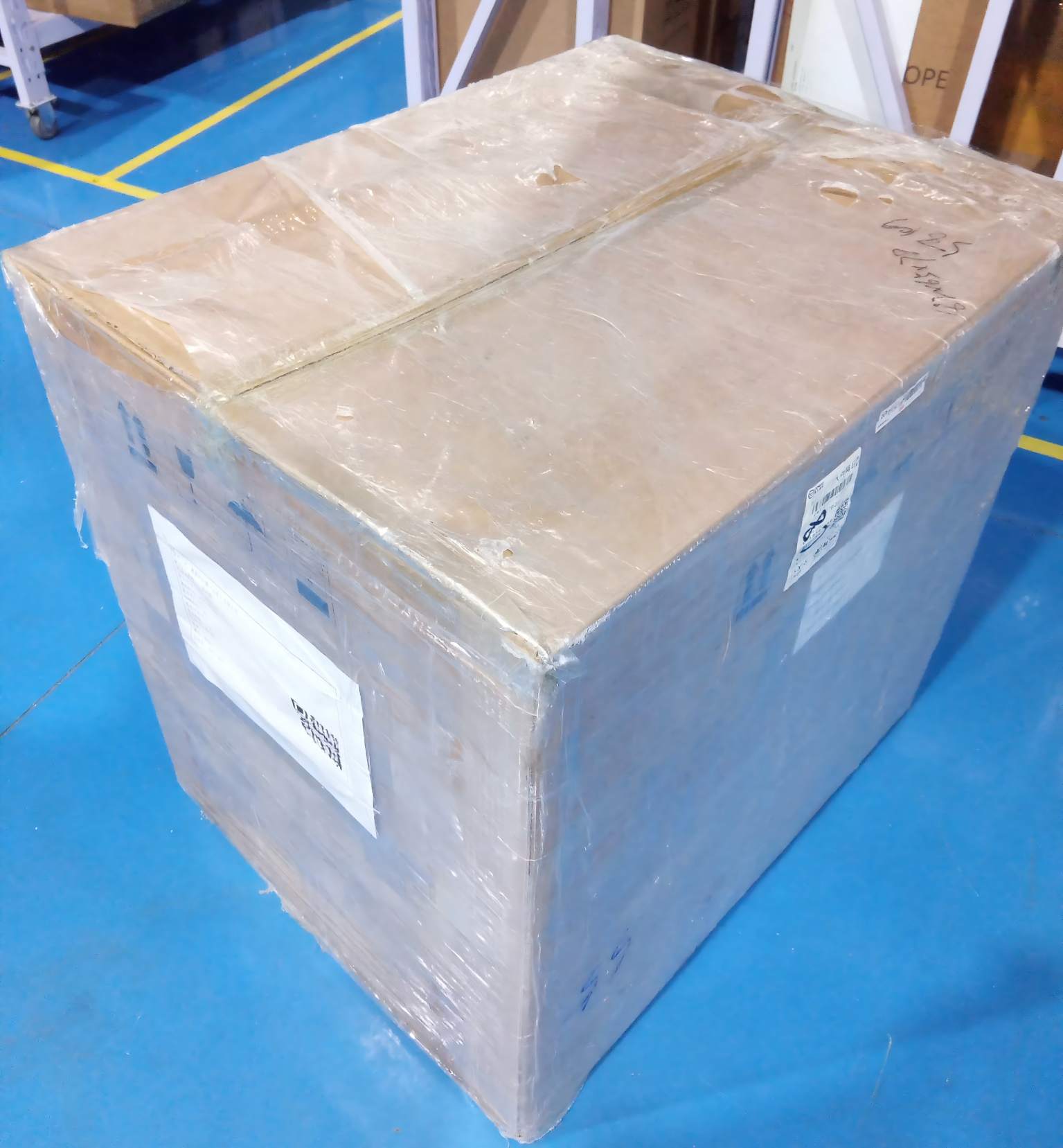

Shipping Size (W×D×H)	835×660×790 mm
N.W/G.W.	32/56 kg
