Real-time Fluorescence Quantitative PCR System

Model : PCR-RFQ84

Sample Capacity : 8
Maximum Ramping Rate : 6.0° C/s
Fluorescence Channels(MAX) : 4
Sizes (W×D×H)(mm) : 180x150x90
The PCR-rfq84 Real-time fluorescence quantitative PCR machine is portable and suitable for routine low throughput testing needs in the laboratory.
Availability:
Quantity:

PCR-RFQ84 real-time fluorescence quantitative PCR machine provides real-time fluorescence quantitative PCR detection of 8 samples in a very portable way. Which is suitable for daily low-throughput detection needs such as animal and plant diseases, food safety, and biological research laboratories. The real time qpcr system can be placed in a rapid test box to ensure the needs of rapid molecular detection on site.

Real-time Fluorescence Quantitative PCR Machine Specifications:

Model PCR-RFQ84
Type Real-Time QPCR
Sample Capacity 8
Compatible Consumables 0.2mL Clear tube
Maximum Ramping Rate 6.0° C/s
Temperature Range 4 – 100 ℃
Temperature Accuracy ±0.15℃
Temperature Uniformity ±0.2℃
Excitation Light Single LED
Detector PMT
Detection Method Time-resolved real-time scanning
Excitation/Emission Wavelengths 455-650nm/510-750nm
Fluorescence Channels (MAX) 4
Supported Dyes FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas Red, Cy5/LIZ (Optional- Cy5.5 or Cy3)
Data Connection USB, bluetooth
Operation Mode 5touch screen
Power DC15V, 90W or 12V vehicle power supply, Battery Packs
Size(LxWxH)(mm) 180x150x90
Shipping Size (W×D×H)(mm) 340×260×195
N.W/G.W (kg) 1.2/2.1

Real-time Fluorescence Quantitative PCR Machine Features:

Fast heating and cooling rates and precise PCR thermal cycle reaction. The real-time fluorescence quantitative PCR machine does not need calibration after moving. It is compact and portable, weighing only 1.4 kg, and can be easily placed in a rapid inspection box. The real-time fluorescence quantitative PCR machine can be battery-powered, suitable for field animals and plants, environmental testing, and quality control on-site testing. The operation interface is simple and no training is required.

Details of Real-time Fluorescence Quantitative PCR Machine:

PCR-RFQ84 (1)

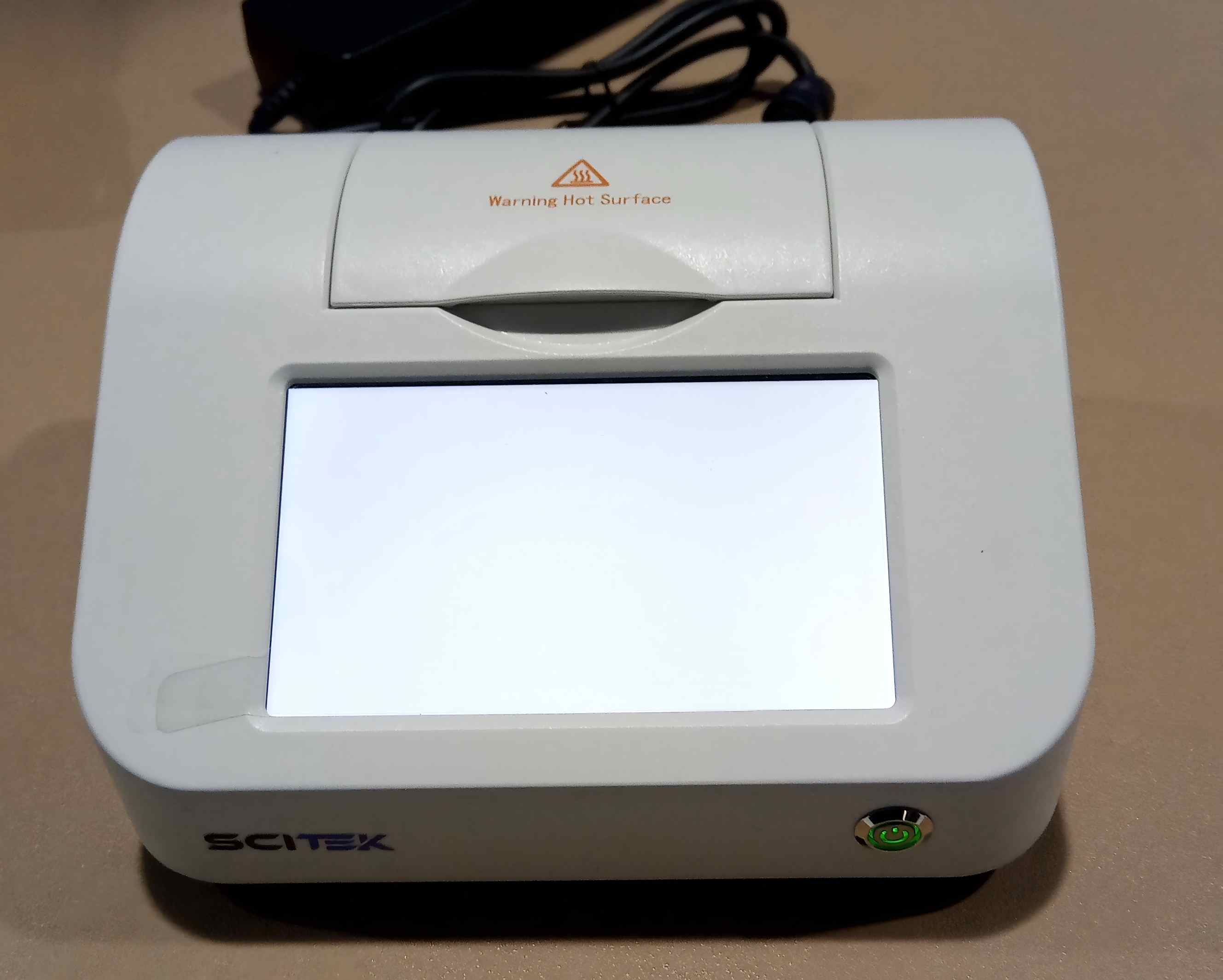

Clear Instrument Layout — The front panel clearly shows the display, control interface, and sample loading area for convenient operation. The intuitive interface provides clear access to key parameters and real-time amplification data.

PCR-RFQ84 (10)

PCR-RFQ84 (2)

PCR-RFQ84 (10)




PCR-RFQ84 (9)

PCR-RFQ84 (7)

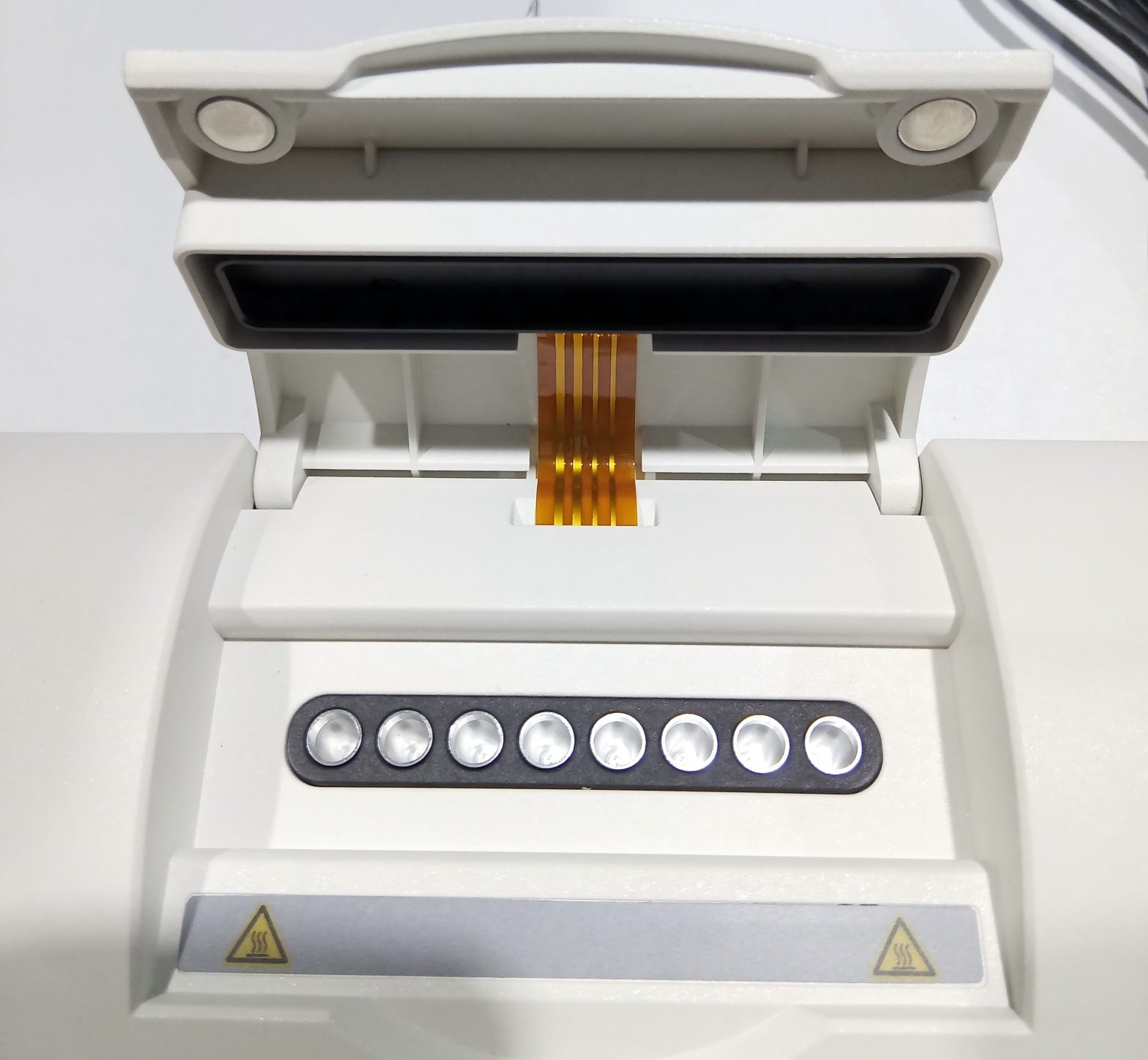

Sample Loading Area — The precision-designed sample chamber provides a stable environment for PCR tubes or microplates.

PCR-RFQ84 (5)

PCR-RFQ84 (8)

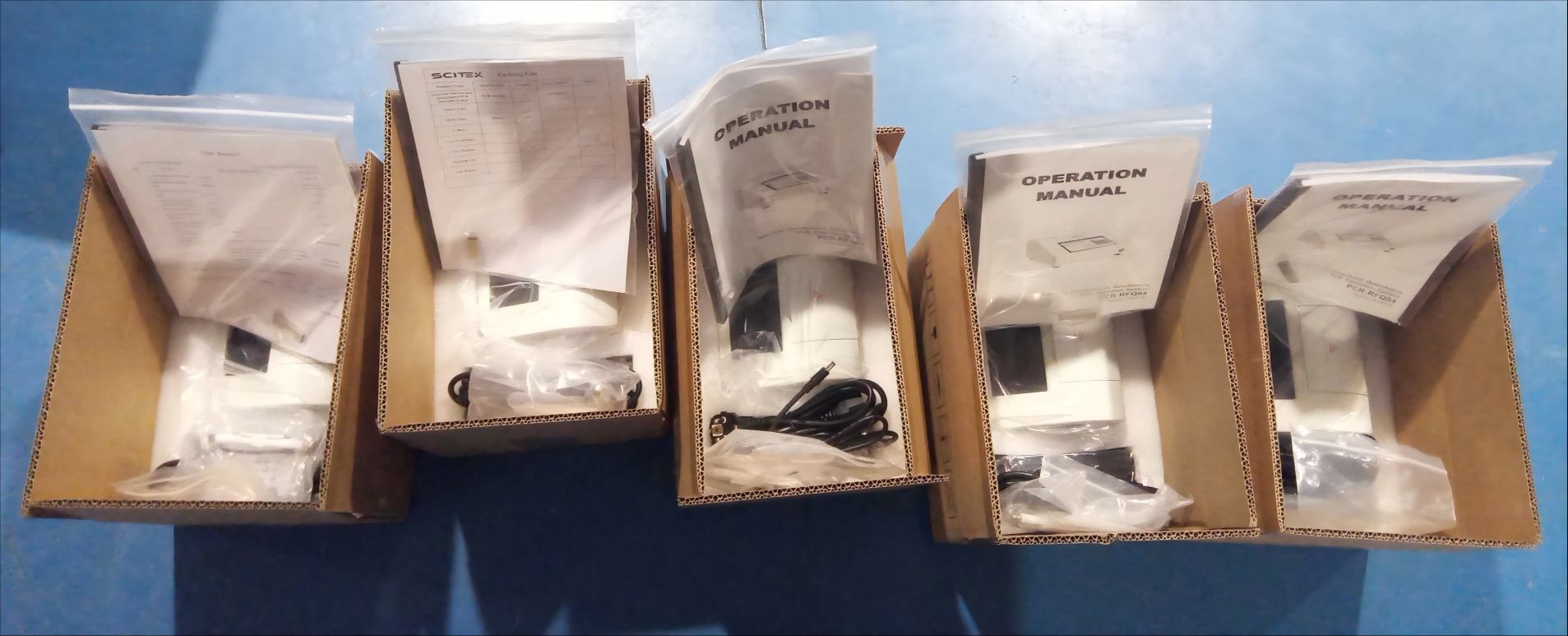

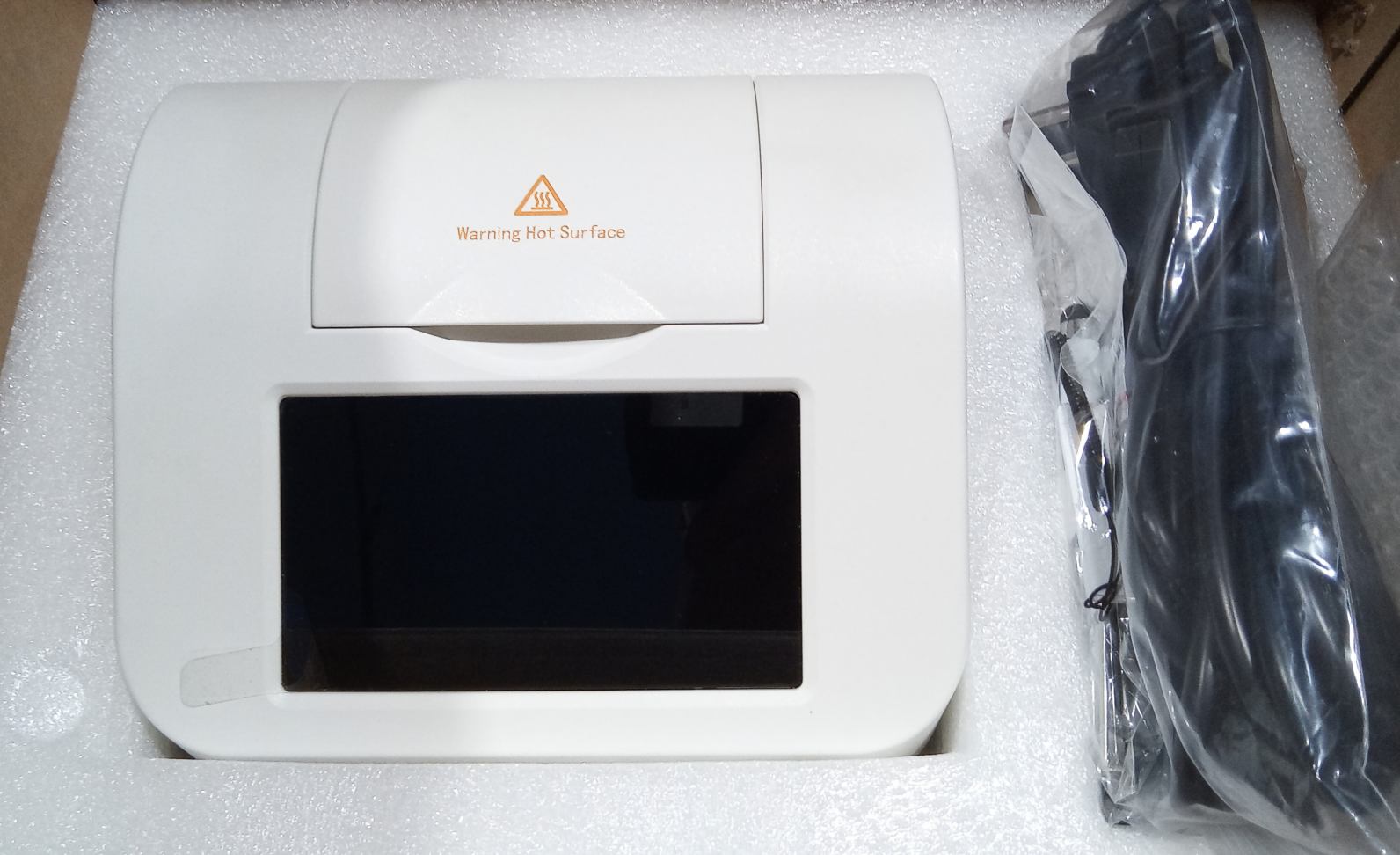

The real-time fluorescence quantitative PCR system is carefully protected with cushioning materials to reduce the risk of impact during transportation. A sturdy export package provides additional protection for long-distance shipping and handling.
