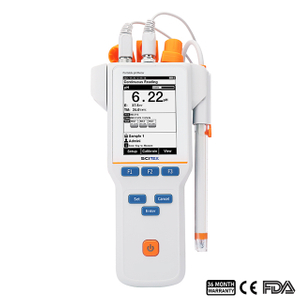

Portable Multi-Parameter Meter

Model : PH-P23A; CON-TSP23B; ORP-P23C; PHC-P23D; PHC-OP23E

Temperature Sensor : PT1000
Temperature Range : (0.0~99.9)℃
Temperature Error : ±0.5℃
Temperature Resolution : 0.1℃

Size (WxDxH)(mm) : 240x123x51

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

The portable multi-parameter meter is simple shape and light weight. It adopts advanced 32 bits embedded MCU and SMT technology which is highly intelligent. It is easy to understand and operate by means of man-machine dialogue. It is mainly used in power, steel industry, petroleum and petrochemical, food industry, scientific research institutes and universities.

Portable Multi-Parameter Meter Features:

Advanced 32 bits embedded MCU and SMT technology
Display in Chinese or English, Intelligent man-machine interface---easy understanding and operation
Professional sensor---accurate, quick, reliable
Rugged battery--- continuously measure for at least 16h every charge
Intelligent measurement, auto judge as calibration is stable---ease operation
Automatic and manual, continuous and discontinuous data storage and the measured data can be uploaded to PC.

Portable Multi-Parameter Meter Specifications:

Type	pH	ORP	TDS	Sal.	Conductivity
Display	3.5 inch Color LCD
Range	(0.00 ~ 14.00)pH	(-2000 ~2000)mV	(0.00~200.00) mg/L	(0.00~0.09) ppt	K=0.01	(0.000 ~ 0.200)μS/cm,(0.000 ~ 2.000)μS/cm,(0.000~ 20.00)μS/cm,(0.000~ 200.0)μS/cm
			(0.00~2.00) g/L	(0.00~0.86) ppt	K=0.10	(0.000 ~ 2.000)μS/cm,(0.000 ~ 20.00)μS/cm,(0.000~ 200.00)μS/cm,(0.000~ 2000)μS/cm
			(0.00~20.00) g/L	(0.00~11.68) ppt	K=1.00	(0.000 ~ 20.00)μS/cm,(0.000 ~ 200.0)μS/cm,(0.000~ 2000)μS/cm,(0.000~ 20.00)mS/cm
			(0.00~80.00) g/L	(0.00~80.0) ppt	K=10.0	(0.000 ~ 200.0)μS/cm,(0.000 ~ 2000)μS/cm,(0.000~ 20.00)mS/cm,(0.000~ 200.0)mS/cm
Resolution	0.01pH	0.01mV	0.01mg/L	0.01ppt	0.001μS/cm
Error	±0.02pH	±1%FS	±1.5%FS
Input Impedance	≥1 x 10¹²Ω		-
Respond Time (T90)	90s		≤30s
Temperature Sensor	PT1000	-	PT1000
Temperature Range	(0.0~99.9)℃	-	(0.0~99.9)℃
Temperature Error	±0.5℃	-	±0.5℃
Temperature Resolution	0.1℃	-	0.1℃
Temp. Comp. Range	(0.0~60.0)℃	-	(0.0~60.0)℃
Temp. Comp. Factor	-		(0.0~60.0)%/℃
Sample Temperature	(5~50)℃		(5~60)℃
Storage Temperature	(-25~55)℃ (higher than 0℃ for the electrode)		(-25~55)℃
Ambient Temperature	(5~45)℃
Ambient Humidity	≤93%RH(no condensing)
Power Supply	3.6V battery × 2
Size (H×W×D)(mm)	240x123x51
Weight	0.5kg

Configuration:

PH-P23A Configuration

PH-P23A Portable pH Meter

Portable Tri-combination pH Electrode

pH Standard Solution (pH4.01)

pH Standard Solution (pH6.86)

pH Standard Solution (pH9.18)

USB Data Line

USB Charger connector

CON-TSP23B Configuration

CON-TSP23B Portable Conductivity/TDS/Salinity Meter

(K=0.01) Portable Conductivity Electrode Assembly

(K=0.1) Portable Conductivity Electrode Assembly

(K=1) Di-combination Conductivity Electrode, Conductivity Solution

(K=10) Di-combination Conductivity Electrode, Conductivity Solution

USB Data Line

USB Charger connector

ORP-P23C Configuration

Portable ORP Meter

Portable ORP Electrode

ORP Standard Solution

USB Data Line

USB Charger connector

PHC-P23D Configuration

Portable pH/Conductivity Meter

Portable Tri-combination pH Electrode

pH Standard Solution (pH4.01)

pH Standard Solution (pH6.86)

pH Standard Solution (pH9.18)

(K=0.01) Portable Conductivity Electrode Assembly

(K=0.1) Portable Conductivity Electrode Assembly

(K=1) Di-combination Conductivity Electrode, Conductivity Solution

(K=10) Di-combination Conductivity Electrode, Conductivity Solution

USB Data Line

USB Charger connector

PHC-OP23E Configuration

Portable pH/ORP/Conductivity Meter

USB Data Line

USB Charger connector

Portable Tri-combination pH Electrode

pH Standard Solution (pH4.01)

pH Standard Solution (pH6.86)

pH Standard Solution (pH9.18)

Portable ORP Electrode

ORP Standard Solution

(K=0.01) Portable Conductivity Electrode Assembly

(K=0.1) Portable Conductivity Electrode Assembly

(K=1) Di-combination Conductivity Electrode, Conductivity Solution

(K=10) Di-combination Conductivity Electrode, Conductivity Solution

Portable conductivity electrode and conductivity solution can be chosen

one according to the user's order

Type	pH	ORP	TDS	Sal.	Conductivity
Display	3.5 inch Color LCD
Range	(0.00 ~ 14.00)pH	(-2000 ~2000)mV	(0.00~200.00) mg/L	(0.00~0.09) ppt	K=0.01	(0.000 ~ 0.200)μS/cm,(0.000 ~ 2.000)μS/cm,(0.000~ 20.00)μS/cm,(0.000~ 200.0)μS/cm
(0.00~2.00) g/L	(0.00~0.86) ppt	K=0.10	(0.000 ~ 2.000)μS/cm,(0.000 ~ 20.00)μS/cm,(0.000~ 200.00)μS/cm,(0.000~ 2000)μS/cm
(0.00~20.00) g/L	(0.00~11.68) ppt	K=1.00	(0.000 ~ 20.00)μS/cm,(0.000 ~ 200.0)μS/cm,(0.000~ 2000)μS/cm,(0.000~ 20.00)mS/cm
(0.00~80.00) g/L	(0.00~80.0) ppt	K=10.0	(0.000 ~ 200.0)μS/cm,(0.000 ~ 2000)μS/cm,(0.000~ 20.00)mS/cm,(0.000~ 200.0)mS/cm
Resolution	0.01pH	0.01mV	0.01mg/L	0.01ppt	0.001μS/cm
Error	±0.02pH	±1%FS	±1.5%FS
Input Impedance	≥1 x 10¹²Ω	-
Respond Time (T90)	90s	≤30s
Temperature Sensor	PT1000	-	PT1000
Temperature Range	(0.0~99.9)℃	-	(0.0~99.9)℃
Temperature Error	±0.5℃	-	±0.5℃
Temperature Resolution	0.1℃	-	0.1℃
Temp. Comp. Range	(0.0~60.0)℃	-	(0.0~60.0)℃
Temp. Comp. Factor	-	(0.0~60.0)%/℃
Sample Temperature	(5~50)℃	(5~60)℃
Storage Temperature	(-25~55)℃ (higher than 0℃ for the electrode)	(-25~55)℃
Ambient Temperature	(5~45)℃
Ambient Humidity	≤93%RH(no condensing)
Power Supply	3.6V battery × 2
Size (H×W×D)(mm)	240x123x51
Weight	0.5kg
