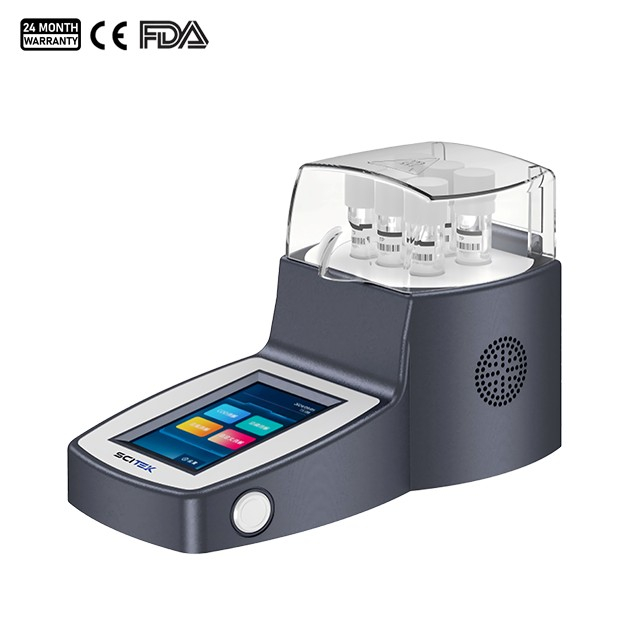

Portable intelligent digestion instrument features an exceptionally compact design and supports key testing parameters, including COD, total phosphorus, total nitrogen, and total chromium, enabling streamlined, one-touch digestion. Whether in the laboratory or at complex field sites for water quality testing, TK-06 delivers rapid, accurate, and safe sample digestion.
3.5-inch high-definition full-color touchscreen, displaying real-time parameters such as current temperature, set time and remaining time.
Equipped with intelligent digestion programs, enabling one-click digestion for COD, TP, TN and other projects.
Adopts intelligent PID temperature control technology for precise temperature regulation and uniform heating.
Incorporates internal thick-film heating technology for fast heating speed.
Temperature calibration function to eliminate errors between displayed temperature and sample temperature.
Alarm prompts are set for each link of the digestion process to ensure fast, accurate and safe digestion.
Portable and compact, can be powered by a mobile power supply for complex field site digestion.
Equipped with automatic over-temperature alarm and power cut-off function.
One-piece heat-resistant protective cover ensures safety and reliability during digestion
Embedded switch greatly extends the service life of the switch.
Supports user-defined settings, temperature and time can be modified according to customer needs with simple operation.
Heat-resistant ABS molded housing protects the operator from accidental burns.
Model | DTD-06 |
Display | 3.5-inch TFT touch screen |
Throughput | 6 tubes |
Sample Volume | 0–10 mL |
Digestion Hole | Dia: 16.6 mm, D: 67 mm |
Heating Speed | From 25℃ to 165℃ within 6 minutes |
Temp. Control | Intelligent PID control |
Temp. Resolution | 0.1 ℃ |
Temp. Accuracy | ±1.5 ℃ |
Heating Method | Thick-film heating technology |
Power Supply | 24 V, 10 A |
Consumption | 192 W |
External Size (W×D×H) | 224×112×142 mm |
Shipping Size (W×D×H) | 425×285×195 mm |
N.W./G.W. | 1.4/2.5 kg |
