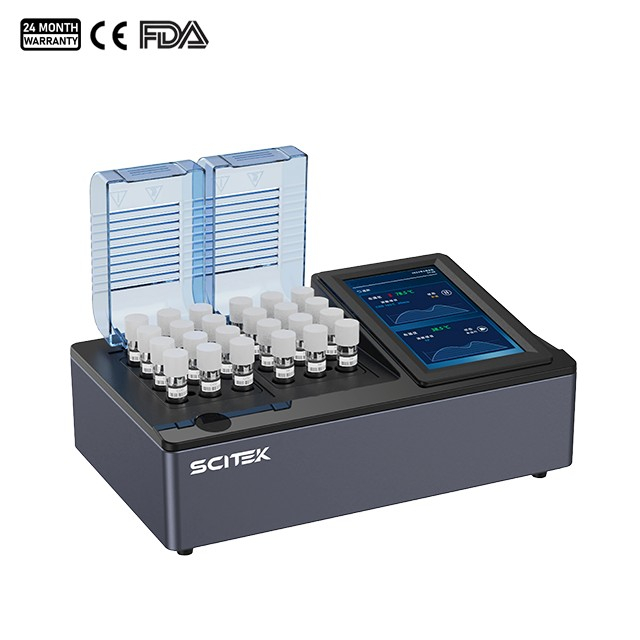

Application of Dual-temperature Zone Digestion Instrument:
Groundbreaking intelligent dual-zone Benchtop digestion instrument with 7-inch full-color capacitive touchscreen and an intelligent PID temperature control algorithm, capable of heating up to 165°C in 6 minutes. Incorporating a multi-dimensional intelligent alert system comprising pop-up windows, voice prompts and 3-colour status lights, alongside active fan cooling technology.
Working alongside the DTD-D24, ensure every experiment conducts with both efficiency and precision, whilst providing audiovisual feedback and safety assurance.
Dual-temperature Zone Digestion Instrument Feature:
7-inch full-color capacitive touchscreen offers intuitive data display, eliminating the need for cumbersome physical buttons.
3-color external status indicator, combined with voice announcements and pop-up alerts, allows for instant status monitoring from a distance.
Intelligent PID algorithm ensures temperature control precision of ±0.1°C.
Optimized heating architecture enables rapid heating to 165°C in just 6 minutes, eliminating long wait times.
New temperature calibration feature allows for one-touch calibration of the temperature difference between the sensor and the digestion wells.
I6 user-editable standard programs and a fully customizable digestion program function.
Supports quick method switching and one-touch digestion to streamline workflows.
Automatic fan cooling with active start/stop technology; rapid cooling after digestion prevents accidental burns during sample retrieval.
Supports dual-temperature/dual-control and dual-temperature/single-control modes to meet diverse experimental needs, enhancing efficiency and sample throughput.
Comprehensive communication interfaces: two USB Type-A ports, one USB Type-B port, and an RS-485 port.
Multifunctional USB interface supports firmware upgrades for the screen and mainboard, as well as experimental data export.
Dual-temperature Zone Digestion Instrument Specification:
Model | DTD-D24 |
Display | 7-inch full-color capacitive touch screen |
Throughput | 24 tubes (dual-zone: 12+12 channels) |
Sample Volume | 0–10 mL |
Digestion Hole | Dia: 16.6 mm, D: 65 mm |
Temp. Range | Ambient + 5 ℃ to 200 ℃ |
Temp. Control | Intelligent PID Control |
Temp. Control Accuracy | 0.1℃ |
Temp. accuracy | ±1.5℃ |
Heating Speed | From 25℃ to 165℃ within 6 minutes |
Built-in Program | Pre-set 6 digestion programs (CODcr, TP, TN, TCr, Pb, CODmn) |
Temperature Calibration | With temperature calibration and saving calibration records |
Status Light Indicator | Blue: Idle / Green: Digesting / Red: Fault or Malfunction |
Safety Protection | Over-temperature protection, splash protection |
Function | Quick project switch, Timer, Customizable programs, One-touch digestion, Real-time clock display, Auto-start/stop heat dissipation |
Power Supply | AC 110-220V, 50/60Hz |
Consumption | 750 W |
External Size (W×D×H) | 341×206×153 mm |
Shipping Size (W×D×H) | 505×295×195 mm |
N.W./G.W. | 5.1/6.5 kg |
