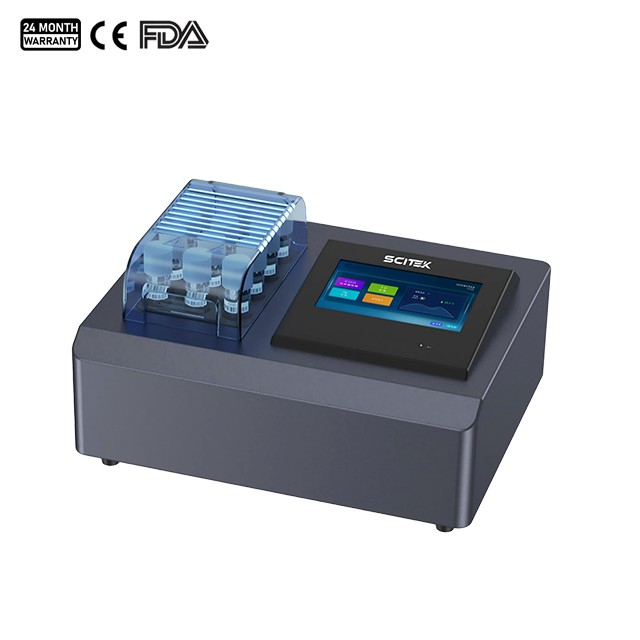

Application of Benchtop Digestion Instrument:
Intelligent benchtop digestion instrument accommodates the simultaneous digestion of 12 samples per batch, fully meeting the digestion requirements for key water quality monitoring parameters such as COD (Chemical Oxygen Demand), total phosphorus (TP), and total nitrogen (TN). Widely used in environmental monitoring, wastewater treatment plants, corporate R&D, university laboratories, and third-party testing agencies.
Benchtop Digestion Instrument Feature:
4.3-inch touchscreen, featuring simple and intuitive operation with user-friendly interface.
3 preset digestion programs (COD, TP, TN) and supports custom settings.
Built-in digestion program parameters can be modified to meet diverse user requirements.
Real-time display of digestion program details, operating status, current temperature, set time, and remaining time.
Real-time temperature curve display for easy monitoring of temperature fluctuations.
Pop-up alerts accompanied by audible beeps ensure timely and efficient digestion monitoring.
Thick-film heating technology for rapid heating and a long service life.
Intelligent PID temperature control mode ensures precise temperature regulation.
Temperature calibration function eliminates discrepancies between displayed and actual sample temperatures.
Automatic heating cut-off upon overheating ensures the safety of the equipment and the surrounding environment.
Integrated heat-resistant protective shield allows for real-time observation of the digestion process while ensuring operator safety.
Intelligent air-cooling system maintains optimal chassis temperature, preventing burns and extending the lifespan of electronic components.
Benchtop Digestion Instrument Specification:
Model | DTD-12 |
Display and Input | 4.3-inch capacitive touchscreen |
Digestion Quantity | 12 tubes |
Digestion Capacity | 0–10 mL |
Digestion Hole | Dia: 16.6 mm, Depth: 65 mm |
Temperature Control Mode | Intelligent PID temperature control |
Temperature Control Precision | 0.1 ℃ |
Temperature Accuracy | ±1.5 ℃ |
Heating Speed | Raises from room temperature (25℃) to 165℃ within 6 minutes |
Power Supply | AC 110-220V/50/60Hz |
Consumption | 375 W |
External Size (W×D×H) | 270×214×146 mm |
Shipping Size (W×D×H) | 425×285×195 mm |
N.W./G.W. | 3.55/4.5 kg |
