Availability: | |
---|---|
Quantity: | |
Model | PCR-RFQ884 |
---|---|
Sample Capacity | 8×0.2ml (8 well) |
Consumable | Clear 0.2 ml PCR tube/8-tube strips |
Reaction Volume | 15-100μl |
Temperature Control Technology | Marlow customized peltier allow 1000000 cycles |
Temperature Range | 0-100℃ (Resolution: 0.1℃) |
Max. Ramp Rate | 7℃/s |
Temperature Fluctuation | ±0.1℃ |
Uniformity | ±0.25℃ |
Accuracy | ±0.25℃ |
Hot Lid Temperature | 30-110℃ (Adjustable, default 105℃) |
Temperature Control | Block/Tube |
Excitation Wavelength | F1: 470nm F2: 523nm F3: 571nm F4: 628nm |
Emission Wavelength | F1: 525nm F2: 571nm F3: 612nm F4: 692nm |
Factory Calibrated Dyes | F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET F3: ROX F4: CY5 |
Excitation | Long life LED |
Detection | High sensitivity photoelectric detector |
Dynamic Range | 1-1010 Copies |
Sensitivity | 1 copy |
Feature Function | Quantitative/qualitative, Melting curve, Genotyping |
Date Export Formats | Excel, CVS, txt |
Printing | Report can be printed (optional USB thermal printer) |
Communication | WIFI/USB2.0 |
Power Supply | AC220V, 50Hz |
Power | DC15V, 225W |
Size(W×D×H)(mm) | 195×165×140 |
Shipping Size(W×D×H)(mm) | 390x320x320 |
N.W./G.W. (kg) | 3/7 |

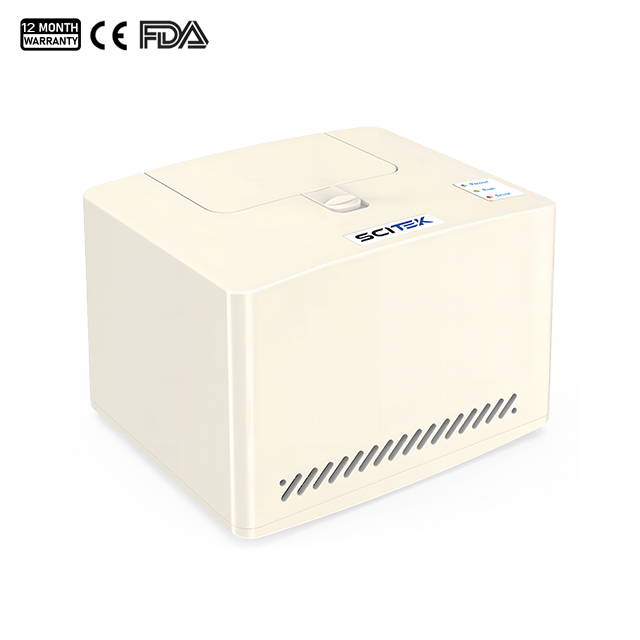

This real-time fluorescence quantitative PCR detection system adopts a four-channel, 8-well module design to ensure stable and accurate detection. It is small and easy to carry, suitable for aquaculture, disaster epidemics, food safety and other fields.
Powerful software analysis functions can be quantitative analysis, melting curve analysis, genotyping, etc.
Adopting side-scanning technology, short detection distance and stable fluorescence acquisition signal.
They are adopting the same collection optical path to improve repeatability.
LED light source has a long service life and is more energy-saving and environmentally friendly.
Over-current, over-temperature, power failure data self-recovery, and other safety protection functions.
Positive and negative air vent designs can be placed side by side, saving laboratory space.
Support lithium battery power supply, especially suitable for rapid inspection and on-site inspection.
Model | PCR-RFQ884 |
---|---|
Sample Capacity | 8×0.2ml (8 well) |
Consumable | Clear 0.2 ml PCR tube/8-tube strips |
Reaction Volume | 15-100μl |
Temperature Control Technology | Marlow customized peltier allow 1000000 cycles |
Temperature Range | 0-100℃ (Resolution: 0.1℃) |
Max. Ramp Rate | 7℃/s |
Temperature Fluctuation | ±0.1℃ |
Uniformity | ±0.25℃ |
Accuracy | ±0.25℃ |
Hot Lid Temperature | 30-110℃ (Adjustable, default 105℃) |
Temperature Control | Block/Tube |
Excitation Wavelength | F1: 470nm F2: 523nm F3: 571nm F4: 628nm |
Emission Wavelength | F1: 525nm F2: 571nm F3: 612nm F4: 692nm |
Factory Calibrated Dyes | F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET F3: ROX F4: CY5 |
Excitation | Long life LED |
Detection | High sensitivity photoelectric detector |
Dynamic Range | 1-1010 Copies |
Sensitivity | 1 copy |
Feature Function | Quantitative/qualitative, Melting curve, Genotyping |
Date Export Formats | Excel, CVS, txt |
Printing | Report can be printed (optional USB thermal printer) |
Communication | WIFI/USB2.0 |
Power Supply | AC220V, 50Hz |
Power | DC15V, 225W |
Size(W×D×H)(mm) | 195×165×140 |
Shipping Size(W×D×H)(mm) | 390x320x320 |
N.W./G.W. (kg) | 3/7 |
This real-time fluorescence quantitative PCR detection system adopts a four-channel, 8-well module design to ensure stable and accurate detection. It is small and easy to carry, suitable for aquaculture, disaster epidemics, food safety and other fields.
Powerful software analysis functions can be quantitative analysis, melting curve analysis, genotyping, etc.
Adopting side-scanning technology, short detection distance and stable fluorescence acquisition signal.
They are adopting the same collection optical path to improve repeatability.
LED light source has a long service life and is more energy-saving and environmentally friendly.
Over-current, over-temperature, power failure data self-recovery, and other safety protection functions.
Positive and negative air vent designs can be placed side by side, saving laboratory space.
Support lithium battery power supply, especially suitable for rapid inspection and on-site inspection.
