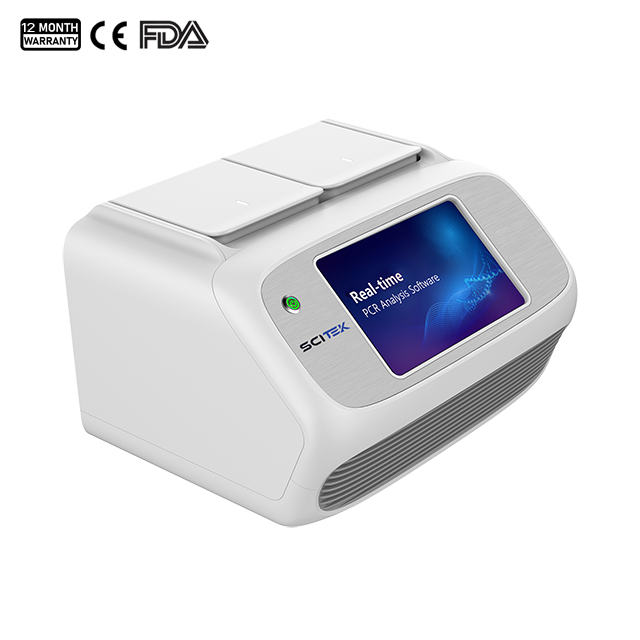

Real-time Fluorescence Quantitative PCR Detection System

Model : PCR-RFQ324; PCR-RFQ324I

Sample Capacity : 32×0.2ml (4×8well, dual block)
MAX. Ramp Rate : 5℃/s; 8℃/s
Reaction Volume : 15-100μL
Sizes (W×D×H)(mm) : 300×267×198mm
This real-time fluorescence quantitative PCR detection system is highly sensitive, highly specific and simple to use.

Real-time Fluorescence Quantitative PCR Detection System Specifications:

Sample Capacity32×0.2ml (4×8well, dual block)
ConsumableClear 0.2ml PCR tube/8-tube strips
Reaction Volume15-100μL
Temperature Control TechnologyMarlow customized peltier allow 1000000 cycles
Temperature Range0-100℃ (Resolution: 0.1℃)
MAX. Ramp Rate5℃/s8℃/s
Temperature Fluctuation±0.1℃
Hot Lid Temperature30-110℃ (Adjustable, default 105℃)
Temperature ControlBlock/Tube
Excitation Wavelength300-800nm
Emission Wavelength500-800nm
Factory Calibrated DyesF1: FAM/SYBR Green I
F4: CY5
ExcitationLong life LED
DetectionHigh sensitivity photoelectric detector
Dynamic Range1-1010 Copies
Sensitivity1 copy
Feature FunctionQuantitative/qualitative analysis, Melting curve, Genotyping
Date Export FormatsExcel, csv, txt
PrintingReport can be printed (optional USB thermal printer)

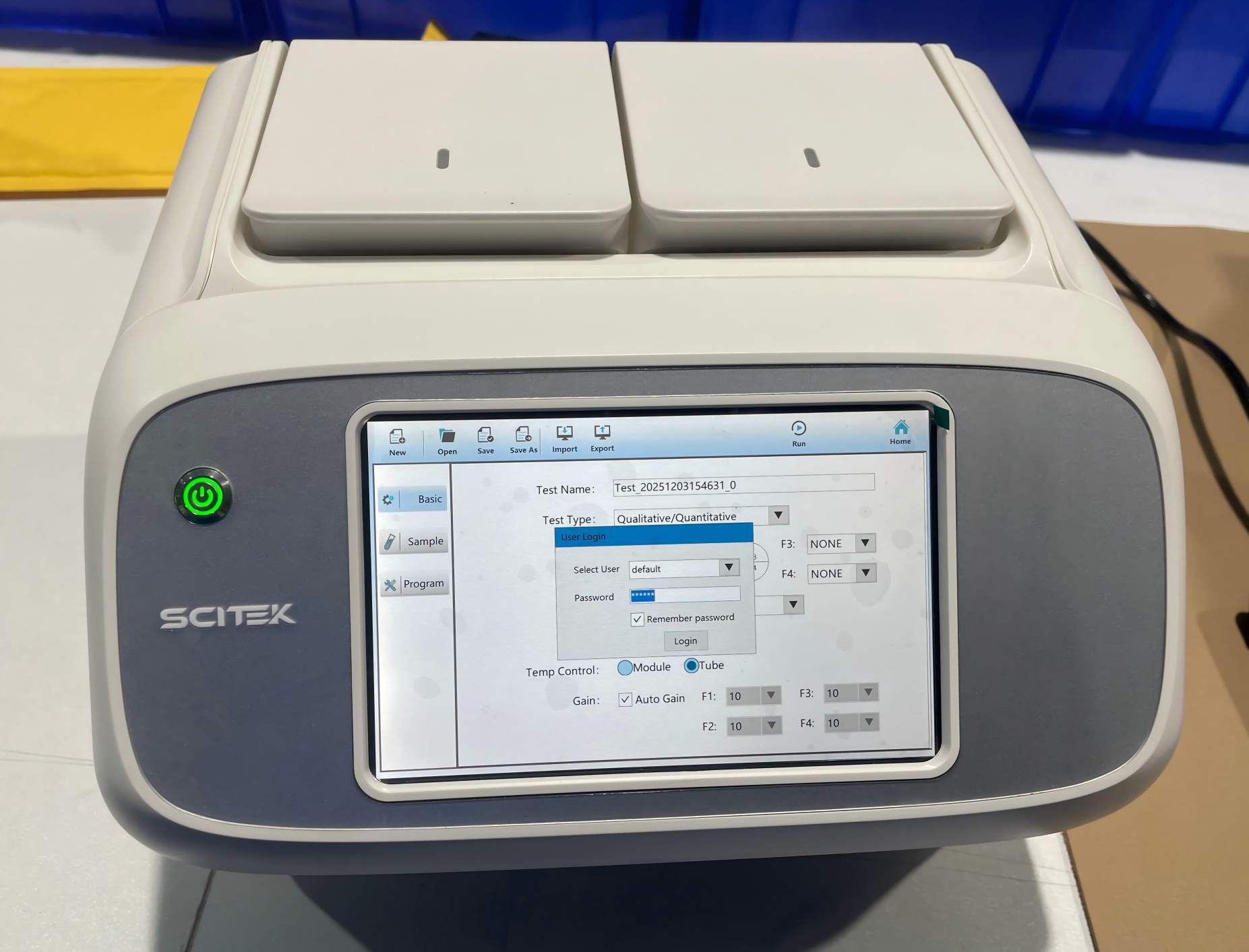

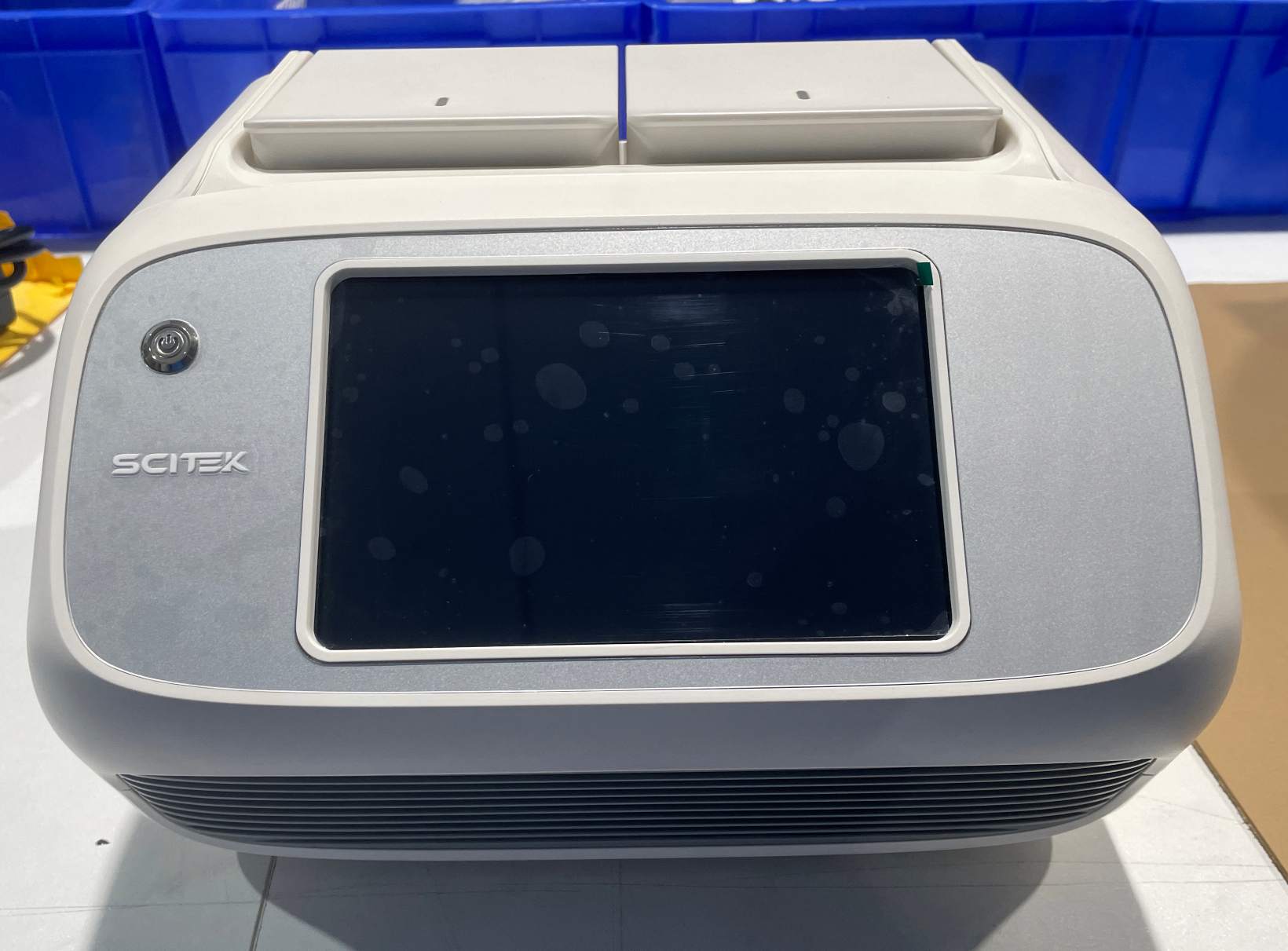

Control Method7 inch color TFT touch screen, Can be connected to computer control
Power SupplyAC220V, 50Hz
PowerDC15V 600WDC30V 255W
Shipping Size (W×D×H)(mm)500×420×350
N.W./G.W. (kg)8.5/1312/16

Real-time Fluorescence Quantitative PCR Detection System Features:

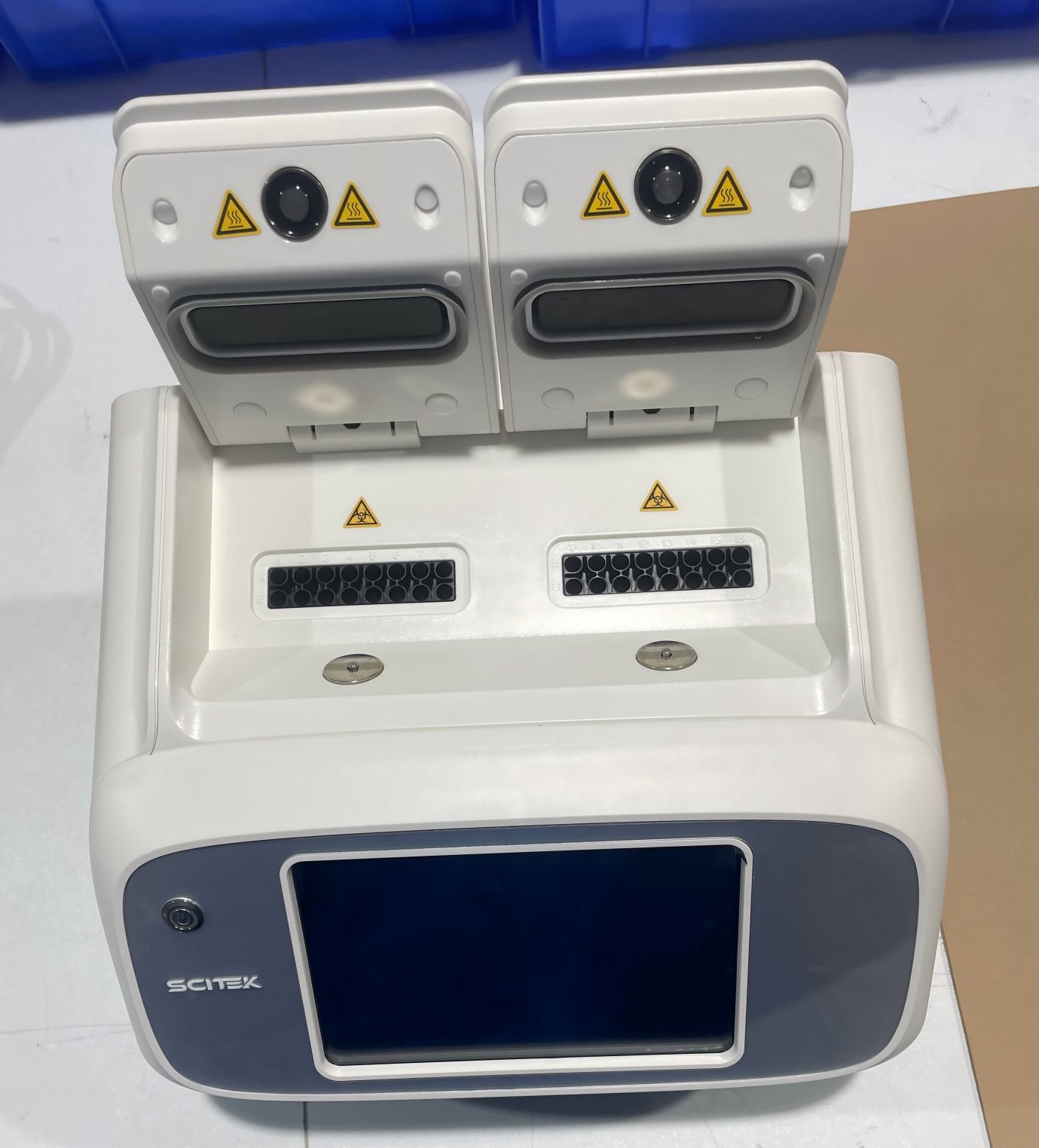

This portable real-time quantitative PCR incorporates several advanced technologies to ensure superior performance and stable operation. The real-time fluorescence quantitative PCR detection system adopts a 4-channel, dual 16-well module, which runs two files simultaneously. In addition to this, the Win10 operating system with analysis software allows genotyping, relative quantification, etc., and quantitative analysis and printing of reports can be done without a computer.

  1. The adoption of highly sensitive photodetector and side-scanning technology improves the accuracy of detection.

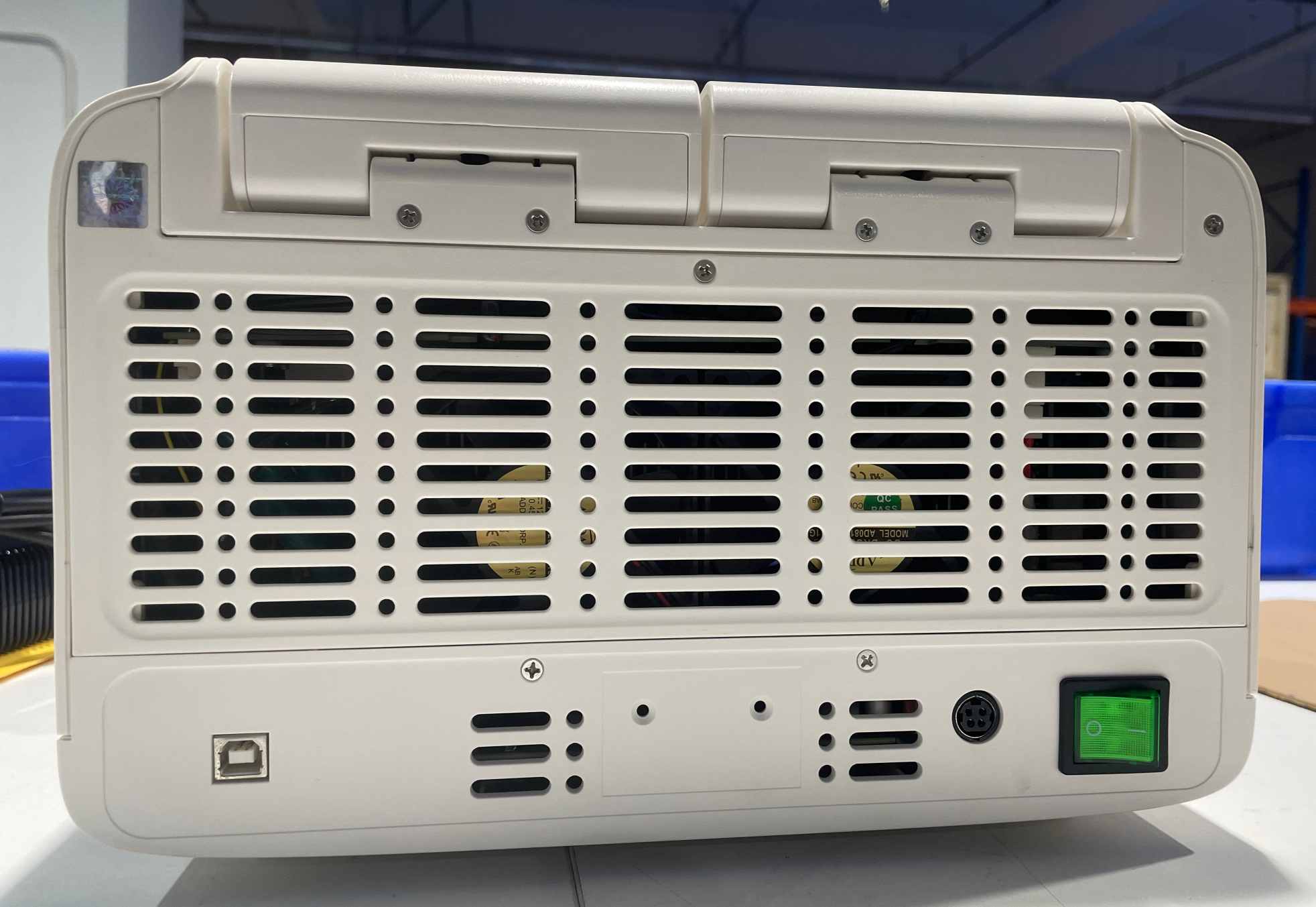

  2. Place Positive and negative air vent designs side by side to save laboratory space so quantitative PCR is small in size, light in weight and easy to carry.

  3. 20G flash memory can save 40,000 experimental data. Optional printer: you can directly print the records. There is no need to connect to a computer.

  4. They imported 32 optical fiber bundles, collecting fluorescence from the side, increasing fluorescence signal intensity and reducing light conduction damage.

  5. LED light source has the advantages of energy saving, environmental protection, long life, maintenance-free, etc.

  6. Electromagnetic locking lid technology and over-current, over-temperature, power failure data recovery, and other protection functions prevent accidental opening of the thermal cover to ensure the operator's safety in the use process.

  7. Place Positive and negative air vent designs side by side to save laboratory space.

  8. Constant current control circuit so that the power output is smooth.
