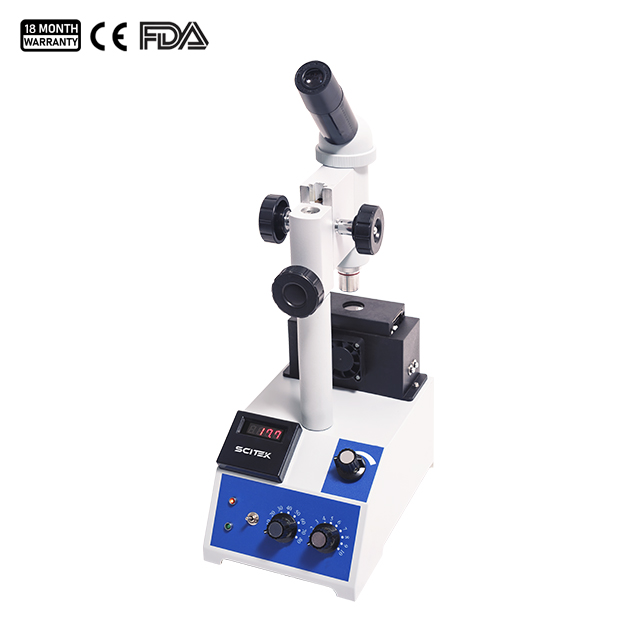

Melting-point Apparatus with Microscope

Model : MP-M4A; MP-M4

Optic magnification : 40X (10X Eye lens, 4X Objective lens)
Measuring mode : Visual
Temperature range : RT-320℃
Measurement mode : Capillary or Hot table
Availability:
Quantity:

Melting point apparatus occupies an important position in the chemical industry and medical research. It is an essential instrument for the production of food, medicine, spices, dyes and other organic crystal substances.

Melting Point Apparatus Features:

  1. To be used in pharmaceutical industry, chemical industry, textile industry, dye stuff.

  2. Use capillary or hot table (slide and cover glass) for sample loading.

  3. Observe with microscope.

  4. MP-M4A is equipped with windscreen to reduce the impact of the environment on test results.

Melting Point Apparatus Specifications:

ModelMP-M4AMP-M4
Optic magnification40X (10X Eye lens, 4X Objective lens)
Measuring modeVisual
Temperature rangeRT-320℃
Measurement modeCapillary or Hot table
Resolution0.1℃1℃
Observation modeMonocular microscope
Repeatability≤ 200℃: ±1℃; > 200℃: ±2℃
Power Supply220V±22V, 50Hz±1Hz
Overall Size(WxDxH)(mm)215×140×395
Shipping Size (WxDxH)(mm)300×220×440
N.W/G.W(kg)3.5/4
