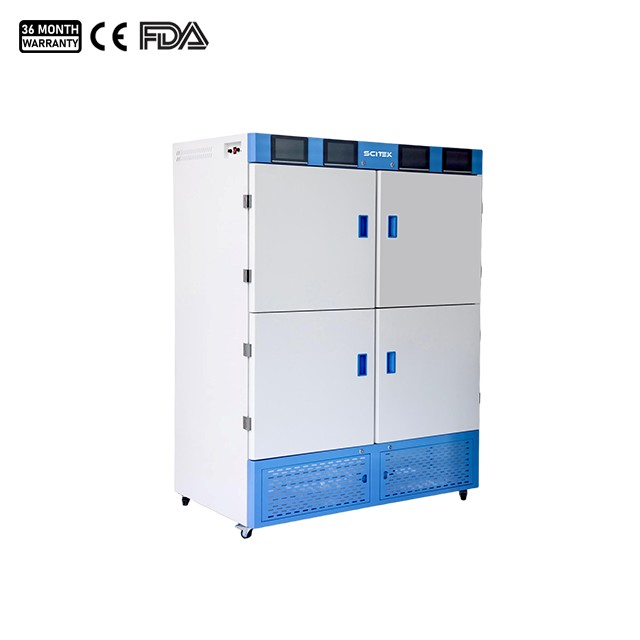

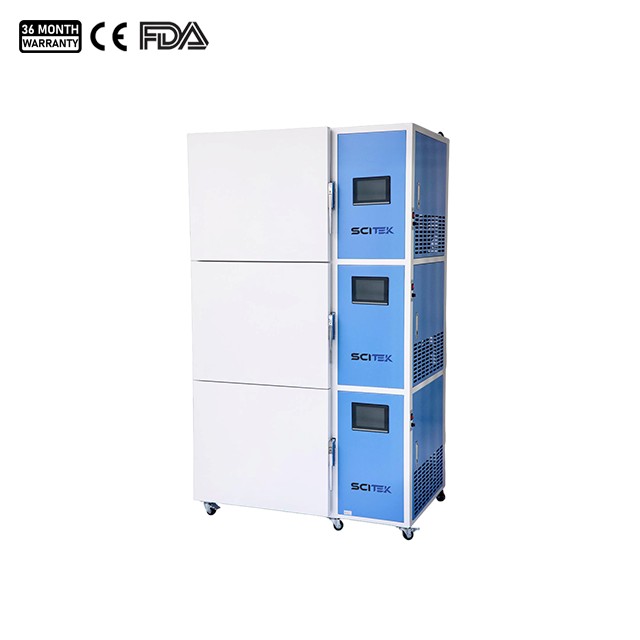

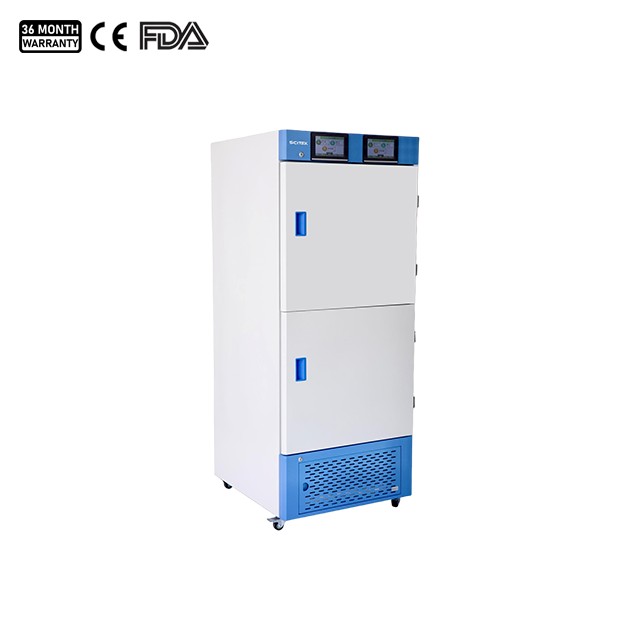

Multi-Chamber Climate Incubator

Integrated multi-chamber design with fully independent control over temperature, humidity, and lighting,enables the independent regulation of these parameters across multiple zones within a single unit. Supporting users in conducting comparative experiments with multiple sets of different temperature gradients in parallel. Widely used for applications such as plant tissue culture, crop breeding, seed germination testing, the rearing of insects and aquatic organisms, and weathering tests on various ecological specimens under diverse climatic conditions.

Multi-Chamber Climate Incubator Feature:

1. Exterior is constructed from welded cold-rolled steel with an electrostatic powder-coated finish for rust resistance; the interior is made of 304 stainless steel, ensuring easy cleaning and corrosion resistance.

2. High-density polyurethane foam insulation provides excellent thermal performance and an aesthetically pleasing appearance.

3. Stainless steel shelves are height-adjustable and removable.

4. 7-inch color LCD touchscreen with password-protected screen locking and three-level access control; displays parameters such as multi-stage temperature, humidity, and light intensity.

5. Programmable control, fixed-value control, and delayed start modes; program names can be customized in programming mode.

6. Day/night cycles can be synchronized with local time settings.

7. Touchscreen interface automatically generates historical curves and data logs; data is traceable and can be exported via a USB port.

8. Controller includes a fault alarm function, allowing users to view specific error details.

9. 400–780nm full-spectrum cold-light LED plant growth lamps; the light arrays are mounted on aluminum alloy heat-dissipating brackets to extend service life.

10. LED modules feature fully transparent protective covers and a snap-in mounting design for quick and easy replacement.

11. Light control allows for direct input of desired light intensity as well as percentage-based adjustment.

12. Refrigeration system utilizes an imported compressor unit and eco-friendly refrigerant, with all-copper heat exchangers.

13. Humidification is handled by a built-in module with an automatic water inlet.

14. Heating system employs PID control with finned stainless steel heaters.

15. Air circulation system combines low-noise axial fans with a specially designed airflow duct to ensure gentle airflow and uniform internal temperature.

16. Temperature, humidity, and lighting can be controlled independently across multiple zones.

17. Natural fresh-air exchange function to maintain air quality inside the chamber.

18. Mechanical door lock to ensure sample security.

Multi-Chamber Climate Incubator Specification:
