Multi-chamber biochemical incubator features a multi-chamber design with independent temperature control, enabling the independent setup and precise operation of multiple temperature zones within a single unit. Supporting users in conducting comparative experiments with multiple sets of different temperature gradients in parallel. Widely used for routine experiments and batch screening in fields such as bio-pharmaceuticals, environmental protection, agricultural research, and food testing.
Multi-Chamber Biochemical Incubator Feature:
Exterior is constructed from welded cold-rolled steel with an electrostatic powder-coated finish for rust resistance, while the interior is made of 304 stainless steel, ensuring easy cleaning and corrosion resistance.
High-density polyurethane foam insulation provides excellent thermal performance and an attractive appearance.
Stainless steel shelves are adjustable in height and removable.
Intelligent controller with an LCD screen ensures stable performance, utilizing dynamic control technology to maintain optimal temperature conditions.
Refrigeration system employs an imported compressor unit and eco-friendly refrigerant, with heat exchangers made entirely of copper.
Heating system utilizes high-temperature PID control and a finned stainless steel heater.
Air circulation system combines low-noise axial fans with a specially designed airflow duct to ensure gentle airflow and uniform internal temperature.
Temperatures in multiple zones can be controlled independently.
Internal lighting system features an automatic shut-off function.
Mechanical door lock to ensure sample security.
Multi-Chamber Biochemical Incubator Specification:

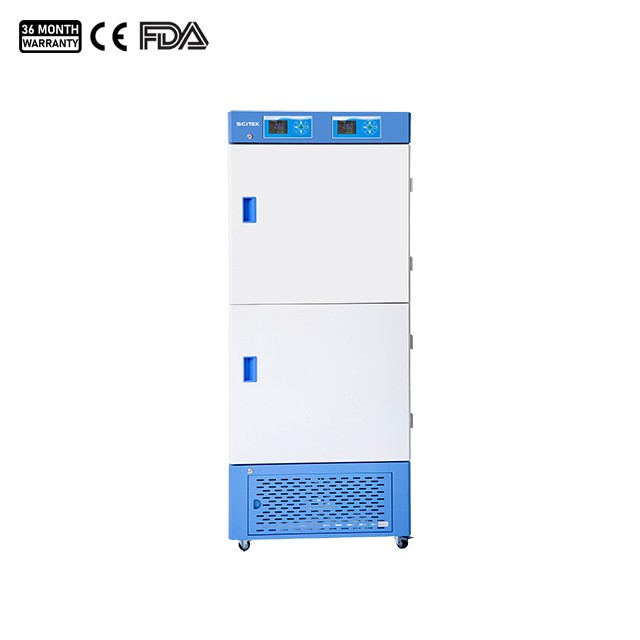

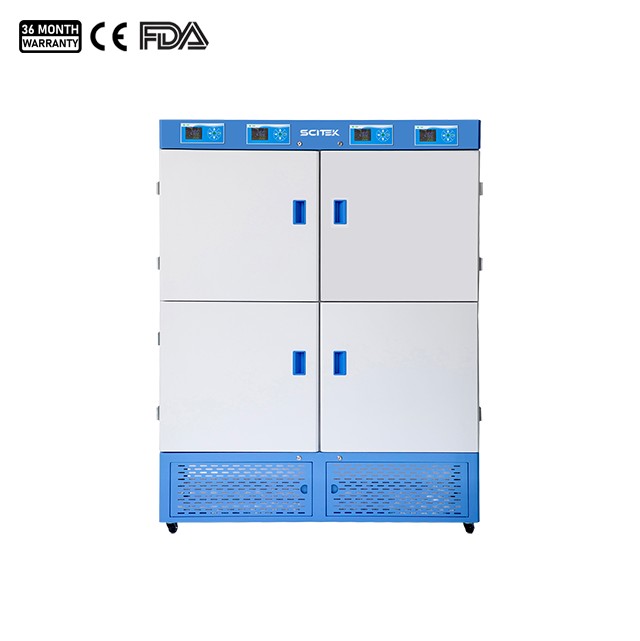

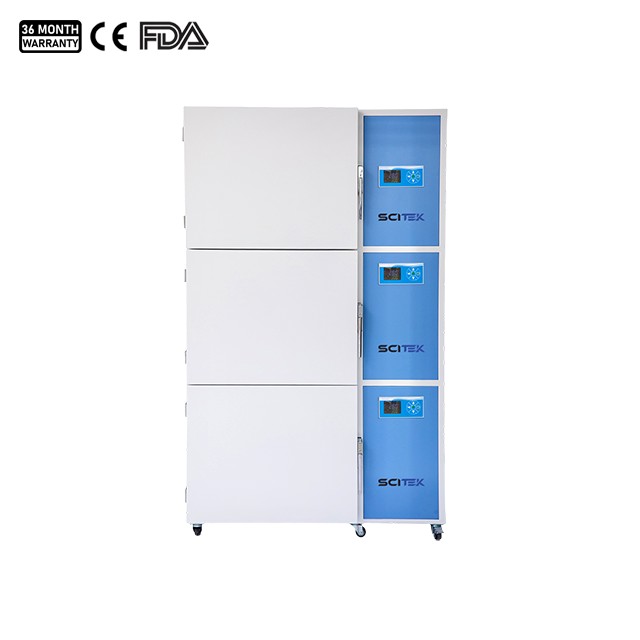

Model | ICB-2S200B | ICB-3S200B | ICB-4S186B |
Capacity (L) | 200×2 | 200×3 | 186×4 |
Circulation Mode | Forced air circulation |
Internal Size (W×D×H)(mm) | (660×660×460)×2 | (660×550×550)×3 | (612×660×462)×4 |
Shelves (pcs) | 2 | 3 | 4 |
Display | LCD screen |
Temperature Range | 0–50 °C |
Temperature Resolution | 0.1 °C |
Temperature Fluctuation | ±1 ℃ (Tested at no load, ambient temperature 20°C, 50% RH humidity) |
Temperature Uniformity | ±1 ℃ (Tested at no load, ambient temperature 20°C, 50% RH humidity) |
Timer | 0–9999 min |
Refrigerant | R134a |
Power Supply | AC 220/110V, 50/60Hz |
Consumption (W) | 1060×2 | 800×3 | 800×4 |
External Size (W×D×H)(mm) | 760×800×1880 | 1160×790×2000 | 1420×800×1880 |
Shipping Size (W×D×H)(mm) | 870×880×1930 | 1270×880×2150 | 1460×890×2010 |
G.W (kg) | 205 | 300 | 420 |
Optional Accessory | Touch screen, internal power socket, UV lamp, built-in micro printer, 50 mm test hole |
Ambient Temperature | 5–35 ℃ |
