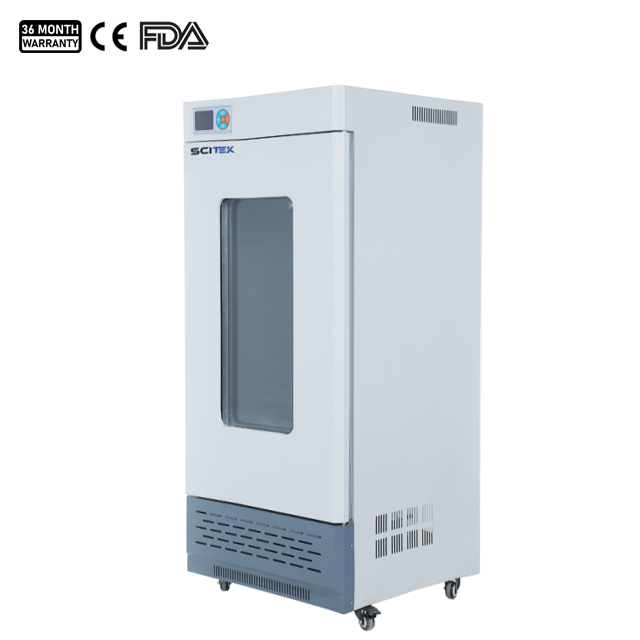

Mould Incubator, 150/250/350/450L

Model : ICB-150MI; ICB-250MI; ICB-350MI; ICB-450MI

Capacity(L) : 150 / 250 / 350 / 450
Circulation Mode : Forced convection
Range (℃) : 0~60
Timer : 1~9999min
Shelves : 3 / 3 / 3 / 4
The space-saving mould incubator is ideal for use in life science and industrial research laboratories.
Availability:
Quantity:

Mould Incubator Specifications:

ModelICB-150MIICB-250MIICB-350MIICB-450MI
Capacity(L)150250350450
Circulation ModeForced convection
Size(WxDxH)Internal (mm)505x380x800550x450x1050550x550x1150700x550x1200
External (mm)635x575x1425680x660x1710685x780x1860830x760x1860
TemperatureRange (℃)0~60
Fluctuation (℃)±0.5
Resolution (℃)0.1
Uniformity (℃)±1
SensorPT100
ControllerPID
DisplayHigh efinition LCD
Timer1~9999min
MaterialInternalMirror sainless steel
ExternalCold rolled steel electrostatic spraying exterior
Shelves3334
Test Hole (Optional)Φ25, 50, 80, 100mm
RefrigerantR134a (CFC free)
Safety DeviceLeakage protector, over temperaure visible & audible alarm
ElectricityVoltage/FrequencyAC 220/110V, 50/60Hz
Consumption (W)6907307801320
N.W./G.W. (kg)100/120120/150140/160158/200
Shipping Size (WxDxH) (mm)760x710x1610800x760x1930810x900x2020900x1150x2080
OptionalTest hole, spare shelf, internal socket, digital independent temp. limiter, intelligent LCD procedure temperature controller (Optional USB, RS485/232 port, and built-in printer)

Mould Incubator Features:

  1. Observation window for easy viewing of chamber contents.

  2. Adjustable shelf with minimum spacing of 30mm.

  3. Corrosion-resistant brushed stainless steel inner chamber.

  4. Efficient internal circulation system with high-quality fan.Back suction and bottom vertical air supply for improved ventilation and temperature uniformity.

  5. Laser hollowed-out shelf for enhanced ventilation and temperature uniformity.

  6. Intelligent control with large-screen LCD display.User-friendly menu-type operation interface. Running functions include fixed value and timing modes.

  7. Energy-saving features such as synthetic silicone sealing strip to prevent heat loss.

  8. Automatic adjustment of control parameters for optimal heating and energy consumption.

  9. High efficiency and energy-saving compressor for stable temperature control and low power consumption.

  10. Standard UV lamp with sterilization function.
