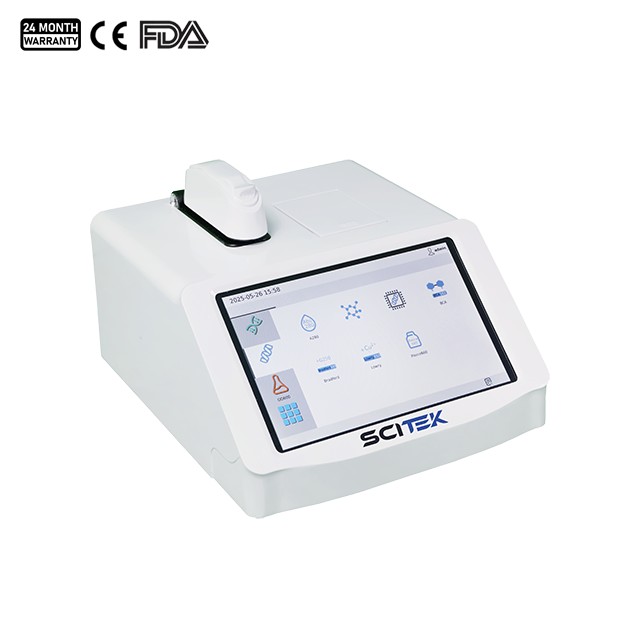

Microvolume UV-Vis Spectrophotometer, SP-MUV5900I

Model : SP-MUV5900I

Optical Path : 0.4, 0.1, 0.04, 0.02 mm
Volume Requirements : Ultra trace 0.3–2 μ L
Detection Wavelength Range : 190–850 nm
Excitation wavelength range : 190–1000 nm
Emission wavelength range : 280–850 nm
Wavelength Resolution : 2 nm (FWHM at Hg 254 nm)

It is designed for rapid and accurate quantification in genomics, proteomics, molecular biology, biotechnology, the pharmaceutical industry and life sciences research. It also includes a built-in fluorescence module.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Application:

The Microvolume UV-Vis Spectrophotometer is designed for the rapid and accurate quantification of microvolumes in genomics, proteomics, molecular biology, biotechnology, pharmaceuticals and life sciences research. The instrument also includes a built-in fluorescence module, capable of measuring fluorescence intensity, supporting Ion Sphere mode, and providing customizable options like excitation/emission light sources and fluorescence kinetics. Perfect for high-throughput labs and those requiring small sample volumes, it ensures accurate results with minimal sample waste.

Advantage:

1. Supports USB data output, can connect to Ethernet, Bluetooth and WI-FI

2. Output ports: Equipped with 2 USB-A interfaces, 1 Type C interface, 1 HDMI, and 1 Ethernet port, it can be used to connect with various devices such as mice, keyboards, desktop computers, etc

3. Spectral chart function with one click export of scan detection results

4. Fluorescence detection has a custom standard curve module, which can be more freely compatible with more reagent kits and experimental methods

5. Fluorescence detection has a kinetic module that can perform fluorescence kinetic detection and draw kinetic curves

6. The colloidal gold module has a unique automatic peak detection function, which can automatically search for the characteristic wavelengths of colloidal gold with different particle sizes

7. The standard curve has multiple fitting methods to meet diverse experimental needs

Specification:

Model	SP-MUV5900I
Performance Parameter	Light source	Longevity lifeline xenon flashing light (10⁹ times)
	Detector	2048 (coms) linear image sensor
	Detection wavelength range	190–850 nm
	Xenon lamp photometric range	185–2000 nm
	Wavelength accuracy	±1 nm
	Wavelength resolution	2 nm (FWHM at Hg 254 nm)
	Accuracy of absorbance	1% (0.988 absorbance at 257 nm)
	Monitor	10.1-inch touch screen, multi-point capacitive touch screen
	Detection time	Less than 3 seconds
	Optical path	Ultra trace mode 1, 0.4, 0.1, 0.04, 0.02 mm (optical path automatic conversion)
	Optical path	Cuvette mode 10, 5, 2, 1 mm
	Volume requirements	Ultra trace 0.3–2 μL
	Volume requirements	Cuvette dish ≥ 1000 μL (10 mm optical path)
	Range of absorbance	Ultra trace mode 0–800 Abs (equivalent to 10 mm optical path)
	Range of absorbance	Cuvette mode 0–16 Abs (equivalent to 10 mm optical path)
	Concentration measurement range	Ultra trace: 2–40000 ng/μL (dsDNA)
	Concentration measurement range	Cuvette (10 mm): 0.2–80 ng/μL (dsDNA)
	Detecting repeatability	0.002 A (1 mm optical path) or 1% CV
	Equipped with automatic measurement and zero adjustment functions, the detection arm can be lowered to achieve real-time detection;
	Equipped with intelligent sample detection function, it provides information prompts and pollutant types upon discovering pollutants. The types of pollutants that can be identified include at least: protein, nucleic acid, phenol, guanidine isothiocyanate, and guanidine hydrochloride. And it has a result correction function, which can provide the original concentration of the sample, the corrected concentration, and the type of pollutant. Ensure the accurate concentration and quality of the sample, and guarantee the accuracy and best experimental results of the experiment
	The nucleic acid testing module includes	dsDNA, SsDNA, RNA, User settings oligoDNA, oligoRNA , Gene chip module
	The protein detection module includes	A280, Peptide, protein chip, BCA, Bradford, Lowry, Pierce660 module
	The 0D600 module includes	Cell fluid module
	Custom modules include	Full wavelength, standard curve, colloidal gold, kinetic module
	The standard curve has multiple curve fitting functions	Linear, interpolation, second-order polynomial, third-order polynomial
	Can perform full wavelength colorimetric dish absorption light detection
	Flexible dynamic module that can achieve dynamic detection in 5 stages, with customizable delay time, interval time, and detection frequency
Fluorescent Module	Excitation wavelength range	190–1000 nm
	Emission wavelength range	280–850 nm
	Excitation filter	Standard configuration 355, 485, 544, 646 nm
	Emission filter	Standard configuration 460, 538, 590, 678 nm
	Detector	Photodiode (320–1100 nm)
	Sample flux	1 piece
	Sample dosage	1–20 μL
	Tube type	0.5 mL PCR tube
	Tube sampling volume	≥100 μL
	Warm-up time	No preheating required
	Measurement speed	3s/tube
	Linear	R²≥0.995
	Linear range	5 orders of magnitude
	Built in reagent calculator to calculate the required amount of dye and buffer solution for the working solution
	Equipped with a fluorescence meter mode, it can directly measure the fluorescence intensity of the sample
	Including lon sphere mode
	Including fluorescence standard curve module, allowing for free selection of excitation and emission light sources, curve type, standard volume, and total reagent volume
	Including fluorescence kinetics module, customizable delay time, interval time, and detection frequency for up to 5 stages
Optional Function	Mixing in a colorimetric dish	The mixing speed can be adjusted to 10 levels, and the mixing time can be configured
	Print function	Built in thermal printer
	Liquid column monitoring function	The equipment has a monitoring function for the sample liquid column, which can monitor whether there are bubbles or other abnormalities in the sample liquid column, ensuring the reliability of the detection
	Audit tracking function	Once the audit trail is enabled, it cannot be closed; Having hierarchical permission management, different user groups have different permissions; It can record and query user operation information. Meet users' requirements for electronic record traceability.
External Size (W×D×H)	200×300×200 mm
Shipping Size (W×D×H)	360×290×330 mm
N.W/G.W.	3.5/4.5 kg
