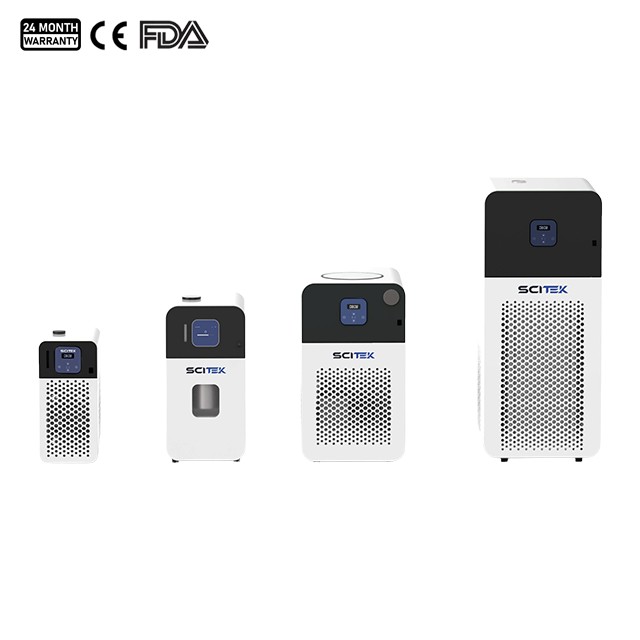

Low-Temp Coolant Circulation Pump

Model : LTC-5; LTC-15; LTC-20D

Temperature Range : -20 ℃ to RT
Liquid Storage Capacity (L) :  4.5; 17; 20
Temperature Accuracy (℃) : ±0.3; ±0.5
Temperature Control Accuracy : 0.1 ℃
Temperature Control Intelligent PID digital display
Low-temperature coolant circulation pump for sale at a low price.
Availability:
Quantity:

The Low-Temperature coolant circulation pump is a high-performance pump designed to efficiently circulate coolant in systems requiring precise temperature control at low temperatures. It is suitable for laboratories, industrial applications, pharmaceutical hygiene, and physical experimental testing. Additionally, it is compatible with rotary evaporators, vacuum freeze drying oven, circulating water-type multipurpose vacuum pumps, magnetic stirrer, etc.

Coolant Circulation Pump Feature:

  1. LED display with user-friendly menus, easy to operate with one-touch startup.

  2. Compact design, suitable for various settings such as benchtops and fume hoods.

  3. PID temperature control combined with a precision sensor ensures accurate and stable temperature regulation.

  4. Top-loading fluid input and rear-mounted venting, complete with liquid level indication and overflow protection.

  5. Rapid response capability, capable of stably adapting to changes in load and temperature.

  6. Utilizes eco-friendly, non-toxic refrigerants to deliver excellent and consistent cooling performance.

  7. Proportional refrigeration technology for high efficiency and energy-saving, low-consumption operation.

  8. Powerful circulation pump to provide continuous and stable cooling.

Coolant Circulation Pump Specification:


ModelLTC-5LTC-15LTC-20D
Temperature Range-20 ℃ to RT
Liquid Storage Capacity (L)4.51720
Refrigeration Power @ 20 ℃ (W)70024003200
Temperature Accuracy (℃)±0.3±0.5
Temperature Control Accuracy0.1 ℃
Temperature ControlIntelligent PID digital display
Temperature SensorPT100
Maximum Pump Pressure (bar)0.31
RefrigerantR404a
Circulating Pump Max. Flow Rate22 L/min
Cycle ModeExternal circulation
Temperature DisplayLED
Ambient Temperature and Relative Humidity5–40 ℃, 80%RH
Internal Diameter of External Pipe Mouth810
Power Supply100–120/200–240 V, 50/60 Hz
Consumption (W)Max.700Max.1000Max.1500
External Size (WxDxH)(mm)230×490×450400×560×705450×600×1100
Packing Size (WxDxH)(mm)550×350×670900×610×910780×620×1350
N.W./G.W. (kg)26.5/36.588/98

158/168
