Resolution : 0.85 cm-1 Spectral Range : 7800–350 cm-1 Wave Number Accuracy : ±0.01 cm-1 Signal-To-Noise Ratio : Better than 20,000:1 Beam Splitter : Multilayer Ge coated KBr

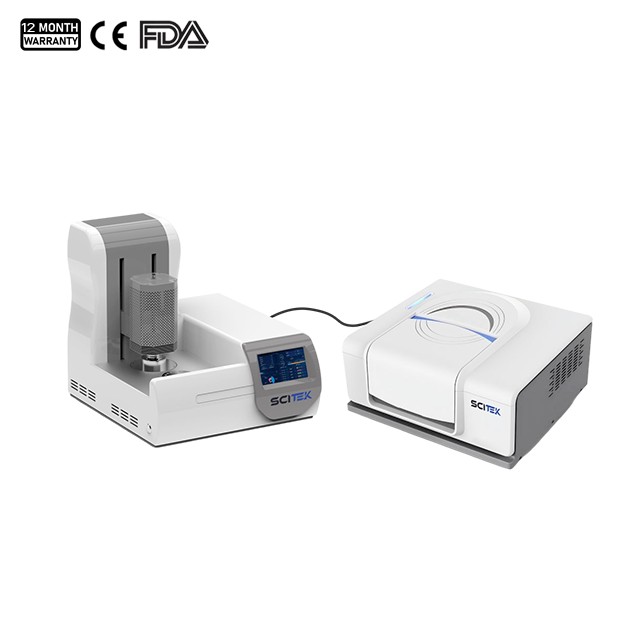

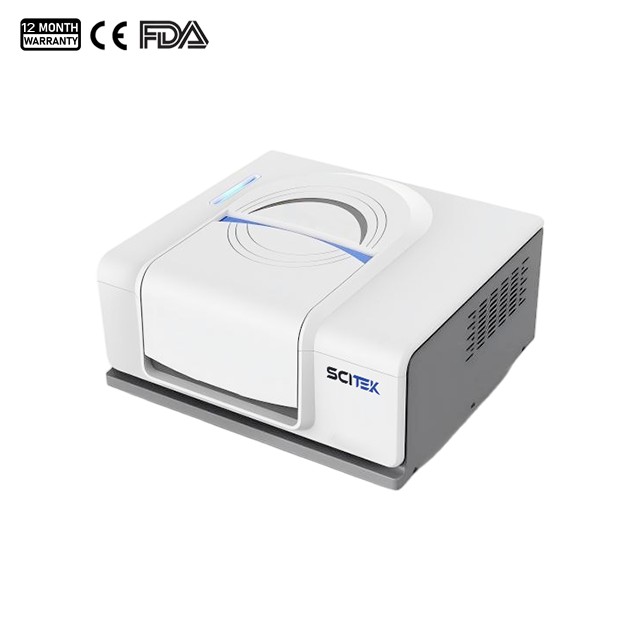

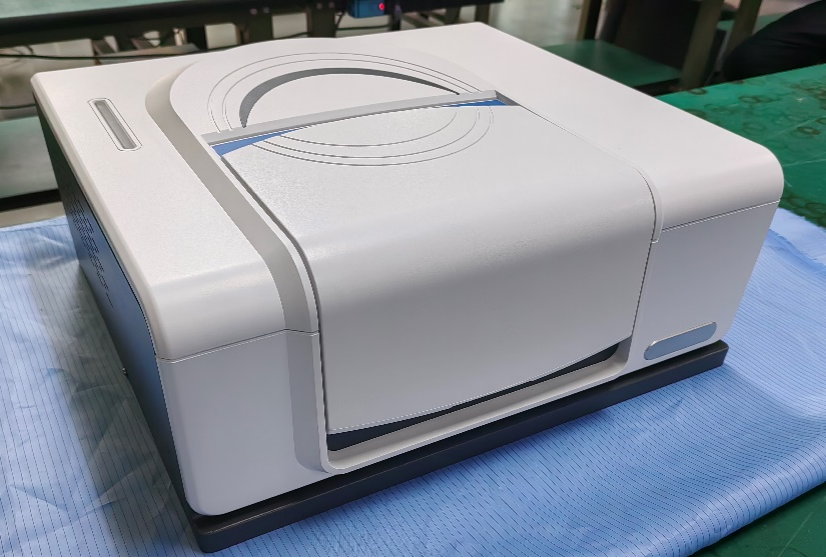

The FTIR-530A strikes the optimal balance between intelligent operation, advanced performance, and streamlined workflow, compliance with FDA 21 CFR Part 11 & Relevant Data Integrity Requirements.
The FTIR-530A strikes the optimal balance between intelligent operation, advanced performance, and streamlined workflow, offering low operating and maintenance costs. With its superior quality, compact and robust design, “Wire + Wireless” multi-communication mode provide a user-friendly experience for all levels, ensuring excellent performance and reliability in various scenarios, from basic research to industrial quality control. The system is designed with a large sample chamber and an integrated front-end, which allows for easy conversion for various sampling accessories. This design empowers users to configure different sampling and analysis systems to address any sample detection challenge, while also providing the necessary flexibility for application requirements.
Fourier Transform Infrared Spectrometer Feature:

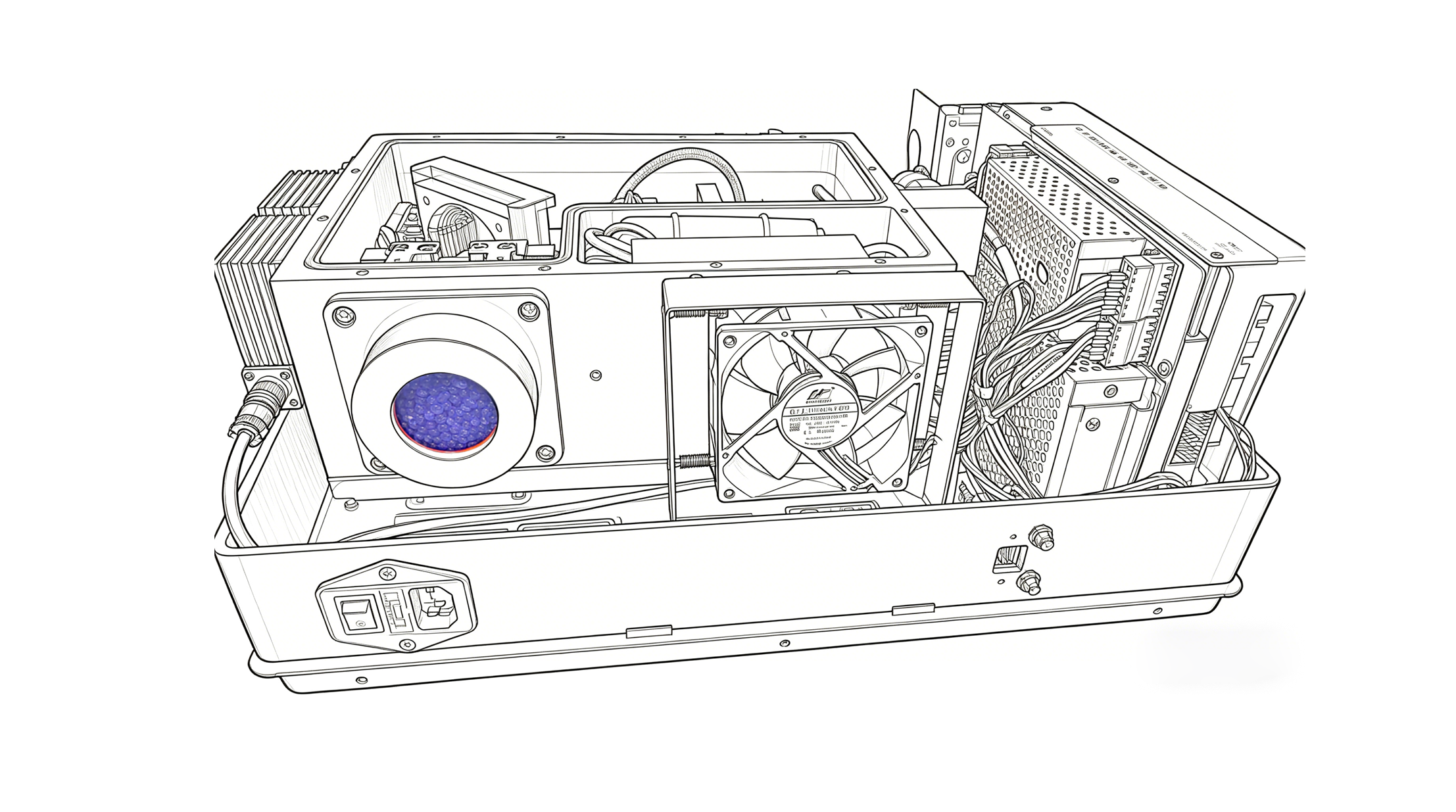

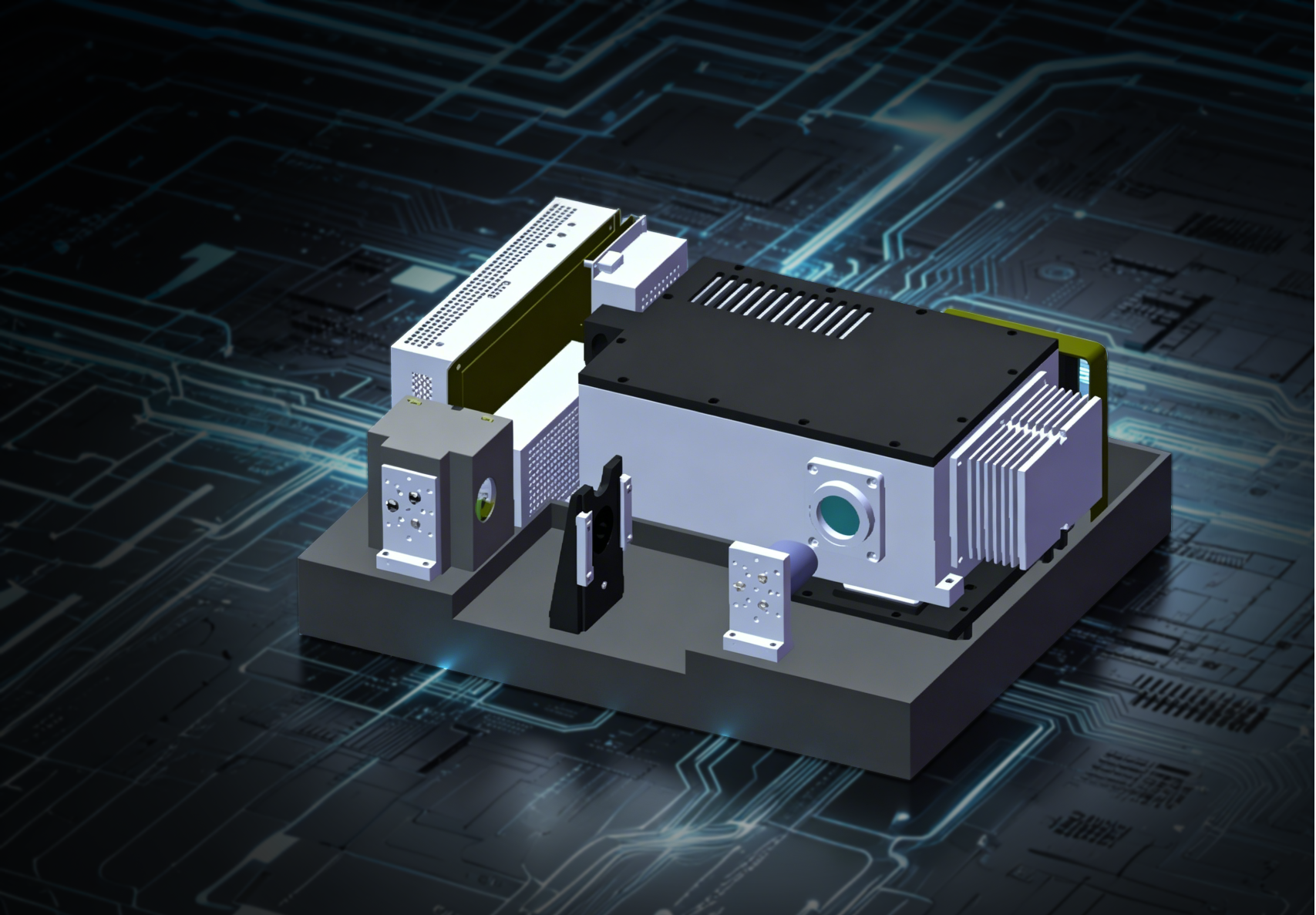

1. Anti-vibration structure: High stability modular partition design, Offering a balance of mechanical strength and zoned heat dissipation, this product has increased resistance to deformation and is unaffected by vibration and temperature changes. This significantly elevates the instrument's mechanical and long-term operational stability.
2. High sensitivity optical system: Cube-corner Michelson interferometer combined with patented fixing mirror alignment technology.

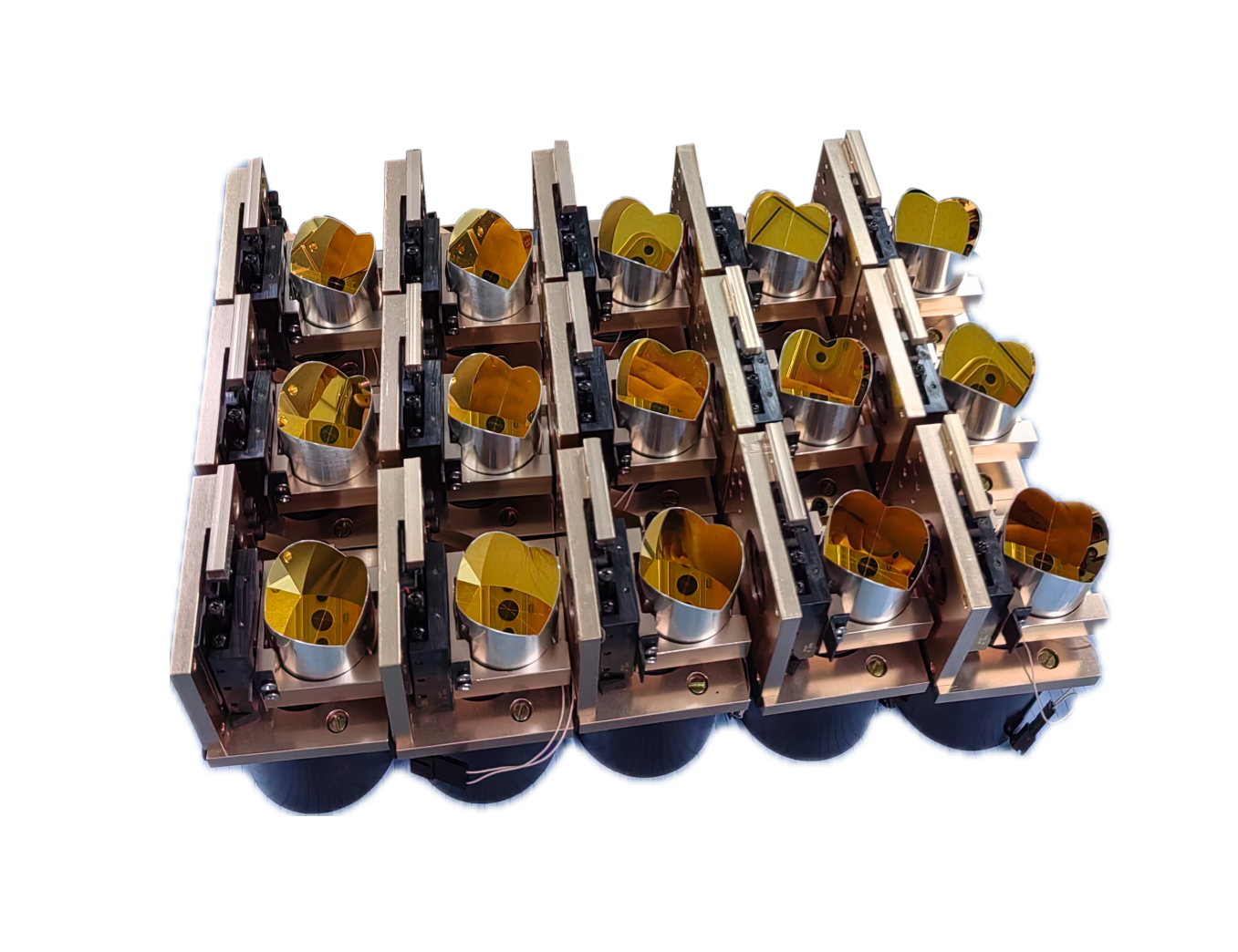

3. Reflecting mirrors are coated with gold to provide the maximum light throughput and ensure the detection sensitivity.

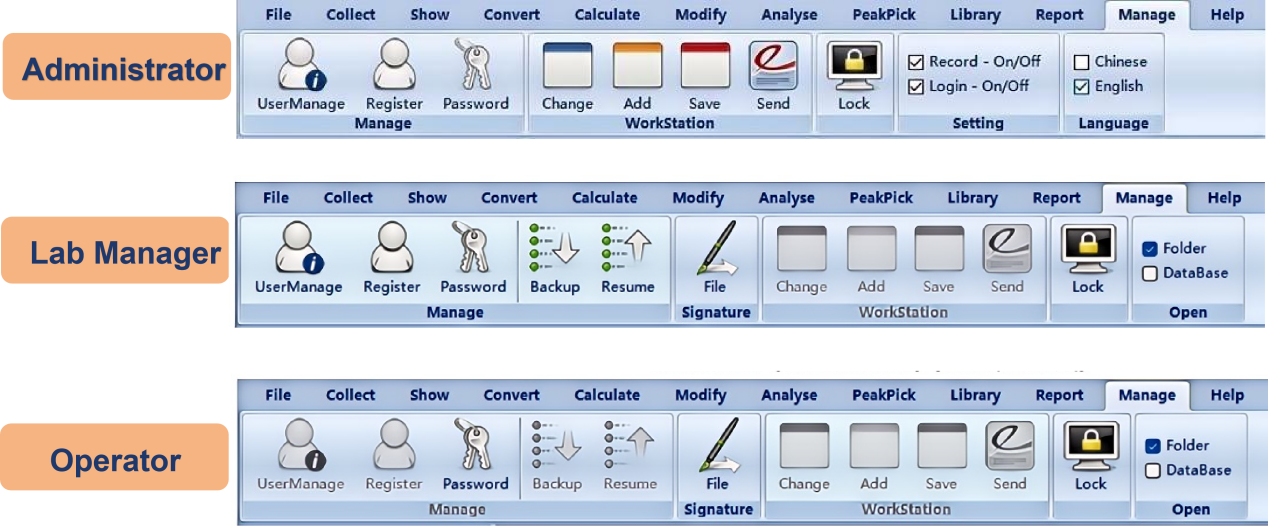

4. Compliance with FDA 21 CFR Part 11 & Relevant Data Integrity Requirements: The integrated system features robust access control, role-based authority assignment, a comprehensive audit trail, and legally binding electronic signatures. These functionalities ensure full compliance with GLP/GMP guidelines and relevant computerized system regulations (such as China's NMPA requirements), guaranteeing the integrity, traceability, and regulatory acceptance of all generated data.
5. Intelligent multi-sealed moisture-proof design: Multiple sealed interferometers, large-capacity desiccant cartridge with visible window and easy replacement structure, real-time monitoring of temperature and humidity inside the interferometer.
6. Innovated integration electronic system: High sensitivity pyroelectric detector pre-amplifier technology, dynamic gain amplification technology, high precision 24-bit A/D conversion technology, real-time control and data processing technology, digital filter, and network communication technology

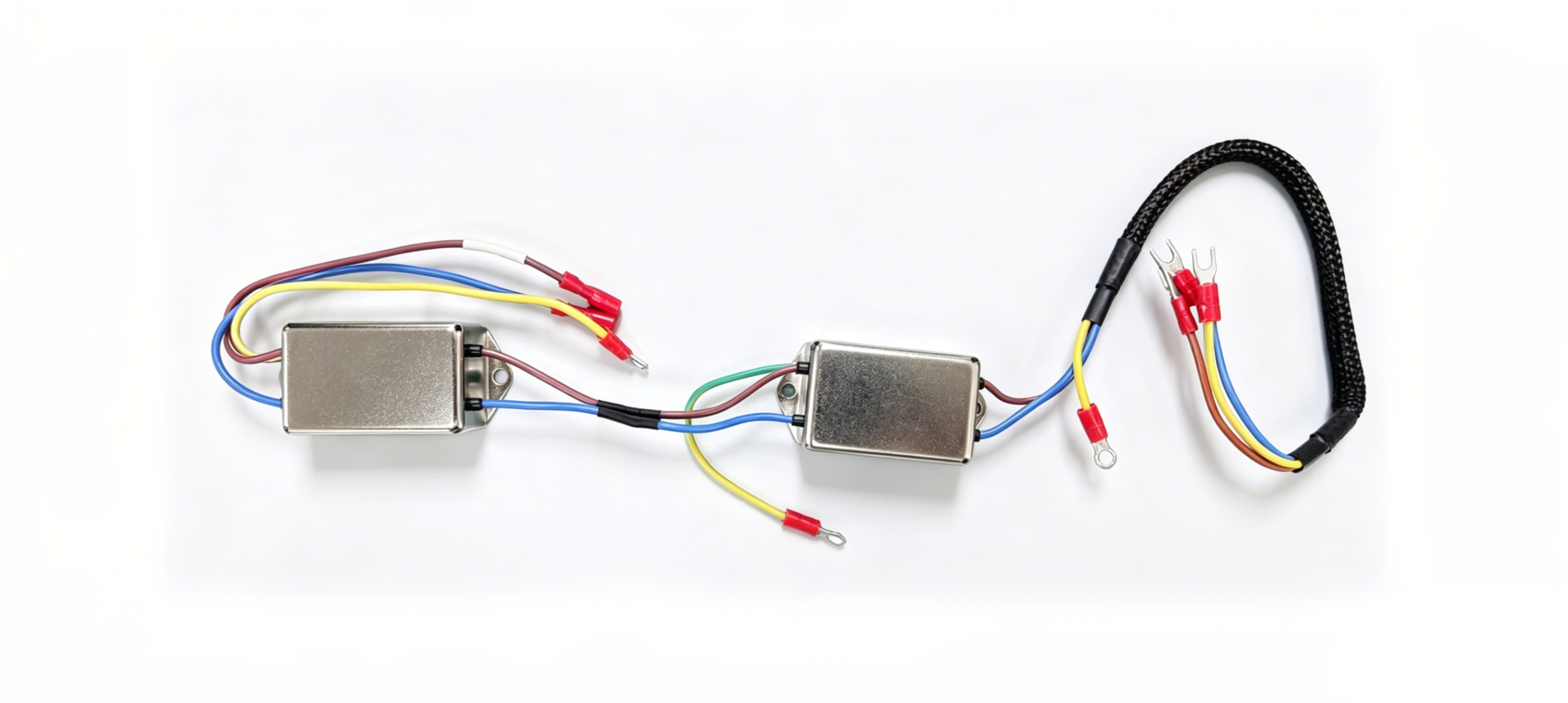

7. Superior anti-electromagnetic interference capability: The electronic system is designed to meet CE certification and electromagnetic compatibility requirements, minimizing electromagnetic radiation in design and technology, in line with green instrument designing concept.
High intensity IR source assembly: High intensity, long lifetime IR source module, with the highest energy distributed in fingerprint region, adopts a reflex sphere design to obtain even and stable IR radiation.
Main FTOS Suite software workstation, compatible to all version Windows OS
FDA 21 CFR Part11 compliance software (optional)
Interface

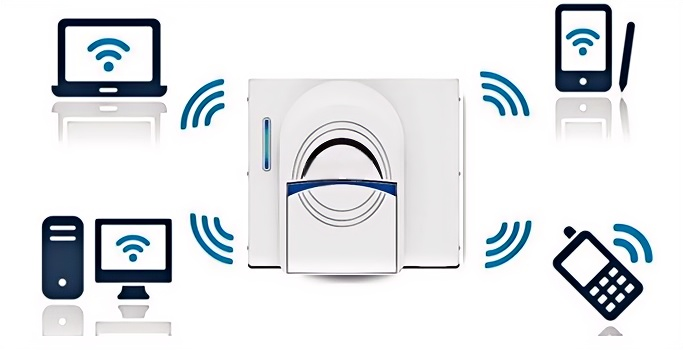

Ethernet & WIFI wireless
Data Output
Standard data format, report generation and output
Status Diagnosis

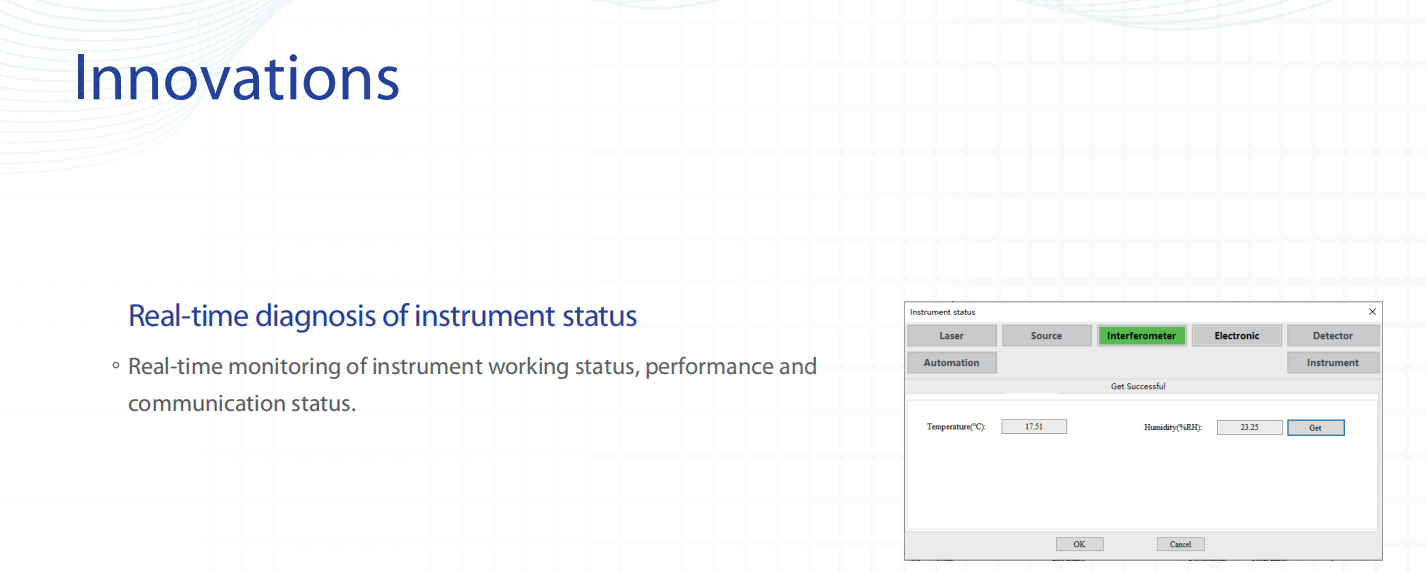

Power on self-check, real-time temperature and humidity monitoring and reminders
Environment Conditions
Temperature: 10–30 ℃, humidity: less than 60%
Accessories
Transmission sample holder (Standard);
Gas cell, liquid cell, Defused/Specular Reflection, single/multiple reflection ATR, IR Microscope etc (Optional).
External Size (W×D×H)
490×420×240 mm
Shipping Size (W×D×H)
750×650×890 mm
N.W/G.W.
23.2 / 54 kg
The FTIR-530A strikes the optimal balance between intelligent operation, advanced performance, and streamlined workflow, offering low operating and maintenance costs. With its superior quality, compact and robust design, “Wire + Wireless” multi-communication mode provide a user-friendly experience for all levels, ensuring excellent performance and reliability in various scenarios, from basic research to industrial quality control. The system is designed with a large sample chamber and an integrated front-end, which allows for easy conversion for various sampling accessories. This design empowers users to configure different sampling and analysis systems to address any sample detection challenge, while also providing the necessary flexibility for application requirements.
Fourier Transform Infrared Spectrometer Feature:
1. Anti-vibration structure: High stability modular partition design, Offering a balance of mechanical strength and zoned heat dissipation, this product has increased resistance to deformation and is unaffected by vibration and temperature changes. This significantly elevates the instrument's mechanical and long-term operational stability.
2. High sensitivity optical system: Cube-corner Michelson interferometer combined with patented fixing mirror alignment technology.
3. Reflecting mirrors are coated with gold to provide the maximum light throughput and ensure the detection sensitivity.
4. Compliance with FDA 21 CFR Part 11 & Relevant Data Integrity Requirements: The integrated system features robust access control, role-based authority assignment, a comprehensive audit trail, and legally binding electronic signatures. These functionalities ensure full compliance with GLP/GMP guidelines and relevant computerized system regulations (such as China's NMPA requirements), guaranteeing the integrity, traceability, and regulatory acceptance of all generated data.
5. Intelligent multi-sealed moisture-proof design: Multiple sealed interferometers, large-capacity desiccant cartridge with visible window and easy replacement structure, real-time monitoring of temperature and humidity inside the interferometer.
6. Innovated integration electronic system: High sensitivity pyroelectric detector pre-amplifier technology, dynamic gain amplification technology, high precision 24-bit A/D conversion technology, real-time control and data processing technology, digital filter, and network communication technology
7. Superior anti-electromagnetic interference capability: The electronic system is designed to meet CE certification and electromagnetic compatibility requirements, minimizing electromagnetic radiation in design and technology, in line with green instrument designing concept.
High intensity IR source assembly: High intensity, long lifetime IR source module, with the highest energy distributed in fingerprint region, adopts a reflex sphere design to obtain even and stable IR radiation.
