The glass ceramic hotplate is suitable for experiments and pilot production in fields such as chemistry, pharmaceuticals, and biology, including sample dissolution, mixing, and heating reactions. Supports remote control and computer connection, facilitating integration into automated experimental platforms or remote monitoring systems.

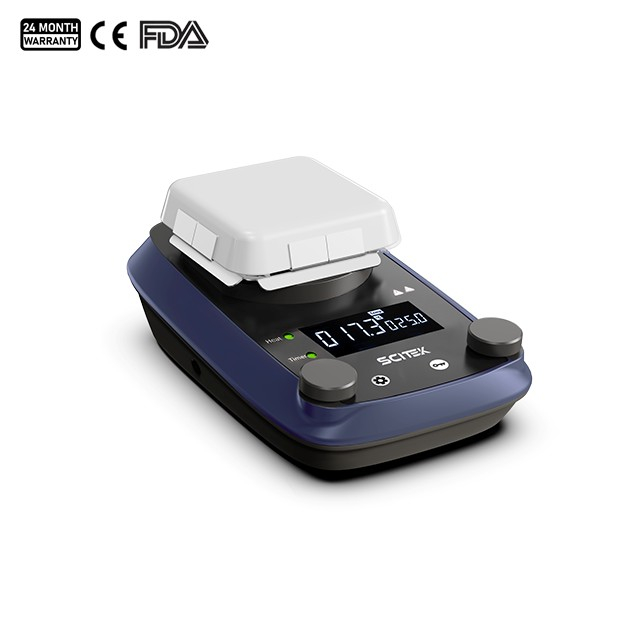

LCD Digital Glass Ceramic Hotplate Feature:
LCD displays the set and real-time values of time, and temperature with clear visualization.
Ceramic disc surface offers excellent corrosion resistance, is resistant to strong acids and alkalis, with stands high temperatures, and is easy to clean.
Corrosion-resistant all-metal housing with a waterproof edge design to prevent liquids from entering and corroding the internal electronic components.
Safety lock to prevent accidental changes to the operating status.
Supports remote control and computer connection for convenient centralized management.
Dual independent safety circuits continuously monitor and alarm and stop heating in case of overheating or sensor malfunction.
Automatically cuts off the power supply after short circuit, ensuring optimal operator safety.
Safety warning: Plate temperature exceeds 50 °C after shutdown, the warning light will flash continuously to prevent burns.
LCD Digital Glass Ceramic Hotplate Specification:
Model | HC-G550S |
|---|
Display | LCD |
Work Plate Size (W×D) | 100×100 mm (4 inch) |
Temperature Range | RT. to 550 °C (1 °C Step) |
Over Heat Protection | 580 ℃ |
Control Accuracy Of Work Plate | ±1 °C(<100°C), ±1%(>100°C) |
Temperature Display Accuracy | 0.1 °C |
External Temperature Sensor | PT1000 (±0.2 °C) |
Protection Class | IP21 |
Timer | 1min to 99h59min |
Work Plate Material | Glass ceramic |
Power Supply | 100–120/200–240 V, 50/60 Hz |
Consumption | 430 W |
Permissible Ambient Temperature & Humidity | 5–40 ℃, 80%RH |
External Size (W×D×H) | 270×175×108 mm |
Shipping Size (W×D×H) | 330×230×220 mm |
N.W/G.W. | 1.8/3.5 kg |
