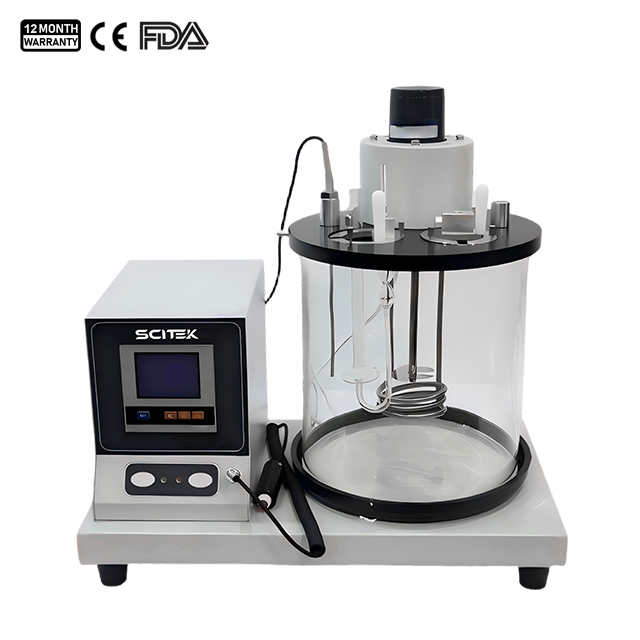

Integrated design structure, control section on the left, experimental section on the right, reasonable partitioning, button panel for easy experimental operation.
Equipped with a remote timing button for easy timing and control of experiments.
Using a glass jar and an electric mixing device, the sample can be observed clearly and the temperature inside the bathtub is uniform.
Adopting high-precision LCD temperature controller and sensor, the temperature control is accurate, the heating is fast, and the accuracy reaches ± 0.1 ℃.
The designed capillary viscometer clamp is easy to assemble and disassemble, and is stable during use; Can simultaneously measure two capillary viscometers.
| Model | VSC-K265B |
|---|---|
| Stirring motor | 1200RPM |
| Temperature control range | Ambient to 100℃ |
| Temperature control accuracy | ±0.1℃ |
| Temperature sensor | RTD, Pt100 |
| Timing range | 0s~9999.9s |
| Ambient temperature | 15℃~35℃ |
| Relative humidity | ≤85% |
Capillary viscometer tubes (Pinkevitch viscometer) | 6 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm |
| Power supply | AC(220±10%)V,50Hz |
| Consumption | ≤800W |
| External Size (W×D×H) | 500*310*500mm |
| Shipping Size (W×D×H) | 620 *490 *670mm |
| N.W/G.W | 11.5/25Kg |
| Capillary diameter (mm) | Suitable for samples | Suitable samples Range(mm2/s) | Time no less than (s) | |
|---|---|---|---|---|
| 0.6 | Transparent samples | 1.7~8.5 | 200 | standard |
| 0.8 | Transparent samples | 5.4~27 | 200 | |
| 1 | Transparent samples | 13~65 | 200 | |
| 1.2 | Transparent samples | 28~140 | 200 | |
| 1.5 | Transparent samples | 70~350 | 200 | |
| 2 | Transparent samples | 200~1000 | 200 |
