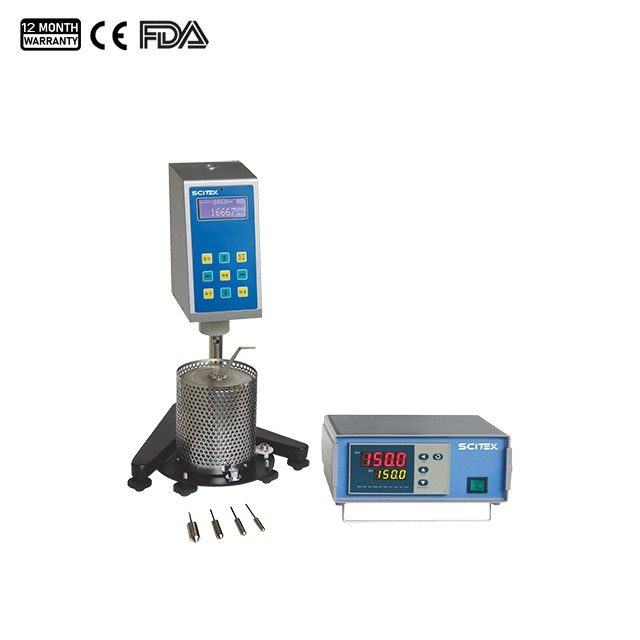

DV-H series digital high temperature viscometer products below are composed of viscometers and special temperature-controlled heaters. They are used to measure hot melt adhesive, asphalt, paraffin, high polymer, etc. dissolved after heating and can directly display the measurement data. DV-2H series products can display shear Rate and shear stress. Some products can be equipped with optional data collection analysis and drawing software to collect and analyze data, display and record the viscosity-temperature curve throughout the process. The product measurement performance has achieved the international advanced level
Viscometer Specifications:
Series
DV-1H
DV-2H
Model
VSC-LDV1H
VSC-RDV1H
VSC-HDV1H
VSC-LDV2H
VSC-RDV2H
VSC-HDV2H
Measuring Range(mPa·s）
10~1M
100~10M
800~80M
5~1M
50~10M
400~80M
Rotating Speed (RPM)
0.1～99.9
0.1 ～ 200
Number of Spindles
4 types (21, 27, 28, 29)
Accuracy
±1%(FS)(Newtonian Fluid)
Repeatability
±0.5%(FS)(Newtonian Fluid)
Sample Capacity (mL)
10～20
Temperature Control Range (℃)
RT+5~300
Temperature Control Accuracy(℃)
±0.1
Power Supply
AC100~240V, 50/60Hz
LCD Screen Display
The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value.
Shipping Size (WxDxH)(mm)
Package 1: 400x350x380 Package 2: 400x350x560
G.W(kg)
15
Apparatus to be equipped
Digital viscosity meter
1 pce
Ascending and falling
1 set
Frame and Pipe
1 set
Power Adapter
1 pce
Standard Spindle
1 set
Spanner
1 pce
Seat and Leveling Feet
1 set
RTD Temperature Probe
1 pce
Temperature Controller
1 pce
Heating Furnace
1 pce
Insulation Cover
1 pce
Special Tweezers
1 pce
Position Bracket
1 pce
Connect Cable
1 pce
Power Cord
1 pce
Connection Hook
2 set
Viscometer Features:
DV-H series digital high temperature viscometer products below are composed of viscometers and special temperature-controlled heaters. They are used to measure hot melt adhesive, asphalt, paraffin, high polymer, etc. dissolved after heating and can directly display the measurement data. DV-2H series products can display shear Rate and shear stress. Some products can be equipped with optional data collection analysis and drawing software to collect and analyze data, display and record the viscosity-temperature curve throughout the process. The product measurement performance has achieved the international advanced level
Viscometer Specifications:
Series
DV-1H
DV-2H
Model
VSC-LDV1H
VSC-RDV1H
VSC-HDV1H
VSC-LDV2H
VSC-RDV2H
VSC-HDV2H
Measuring Range(mPa·s）
10~1M
100~10M
800~80M
5~1M
50~10M
400~80M
Rotating Speed (RPM)
0.1～99.9
0.1 ～ 200
Number of Spindles
4 types (21, 27, 28, 29)
Accuracy
±1%(FS)(Newtonian Fluid)
Repeatability
±0.5%(FS)(Newtonian Fluid)
Sample Capacity (mL)
10～20
Temperature Control Range (℃)
RT+5~300
Temperature Control Accuracy(℃)
±0.1
Power Supply
AC100~240V, 50/60Hz
LCD Screen Display
The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value.
