Channel Qty. : 2–32 customizable Volume Capacity : 0.1–9999.99 mL Filling Volume : 0.1–100 mL Volume Adjustment Resolution : 0.01 mL

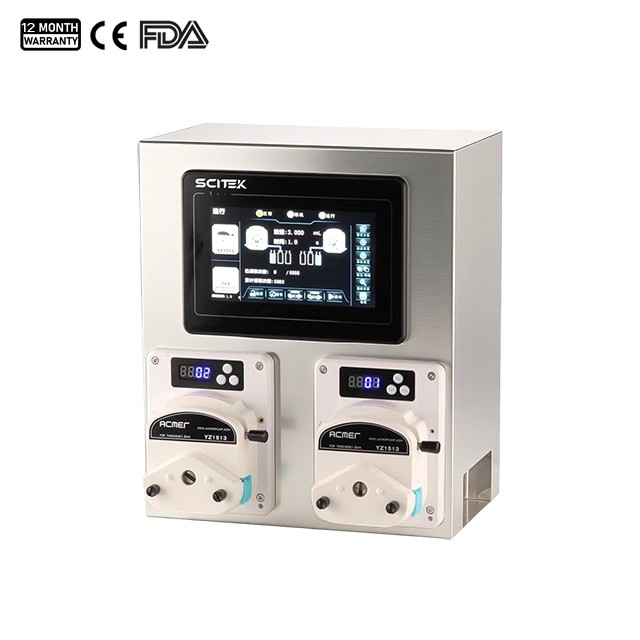

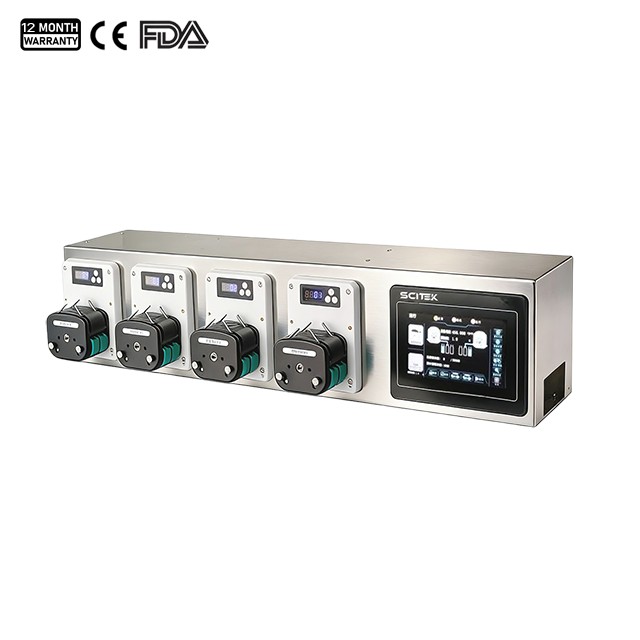

The integrated filling system supports configurable channel counts ranging from 2 to 32, with full customization options available to accommodate diverse experimental and industrial production requirements.
The integrated filling system is designed for high-precision liquid filling. It is primarily used in production and laboratory that demand extremely high filling speed, accuracy, and consistency. Typical application fields include the pharmaceutical and bioproduct industries, food and beverage industry, daily chemical and cosmetics industries, and chemical and lubricant industries.
Integrated Filling System Feature:
1. 7-inch touch screen for intuitive display and user-friendly operation.
2. Programmable storage and recall function.
3. Stainless steel enclosure rated IP31 for enhanced durability and environmental protection.
4. Multi-layered flow control architecture ensures volumetric accuracy.
(1) High quality stepper motor drive, coupled with a robust and optimized fluidic pathway and control system, delivers consistent filling accuracy—inter-channel deviation < ±1%.
(2) Built-in calibration algorithms that have been verified multiple times, making it more convenient to use.
(3) Real-time speed fine-tuning capability allows dynamic compensation for flow drift induced by tubing fatigue or aging.
5. One-to-one correspondence between pump heads and channels, with fully independent channel-level control.
(1) Individual on/off activation and reversible filling direction per channel.
(2) Simultaneous or selective emptying and liquid recovery across single or multiple channels.
(3) User-definable retraction angle and retraction duration per channel.
(4) Each channel can be set with a communication address separately through film buttons and displayed through digital tubes.
6. Dual-mode control architecture: offline and online.
(1) Offline mode is local controlled through the touch interface.
(2)Online mode is controlled by external signals. In this mode, the integrated filling system supports automatic filling stop on missing bottles. Each filling system has a pair of contact-signal input ports.
7. Designed for flexible deployment—fully compatible with automated filling lines as well as manual benchtop operation.
Integrated Filling System Specification:
Model
FS-32I
Channel Qty.
2–32 customizable
Volume Capacity
0.1–9999.99 mL
Filling Volume
0.1–100 mL
Volume Adjustment Resolution
0.01mL
Setting Time
0.1–6553.5 s
Filling Interval Time
0.1–6553.5 s
Time Adjustment Resolution
0.1 s
Number of Filling Cycle
1–65535
Retraction Angle
0–999°
Pre-Retraction Delay
0–60 s
Operating Ambient Temperature
0–40 ℃
Operating Ambient Relative Humidity
20%–80%
Enclosure Protection
IP31
Power Supply
220/110 V, 50/60 Hz
Customizable Options of Pump Head
DG0110, YZ1513, YZ2513S, DMD15-13
Integrated Filling System Application:
The integrated filling system is designed for high-precision liquid filling. It is primarily used in production and laboratory that demand extremely high filling speed, accuracy, and consistency. Typical application fields include the pharmaceutical and bioproduct industries, food and beverage industry, daily chemical and cosmetics industries, and chemical and lubricant industries.
Integrated Filling System Feature:
1. 7-inch touch screen for intuitive display and user-friendly operation.
2. Programmable storage and recall function.
3. Stainless steel enclosure rated IP31 for enhanced durability and environmental protection.
4. Multi-layered flow control architecture ensures volumetric accuracy.
(1) High quality stepper motor drive, coupled with a robust and optimized fluidic pathway and control system, delivers consistent filling accuracy—inter-channel deviation < ±1%.
(2) Built-in calibration algorithms that have been verified multiple times, making it more convenient to use.
(3) Real-time speed fine-tuning capability allows dynamic compensation for flow drift induced by tubing fatigue or aging.
5. One-to-one correspondence between pump heads and channels, with fully independent channel-level control.
(1) Individual on/off activation and reversible filling direction per channel.
(2) Simultaneous or selective emptying and liquid recovery across single or multiple channels.
(3) User-definable retraction angle and retraction duration per channel.
(4) Each channel can be set with a communication address separately through film buttons and displayed through digital tubes.
6. Dual-mode control architecture: offline and online.
(1) Offline mode is local controlled through the touch interface.
(2)Online mode is controlled by external signals. In this mode, the integrated filling system supports automatic filling stop on missing bottles. Each filling system has a pair of contact-signal input ports.
7. Designed for flexible deployment—fully compatible with automated filling lines as well as manual benchtop operation.
