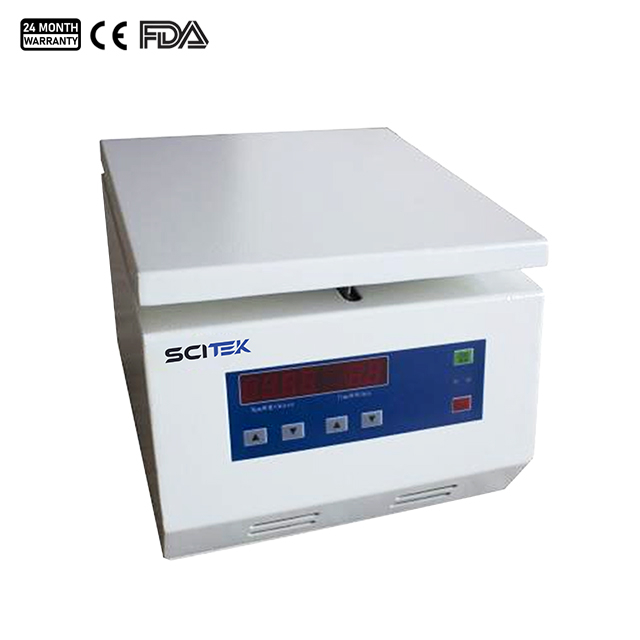

This high speed centrifuge is a conventional laboratory centrifuge. It’s applicable for the tests with small samples, many processes, large centrifugal force and little temperature requirement. They are widely used in the fields of biochemistry, genetic engineering, agriculture, farming, food safety, medicine and so on.
High Speed Centrifuge Features:
Driving:
Drived by maintenance-free brushless DC motor with high torque. It offers fast acceleration and dynamic brake and the powerful vibration absorbers make the motor run more steady.
Display: Controlled by microcomputer with touching pad and LED digital display. The last program is stored automatically and RCF can be directly set.
Body Structure:
Premium steel housing for safety and reliability; stainless steel chamber for durability and easy cleaning.
Safety Protection:
Rotor recognition system. It contains various safety protections including lid locking and holding during rotor on, over speed, over temp., unbalance. The electronic lock ensures its safety and reliability during running.
High Speed Centrifuge Specificati
Model
CFG-T16H
Max Speed
16000r/min
Max RCF
17800×g
Max Capacity
8×5ml
No.16 Angle Rotor
18×0.5ml(16000r/min) RFC:17800×g
No.17 Angle Rotor
12×1.5/2.0ml(16000r/min) RFC:17800×g
No.26 Angle Rotor
8×5ml(13000r/min) RFC:10000×g
Speed Accuracy
±30r/min
Timer Range
0~99min
Noise
≤58dB
Motor
Brushless DC motor and microcomputer Controlled
Power Supply
AC 220V 50Hz 8A
External Size (W×D×H)(mm)
330×280×215
Shipping Size (W×D×H)(mm)
460×370×290
N.W/G.W
15kg/20kg
Details of High Speed Centrifuge:

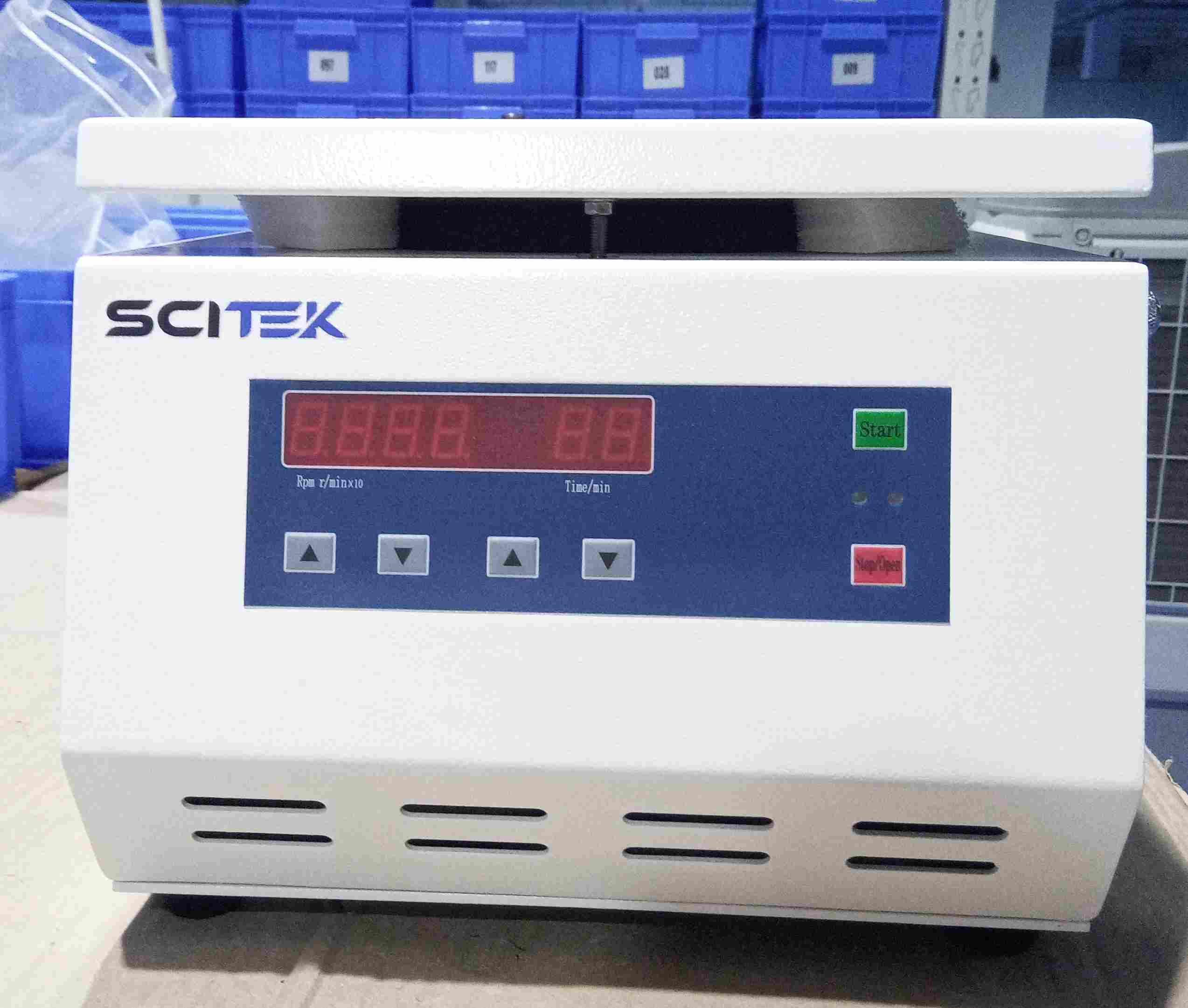

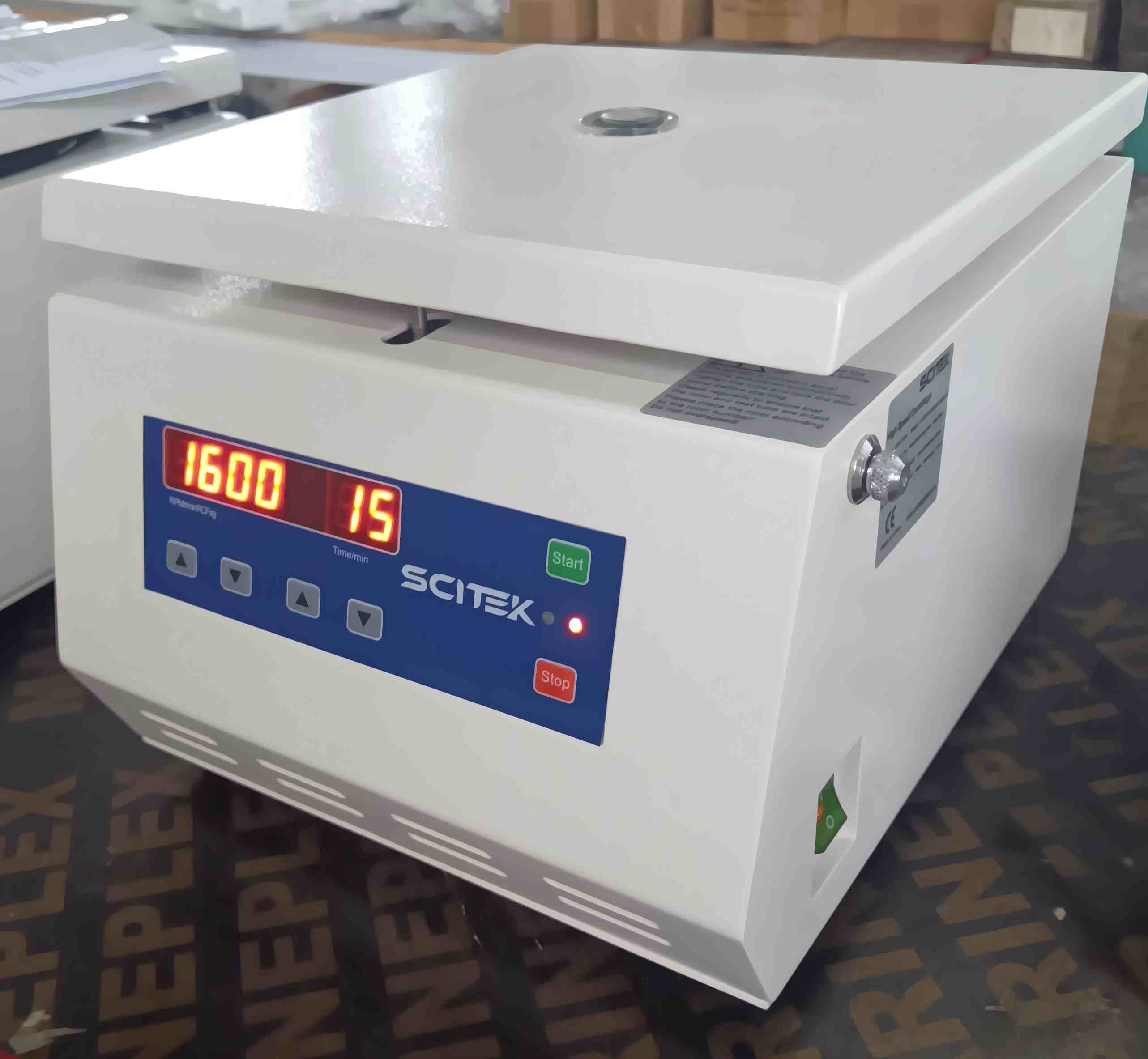

Robust and compact design with an intuitive control panel, delivering stable and efficient centrifugation for routine laboratory applications.

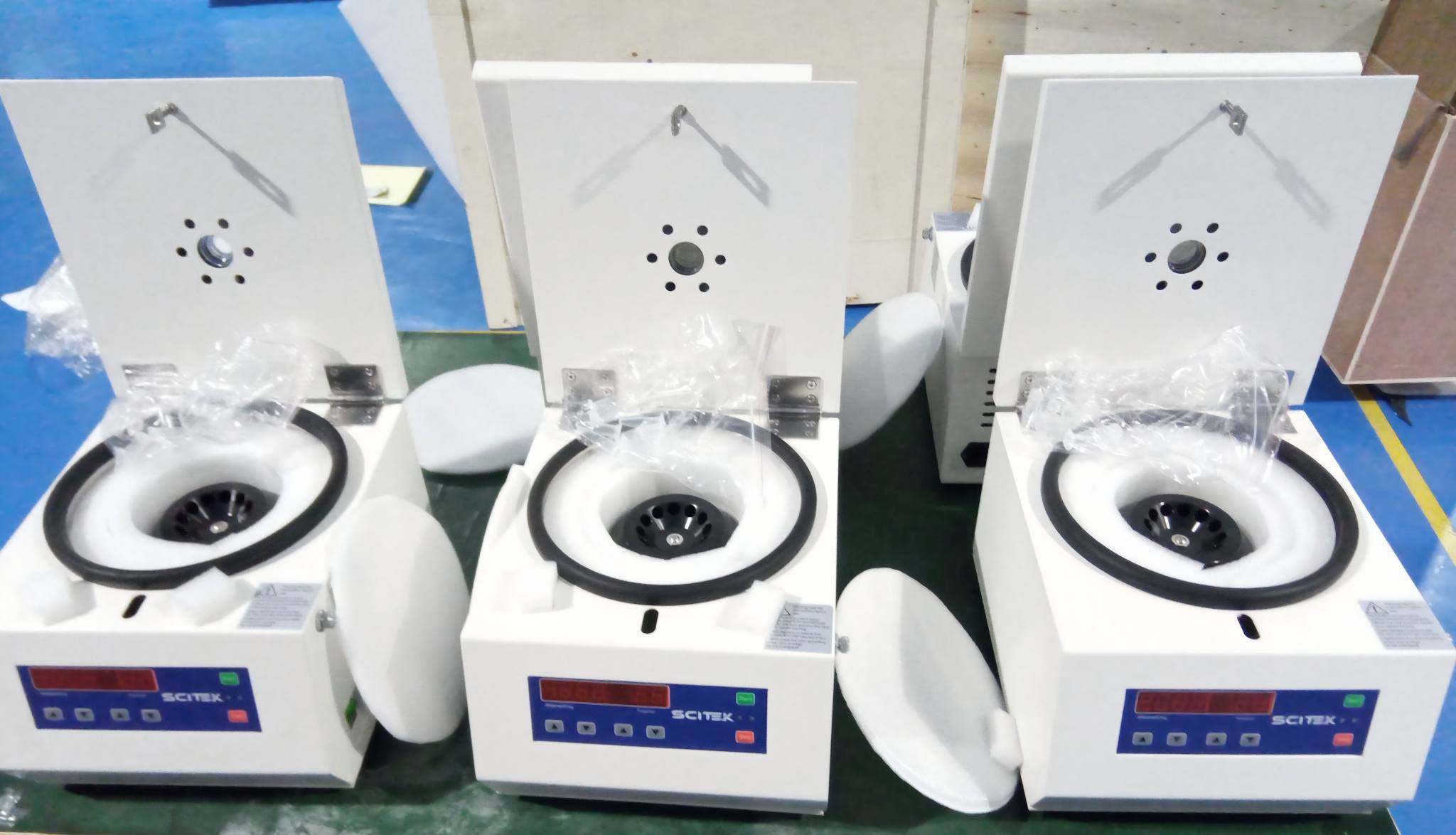

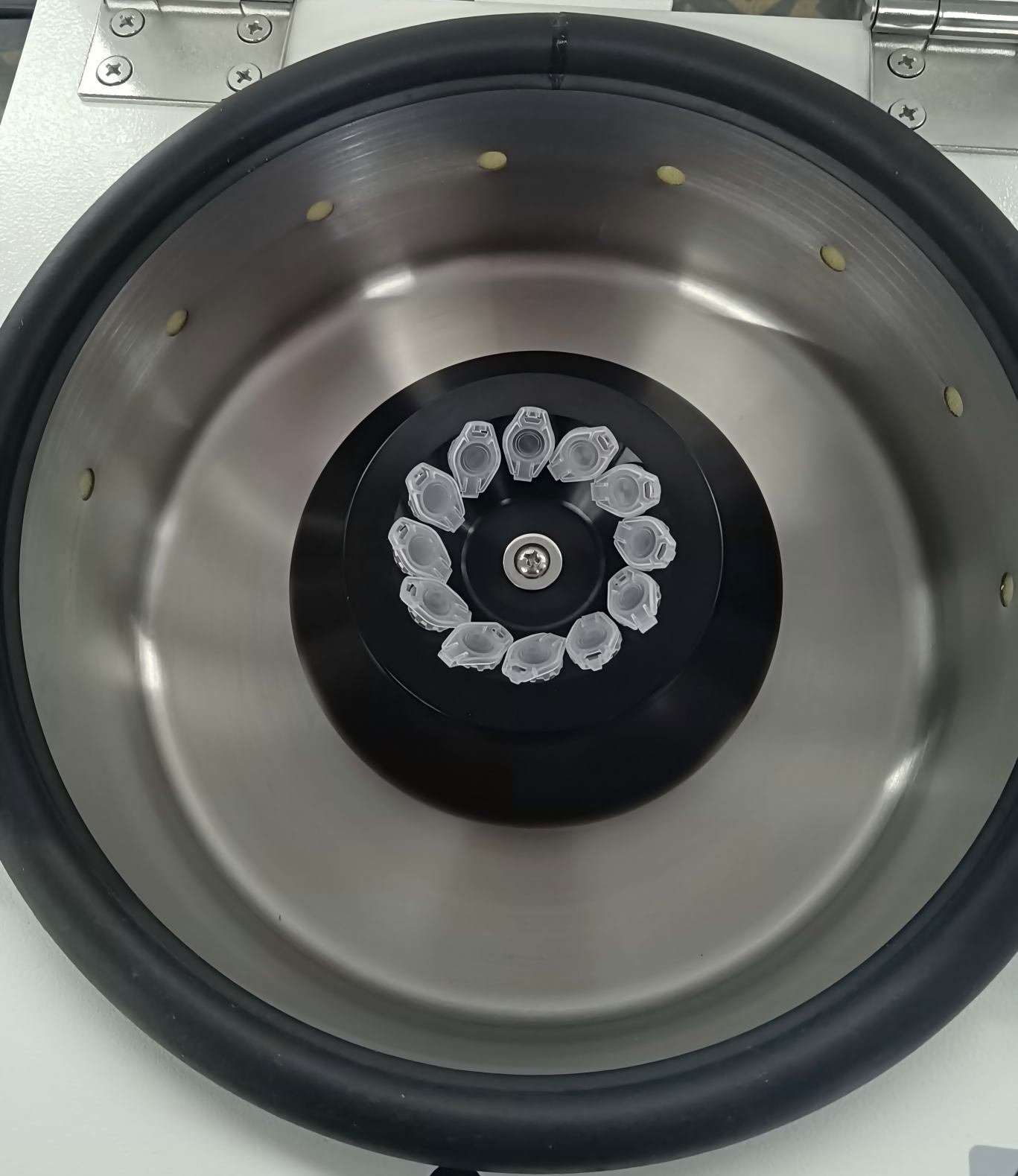

Spacious and well-structured centrifuge chamber for convenient rotor installation, sample loading, and routine cleaning and maintenance.

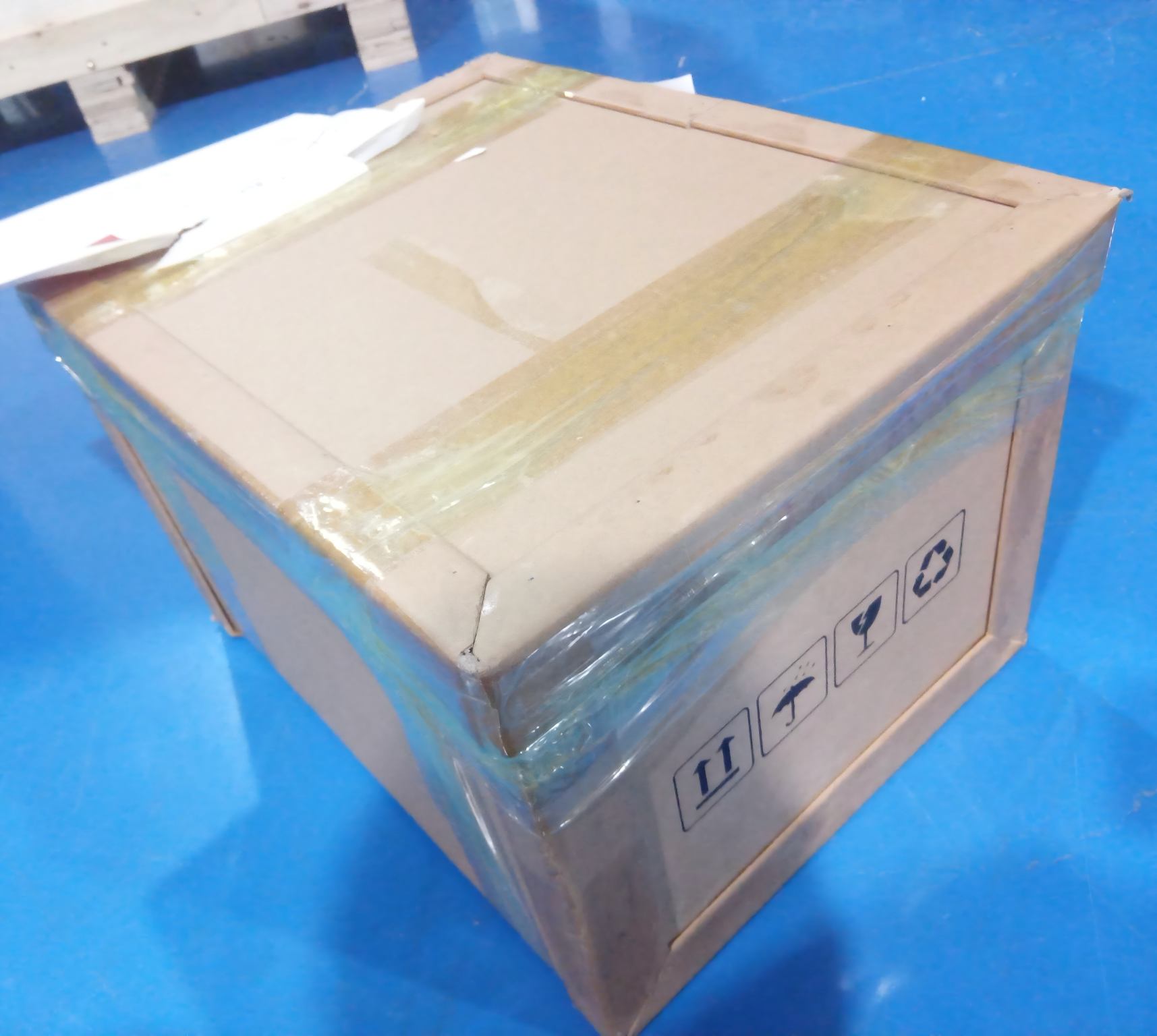

Securely packaged for international shipment, with protective materials designed to minimize vibration, impact, and handling risks during transit.
What are high speed centrifuges used for?
High-speed centrifuges are used for the separation of proteins and cells, organelles, and larger biomolecules, as well as for laboratory workflows involving large sample volumes. Compared to low-speed centrifuges, they process samples faster and achieve higher separation efficiency.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
