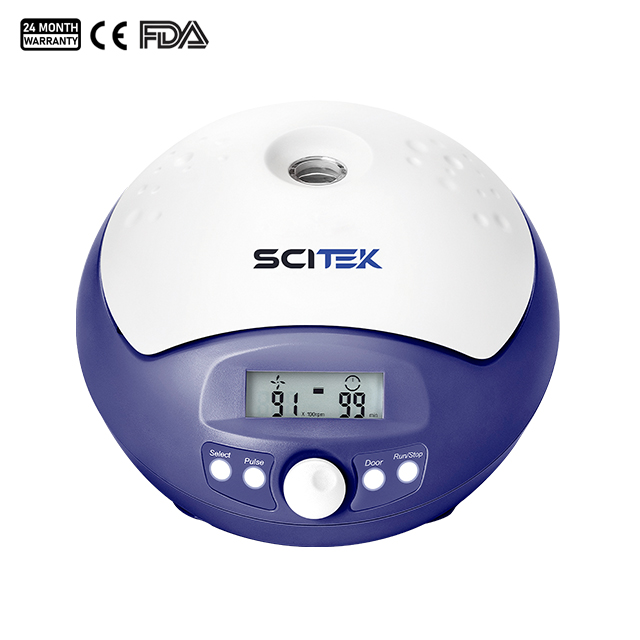

The microcentrifuge is a compact personal 12-well centrifuge with a maximum speed of 15,000 rpm (15,100 xg) that can accommodate small volume microtubes of 0.2 mL/0.5 mL/1.5 mL/2 mL. The mini centrifuge is suitable for separating aqueous solutions and suspensions in test tubes.
High Speed Microcentrifuge Features:
High-speed capability with a maximum speed of up to 15000rpm (15100×g).
Efficient and fast acceleration to the target speed facilitated by a brush-less DC motor drive.
Quiet operation with low noise levels, measuring ≤54dB.
Complies with the safety standards of IEC/EN 61010-1, ensuring reliable performance.
Successfully passed the rigorous explosion-proof test according to IEC/EN 61010-2-20, providing an extra level of safety assurance.
High Speed Microcentrifuge Specifications:
| Model | CFG-15HM |
| Max. Speed | 15000rpm(500-15000rpm), increment: 100rpm |
| Max. RCF | 15100×g, increment: 100×g |
| Speed Accuracy | ±20rpm |
| Rotor Capacity | 0.2mL/0.5mL/1.5mL/2mL×12 |
| Run Time | 30sec - 99min/Continuous |
| Acceleration/Braking Time | 11s↑/9s↓ |
| Driving Motor | Brushless DC motor |
| Safety Devices | Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
| Power | Single-phase, AC100V-240V, 50Hz/60Hz, 3A 100W |
| Noise level | ≤54dB |
| Size(WxDxH)(mm) | 255x245x140 |
| Shipping Size(WxDxH)(mm) | 360x360x280 |
| N.W./G.W. (kg) | 6/8 |
| Other functions | Speed/RCF switch, Short-time run function, sound-alert function |
Details of Microcentrifuge:

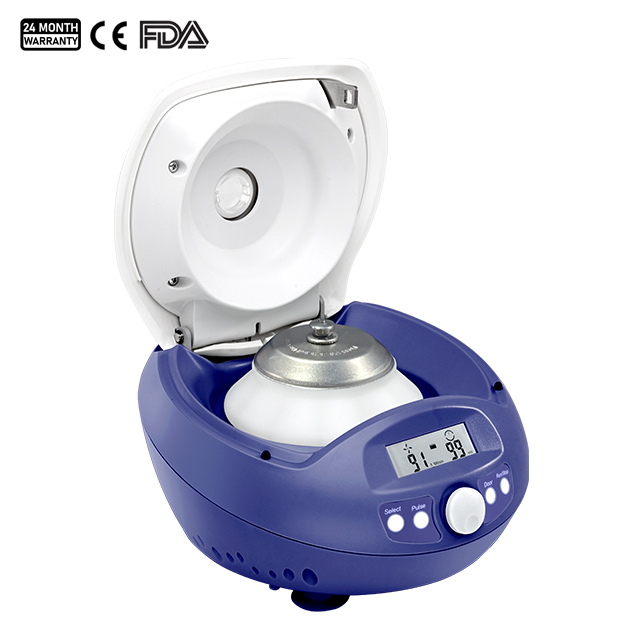

Precision rotor design accommodates multiple micro sample tubes to ensure sample balance and safety while rotating at high speeds. The robust rotor structure is suitable for high speed operation and is capable of handling multiple samples to improve experimental efficiency.
High-definition display and simple button layout make operation intuitive and easy.
Applications of High Speed Microcentrifuge:
With its precise rotor design, easy-to-use interface and accurate digital control, it excels in the separation and purification of a wide range of micro samples. It has a wide range of applications in molecular biology, biochemistry and clinical laboratories, and is particularly suitable for experiments that require fast, efficient and precise sample processing.
Nucleic Acid Purification
PCR Clean-up
Plasmid Small Volume Preparation
Protein Processing
