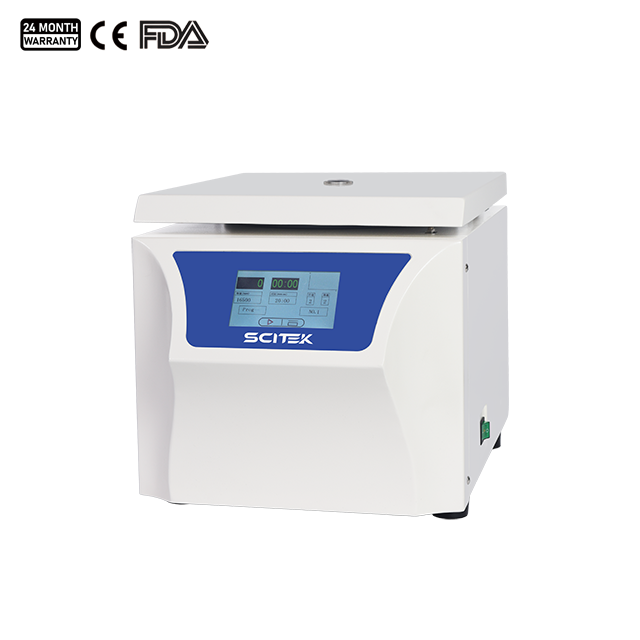

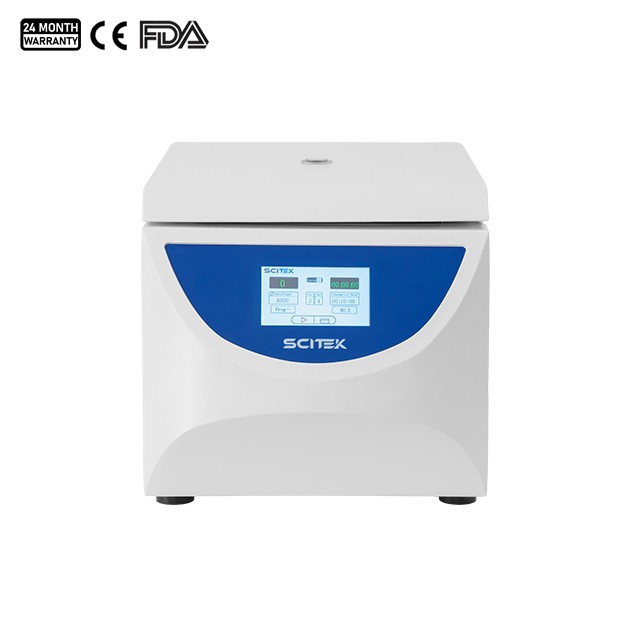

Benchtop High Speed Centrifuge, CFG-D18H

Model : CFG-D18H

Max speed : 18500r/min
Max RCF : 23800×g
Max capacity : 4×100mL
External Size (W×D×H)(mm) : 350×495×350
Applicable to biological science, medical diagnosis, pharmaceutical industry and so on.
Availability:
Quantity:

The benchtop high speed centrifuges applies to the experiments in fields of biology, medical science, agriculture, which is the first choice for heredity gene, protein nucleic acid PCR experiment.

Benchtop High Speed Centrifuge Feature:

  1. 5-inch high-definition touch screen, easily operated, visual display

  2. Automatically identify 7 kinds of different rotors, eliminate hidden danger   brought by users' maloperation

  3. 9 ranges for raising speed, 10 ranges for speed reduction, to effectively avoid secondary sedimentation, with better centrifugation effect

  4. Available to store 15 series of procedure for users to adjust

  5. Alternating frequency conversion electric machine, high precision of rotary speed control

  6. Diverse protection setting: overspeed, door protect, imbalance protect, to ensure safety of both human and machine

  7. Free conversion between rotary speed and centrifugal force

  8. Special air duct, to ensure rotor's running in normal temperature

  9. Air-tight rotor, to effectively avoid aerosol

Benchtop High Speed Centrifuge Specifications:

ModelCFG-D18H
Max speed18500r/min
Max RCF23800×g
Max capacity4×100mL
Speed accuracy±30r/min
Time setting1min~99 min59s
Noise< 60dBA
Power supplyAC220±22V 50/60Hz 16A
Sizes(W×D×H)(mm)350×495×350
Packing Size (W×D×H)(mm)450×710×520
N.W./G.W. (kg)35/45

Matched Rotors:

Rotor TypeMax SpeedMax VolumeMax RCF
Angle Rotor18500rmp/m12×1.5/2ml23800×g
Angle Rotor15000rmp/m24×1.5/2ml21380×g
Angle Rotor14000r/min48×0.5ml22350×g
Angle Rotor13000r/min8×15ml18040×g
Angle Rotor13500r/min12×5ml12830×g
Angle Rotor12500r/min12x10ml16060×g
Angle Rotor13000r/min6×50ml (Sharp bottom)17760×g
Angle Rotor13000r/min6×50ml (Round bottom)17760×g
Angle Rotor11000r/min4×100ml12850×g
Microplate Rotor4000r/min2x2x48well2000×g
