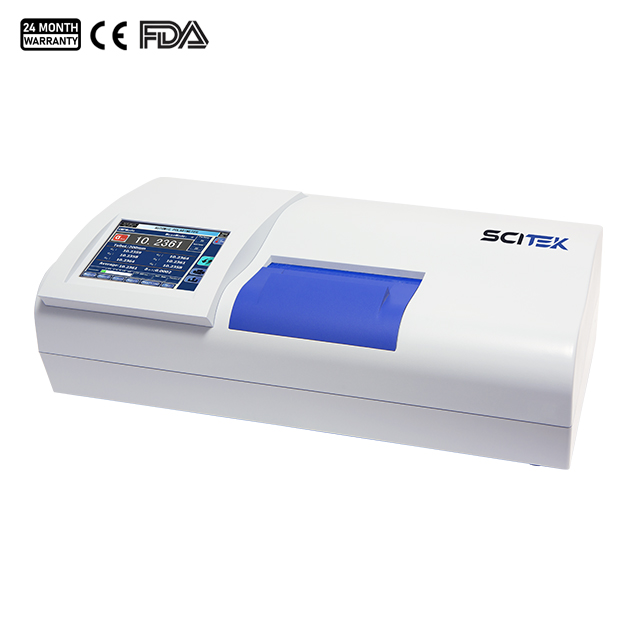

High-Speed Automatic Polarimeter POL-532/531

Model : POL-532; POL-531

Pre-stored measurement methods : 30
Light source : LED +precision interference filters
Wavelength : 589nm (Sodium D Spectrum)
Availability:
Quantity:

Application of High-Speed Automatic Polarimeter:

High-speed automatic polarimeter delivers exceptional performance characterized by rapid response, low noise, and the ability to handle samples with extremely low transmittance; it significantly enhances testing efficiency while ensuring high precision in results. Widely used in R&D and quality control within the pharmaceutical, biopharmaceutical, food, sugar, fine chemical, and fragrance industries, as well as in scientific research and university education.

High-Speed Automatic Polarimeter Feature:

  1. Rapid response, low noise, and extremely low transmittance, significantly enhancing measurement accuracy and operational efficiency.

  2. Long-life LED light source (exceeding 100,000 hours) to reduce maintenance costs.

  3. Incorporates intelligent data processing that allows for user-defined measurement counts and automatically calculates the average of multiple readings to ensure data representativeness.

  4. Multiple communication interfaces to support real-time data storage and transmission.

  5. Large LCD screen with a user-friendly interface, ensuring measurement results and parameters are clearly visible at a glance.

  6. POL-532 model includes a temperature control function, meeting the requirements for analyzing temperature-sensitive samples.

High-Speed Automatic Polarimeter Specifications

ModelPOL-532POL-531
Display8 inch color touch LCD
Measuring modeOptical Rotation, Specific Rotation, % Concentration, International Sugar Scale
Measuring range±90° (OR)  ±259°Z (ISS)
Resolution0.001°0.001°
Accuracy±0.004°±0.006°
Repeatability≤0.002°≤0.002°
Light sourceLED +precision interference filters
Wavelength589 nm (Sodium D Spectrum)
Pre-stored method30
Min. transmission0.10%0.10%
Response speed8°/S
Measuring  time6 times/26s
Temp. control modePeltier(Built-in)No
Temp. control range10–50 ℃No
Temp. control accuracy±0.2 ℃No
Calibration methodMulti-point automatic calibration
Data storage10000 sets
InterfaceUSB, RS232, U disk
Test tube200mm, 100mm (regular), 100mm (temp control)200mm,100mm (regular)
Optional tube50mm (regular)50mm (regular)
200mm (temp control)
Power supply220±22 V, 50±1 Hz
Consumption200 W
External Size860×510×470 mm
G.W.36 kg
