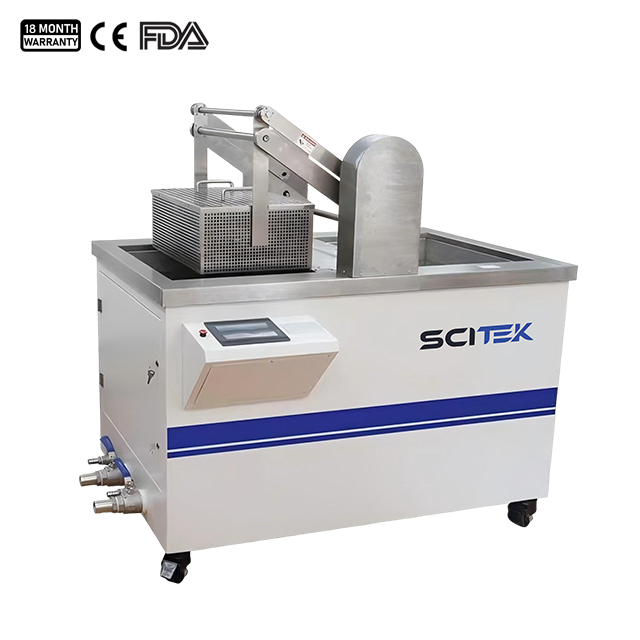

GBTS-70 Glass Bottle Thermal Shock Resistance Tester is suitable for testing the thermal shock resistance of glass containers and jars which are required to withstand sudden changes in temperature in service.
Glass Bottle Thermal Shock Resistance Tester Feature:
5-inch color touchscreen with graphical user interface (GUI)
Versatility to meet ASTM, ISO, and GB standards
The system is equipped with automatic positioning function, one-key operation.
The hot water tank, cold water tank, and basket are all made of high-temperature and corrosion-resistant stainless steel materials.
High-precision DC motor controls the rotating movement of the basket, quiet operation, smooth transmission.
Equipped with an automatic return program, the lifting system automatically returns after the test is completed.
Water circulation system saves the heat balance time and promotes the uniformity of water temperature.
Open basket structure, smooth operation, precise positioning, convenient for loading test samples
Micro-printer and standard USB interface
Glass Bottle Thermal Shock Resistance Tester Specifications:
| Model | GBTS-70 |
|---|
| Temperature Difference (°C) | 0 ~ 70°C |
| Temperature Range (°C) | Ambient ~ 99°C |
| Temperature Accuracy (°C) | ±0.5°C |
| Temperature Resolution (°C) | 0.1°C |
| Hot and Cold Water Conversion Time | High Speed: 10s |
| Low Speed: 16s |
| Capacity (L) | Hot water tank: 80 L |
| Cold water tank: 80 L |
| Pump Flow (L/min) | 86 L/min |
| Configuration | Standard: Instrument, Micro-Printer, Basket, Cover, Inlet Pipe |
| Optional: Professional Software, Communication Cable, Refrigerant Machine |
| Shipping Size (WxDxH)(mm) | 1200x900x1600 |
| N.W/G.W (kg) | 100/150 |
Standard:
This test instrument conforms to national and international standard:
ASTM C149, GB/T 4547-2007, YBB00182003-2015, ISO/TC 63, ISO 7459:2004, BS EN 1183:1997, BS EN ISO7459, ISO/IEC 17025:2005
Applications:
Including beer bottles, beverage bottles, glass ampoule bottles, vials, and other glass containers.
