Testing Principle of Photon Correlation DLS Nanoparticle Size and Zeta Potential Analyzer
Using the principles of electrophoretic light scattering and photon correlation spectroscopy, the magnitude of a particle's zeta potential is determined from the speed of the particle's electrophoretic motion in a liquid. The overall velocity of the electrophoretic motion of the particles and the amount of doppler shift of the scattered light caused by laser irradiation of these particles are varied. Photon correlation spectroscopy analyses the magnitude of the particle zeta potential based on the frequency shift.

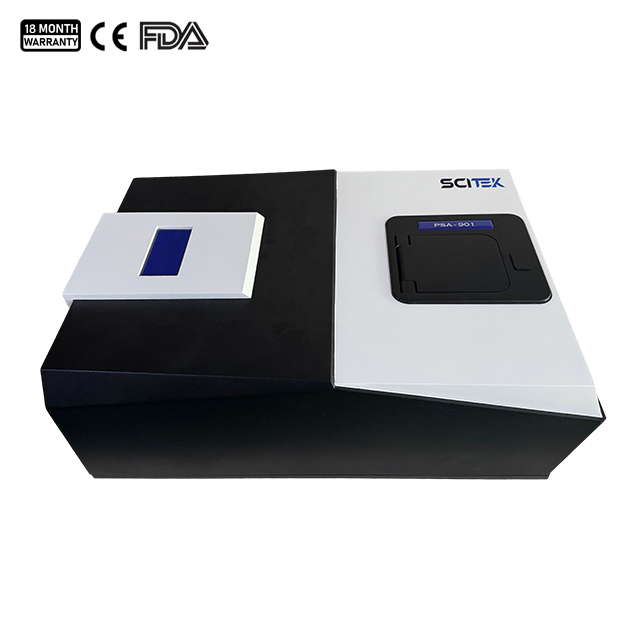

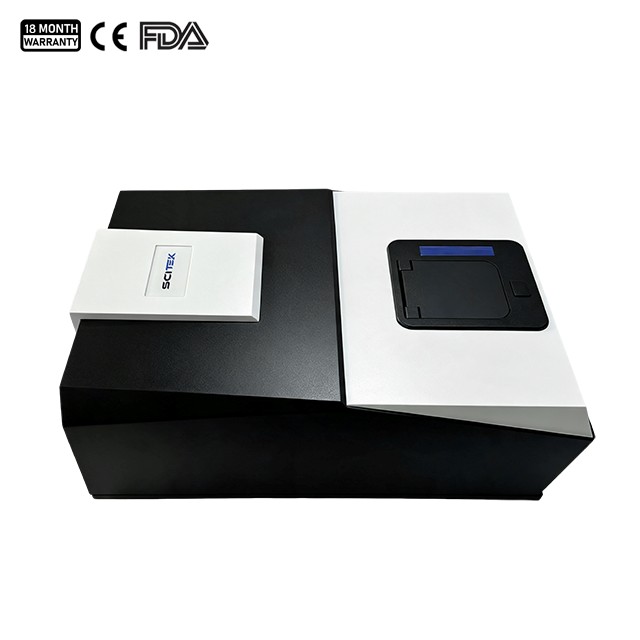

Nanoparticle Size and Zeta Potential Analyzer Specifications:
| Model | PSA-901 |
| Measure Range | 1-10000nm (reference to sample) | -500mV ~ +500mV |
| Concentration Range | 0.1-100mg/ml (reference to sample) |
| Electrophoretic Mobility Range | > ±20μm.cm/V.s |
| Highest Conductivity | 200mS/cm (reference to sample) |
| Accuracy Error | <1% (National standard sample D50 value) | <10% (Standard sample) |
| Repeatability Error | <1% (National standard sample D50 value) | <10% (Standard sample) |
| Laser Source | Semiconductor laser λ= 635nm, P=1-40mw (adjustable) |
| Detector | Photomultiplier tube |
| Scattering Angle | 90o | 18o |
| Sample Cell Volume | 10mmx10mmx40mm, 1--4mL | 10mmx10mmx60mm, 1mL |
| Temperate Range | 5-45℃ |
| Temperature Control Accuracy | 0.1℃ |
| Test Speed | <5 Min |
| Digital Correlator | Model | HA1024 | HA1024 |
| Auto-correlation channels | 892 | 892 |
| Baseline channel | 4 | - |
| Physical channels | 5000 | - |
| Unit delay time | 1µs-10ms(adjustable) | 1µs-10ms(adjustable) |
| External Size (L×W×H)(mm) | 560x450x300 |
| Shipping Size (W×D×H)(mm) | 870×730×490 |
| N.W. / G.W. (kg) | 28/57 |
Nanoparticle Size and Zeta Potential Analyzer Features:
It is suitable for particle size and surface potential measurement of a variety of different nanoemulsions, suspension colloids, etc. It can be widely used in fine chemical industry nanomaterials, R&D and production quality control of surfactants, oligomers, etc.
The zeta potential analyzer is also a product development and quality control testing instrument for inks, pharmaceutical preparations and other industries.
Ultra-high-speed data acquisition.
High sensitivity signal-to-noise ratio. Using professional-grade high-performance photomultiplier tubes.
High-precision constant temperature control. Using semiconductor temperature control technology, the temperature control accuracy is as high as 0.1 °C.
Stable optical path system. The optical path system constructed by the optical frequency shifting device.
Details of Potential Analyzer:

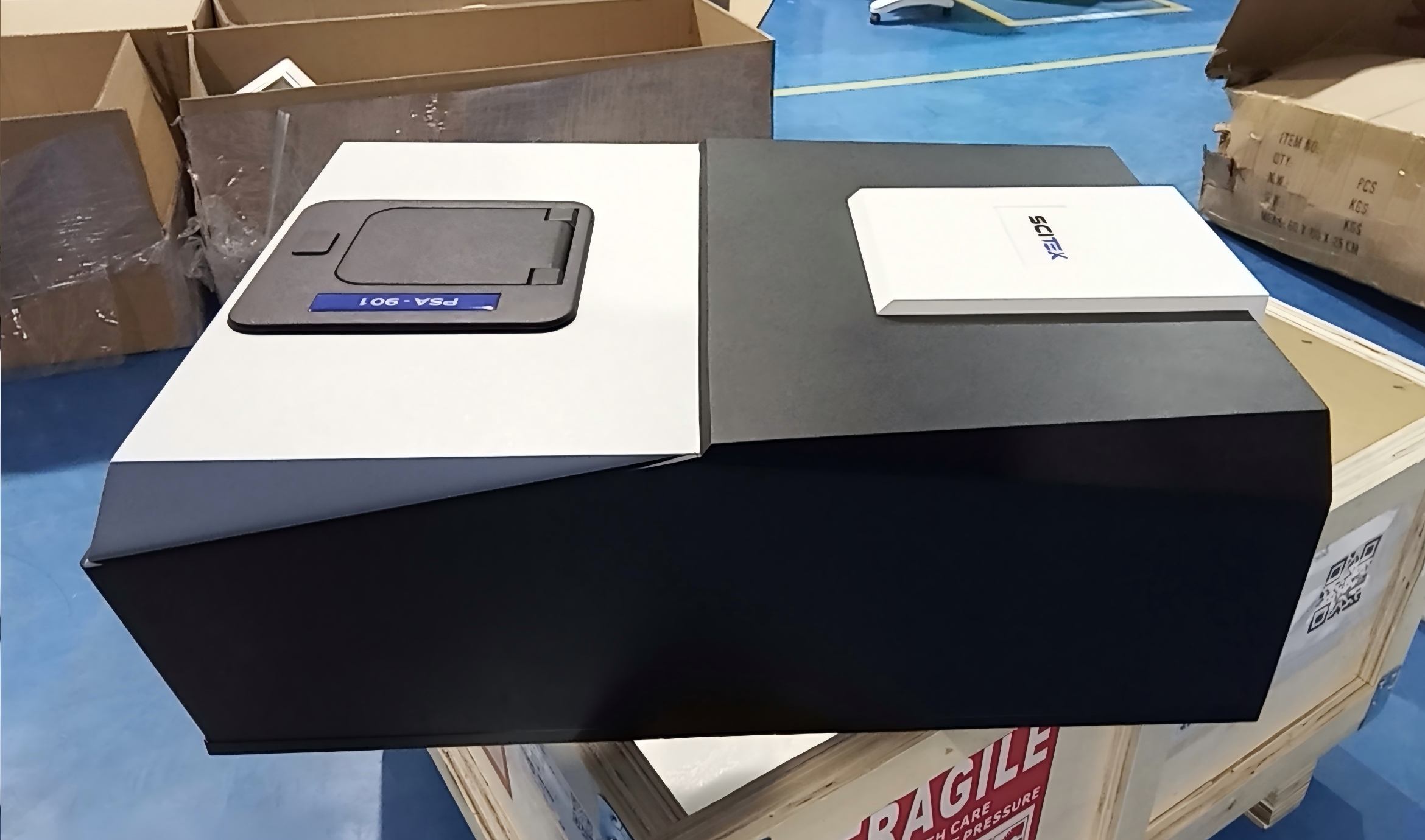

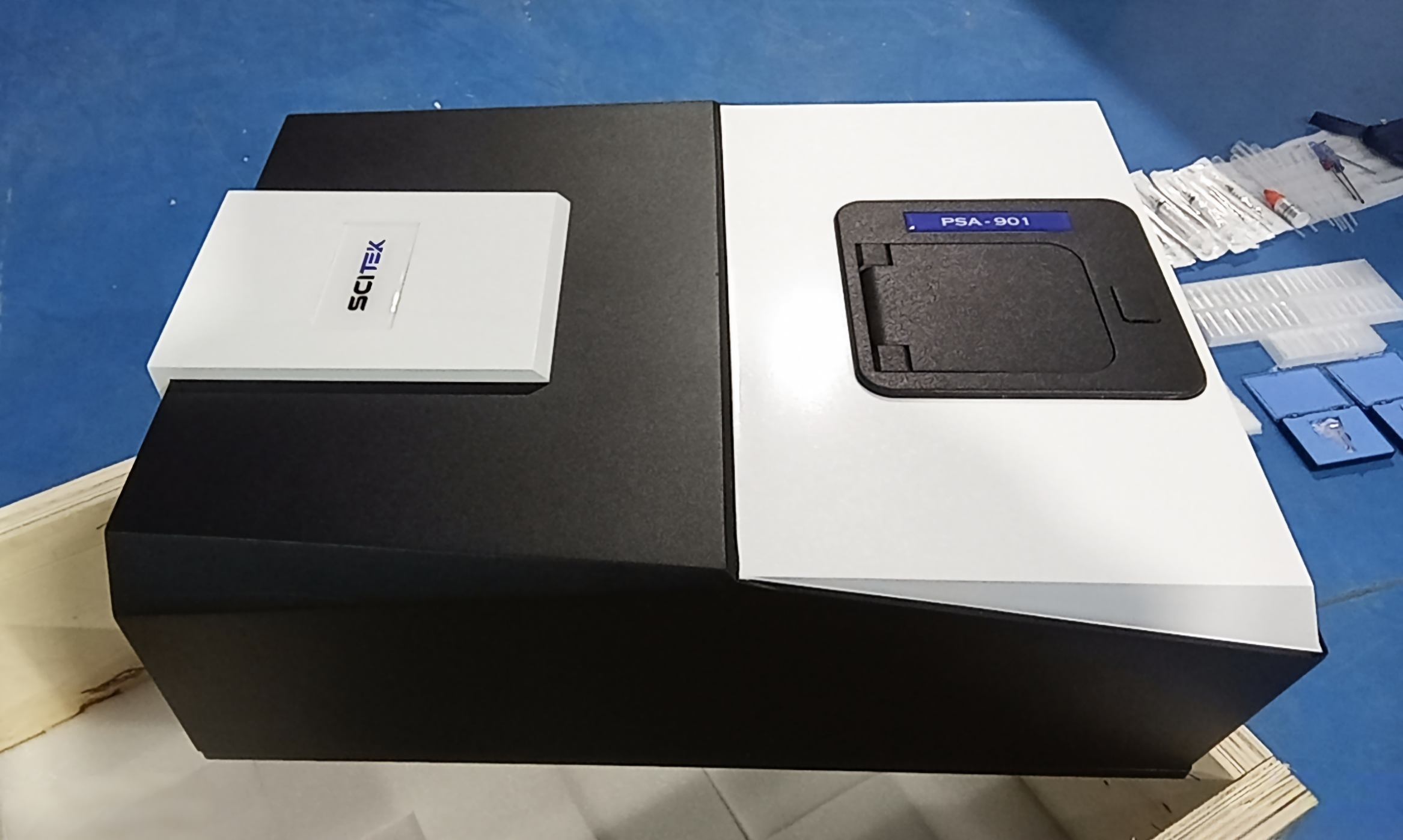

The Nanoparticle Size and Zeta Potential Analyzer is carefully inspected before shipment. The instrument appearance, display panel, ports, and overall condition are checked to ensure that every detail meets quality standards before delivery.

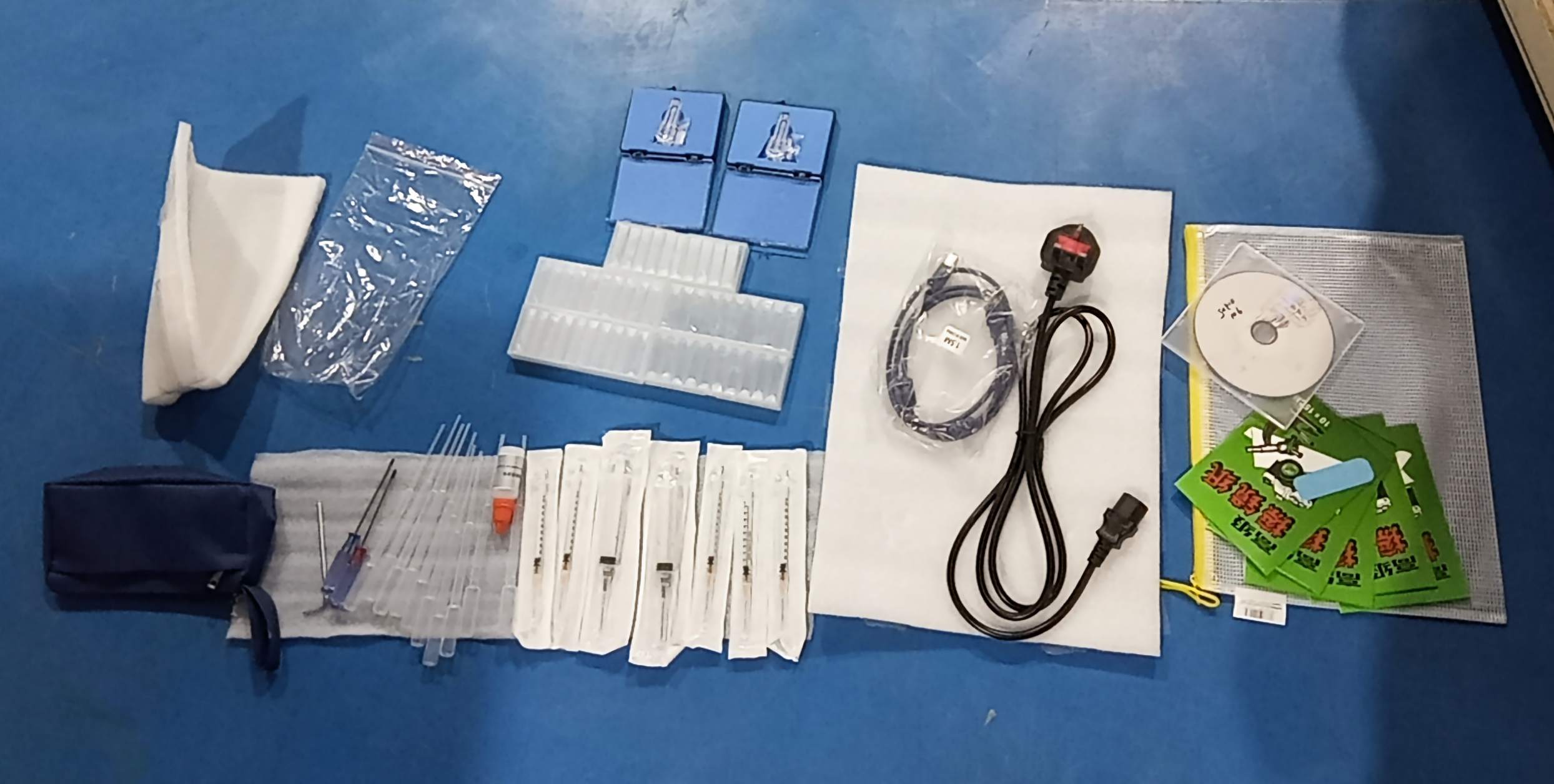

All standard accessories and components are carefully organized and inspected before shipment. Each item is verified to ensure the customer receives a complete solution ready for installation and operation.
Before final sealing, the analyzer is placed securely inside the customized packaging. Protective materials are arranged around the instrument to prevent movement and ensure safe transportation during international shipping.
The Nanoparticle Size and Zeta Potential Analyzer has been fully packed and secured. The export packaging is reinforced to provide reliable protection throughout long-distance transportation.
