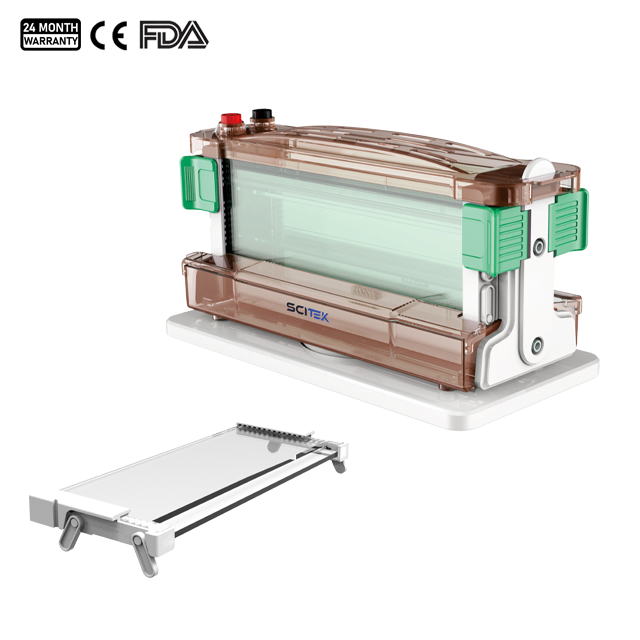

Vertical Electrophoresis Tank Specifications:
| Model | ET-V04II |
|---|
| Gel Tray(W×L)(mm) | 300×85 |
| Sample Throughput | 102, 68 (optional) |
| Buffer Capacity | 800ml |
| Glue Filling Method | Default horizontal gluing |
| Sizes (W×D×H)(mm) | 350×140×150 |
| Shipping Size(W×D×H)(mm) | 480×330×380 |
| N.W./G.W. (kg) | 4.5/6 |
| Standard Accessories |
| Name | Specification | Quantity |
| Electrophoresis Tank |
| 1 |
| Rotating Tray |
| 1 |
| Concave Glass Plate |
| 2 |
| Flat Glass Plate |
| 2 |
| Sampling Comb | 102 samples | 2 |
| 68 samples | 2 |
| Air Bubble Hook |
| 2 |
| Drainpipe |
| 2 |
| Glass Clamp |
| 2 |
| Wireway |
| 1 |
Vertical Electrophoresis Tank Features:
Vertical electrophoresis tank is suitable for molecular labeling rapid SSR experiments and other high-throughput protein electrophoresis.
Polycarbonate injection molding, high transparency, high strength and impact resistance.
Large capacity for electrophoresis of 200 samples at a time.
Glass holder and support mechanism, more convenient for filling operation.
You can directly assemble it to the electrophoresis tank without removing the glass clamps.
The new fastening device makes it easier and quicker to attach the gel glass plate to the electrophoresis tank.
The color design of the upper tank makes the filling holes easier to see when filling samples and avoids filling wrong samples.
A platinum electrode cover can effectively prevent the platinum wire from being damaged.
360-degree rotatable positioning device eliminates the need to move the electrophoresis tank when loading samples.
The upper and lower tanks are equipped with transparent safety covers. The upper tank safety cover has heat dissipation holes.
Cooling water can connect to the tank for constant temperature.
Two gels can be photographed simultaneously and stored in the computer.
