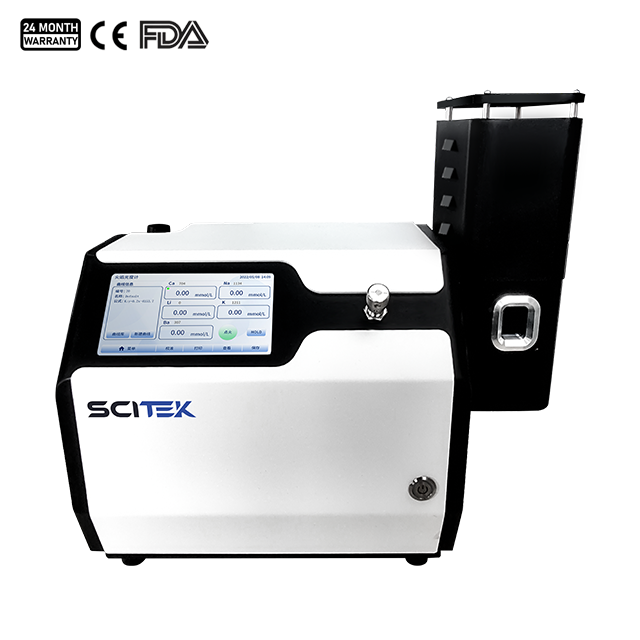

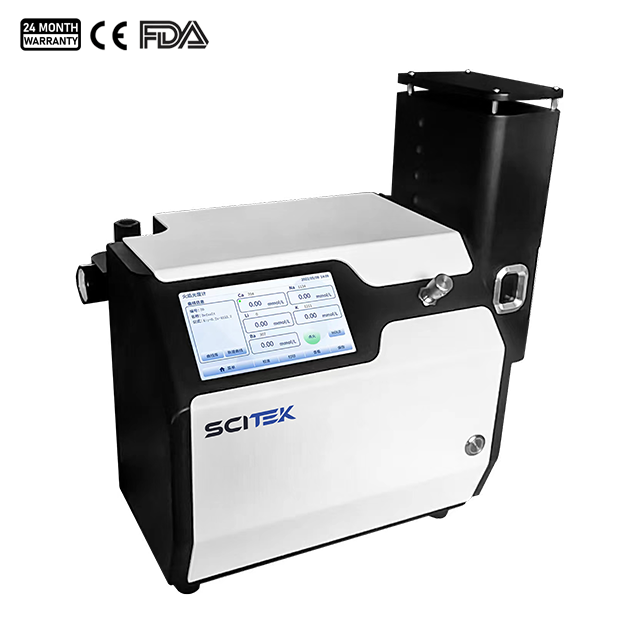

Model : SP-FPI6450; SP-FPI6440; SP-FP6432; SP-FPI6431; SP-FPI6430; SP-FPI6410; SP-FP6400
Display Results : Concentration value/Energy Response Time : <8s Sample Uptake : <6ml/min Stability : <3% drift over 15s when continuous sampling
External Size(WxDxH)(mm) : 480x260x330
The flame photometer has demonstrated great functionality and performance in the field of chemical analysis, providing reliable technical support for laboratory research and quality control.
Supports cloud connectivity, PC connection and printing
Flame Photometer Specifications:
Model
SP-FPI6450
SP-FPI6440
SP-FP6432
SP-FPI6431
SP-FPI6430
SP-FPI6410
SP-FP6400
Display
7-inch color touch screen
Display Results
Concentration value/Energy
Reading Range
0.000-9999/0-65535
Testable
K, Na, Li, Ca, Ba
K, Na, Li, Ca
K, Na, Ba
K, Na, Ca
K, Na, Li
K, Na
K, Na
Channel Qty
5
4
3
3
3
2
2
Range (ppm)
K
0-200
0-200
0-200
0-200
0-200
0-200
0-200
Na
0-200
0-200
0-200
0-200
0-200
0-200
0-200
Li
0-200
0-200
/
/
0-200
/
/
Ca
0-1000
0-1000
/
0-1000
/
/
/
Ba
0-3000
/
0-3000
/
/
/
/
Detection Limit (ppm)
K
≤0.16
Na
≤0.18
Li
≤0.105
≤0.105
/
/
≤0.105
/
/
Ca
≤2
≤2
/
≤2
/
/
/
Ba
≤0.6
/
≤0.6
/
/
/
/
Linear Error
K
≤0.2
Na
≤0.7
Li
≤0.147
≤0.147
/
/
≤0.147
/
/
Ca
≤3
≤3
/
≤3
/
/
/
Ba
≤9
/
≤9
/
/
/
/
Response Time
<8s
Sample Uptake
<6ml/min
Stability
<3% drift over 15s when continuous sampling
Reproducibility
<3% coefficient of variation for 7 consecutive samples
Curve Graph
Yes
Yes
Yes
Yes
Yes
No
No
Bluetooth Printer
Yes
Optional
Output
USB port
Standard Accessory
Air compressor
Power Supply
AC 220/110V, 50/60Hz
External Size (WxDxH)(mm)
480x260x330
Shipping Size (WxDxH)(mm)
710x380x515
N.W./G.W.(kg)
16/20
Details of Flame Photometer(SP-FPI6450):

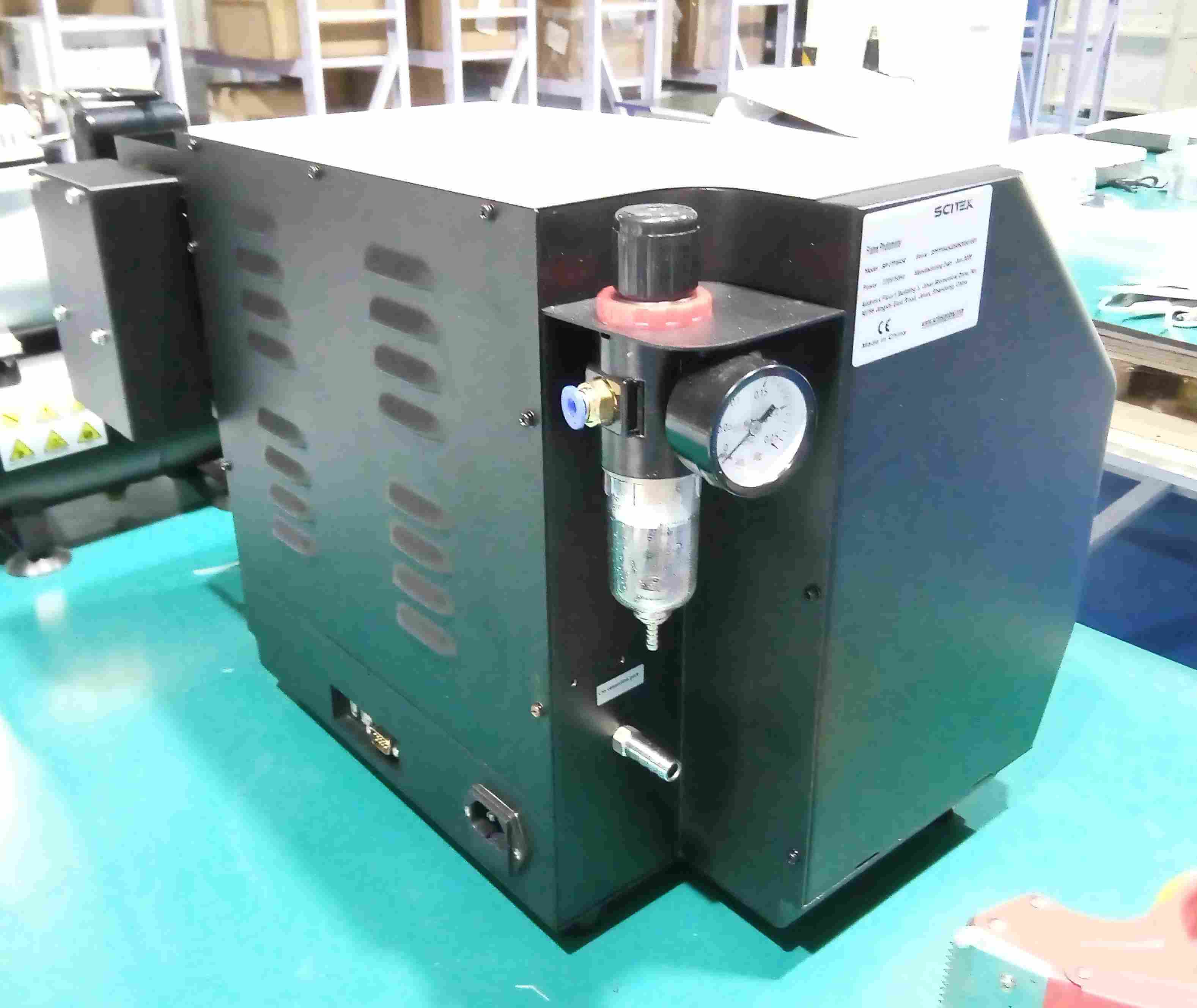

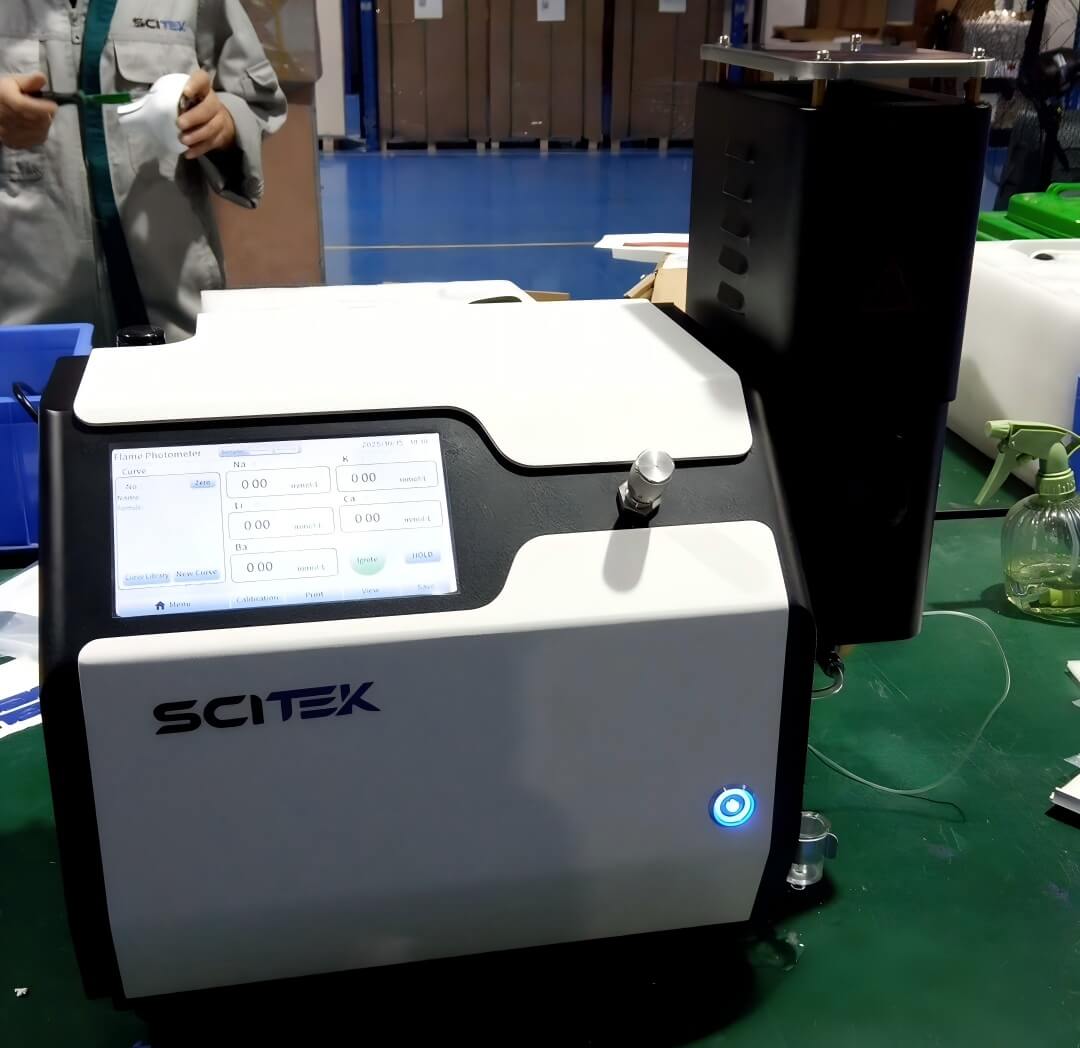

The flame photometer is inspected and prepared before shipment, with its main unit, display, and operating components clearly visible. The front panel features an intuitive touchscreen interface for convenient operation and real-time monitoring of measurement parameters.

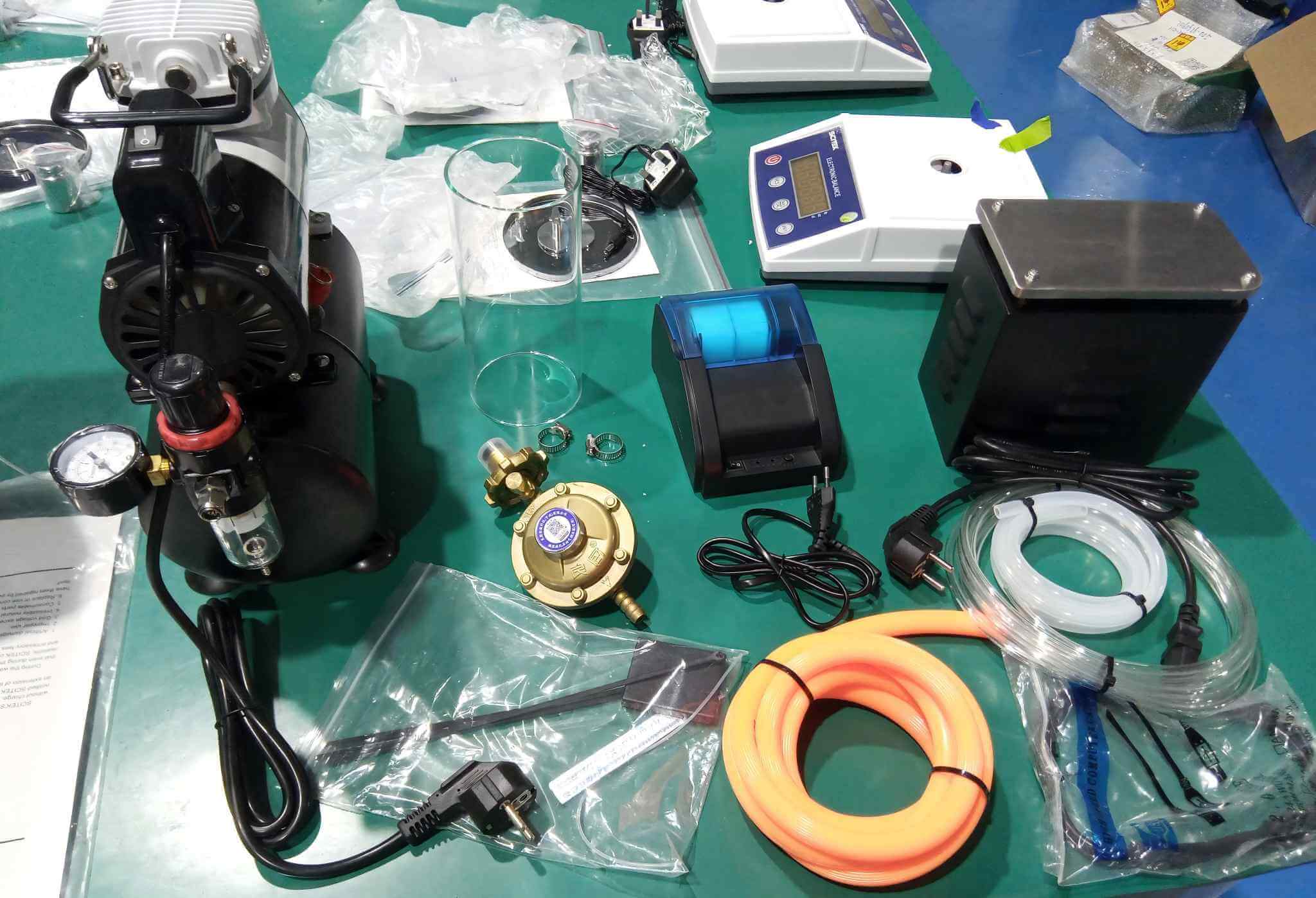

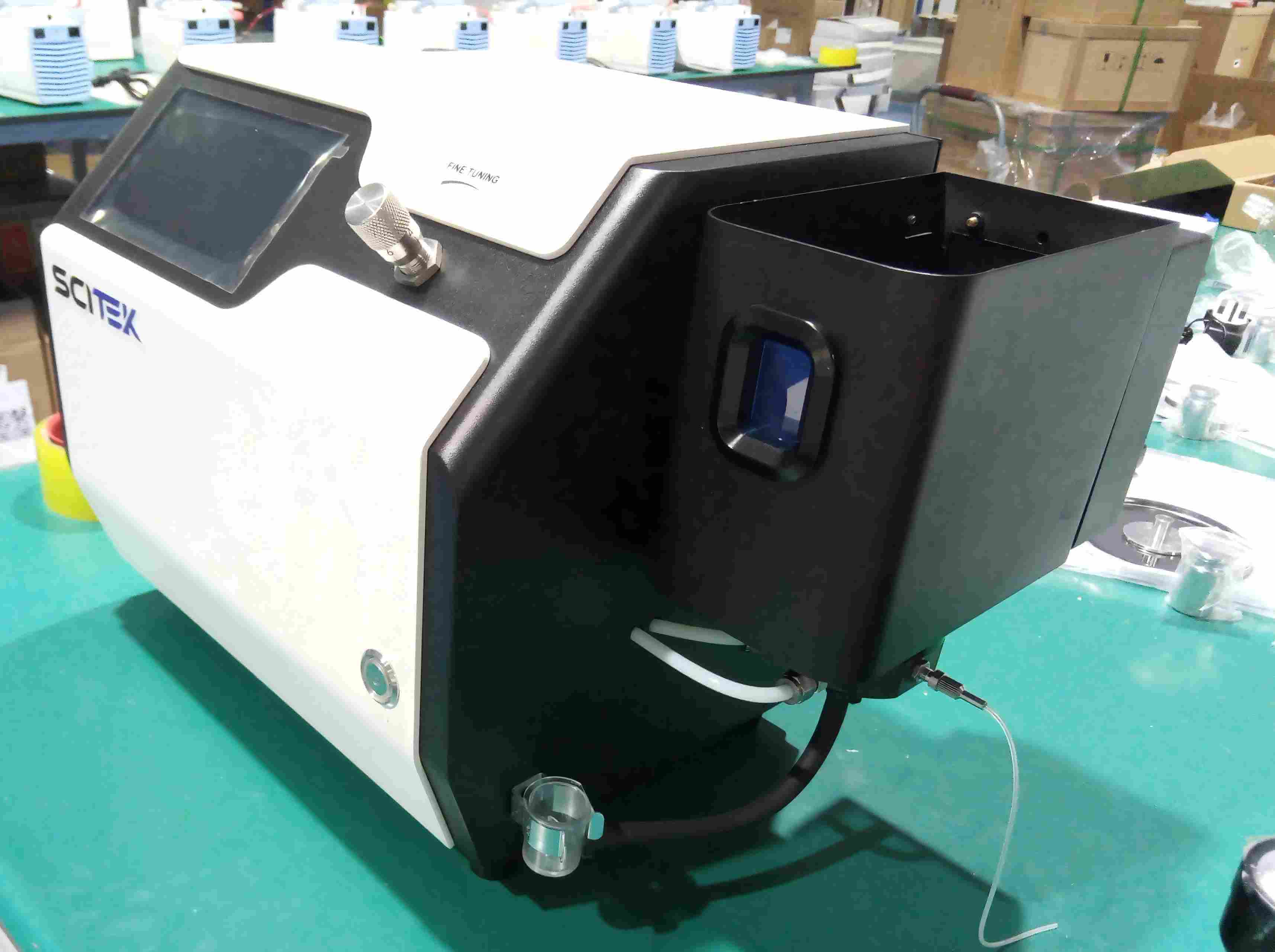

The flame photometer undergoes a final inspection before delivery to ensure the equipment and key components are in good condition and ready for shipment.
The flame photometer is securely packed with protective materials and a sturdy outer carton to minimize the risk of damage during transportation and ensure safe delivery.
What Is a Flame Photometer?
A flame photometer is an analytical instrument used to determine the concentrations of various metal ions (such as sodium, potassium, lithium, and calcium) in samples. The instrument operates on the principle of emission spectroscopy: the sample is introduced into a flame, and the light emitted by the flame is analyzed to determine the concentration of metal ions in the sample. Flame photometers are widely used in clinical laboratories, research institutions, and various industrial sectors.
How is a flame photometer used in clinical laboratories?
In clinical laboratories, flame photometers are used to measure various metal ions in biological fluids such as blood and urine. The determination of these metal ions is crucial for diagnosing a wide range of diseases.
How are flame photometers used in research facilities?
In research institutions, flame photometers are used to determine the metal ion content in various samples, such as soil, plant tissue, and water samples. The results provide important information about the chemical composition of the samples and aid in the study of various ecological and environmental processes.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
