SP-UV5100I is a practical UV-visible spectrophotometer. Its unique structural design ensures high reliability and easy replacement of parts. It has the following features:
Low stray light: Adopts high-quality components with low stray light.
Automatic wavelength setting: Direction keys automatically set the wavelength to avoid operation errors.
Solid structure: SP-UV5100I adopts a rigid die-casting aluminum base as the optical mount, which makes the machine stable.
Convenient Viewing: It is equipped with a USB port to display spectral scanning, kinetics and multi-wavelength test results directly on the screen.
Intelligent: UV-visible spectrophotometer can establish various standard curves according to the customer's solution and determine the concentration of the unknown solution. The spectrophotometer displays wavelength, absorbance and transmittance with 5 results per screen.
UV VIS Spectrophotometer Specifications:
Model
SP-UV5100I
Optical System
Single beam, Grating 1200 lines/mm
Wavelength Range
190-1000 nm
Bandwidth
2 nm
Wavelength Accuracy
±1 nm
Wavelength Repeatability
≤0.2 nm
Wavelength Setting
Auto
Photometric Accuracy
±0.5%T
Photometric Repeatability
≤0.2%T
Photometric Range
-0.3-3 A, 0-200% T, 0-9999 C
Stray Light
≤0.05%T@360 nm
Stability
± 0.001A/h @ 500 nm
Display
128x64 LCD
Detector
Silicon Photodiode
Light Source
Tungsten Lamp & Deuterium Lamp
Output
USB & Parallel Port(Printer)
Power Requirements
AC 85-250 V
Size(W×D×H)(mm)
490x370x220
Shipping Size(W×D×H)(mm)
630x540x370
N.W./G.W. (kg)
15/18
Details of UV VIS Spectrophotometer:

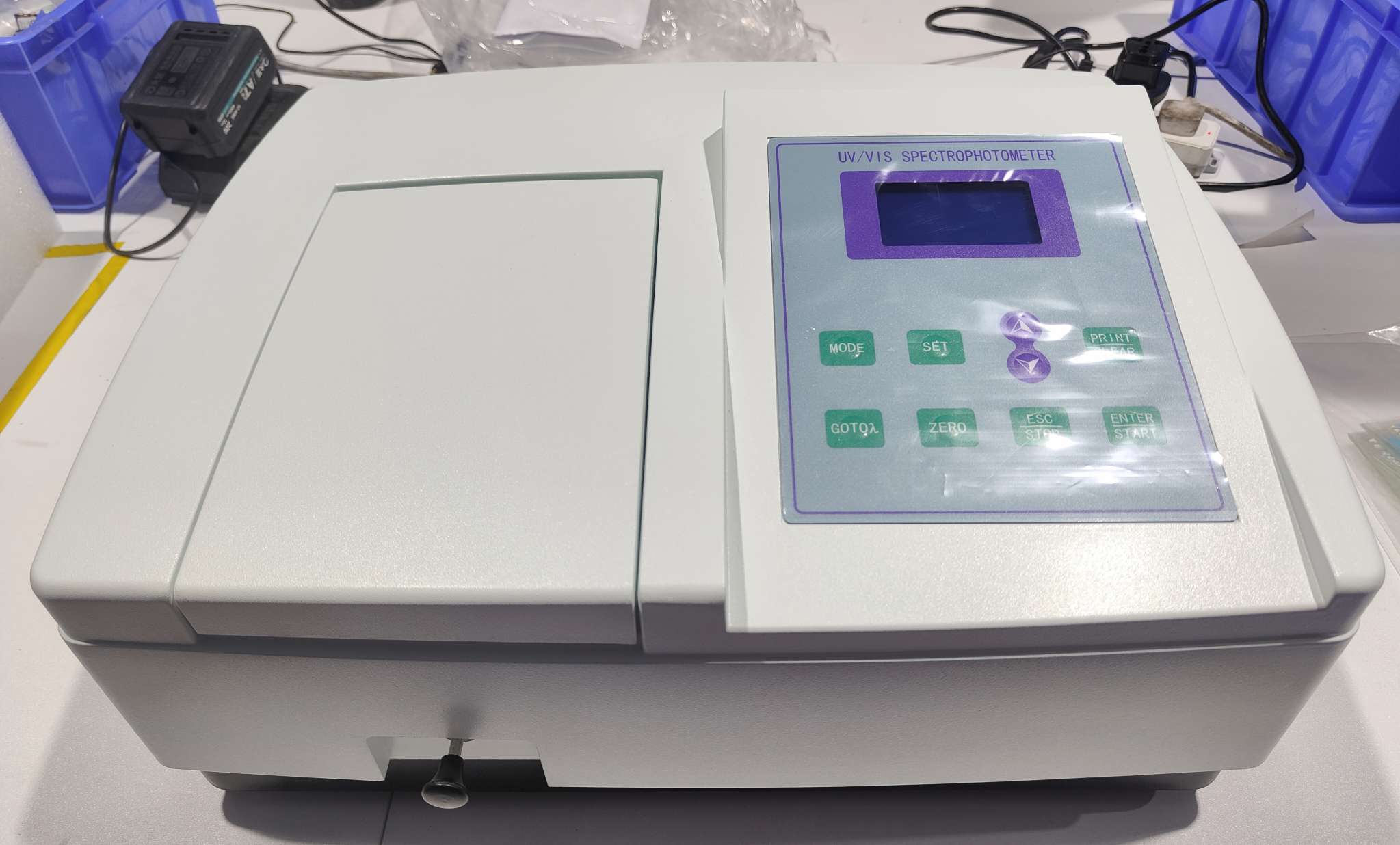

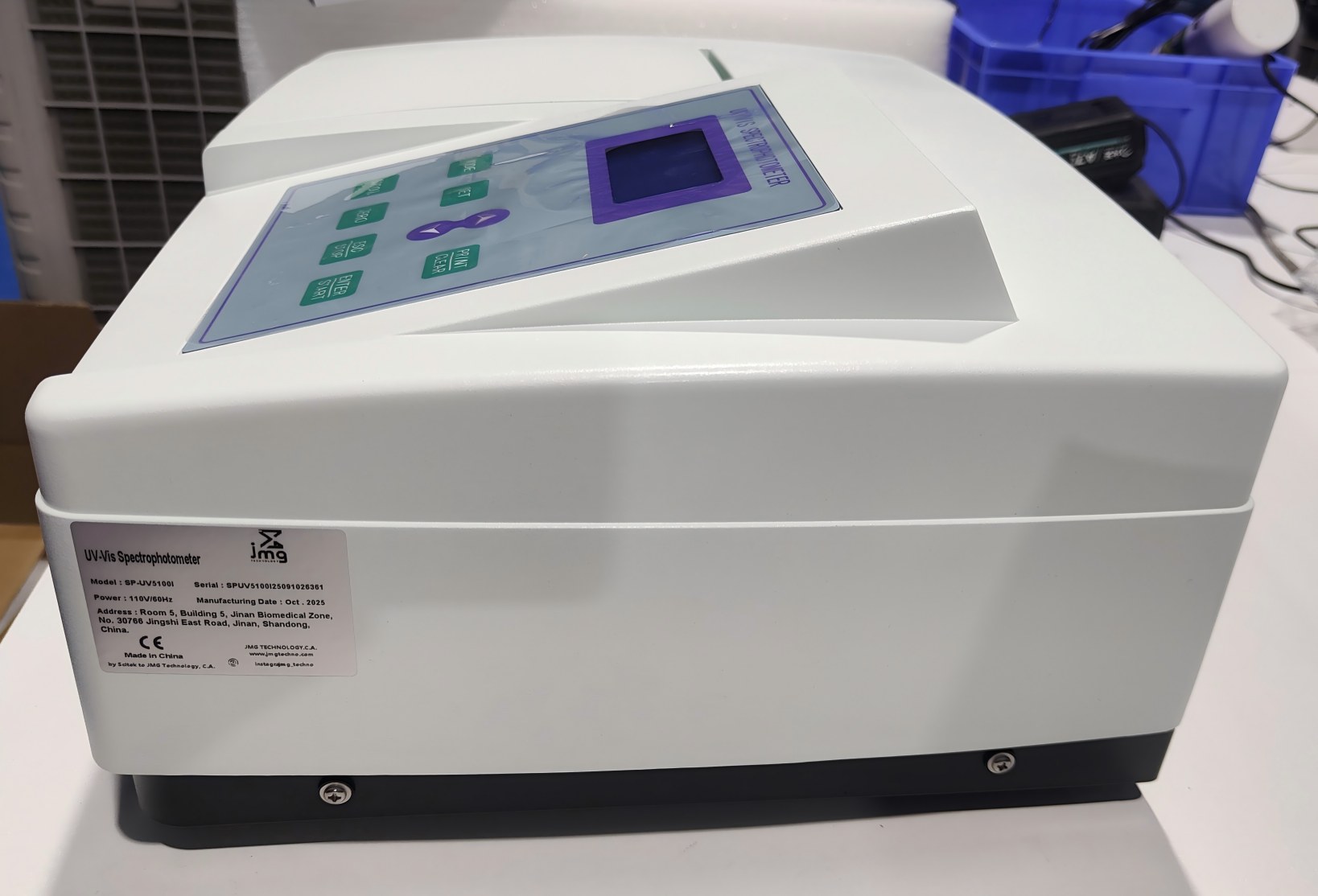

Clean and compact housing with an intuitive front-facing control interface provides convenient access to essential measurement and operating functions. Streamlined enclosure and integrated control panel create a professional laboratory appearance while providing a practical and user-friendly operating experience.

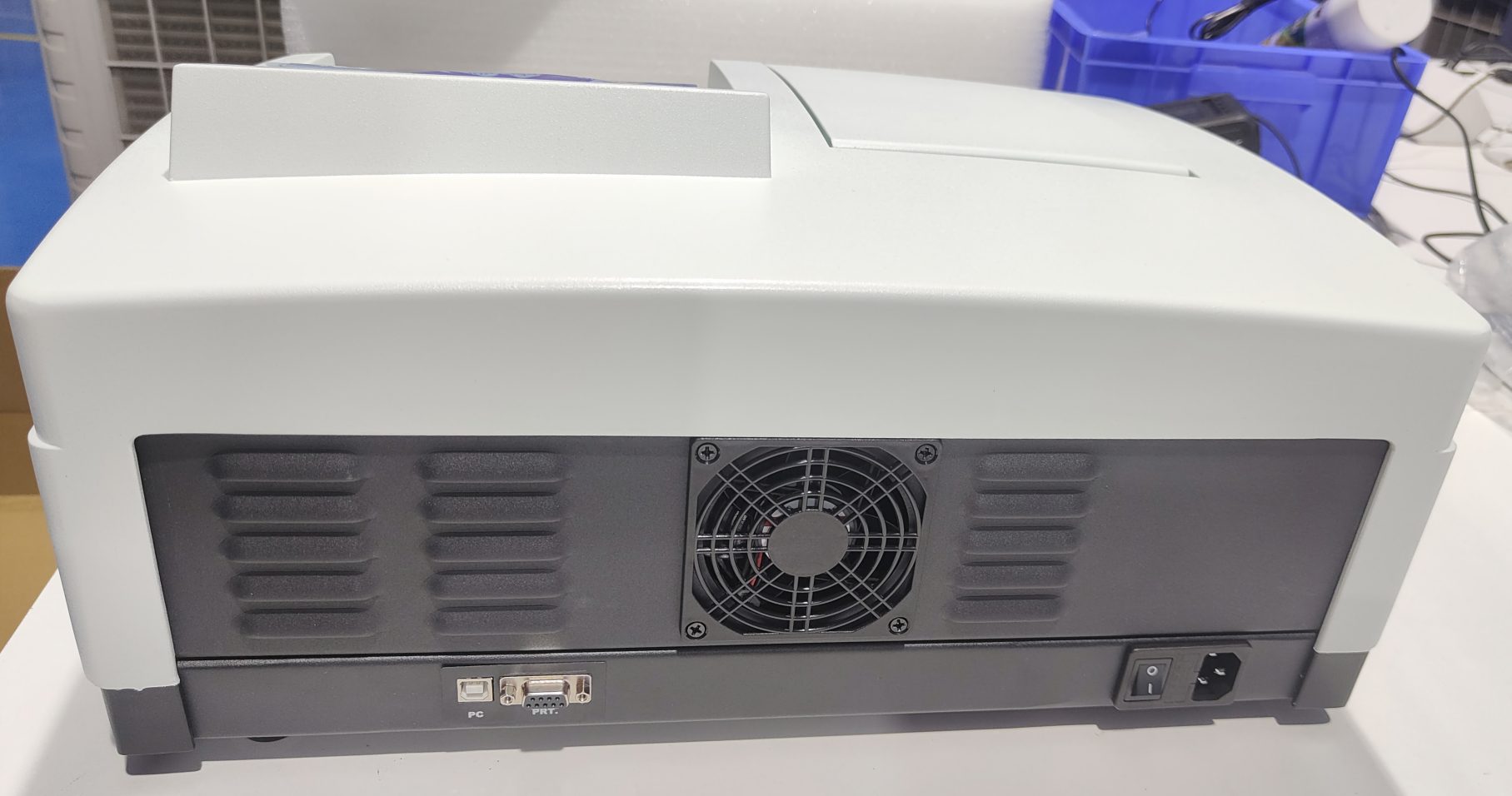

Functional rear layout supports convenient connections and effective heat dissipation.

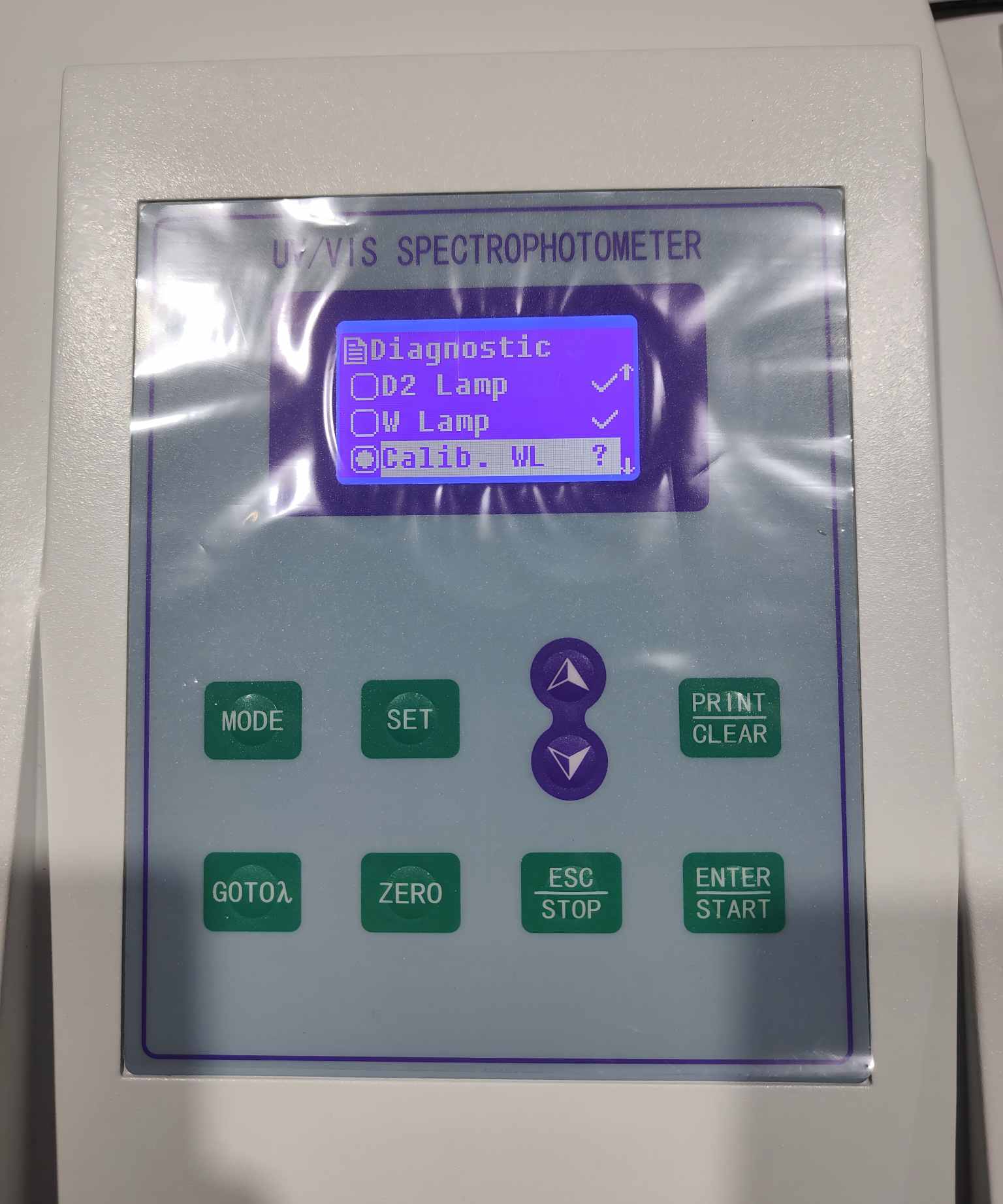

Clear digital display and intuitive control buttons make parameter setting and measurement operation straightforward for routine laboratory analysis.

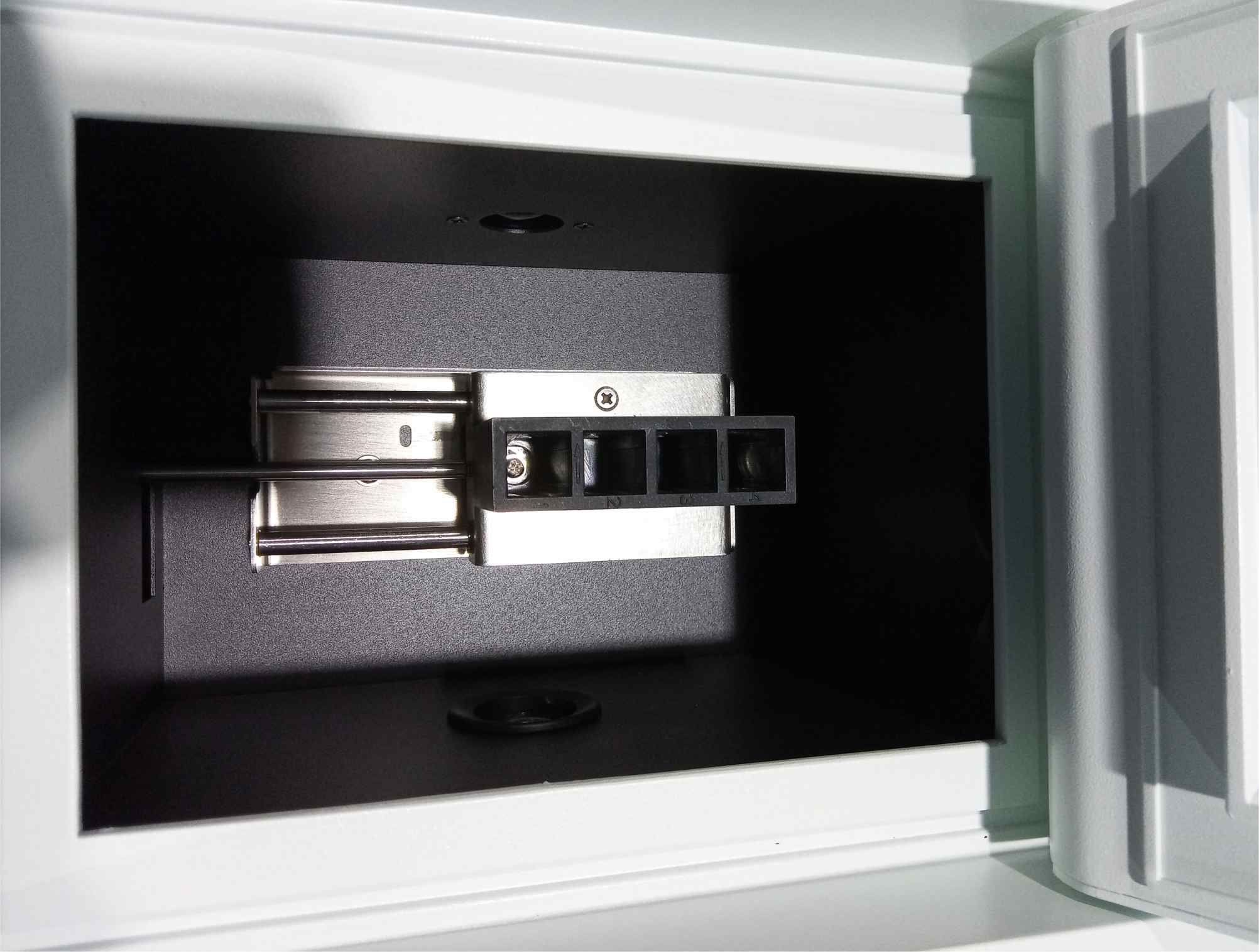

The internal compartment reveals a well-organized instrument structure, supporting convenient inspection, maintenance, and component access.
Protective cushioning securely positions the instrument inside the package, reducing movement, vibration, and impact risks during long-distance transportation.
Sturdy outer packaging provides reliable protection during handling and transportation, helping safeguard the spectrophotometer against external impact.
