Electronic Platform Scale Specifications:
| Model | BA-PS2006D | BA-PS2010D | BA-PS2015D | BA-PS2030D | BA-PS2006GD | BA-PS2010GD |
| Capacity | 60kg | 100kg | 150kg | 300kg | 60kg | 100kg |
| Readability | 1g | 1g | 2g | 5g | 2g | 2g |
| Linearity Error | ±3g | ±3g | ±6g | ±15g | ±6g | ±6g |
| Scale Pan Size | 30x40cm | 30x40cm | 40x50cm | 45x60cm | 30x40cm | 30x40cm |
| Stable Time | ≤3s |
| Power Supply | Rechargeable battery (4V/4Ah), AC/DC |
| Optional Accessory | RS232 interface, printer |
| External Size (W×D×H)(mm) | 700x400x300 | 700x400x300 | 850x500x400 | 930x600x450 | 700x400x300 | 700x400x300 |
| Shipping Size (W×D×H)(mm) | 815x350x180 | 815x350x180 | 855x445x172 | 985x585x185 | 815x350x180 | 815x350x180 |
| Net Weight | 9.8kg | 9.8kg | 12.3kg | 19.3kg | 9.8kg | 9.8kg |
| Gross Weight | 10.5kg | 10.5kg | 13.3kg | 20.8kg | 10.5kg | 10.5kg |
| Model | BA-PS2015GD | BA-PS2030GD | BA-PS2010HD | BA-PS2020HD | BA-PS2030HD | BA-PS2020D |
| Capacity | 150kg | 300kg | 100kg | 200kg | 300kg | 200kg |
| Readability | 5g | 10g | 5g | 20g | 20g | 5g |
| Linearity Error | ±15g | ±30g | ±15g | ±60g | ±60g | ±15g |
| Scale Pan Size | 40x50cm | 45x60cm | 30x40cm | 40x50cm | 45x60cm | 40x50cm |
| Stable Time | ≤3s |
| Power Supply | Rechargeable battery (4V/4Ah), AC/DC |
Optional
Accessory | RS232 interface, Printer |
| External Size (W×D×H)(mm) | 850x500x400 | 930x600450 | 700x400x300 | 850x500x400 | 930x600450 | 850x500x400 |
| Shipping Size (W×D×H)(mm) | 855x445x172 | 985x585x185 | 815x350x180 | 855x445x172 | 985x585x185 | 855x445x172 |
| Net Weight | 12.3kg | 19.3kg | 9.8kg | 12.3kg | 19.3kg | 12.3kg |
| Gross Weight | 13.3kg | 20.8kg | 10.5kg | 13.3kg | 20.8kg | 13.3kg |
| Model | BA-PS2010HDI | BA-PS2015HD | BA-PS2030HDI | BA-PS2050D | BA-PS5105HD |
| Capacity | 100kg | 150kg | 300kg | 500kg | 510kg |
| Readability | 10g | 20g | 50g | 20g | 50g |
| Linearity Error | ±30g | ±60g | ±150g | ±60g | ±100g |
| Scale Pan Size | 30x40cm | 30x40cm | 45x60cm | 45x60cm | 60x80cm |
| Stable Time | ≤3s |
| Power Supply | Rechargeable battery (4V/4Ah), AC/DC |
| Optional Accessory | RS232 interface, printer |
| External Size (W×D×H)(mm) | 700x400x300 | 700x400x300 | 930x600x450 | 930x600x450 | 1050x800x600 |
| Shipping Size (W×D×H)(mm) | 815x350x180 | 815x350x180 | 985x585x185 | 985x585x185 | 965x710x190 320x210x145 |
| Net Weight | 9.8kg | 9.8kg | 19.3kg | 19.3kg | 34.3kg |
| Gross Weight | 10.5kg | 10.5kg | 20.8kg | 20.8kg | 40kg |
Electronic Platform Scale Features:
Large loading capacity, high accuracy sensor.
With Counting/Tare/Accumulate/Delete function.
High strength ABS new materials.
Large size 304 stainless steel weighing pan.
Industriaal grade double scale rack.
LCD display.
Preset alarm at fixed level for quantity and weight.
Overload indication/Upper and lower limit alarm.
Leveling indicator.
Optional RS232 interface/printer.

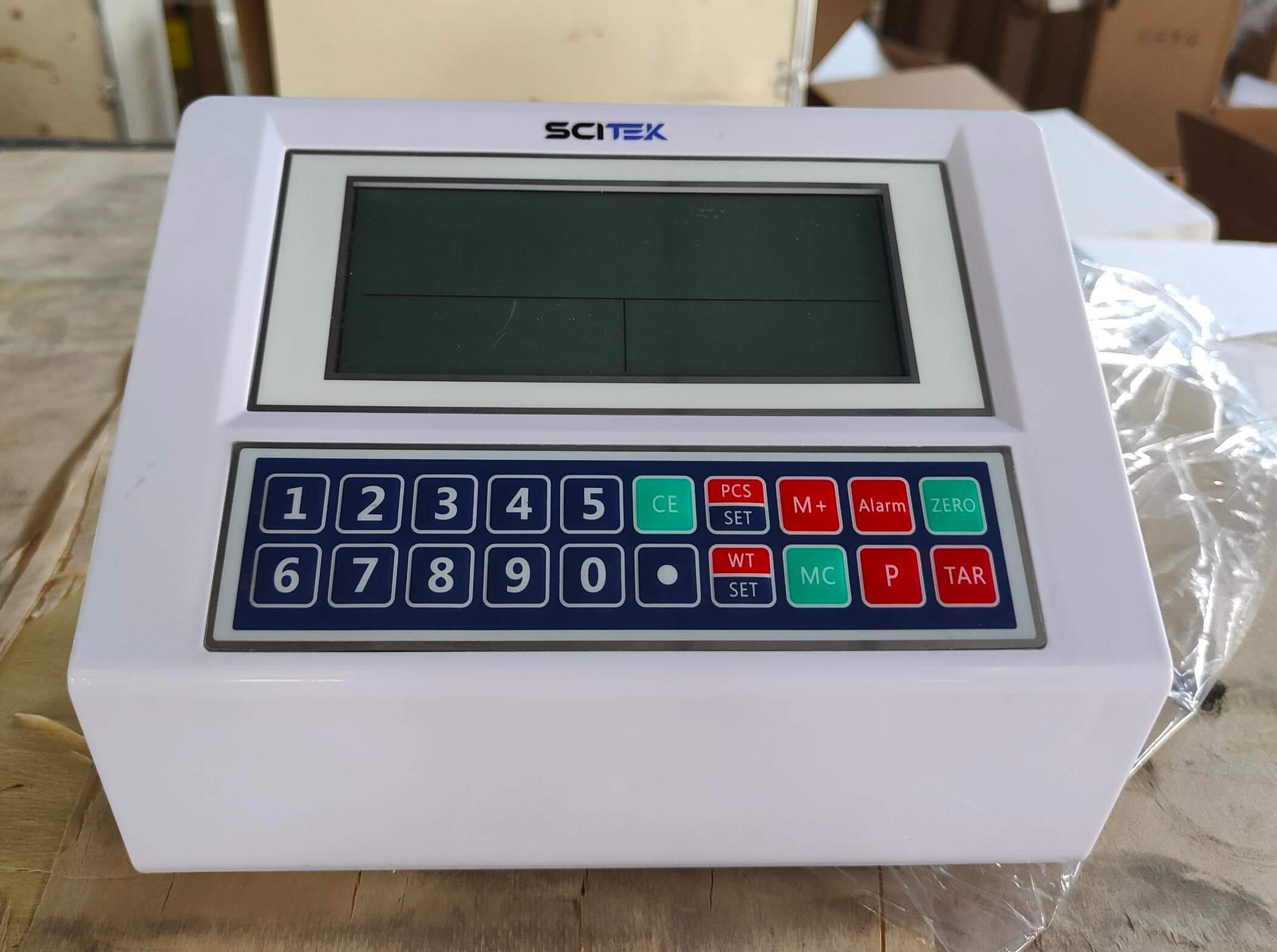

Details of Electronic Platform Scale(BA-PS2050D):
The sturdy stand and stabilizing feet ensure that the unit maintains stable weighing accuracy in a variety of work environments.

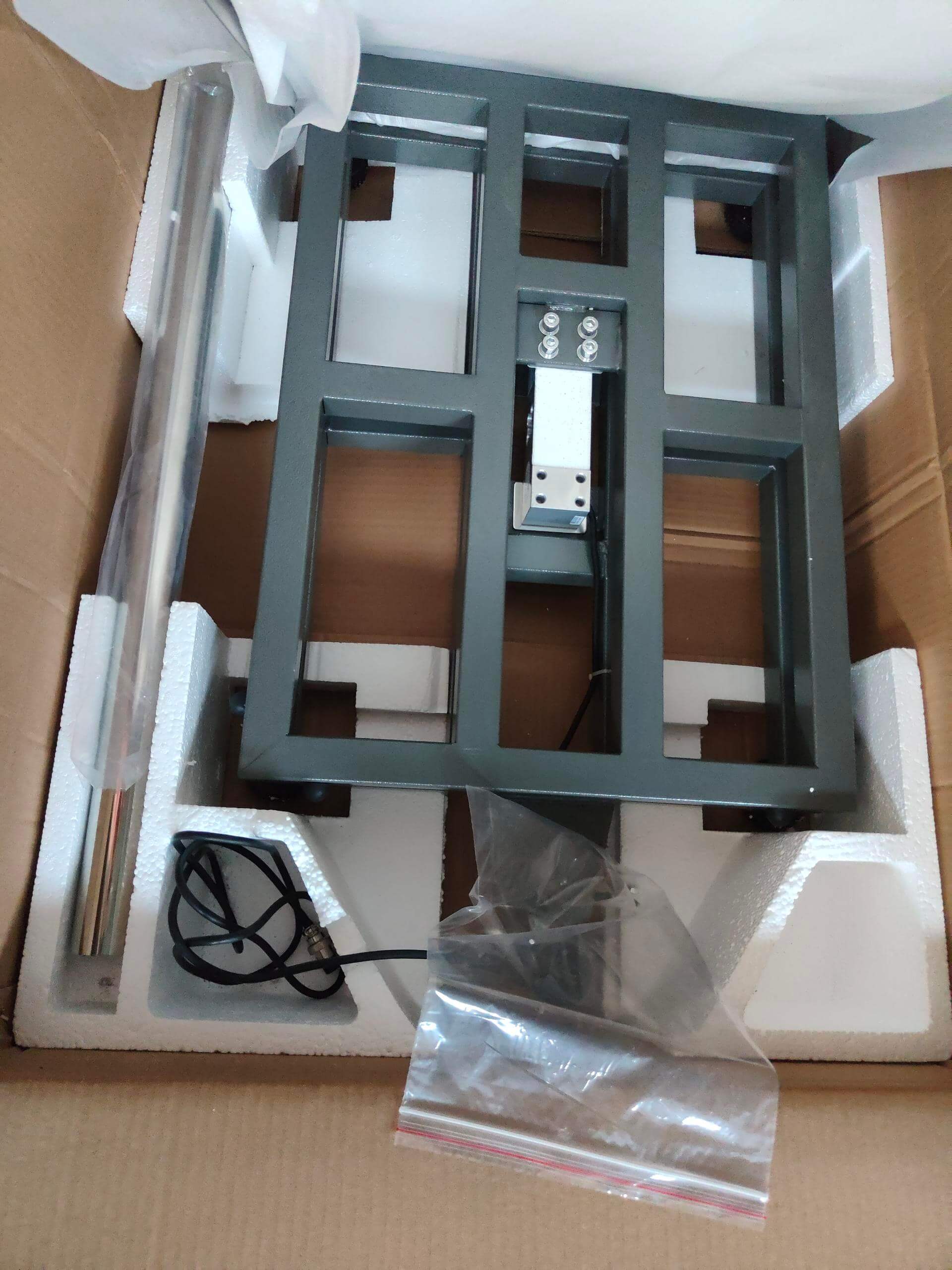

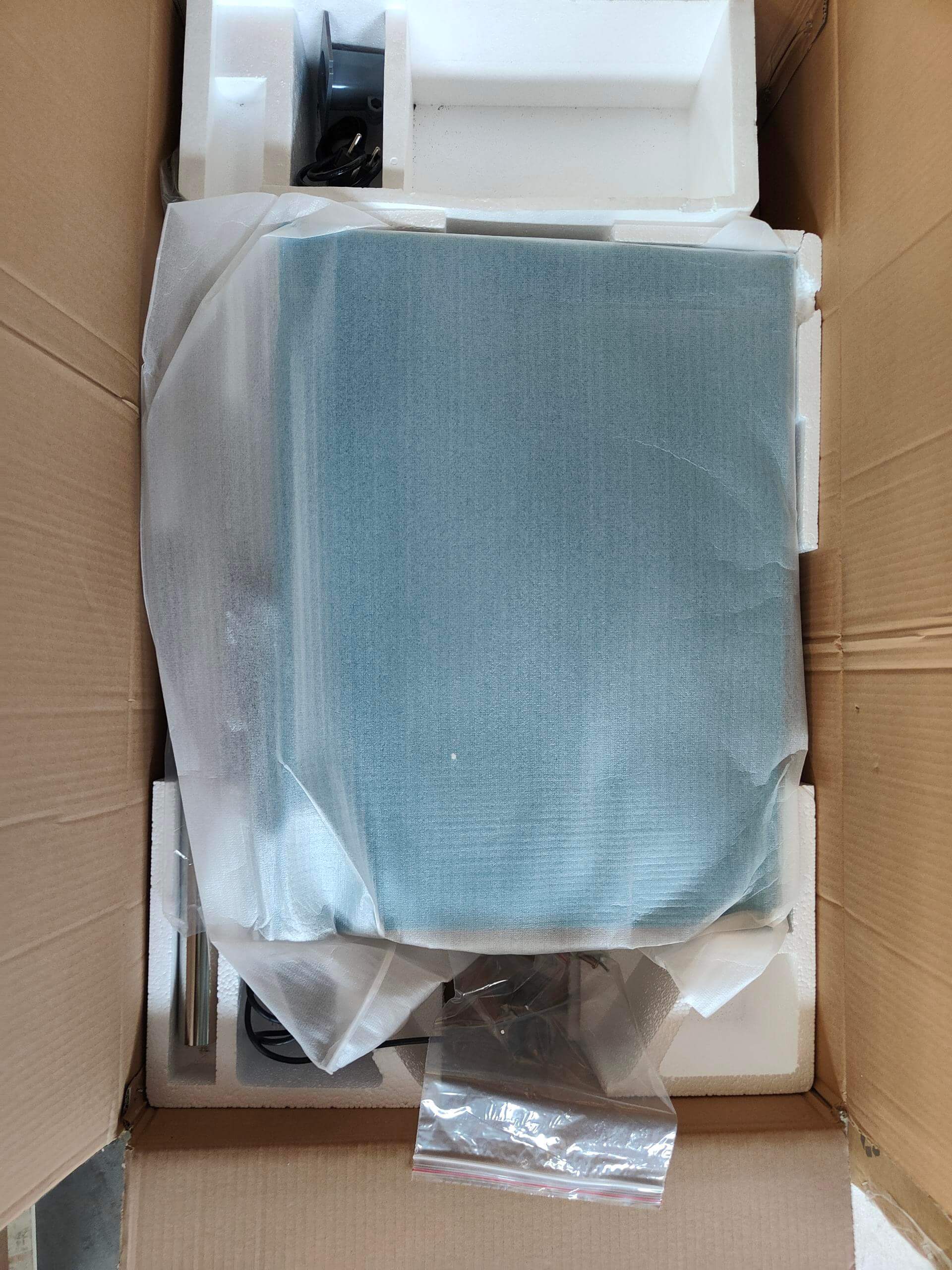

Electronic platform scales and accessories (e.g. power cords, stands, etc.) are individually packaged and secured inside the box to avoid rubbing or bumping against each other.
