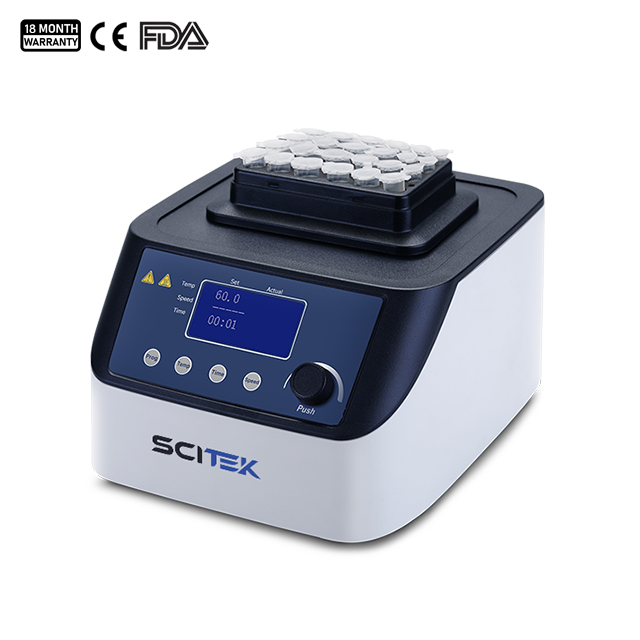

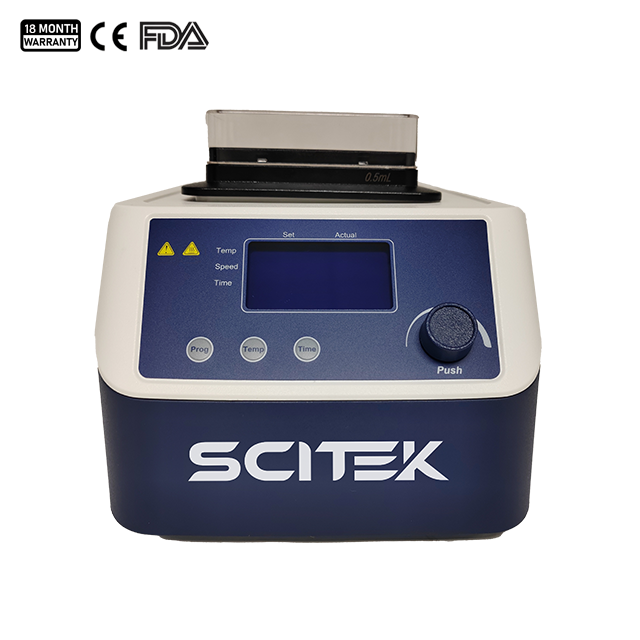

Model | DB-HCM100 | DB-HM100 | DB-H100 |
---|---|---|---|
Functions | Heating, Cooling & Mixing | Heating & Mixing | Heating |
Temperature Range | Heating: RT.~100℃ | Heating: RT.~100℃ | Heating: RT.+5-100℃ |
Cooling: RT.~below RT. 15℃ | |||
Temperature Setting Range(℃) | 0.1~100 | 15~100 | 15~100 |
Temperature Control Accuracy | ±0.5℃ (At 20~45℃) | ±0.5℃ (At 20~45℃) | ±0.5℃ |
Temperature Uniformity | ±0.5℃ (At 20-45℃) | ±0.5℃ (At 20-45℃) | ±0.5℃ (At37℃) |
Max. Heating Rate | 5.5℃/min | ||
Max. Cooling Rate | 5℃/min (RT.~100℃) | – | \ |
0.5℃/min (Below RT.) | |||
Mixing Frequency | 200rpm-1500rpm | 200rpm-1500rpm | \ |
Mixing Orbit | 3 mm | 3 mm | \ |
Time Setting Range | 0~99h30min | ||
Program | 9 | 9 | 6 Sequential steps |
Overheating Protection | 150℃ | ||
Display | TFT | ||
Adapter Block Material | Aluminum | Aluminum | Aluminum |
Poer Supply | AC220/110V, 50/60Hz | AC100V-240V, 50Hz/60Hz | |
Consumption | 200W | ||
Size(W×D×H)(mm) | 200×235×120 | ||
Shipping Size(W×D×H)(mm) | 440x410x270 | 450x410x280 | 440x410x270 |
N.W./G.W. (kg) | 7/8 | 5.5/7 | 7/8 |
Dry bath provides more precise temperature control and faster heating and cooling rates.
Programmable features allow for automatic temperature and time control according to the experiment's needs. This improves the efficiency and accuracy of experiments and reduces errors.
Flexible adapters are compatible with a wide range of tubes, reducing equipment costs.

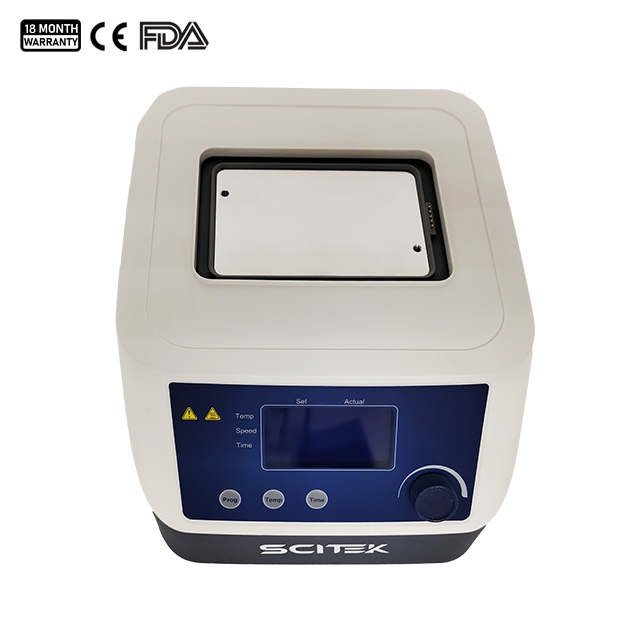

Quick block exchange using magnet adhesion technology allows for easy replacement of heating blocks, increasing the convenience and efficiency of experiments.

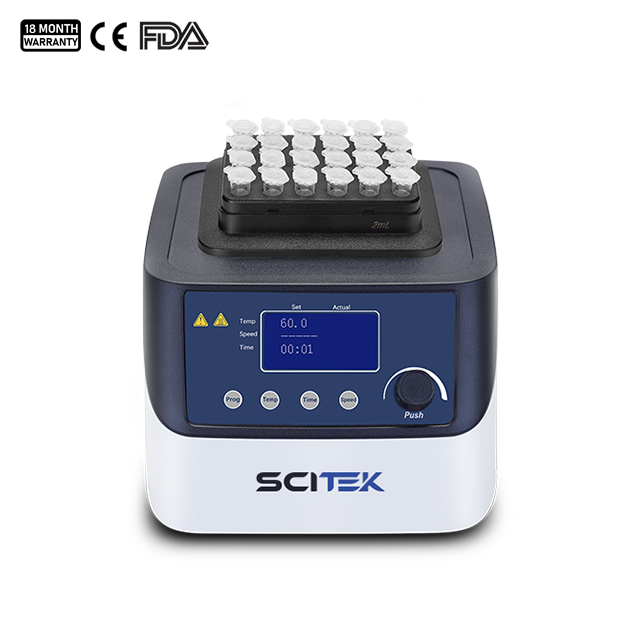

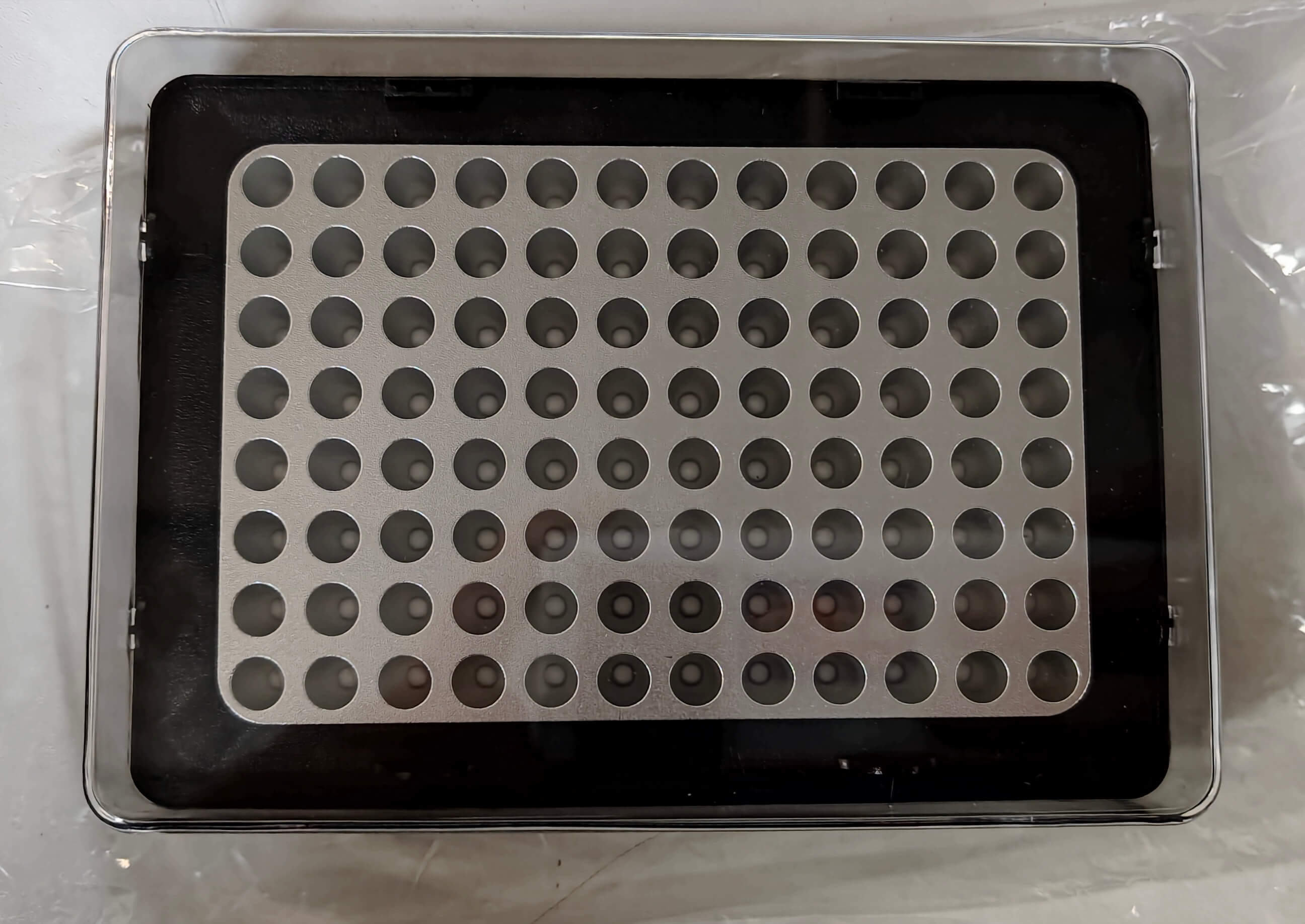

Blocks are fitted with lids to protect samples from external contamination and prevent heat loss for better insulation.

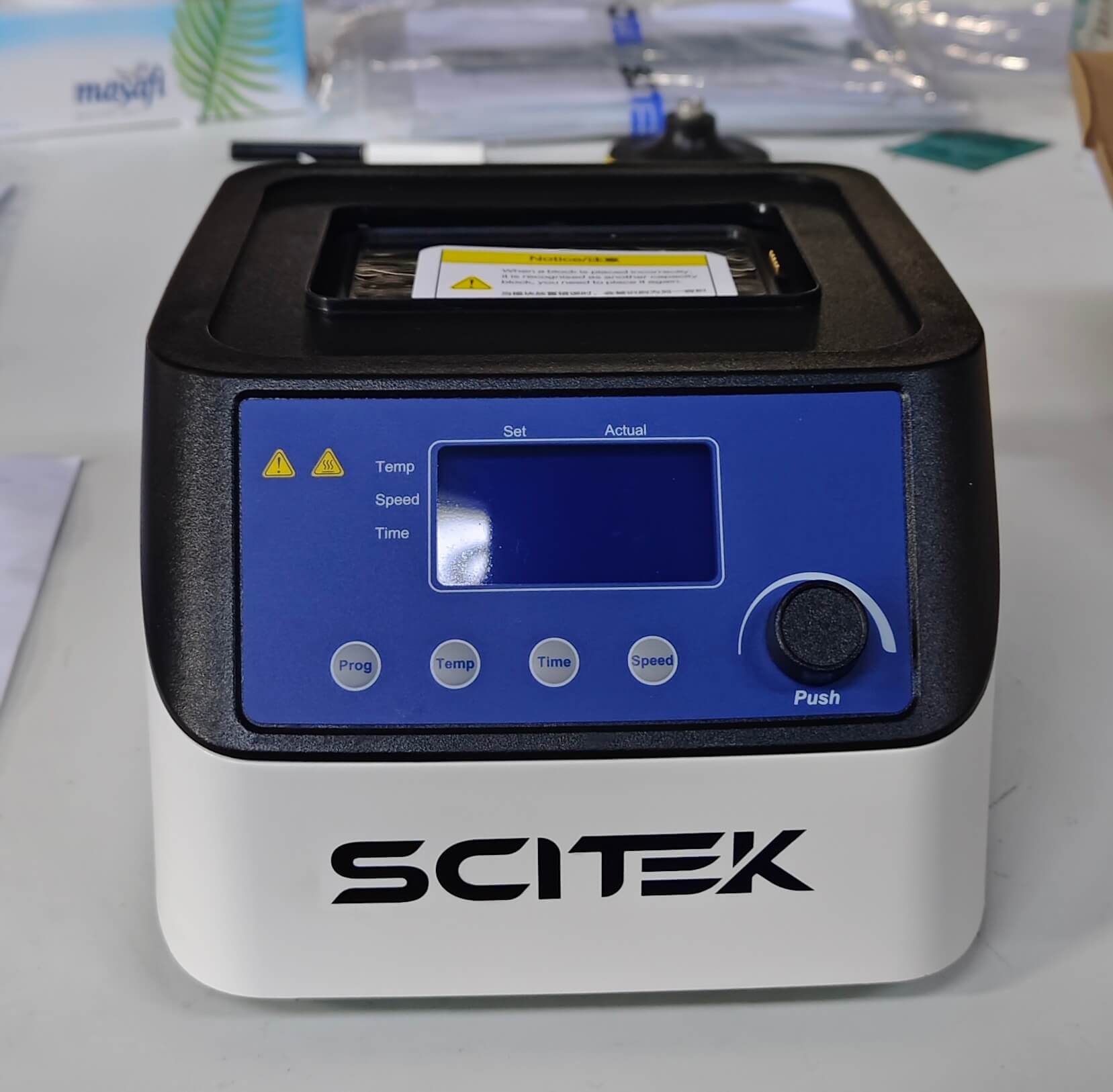

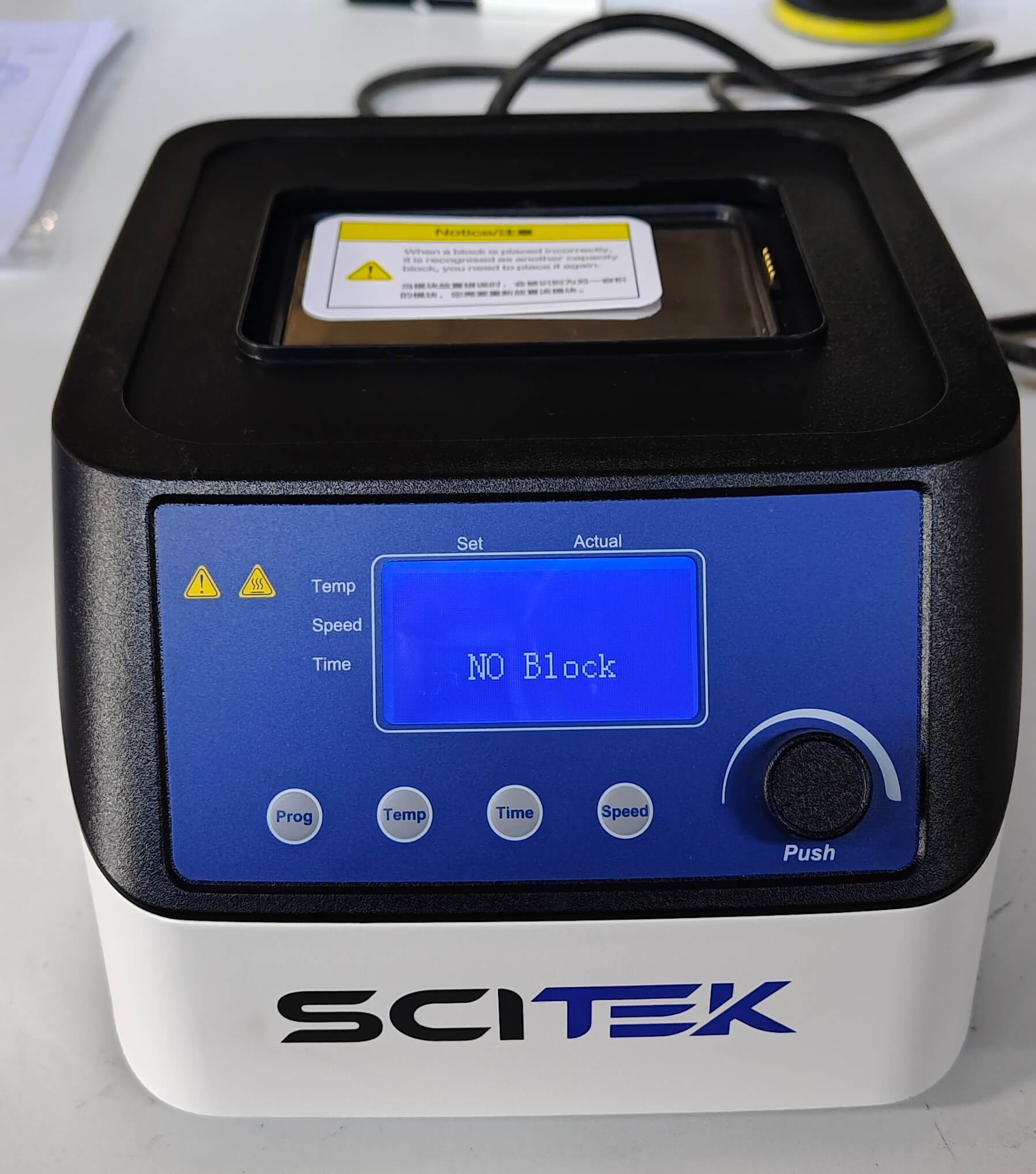

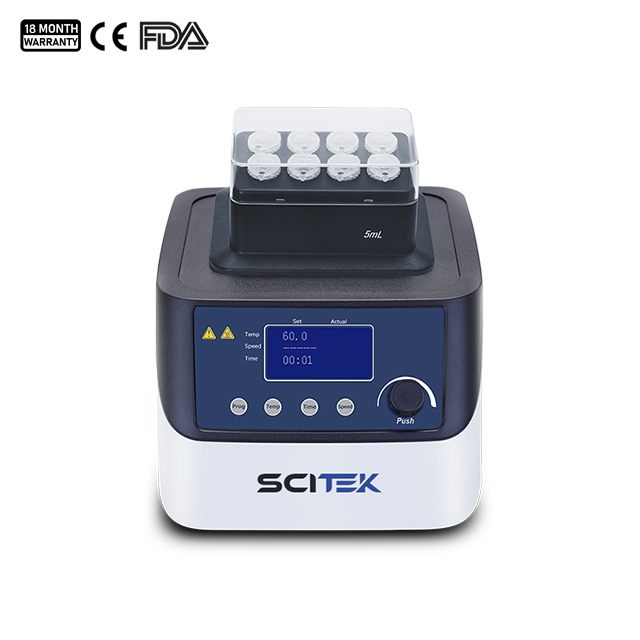

Clear LCD display that accurately shows the set temperature and time. The display has clear numbers with good visibility, allowing the user to easily read and adjust the temperature control settings.

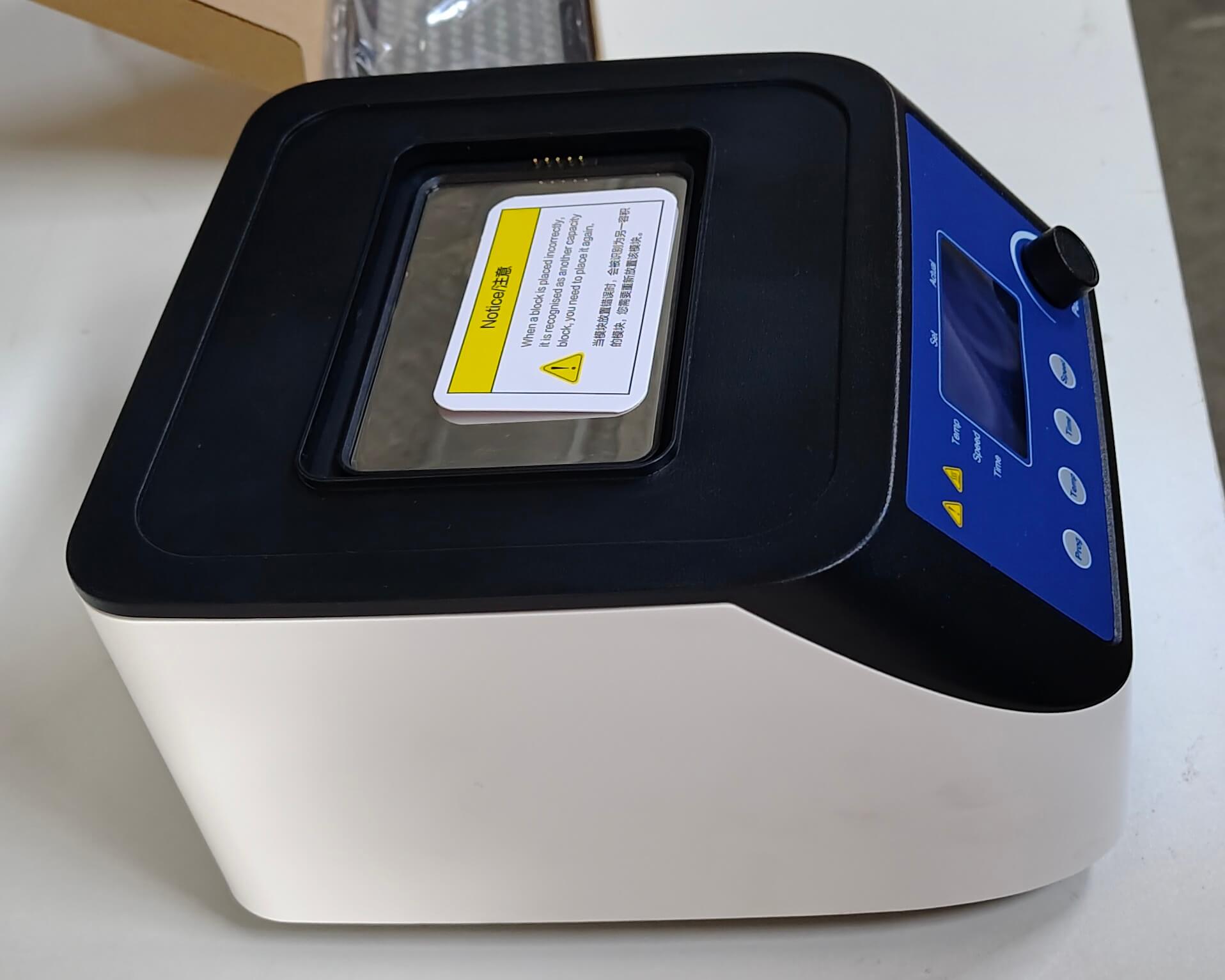

Dry baths are compact with smooth and easy-to-clean surfaces.

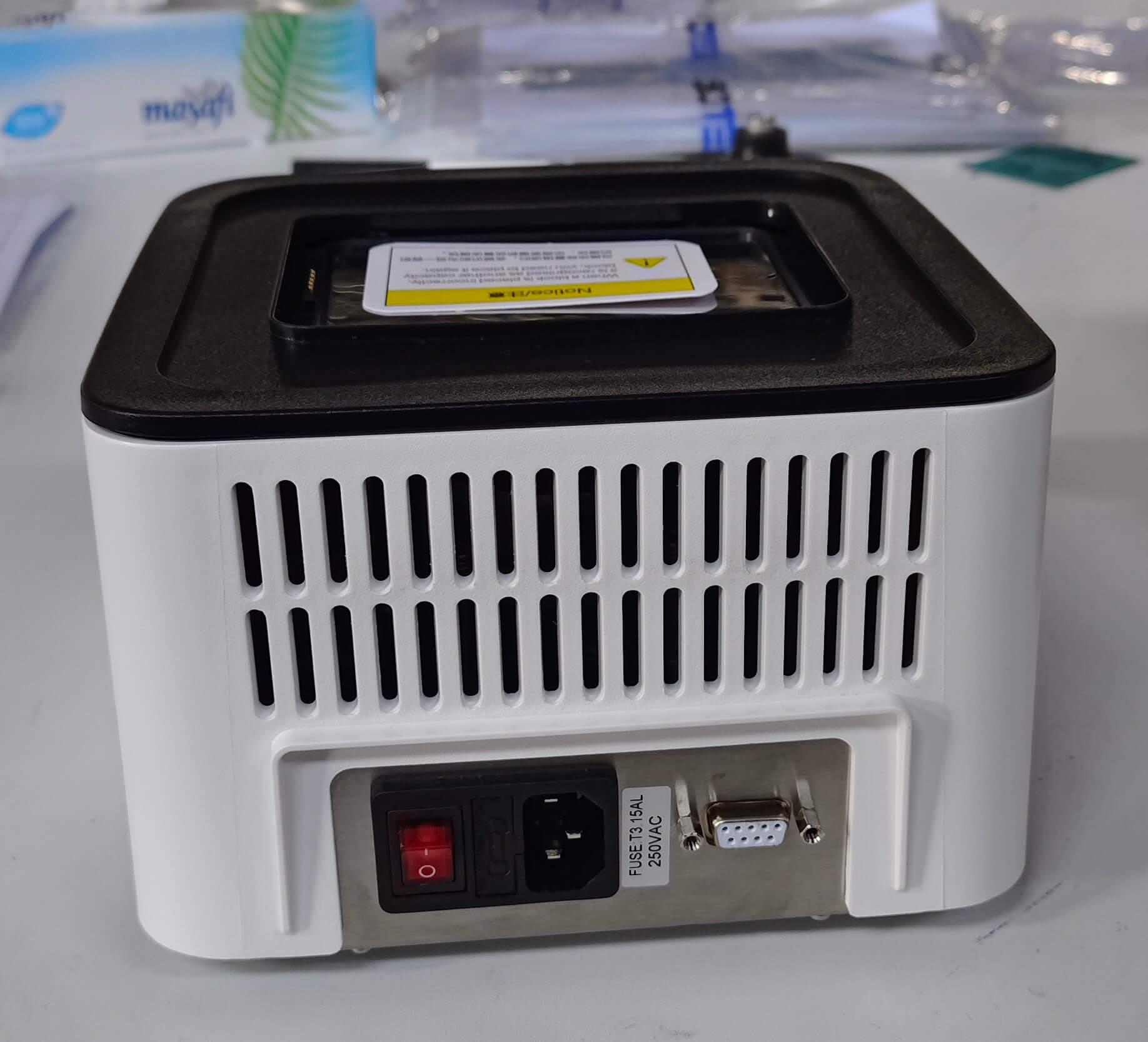

The back is configured with a power connector and vents (heat sinks), and is equipped with overload protection to ensure safety when in use.

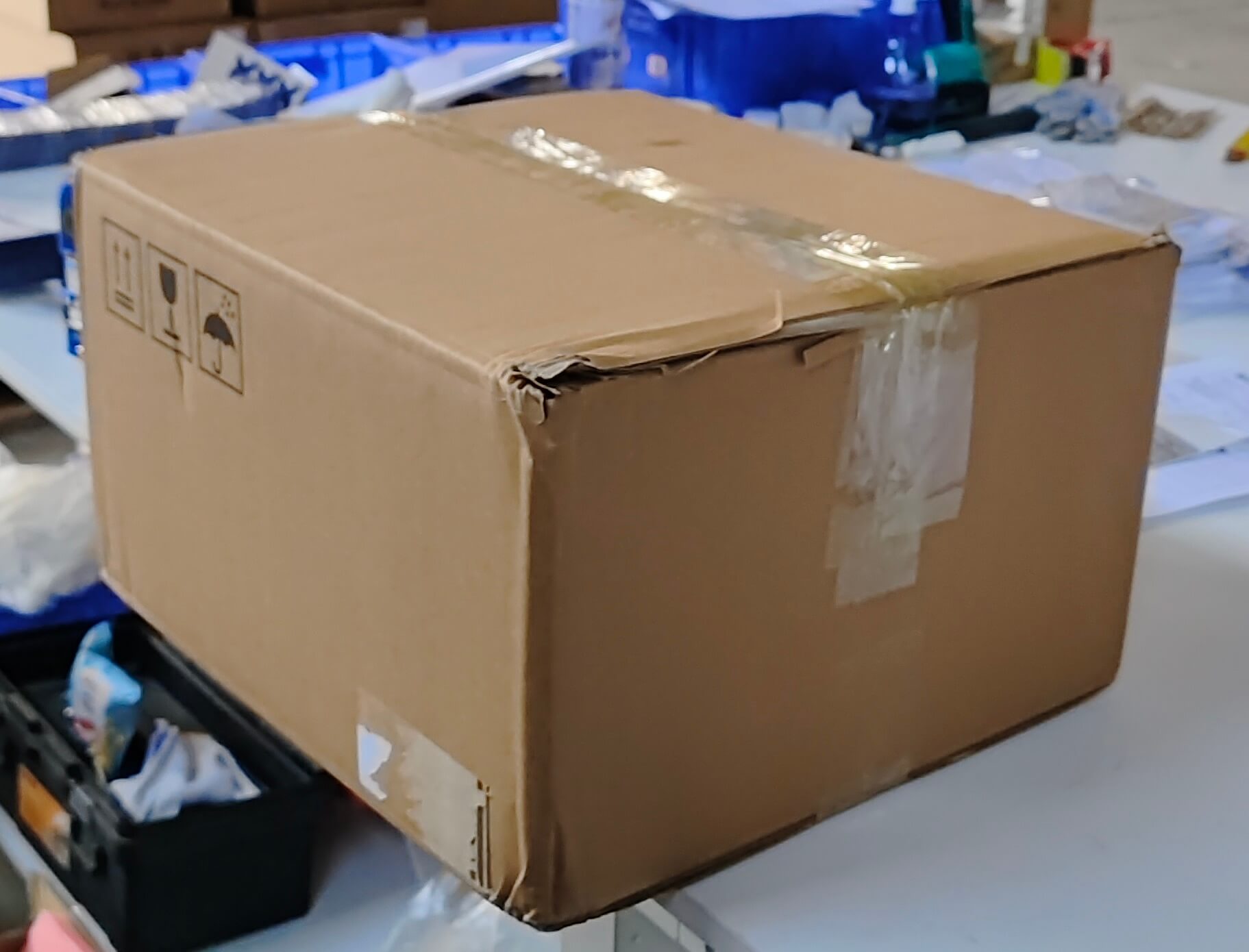

The outer package is sturdy and durable, and contains a detailed instruction manual and product accessories. The compact and environmentally friendly design of the package reduces wasted space during transportation and facilitates storage.
