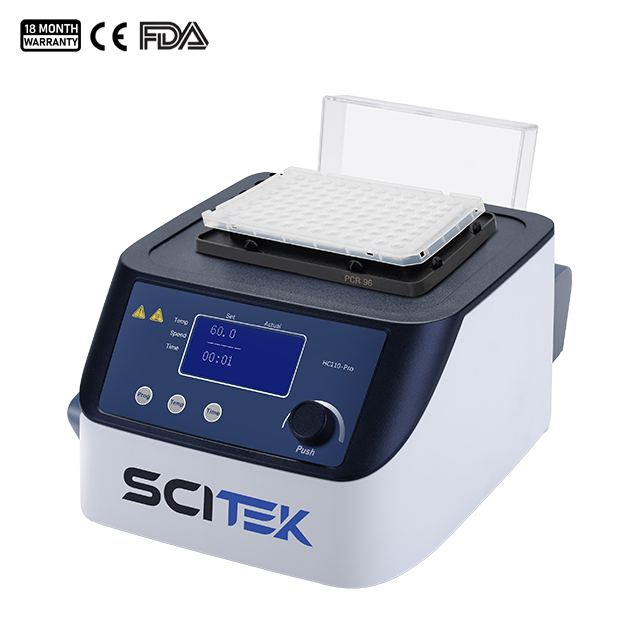

Chilling/Heating Dry Bath

Model : DB-HC110

Display : TFT
Temperature : Range Heating: RT.25~110℃; Cooling: Below RT.~RT. 25℃
Temperature Control Accuracy : ±0.5℃ (At 20~45℃)

Max. Heating Rate : 5.5℃/min
Size(W×D×H)(mm)(Without the Heating Block) : 200×235×120

Chill, heat or freeze two separate sets of samples at two separate temperatures with individual control from -5° to 110°C
Availability:
Quantity:

Dry Bath Specifications:

ModelDB-HC110
FunctionsHeating & Cooling
Temperature RangeHeating: RT.25~110℃
Cooling: Below RT.~RT. 25℃
Temperature Setting Range-5~110℃
Temperature Control Accuracy±0.5℃ (At 20~45℃)
Temperature Uniformity±0.5℃ (At 20~45℃)
Max. Heating Rate5.5℃/min
Max. Cooling Rate2.5℃/min (RT.~100℃)
0.5℃/min (Below RT.)
Time Setting Range0~99h30min
Program9

Overheating Protection

150℃
DisplayTFT
Adapter Block MaterialAluminum
Power SupplyAC100V-240V, 50Hz/60Hz
Consumption200W
Size(W×D×H)(mm)(Without the Heating Block)200×235×120
Shipping Size(W×D×H)(mm)440x410x270
N.W./G.W. (kg)7/8
Optional Blocks
Cat. No.SpeedCapacityDiameter×Depth
189004011500 rpm24×0.5 mL8.1×26 mm
189004021500 rpm24×1.5 mL10.9×30.8 mm
189004031500 rpm24×2 mL10.9×30.8 mm
189004041500 rpm8×5 mL (Round bottom)13.6×42 mm
189004051400 rpm8×5 mL (Round bottom)17×51.5 mm
18900406800 rpm8×15 mL16.9×80 mm
18900407600 rpm4×50 mL29.6×80 mm
189004201500 rpm0.2mL×8 PCR strips or
0.2mL×96 PCR microplate
\
189004231500 rpmELISA microplate\

Dry Bath Feature:

  1. Dry bath provides more precise temperature control and Chilling/Heating rates.

  2. Flexible adapter options to accommodate different types and sizes of tubing for greater flexibility and adaptability.

  3. Programmable features allow for automatic temperature and time control according to the experiment's needs. This improves the efficiency and accuracy of experiments and reduces experimental errors.

  4. Compatibility with a wide range of tubes avoids the need for users to purchase different types of equipment to suit different tube sizes, reducing equipment costs.

  5. Quick block exchange using magnet adhesion technology allows for easy replacement of heating blocks, increasing the convenience and efficiency of experiments.

  6. The blocks are equipped with lids to avoid contamination of the samples and to prevent heat loss for better insulation.
