Model | DBI-1001 | DBI-1002 | DBI-1004 |
---|---|---|---|
Temperature Range | RT.+5~160°C | RT.+5°C~130°C | |
Temp. Accuracy | ±0.5℃ (At 40℃); ±1℃ (At 120℃) | ||
Temp. Uniformity | ±0.5℃ | ||
Display Accuracy | 0.1℃ | ||
Time Range | 1min-99h59min | ||
Heating Time | ≤15min (From 25℃ to 160℃) | ≤20min (From25℃ to 130℃) | |
Block Quantity | 1 | 2 | 4 |
Max Consumption | 300W | 500W | 600W |
Power Supply | AC220V/110V, 50/60Hz | ||
Size(W×D×H)(mm) | 260x220x100 | 260x220x100 | 360x220x100 |
Shipping Size(W×D×H)(mm) | 360x320x220 | ||
N.W./G.W. (kg) | 4/5 | 5.5/6 | 8/9 |
Optional Blocks | |||
Type | Diameter of test tube | Number of test tube | Notes |
MD01 | 6mm | 48 | Hole depth 47mm |
MD02 | 7mm | 48 | Hole depth 47mm |
MD03 | 10mm | 24 | Hole depth 47mm |
MD04 | 12mm | 24 | Hole depth 47mm |
MD05 | 13mm | 24 | Hole depth 47mm |
MD06 | 15mm | 16 | Hole depth 47mm |
MD07 | 16mm | 16 | Hole depth 47mm |
MD08 | 19mm | 12 | Hole depth 47mm |
MD09 | 20mm | 12 | Hole depth 47mm |
MD10 | 26mm | 8 | Hole depth 47mm |
MD11 | 28mm | 4 | Hole depth 47mm |
MD12 | 40mm | 3 | Hole depth 47mm |
MD13 | 0.2ml centrifuge tube | 48 | Standard centrifuge tube |
MD14 | 0.5ml centrifuge tube | 48 | Standard centrifuge tube |
MD15 | 1.5ml centrifuge tube | 24 | Standard centrifuge tube |
MD16 | 2.0ml centrifuge tube | 24 | Standard centrifuge tube |
MD17 | 0.2ml PCR plate | 96 | Standard centrifuge tube Not applicable to DBI-160-1 |
MD18 | 0.2ml Elisa plate | 96 | Enzyme labeling plate flat bottom. Not applicable to DBI-1001 |
DBI-100 series high-temperature digital dry bath incubator adopts microcomputer control and high-purity aluminum material as the heat conduction medium instead of a conditional water bath device.
Wide temperature range ensures versatility for various experimental requirements.
Precise temperature control allows accurate monitoring and adjustment of the incubation temperature, which is essential for reliable and reproducible results.
Temperature distribution uniformity, providing consistent incubation conditions for samples.
Fast heating speed improves experimental efficiency.
Multiple optional features enhance experimental workflow.
Available with 1, 2 or 4 block configurations, the dry bath incubator provides flexibility while accommodating a variety of sample sizes and quantities.

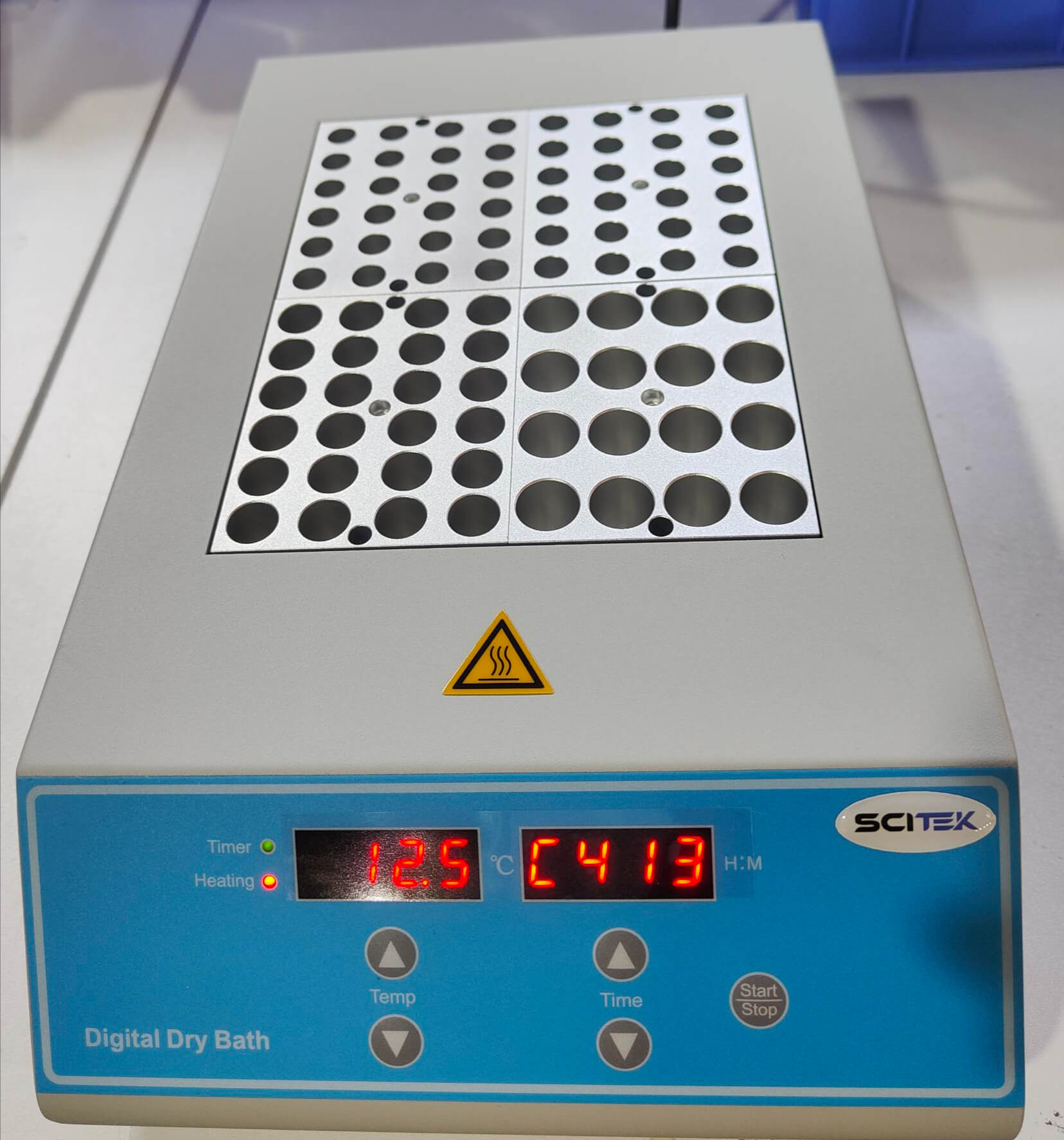

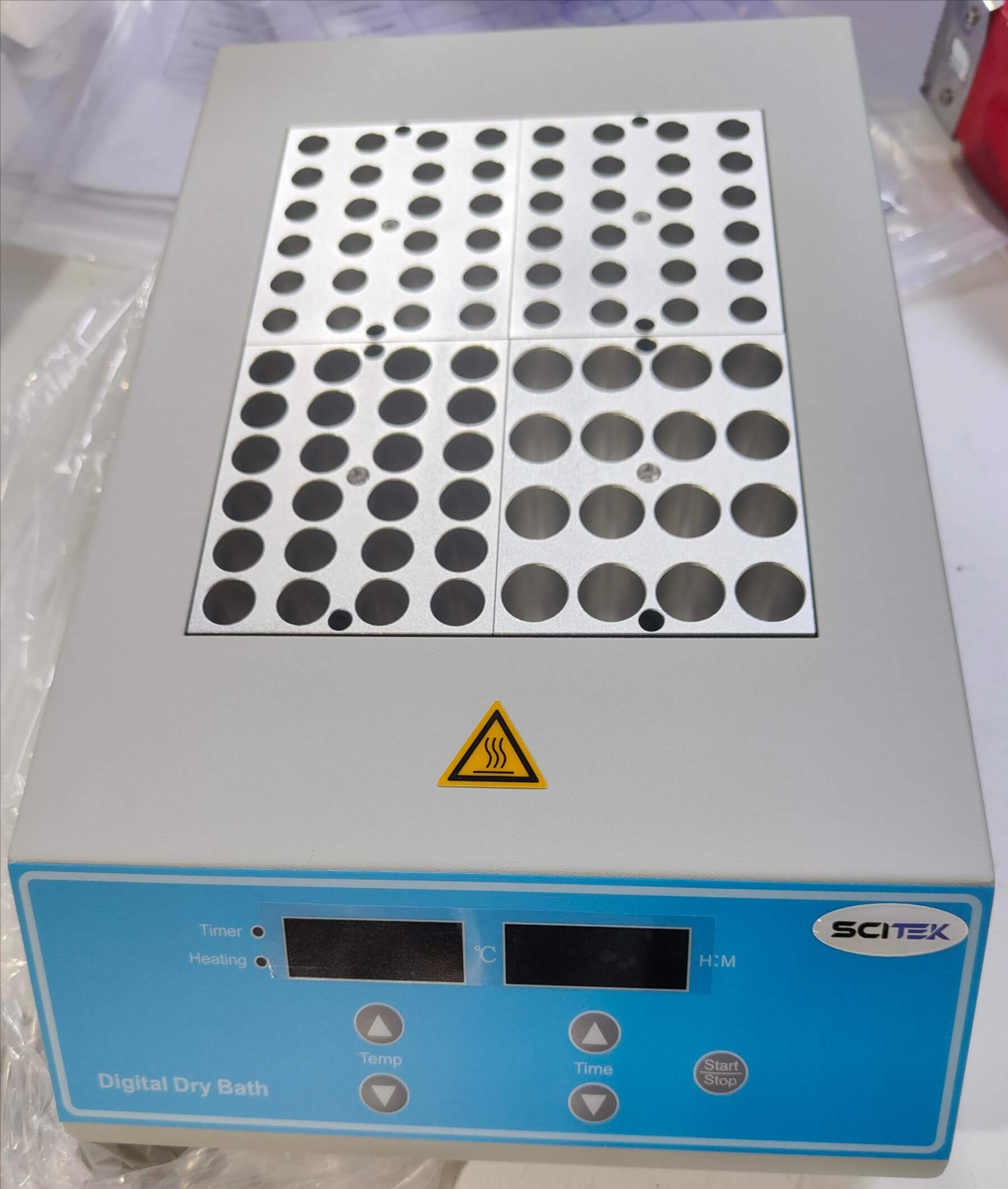

Digital dry bath incubator adopts digital temperature control panel, real-time temperature and set temperature synchronization display, easy to operate, good user experience. The top module holes are neatly aligned to fit a variety of pipe diameters to ensure even thermostatic heat transfer; Dry Bath Incubator is cleaned and ready to be packed.

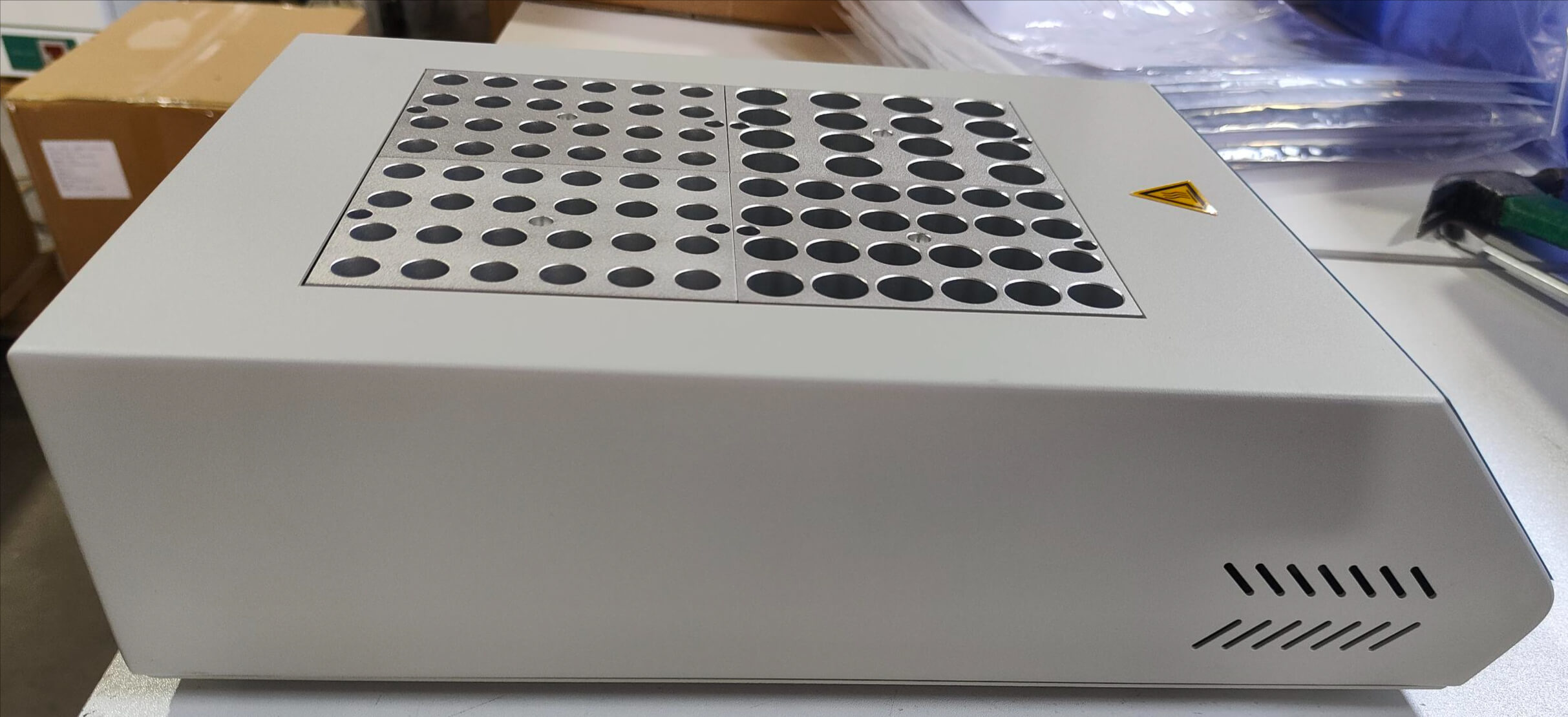

Digital dry bath incubator has a metal casing with smooth edges and corners, which is corrosion-resistant and oxidation-resistant to enhance the stability and safety of long-term use.

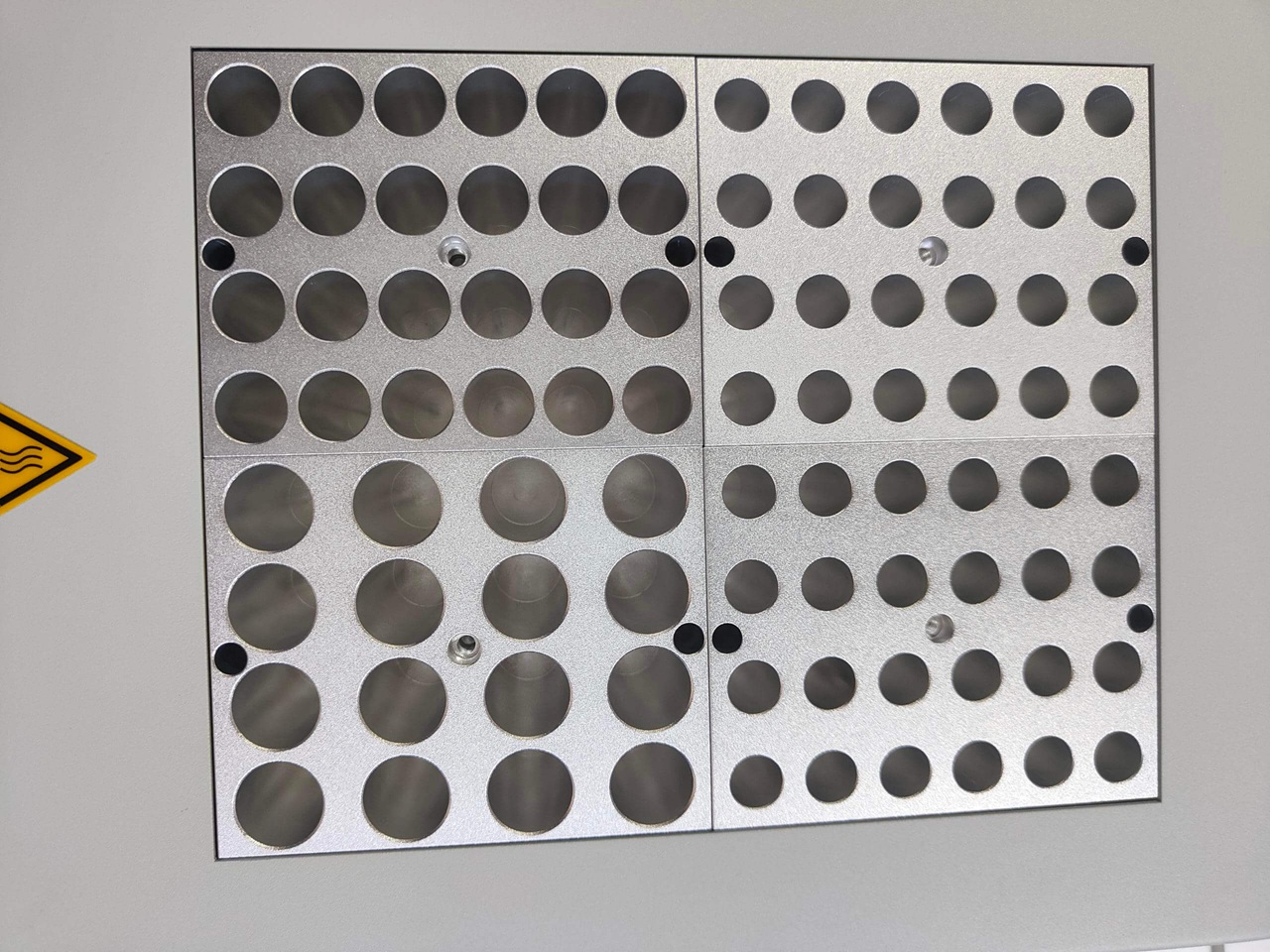

The holes of the module are made of high thermal conductivity aluminum with smooth surface and no burr, which ensures that the test tubes are inserted stably and heated evenly.

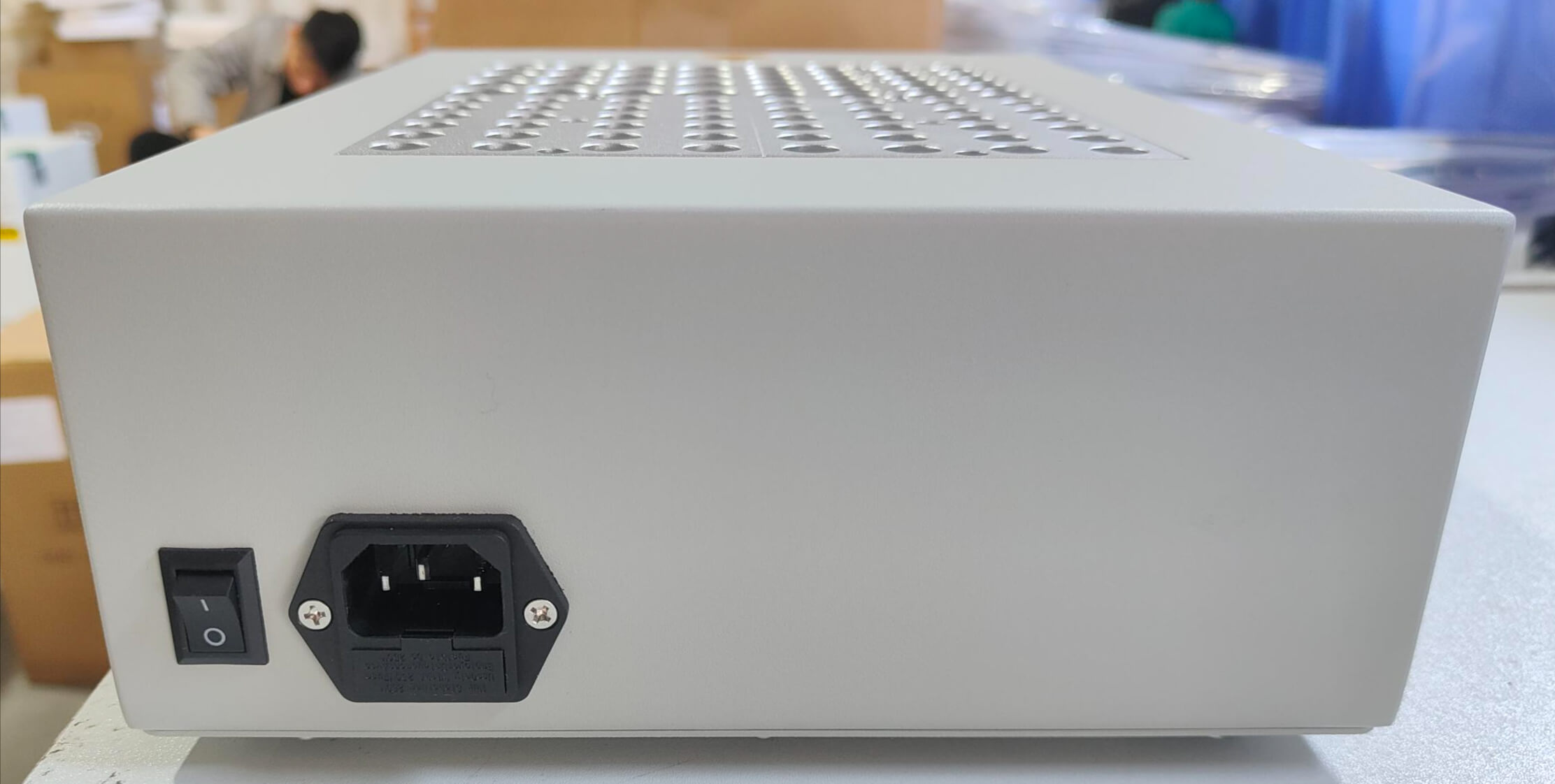

The power connector on the back is clearly visible, equipped with anti-reverse plugging structure and fuse protection to ensure safe and reliable power access.
