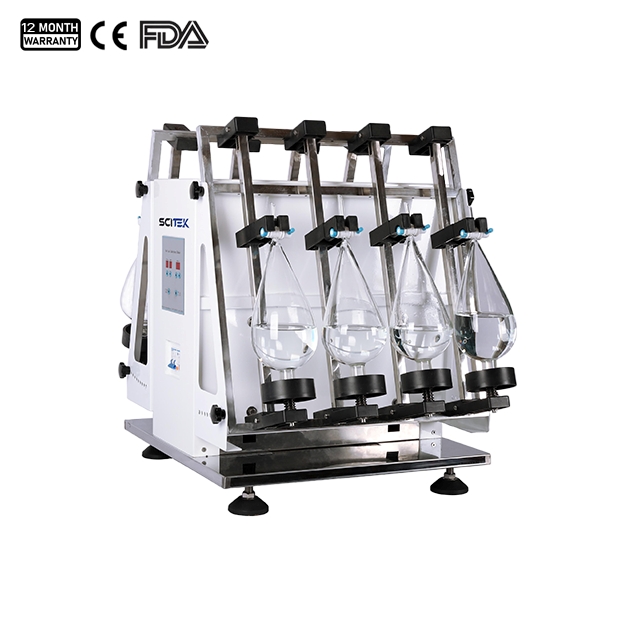

Shake Range : 40 mm Vessel Number : 4 / 6 / 8 / 10 pcs Shake Speed : 100–300 T/Min Shake Method : Vertical Shake Time Set Range : Max 15 minutes Double-sided vertical shakers are commonly used in laboratories for mixing difficult media, such as viscous liquids and solid dispersions, and for liquid-liquid extractions.
Vertical shaker is a double-sided shaking device which is commonly used in the laboratory for mixing difficult media such as viscous liquids, solid dispersions and for liquid-liquid extractions. Vertical shaking is important in many applications, such as oil extraction from water, volatile phenol extraction, food & grease extraction, pesticide residue extraction, water organic pollutant extraction, soil harmful substance extraction, etc.
Advantage:
1. Vertical shaker equipment can automatically shake separating funnel, complete liquid-liquid extraction, sample mixing, etc.
2. Large amplitude, high speed, working time can be set.
3. Adjustable frequency, batch samples processing, high efficiency, high recovery rate, minimizing operator exposure to chemical
agents to protect personal safety.
4. Easy to install & operate, meet the needs of all types of laboratory extraction purification.
5. Shaking by both vertical & slant methods. Powerful strength for the mix of extraction liquid & water.
6. Low noise & long time stable working.
7. Rotated sample holder, easy to install & detach specimen.
8. Varies sample holders alternative to adapt varies experiments.
Specification:
Model
SK-V04
SK-V06
SK-V08
SK-V10
Vessel Number
4 pcs
6 pcs
8 pcs
10 pcs
Shake Speed
100–300 T/Min
Shake Range
40 mm
Shake Method
Vertical Shake (tilt angle 0–20° adjustable)
Frequency Control
Infinitely variable speed, LCD display
Time Set Range
Max 15 minutes (count down applied)
Applied Vessel
50–2000 mL standard pyrifom or ball type separating funnel (Optional)
Load Rated
Bilateral symmetry 11 kg
Power Supply
AC 220/110 V, 50/60 Hz, 100 W
Dimension (L×W×H)
680×750×820 mm
Package size (L×W×H)
810×710×1080 mm
N.W. (kg)
115
120
122
140
G.W. (kg)
140
148
152
154
Application:
Vertical shaker is a double-sided shaking device which is commonly used in the laboratory for mixing difficult media such as viscous liquids, solid dispersions and for liquid-liquid extractions. Vertical shaking is important in many applications, such as oil extraction from water, volatile phenol extraction, food & grease extraction, pesticide residue extraction, water organic pollutant extraction, soil harmful substance extraction, etc.
Advantage:
1. Vertical shaker equipment can automatically shake separating funnel, complete liquid-liquid extraction, sample mixing, etc.
2. Large amplitude, high speed, working time can be set.
3. Adjustable frequency, batch samples processing, high efficiency, high recovery rate, minimizing operator exposure to chemical
agents to protect personal safety.
4. Easy to install & operate, meet the needs of all types of laboratory extraction purification.
5. Shaking by both vertical & slant methods. Powerful strength for the mix of extraction liquid & water.
6. Low noise & long time stable working.
7. Rotated sample holder, easy to install & detach specimen.
8. Varies sample holders alternative to adapt varies experiments.
Specification:
Model
SK-V04
SK-V06
SK-V08
SK-V10
Vessel Number
4 pcs
6 pcs
8 pcs
10 pcs
Shake Speed
100–300 T/Min
Shake Range
40 mm
Shake Method
Vertical Shake (tilt angle 0–20° adjustable)
Frequency Control
Infinitely variable speed, LCD display
Time Set Range
Max 15 minutes (count down applied)
Applied Vessel
50–2000 mL standard pyrifom or ball type separating funnel (Optional)
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
