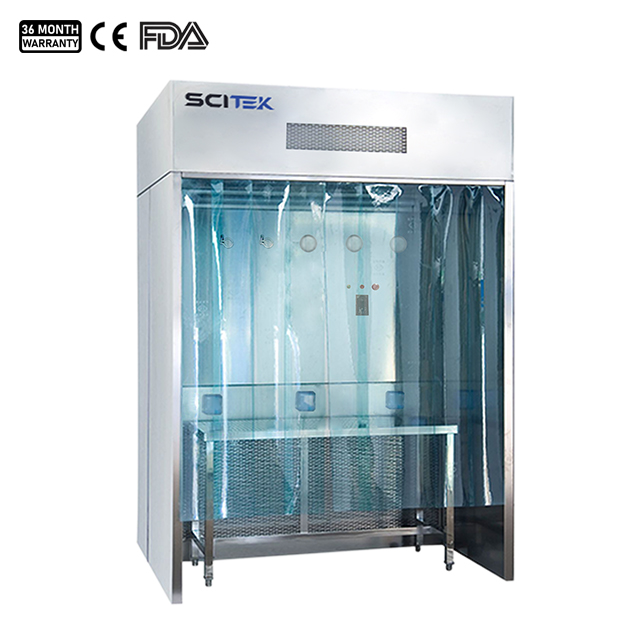

The dispensing booth is a local purification equipment dedicated to places such as pharmaceuticals, microbiological research and scientific experiments. It provides a kind of vertical, unidirectional airflow that produces negative pressure in the working area, part of the clean air circulates in the working area, part is discharged to the nearby area to prevent cross-contamination, to ensure the high cleanliness in the working area.
Dispensing Booth Specifications:
| Model | DB-1000 | DB-1300 | DB-1500 |
|---|
| External Size (WxDxH)(mm) | 1000x1350x2400 | 1300x1350x2400 | 1500x1350x2400 |
| Internal Size (WxDxH)(mm) | 900x850x1950 | 1200x850x1950 | 1400x850x1950 |
| Air Velocity | 0.38-0.58m/s |
| Supply Air Volume | 1800m3/h | 2600m3/h | 3000m3/h |
| Exhaust Air Volume | 10%~15% |
| HEPA Filter Size (WxDxH)(mm) | 720x590x90 | 1020x590x90 | 1220x590x90 |
| Clean Level | ISO 5 (Class 100) |
| Illumination | ≥300 lux |
| Sound Emission | ≤75dB |
| Consumption | 0.35KW | 0.55KW | 0.75KW |
| Power Supply | AC three-phase 380V/50Hz
(Optional: AC single-phase 220/110V, 50Hz) |
| N.W./G.W. (kg) | 290/320 | 380/420 | 470/520 |
| Shipping Size (WxDxH)(mm) | 1200x1550x2700 | 1500x1550x2700 | 1700x1550x2700 |
| Shipping Volume (m3) | 5.1 | 6.3 | 7.1 |
Dispensing Booth Features:
Customized design is welcome.
The touch LCD control panel control the start and stop of the fan, and adjust the wind speed.
Differential pressure gauge is equipped to real-time monitor the filters.
Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
There is an exhaust adjustment plate inside the air supply box, which can adjust the exhaust volume within a reasonable range.
Dispensing booth (sampling or weighing booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.
