Applicatiopn:

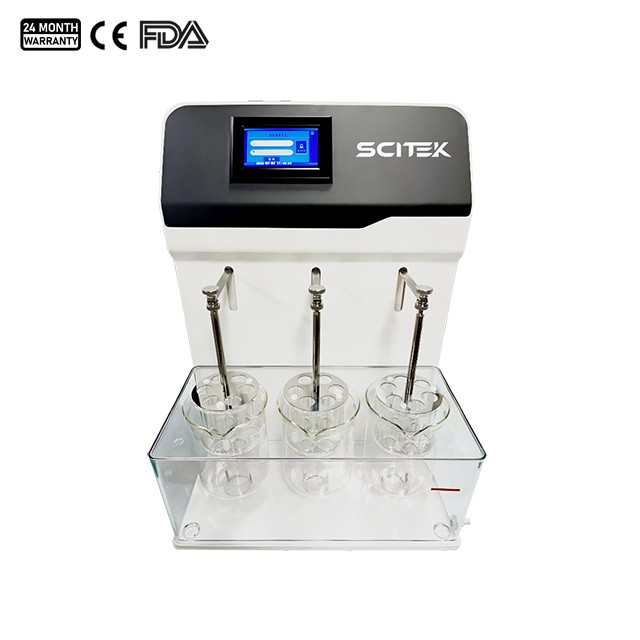

The Disintegration Time Limit Tester ensures the reliability and compliance of oral solid dosage forms,
making it essential for use in pharmaceutical laboratories, quality control and production environments.
It is widely used in the pharmaceutical industry to evaluate the disintegration behaviour of tablets and capsules,
providing essential information for the development, production and quality assurance of medications.
Advantage:
1. Adopts a 3-cup design and can carry out 3 groups of disintegrator time limit tests simultaneously.
2. Overall water bath design, water bath temperature is more stable and uniform.
3. High precision platinum resistance Pt1000 sensor for more accurate temperature.
4. Quickly remove the hanging basket card, you can quickly disassemble the hanging basket.
5. Color touch screen operation, automatic positioning of the sandblasting floor.
6. Three cups of independent lighting system for easy observation.
7. With audit trace and permission management functions
| Model | DTLT-3GS |
|---|---|
| Number of Hanging Baskets | 3 |
| Lifting Distance | 55±1 mm |
| Upgrade Frequency | 31±1 times/minute |
| Water Bath Temperature | Room temperature ~45 ℃ |
| Temperature Resolution | 0.01 ℃ |
| Temperature Control Accuracy | 37±0.3 ℃ |
| Screen Size | Standard 2 mm; Options: 1, 0.71, 0.42 mm |
| Rights Management | Three levels, seven users |
| Audit Trail | 96 items ×366 days |
| Login Mode | User name + password, fingerprint |
| Online Printing | Supported. (optional) |
| FingerprintLogin | Supported. (optional) |
| Power Supply | 110/220 V, 50/60 HZ |
| Packing Size | 500×500×780 mm |
| G.W. | 22 kg |
