Availability: | |
---|---|
Quantity: | |
Extreme low viscometer adapter (with one spindle L0)
Small sample adapter (with spindle 21, 27, 28 and 29 each)(Not For VSC-AIN)
Spindle L5(Not For VSC-AIN)
Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)
Special software that can complete the function in collecting the data automatically
Specially used printer
Model | VSC-1N | VSC-2N | VSC-3N | VSC-AIN |
---|---|---|---|---|
Measuring Range (mPa·s) | 20-600,000 | 12-6,000,000 | 160-80,000,000 | 50-10,000,000 |
Rotating Speed (RPM) | 1-60 | 0.1-99.9 | 0.1-99.9 | 0.1-200 |
Number of Spindles | 4 types(L1~L4) | 4 types (21, 27, 28, 29) | ||
Accuracy | ±1%(FS)(Newtonian Fluid) | |||
Repeatability | ±0.5%(FS)(Newtonian Fluid) | |||
Readability | 1. when viscosity is lower than 10.0 cp: 0.01 2. when viscosity is lower than 10000 cp: 0.1 3. when viscosity is equal or higher than 10000 cp: 1 | |||
Power Supply | AC100~240V, 50/60Hz | |||
LCD Screen Display | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. | |||
L0 Spindle is for Option Measured Range (mPa·s) | 1~600 | 0.6~6,000 | 6~60,000 | 3~60,000 |
Shipping Size (WxDxH)(mm) | 400x350x360 | 400x350x550 | ||
G.W(kg) | 9 | 10.5 |
Digital viscosity meter | 1 pce | Ascending and falling rack | 1 set |
---|---|---|---|
Standard Sspindle | 1 set | Power adapter | 1 pce |

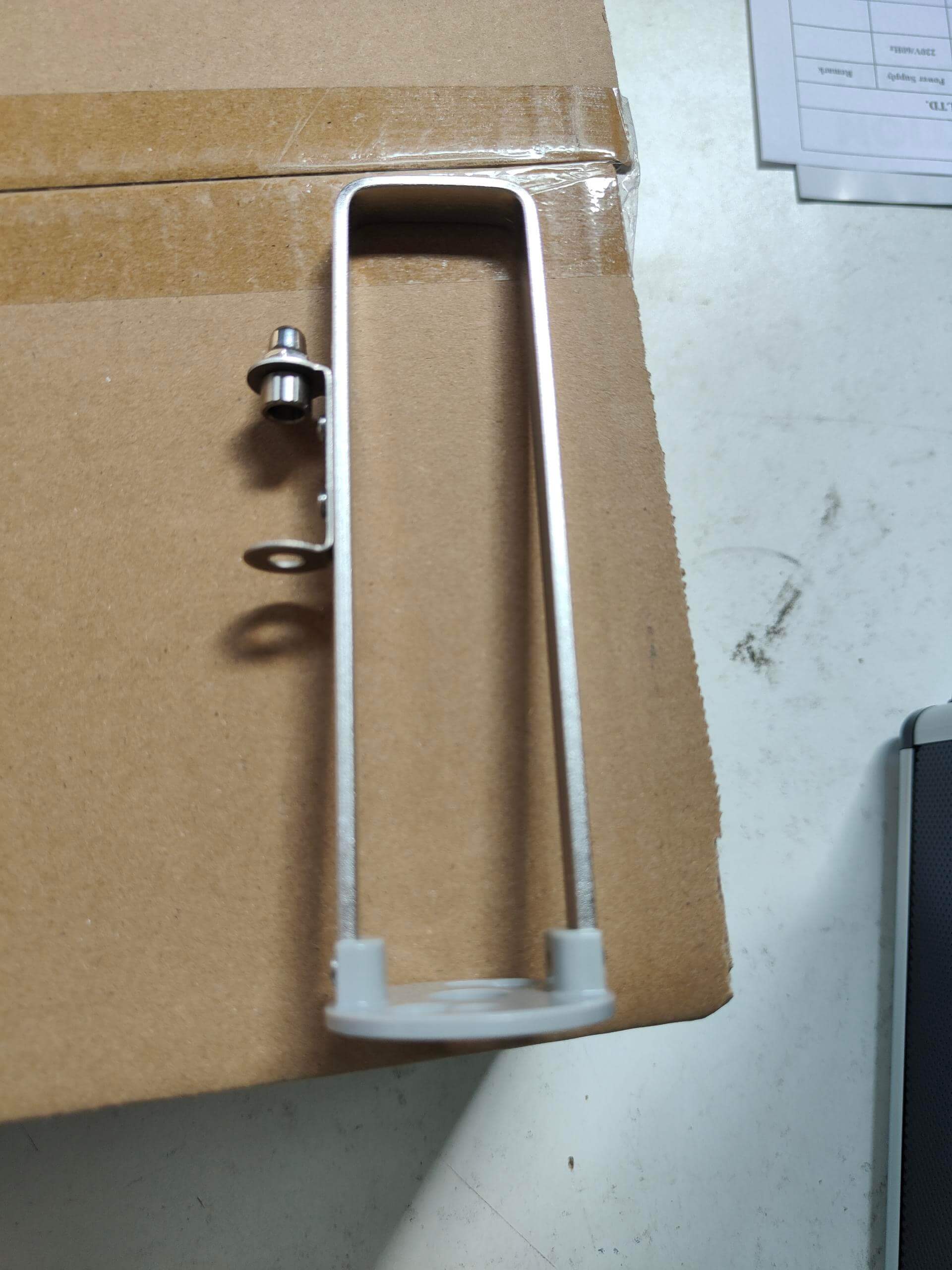

Protective Frame of Spindle | 1 pce | Spanner | 1 pce |
Seat and Leveling Feet | 1 set | RS232 standard output interface | 1 pce |
RTD Temperature Probe | 1 pce |

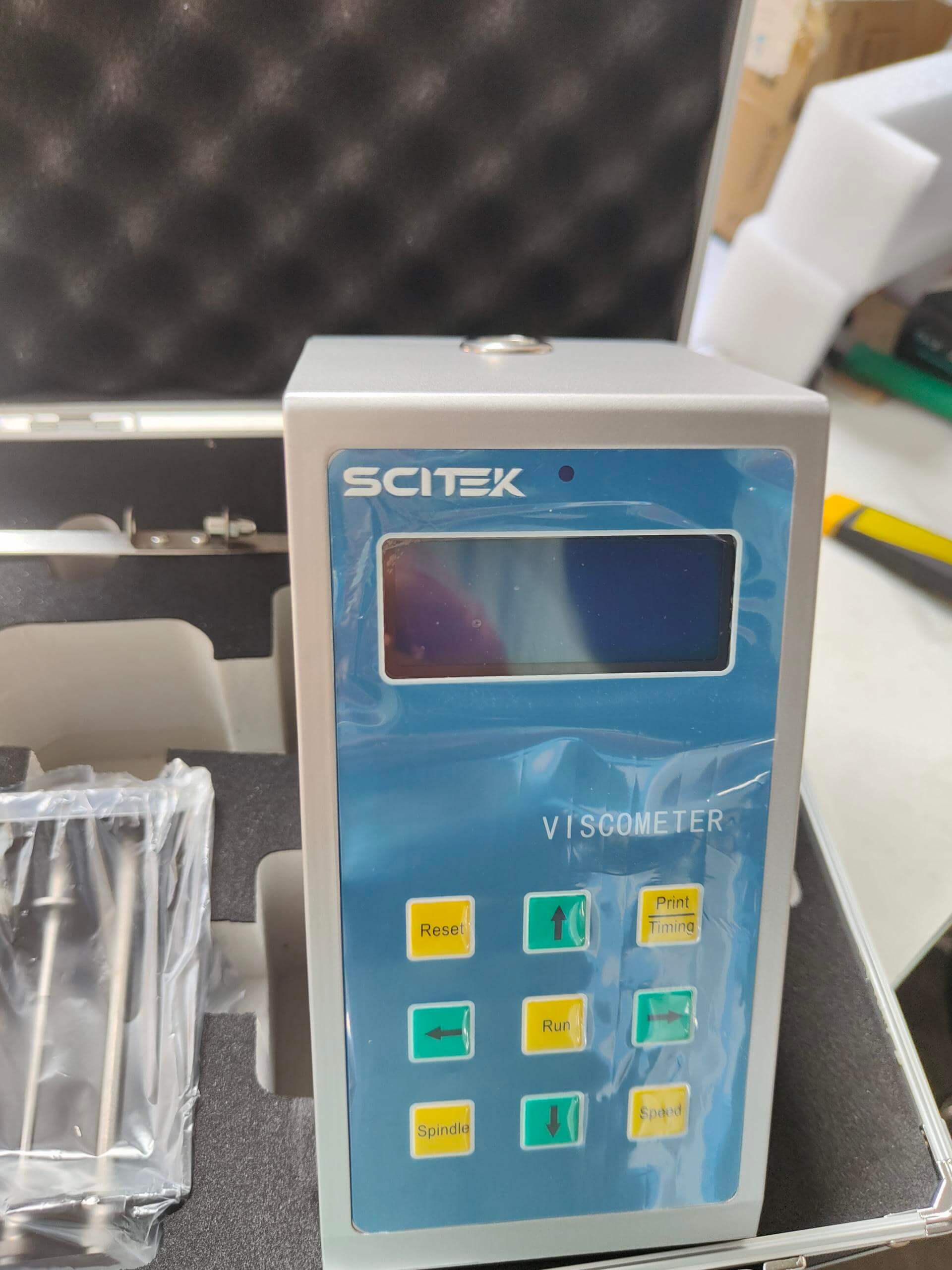

The buttons next to the operating panel make it easy for the user to select parameters and adjust settings.

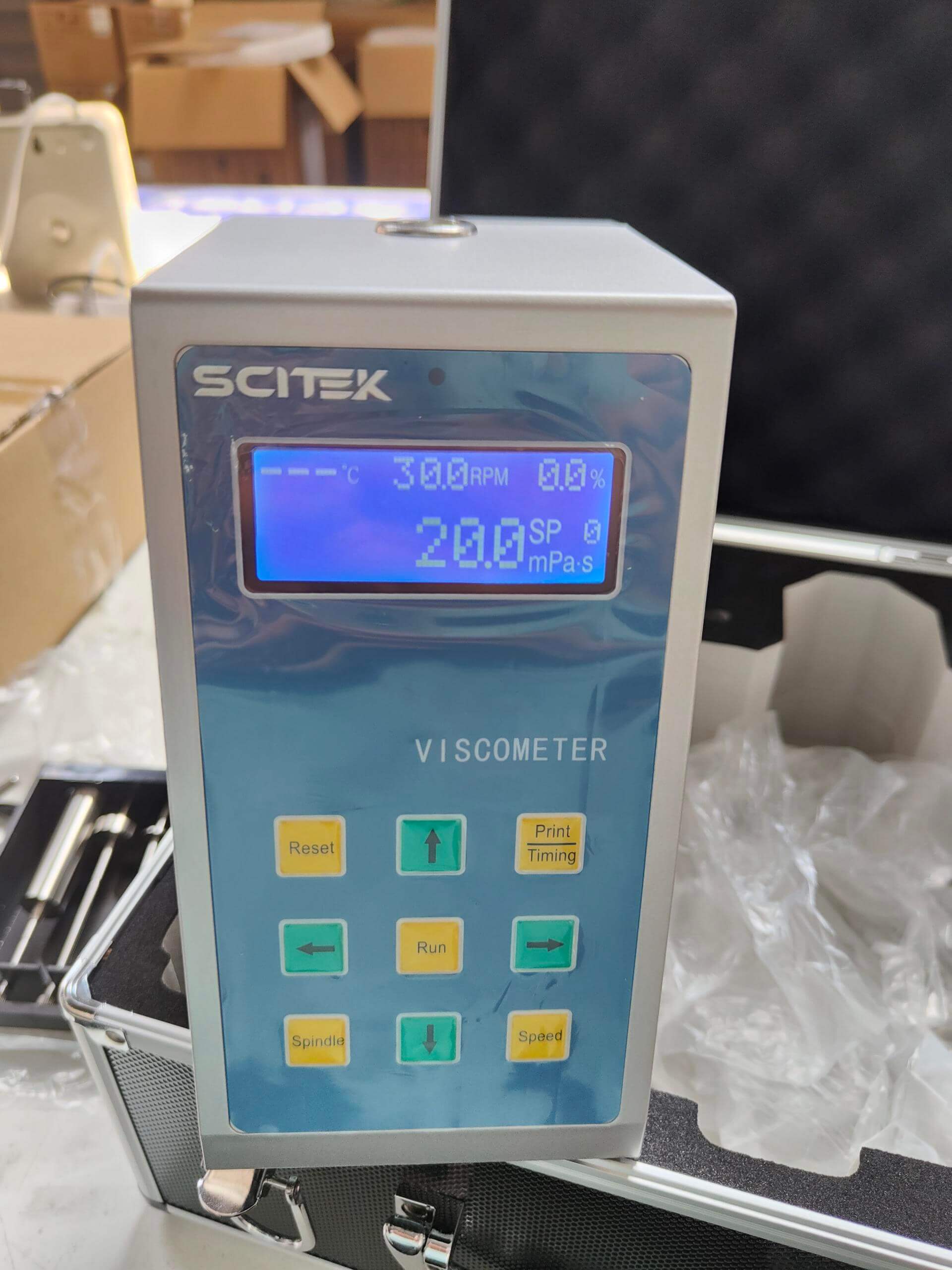

The digital viscometer's high-definition LCD display shows the viscosity value, rotational speed, rotor number and other information.
Spindles are usually made of high-strength stainless steel to ensure long service life and stability in different types of fluids.
