Constant Temperature Drying Oven N Series

Model : TDO-N45D; TDO-N45;TDO-N70D;TDO-N70;TDO-N140D;TDO-N140;TDO-N220D;TDO-N270

Capacity : 42;70;135/137;224/270
Circulation Mode : Natural convection
Temperature Range: 50~200℃
Timer : 0~9999min
Constant Temperature Drying Oven is used for drying, baking and sterilizing in industrial and mining enterprises, laboratories and scientific research units.
Availability:
Quantity:
Inquiry Add to Inquiry List

Application:


Constant Temperature Drying Oven is used for drying, baking and sterilizing in industrial and mining enterprises, laboratories and scientific research units.


Advantages:


  1. External material: cold-rolled steel plate surface sprayed with plastic;

  2. Inner material: SUS stainless steel.

  3. The top air vents are easy to switch on and off.

  4. LED digital tube display PlD temperature controller, precise temperature control, continuous operation or scheduled operation:0~9999min.

  5. With parameter memorization, and the operation will be resumed automatically when powered on again.

  6. Inner chamber is designed with round arc structure, easy to clean.

  7. With drawable shelves with adjustable spacing

Benchtop Constant-Temperature Drying Oven Specifications:

ModelTDO-N45DTDO-N45

TDO-N70D

TDO-N70

TDO-N140D

TDO-N14

TDO-N220D

TDO-N270

Capacity(L)424270135/137224/270
Internal circulation methodNatural convection
Size
(WxDxH)		Internal (mm)350×348×350350x350x350

450×348×450/

400x390x450

550×448×550/

500x500x550

600×498×750/

600x600x750

External (mm)620x40x650635×615×552680×653×631830×665×772930×765×972
TemperatureRange (℃)50~200℃
Fluctuation (℃)±1℃
Resolution (℃)0.1℃
Uniformity (℃)≤ Max operating temperature±3.5%
Security alarmOver temperature alarm, temperature probe damage alarm
Timer0~9999min
Shelves (Standard)222
3

3

Safety DeviceOver temperature alarm, temperature probe damage alarm
ElectricityVoltage
/Frequency		220/110V, 50/60HZ
Consumption (W)12008501600/100020003000
G.W. (kg)545472/7295/86136/125
Shipping Size (WxDxH) (mm)710x570x780710x570x780

810x670x860/

810x670x860

920x740x970/

920x750x700

1020x870x1180/

1020x850x1110

Type

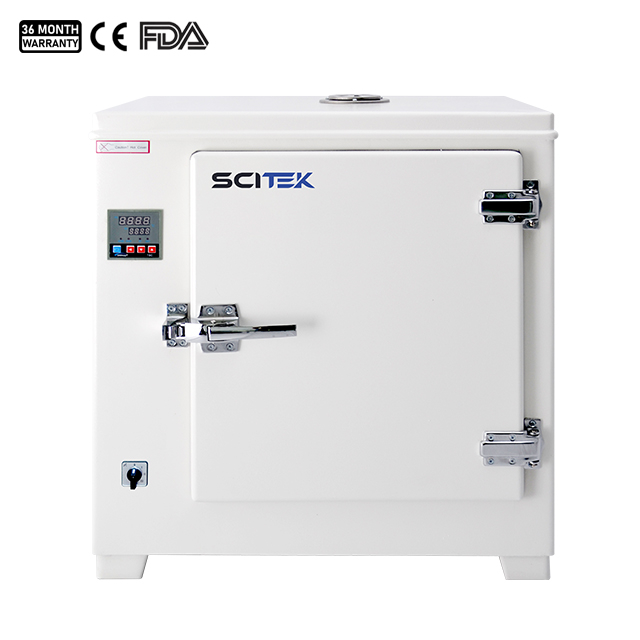

TDO-ND: Glass inner door, outer door without observation window；

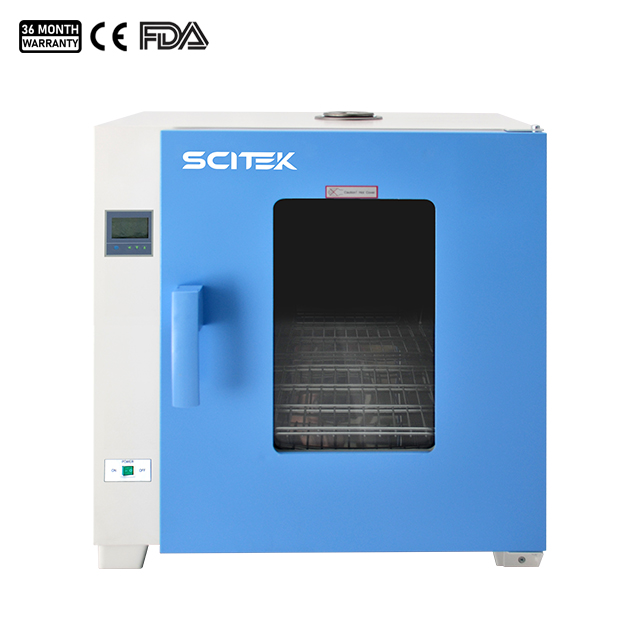

TDO-N: Without glass inner door, outer door observation window.

OptionalTDO-N: LCD screen temperature controller, LCD screen temperature controller+ micro dot matrix printer or RS485 communication serial port.
