This viscometer can be widely used to measure the viscosity of oils, paints, food, coatings, paper making, cosmetics, chemicals capsule adhesives, medicines and other fuids

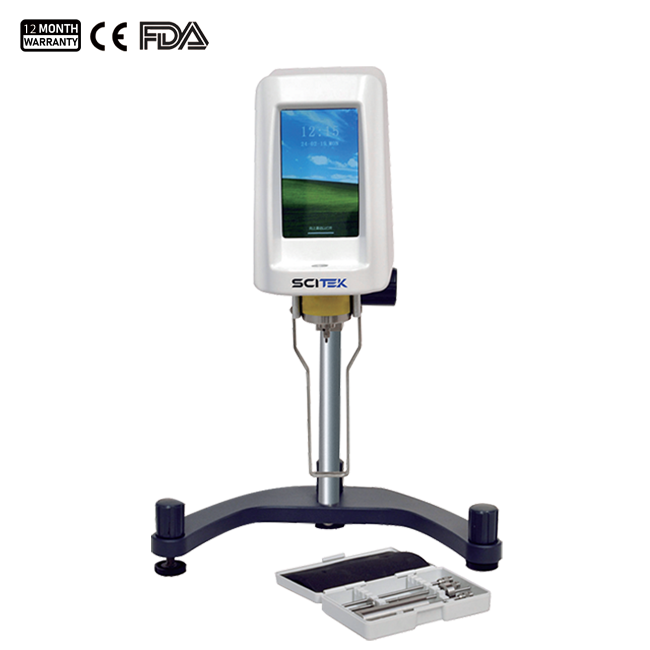

The color touch viscometer adopts advanced mechanical design technology, manufact- uring process, and microcomputer control system Unified, accurate data colle-ction, display screen using color touch technology, making operation easy to use. More convenient and efficient. Durable base and innovative lifting system enable users to test Time is more stable!
Model | VSC-9SC |
---|---|
Input Power Frequency | AC110V~240V 50/60Hz DC12V |
Input Power (W) | 9W+20% |
Measurement Range (mpa.s) | 1~6x106 |
Accuracy | ±1%(Newtonian liquid) |
Repeatability Error (Fs) | ±0.5 %(Newtonian liquid) |
Viscometer Display Accuracy (mpa.s) | 0.01 |
Single Measurement Automatic | After the measurement results are stable, the rotor stops automatically |
Rotor Specifications | 1, 2, 3, 4# rotors (optional No. 0 rotor can measure viscosity 0.1-100 mpa.s) |
Rotor Speed (rpm) | 0.1/0.3/0.6/1.5/3 6/12/30/60 |
Temperature Sensor Interface | Standard |
Computer USB Interface | Standard |
RS232 Interface | Standard |
Working Environment | Temperature: 5-35℃, relative humidity ≤80% |
Shipping Size (W×D×H)(mm) | 480x190x440 |
G.W | 10.6kg |
·Digital viscosity meter | 1 pcs | ·Host base | 1 set |
---|---|---|---|
·Power adapter | 1 set | ·Lifting main column | 1 pcs |
·1-4# rotor | 1 pcs | ·Host connection handle | 1 pcs |
·Rotor protection frame | 1 set | ·Wrench | 1 pcs |
