Cassette Capacity : 1.8Lx3; 5.2Lx3; 6.0Lx3 Rated Working Temperature : 138℃ Working Temperature Range : 115 ℃~135 ℃ Water Tank Capacity : 2.5L Working Medium : Water vapor
This is an advanced, compact and reliable steriliser commonly used for sterilising surgical instruments, dental instruments, cosmetic tools, etc. It is an important piece of equipment for safeguarding the quality and safety of healthcare.
This specialist sterilization unit is designed to provide an efficient and reliable solution for sterilizing medical devices. Whether in hospital surgeries, dental clinics, laboratories, or other healthcare facilities, our cassette sterilizers meet stringent hygiene standards, ensuring that medical devices and equipment achieve the highest level of sterility before use. Choosing our cassette sterilizers means choosing an efficient, reliable, and safe sterilization solution. We are committed to providing healthcare organizations with superior device sterilization technology to ensure that patients and healthcare professionals are always kept in a sterile environment during medical procedures.
Cassette Sterilizer Specifications:
Model

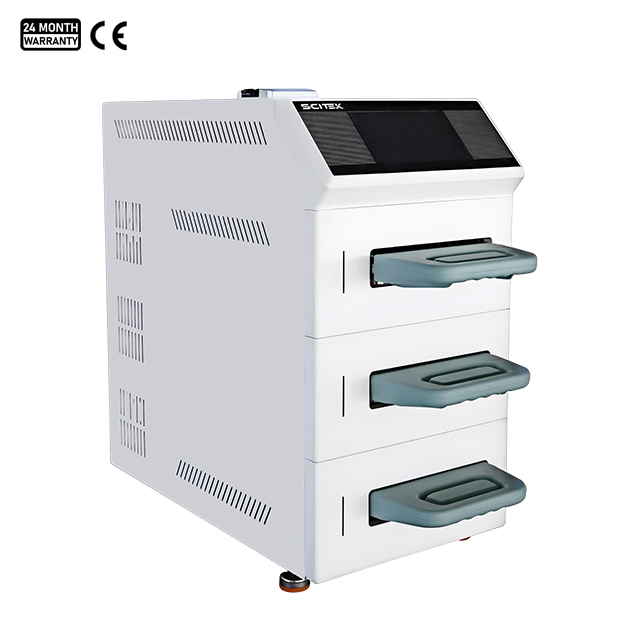

ST-2000TC

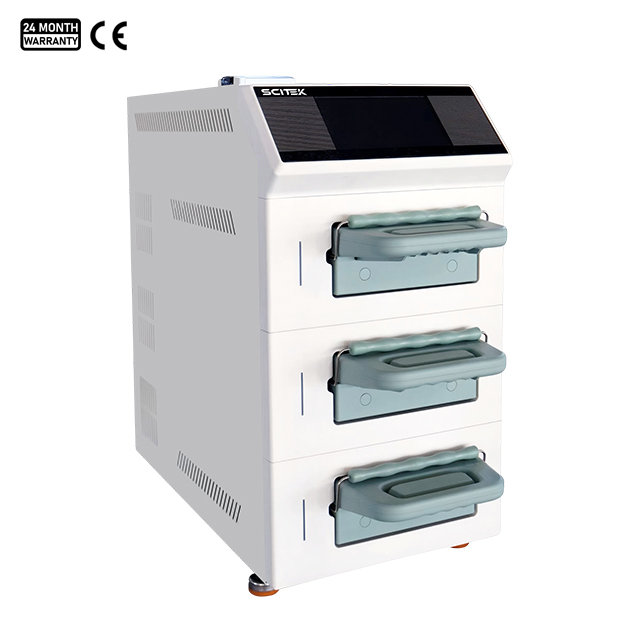

ST-5000TC

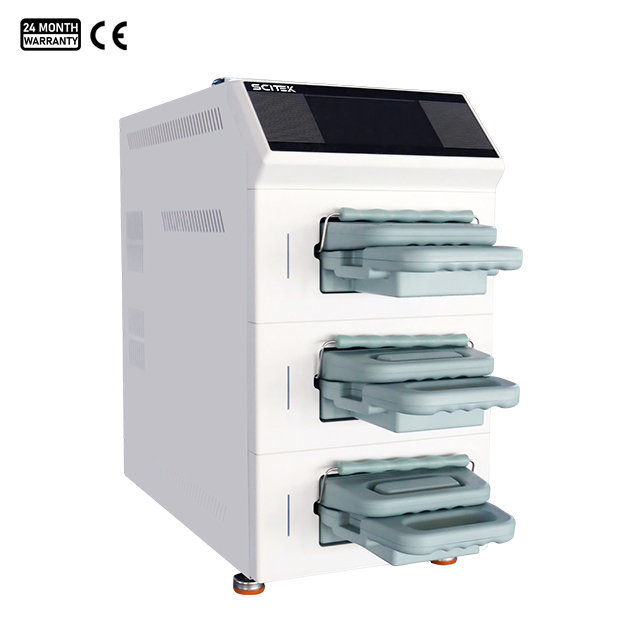

ST-6000TC
External Size (WxDxH)(mm)
280x600×660
Cassette External Size (WxDxH)(mm)
196x390×40
196x480×80
196x×196×80
Cassette Internal Size (WxDxH)(mm)
180x280×38
180x380×78
180x480×78
Cassette Capacity
1.8Lx3
5.2Lx3
6.0Lx3
Rated Working Temperature
138℃
Rated Working Pressure
242kPa
Working Temperature Range
115 ℃~135 ℃
Water Tank Capacity
2.5L
Power Supply
AC 220V ± 22V; 50Hz ± 1Hz;
Working Medium
Water vapor
Water Source Supply
Ultrapure water, deionized water, laboratory water, distilled water, purified water
Working Mode
Intermittent operation (≤6 cycles/hour)
Atmospheric Pressure Range
70.0kPa~106.0kPa
Environmental Temperature Range
+5 ℃ to+40 ℃
Working Relative Humidity
≤ 85%
External Size (WxDxH)(mm)
280x600×660
Package Size (WxDxH)(mm)
460x710x810
Net Weight(kg)
60
84
86
Gross Weight
80
104
106

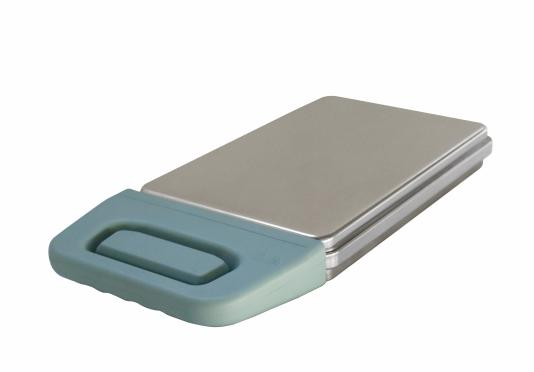

ST-2000TC and Cassette

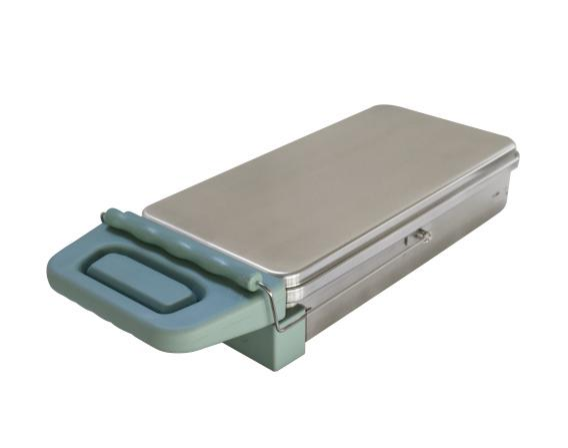

ST-5000TC and Cassette

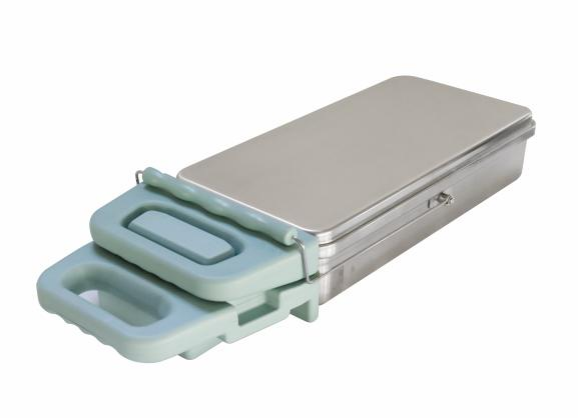

ST-6000TC and Cassette
Cassette Sterilizer Features:
The sterilization effect is reliable and rapid, positive pressure pulsating exhaust sterilization, and the entire sterilization process only takes 7-10 minutes. It is suitable for multi department instrument continuous surgery and emergency sterilization.
7-inch touch interface, graphical operation. The system operation status is displayed on the screen, and the sterilization program can be safely interrupted at any time.
Compact design, saving space. Each layer is independently controlled.
Multi level permission management ensures the authenticity and effectiveness of sterilization data. Network communication interface, which can be connected to the traceability system.
Cassette sterilizer is equipped with a built-in self-priming circulating water tank and automatic water inlet function. The program operation is not affected by the volume of the water tank. And it is equipped with a low water level detector to prevent the evaporator from dry burning.
Built in thermal printer, real-time recording of sterilization process parameters, with the function of recording and storing the last 60 running processes.
Equipped with USB interface for data storage.
Self inspection system. Once a problem occurs during operation, the cassette sterilizer system automatically terminates operation and displays a fault code on the screen.
Customize the settings program to meet the sterilization requirements of various large and special instruments.
Cassette Sterilizer Applications:
Cassette sterilizers are commonly used in various medical and laboratory settings for the sterilization of medical instruments, equipment, and materials. They are designed to provide efficient and reliable sterilization by utilizing heat and pressure to eliminate bacteria, viruses, and other microorganisms. These sterilizers are widely employed in hospitals, dental clinics, research laboratories, and other healthcare facilities to ensure the safety and sterility of medical tools and equipment before their use in patient care or research procedures.
The three-layer cassette sterilizers has three times the sterilization capacity, saving space, and each layer is independently controlled.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
