Cassette Sterilizer Specifications:
| Model | ST-2000C | ST-5000C | ST-6000C |
| Sterilization Volume | About 1.8 Liters | About 5.2 Liters | About 6.0 Liters |
| Tank Volume | 3.4 Liters | 3.4 Liters | 3.4 Liters |
| Maximum Operating Pressure | 242 kPa |
| Operating Pressure Range | 42 kPa ~ 212kPa |
| Maximum Operating Temperature | 138° C |
| Operating Temperature Range | 115 °C ~ 135 °C |
| Display Accuracy | 0.1 ℃ |
| Water | Ultra-pure water, deionized water,
laboratory water. | Ultra-pure water, deionized water,
laboratory water, distilled water, purified water. | Ultra-pure water, deionized water,
laboratory water, distilled water, purified water. |
| Voltage/Frequency | AC 220V/50 Hz |
| Input Power | ≤1.3 kVA |
| Atmospheric Pressure Range | 70.0 kPa to 106.0 kPa |
| Ambient Temperature Range | + 5 °C ~ + 40 °C |
| Steam Generator Power | 1.2 kVA ± 5% |
| Fuse | F8AL250V phi 5 x 20 mm |
| Safety Valve Setting Pressure | 0.25 MPa |
| Equipment Working Medium | Water Vapor |
| Working Relative Humidity | ≤85% |
| Normal Use Place | Work room |
| Run Mode | Run Intermittently (≤6 cycles/hour) |
| Sizes(WxDxH)(mm) | 570x415x170 | 580x460x190 | 580x460x190 |
| Shipping Size (WxDxH)(mm) | 700x580x580 | 700x580x580 | 700x580x580 |
| N.W./G.W. (kg) | 35/50 | 45/60 | 45/60 |
Cassette Sterilizer Features:
The sterilization effect is reliable and rapid, with a non-wrapped sterilization time of 6 minutes, making it suitable for small instruments in departments such as stomatology and ophthalmology.

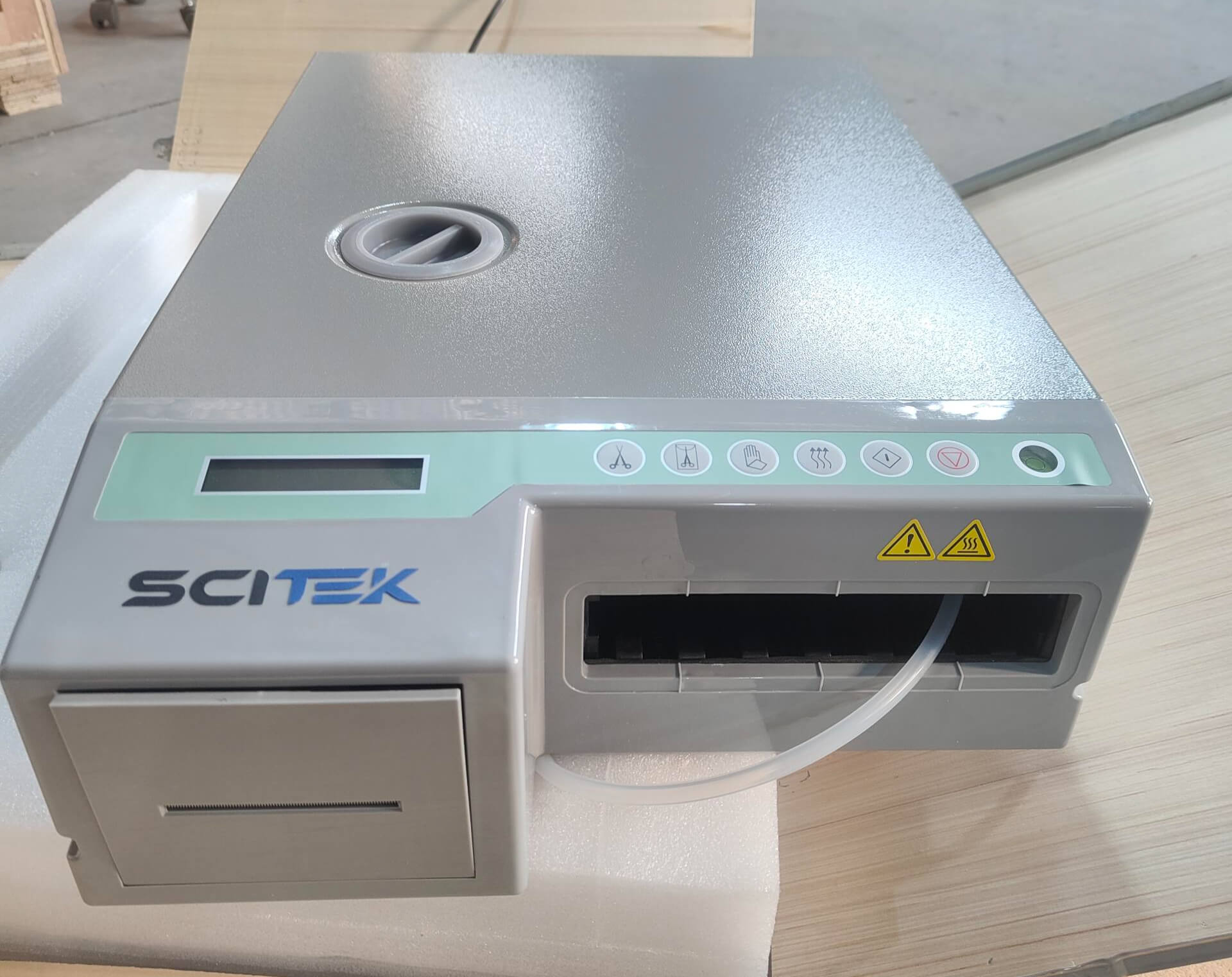

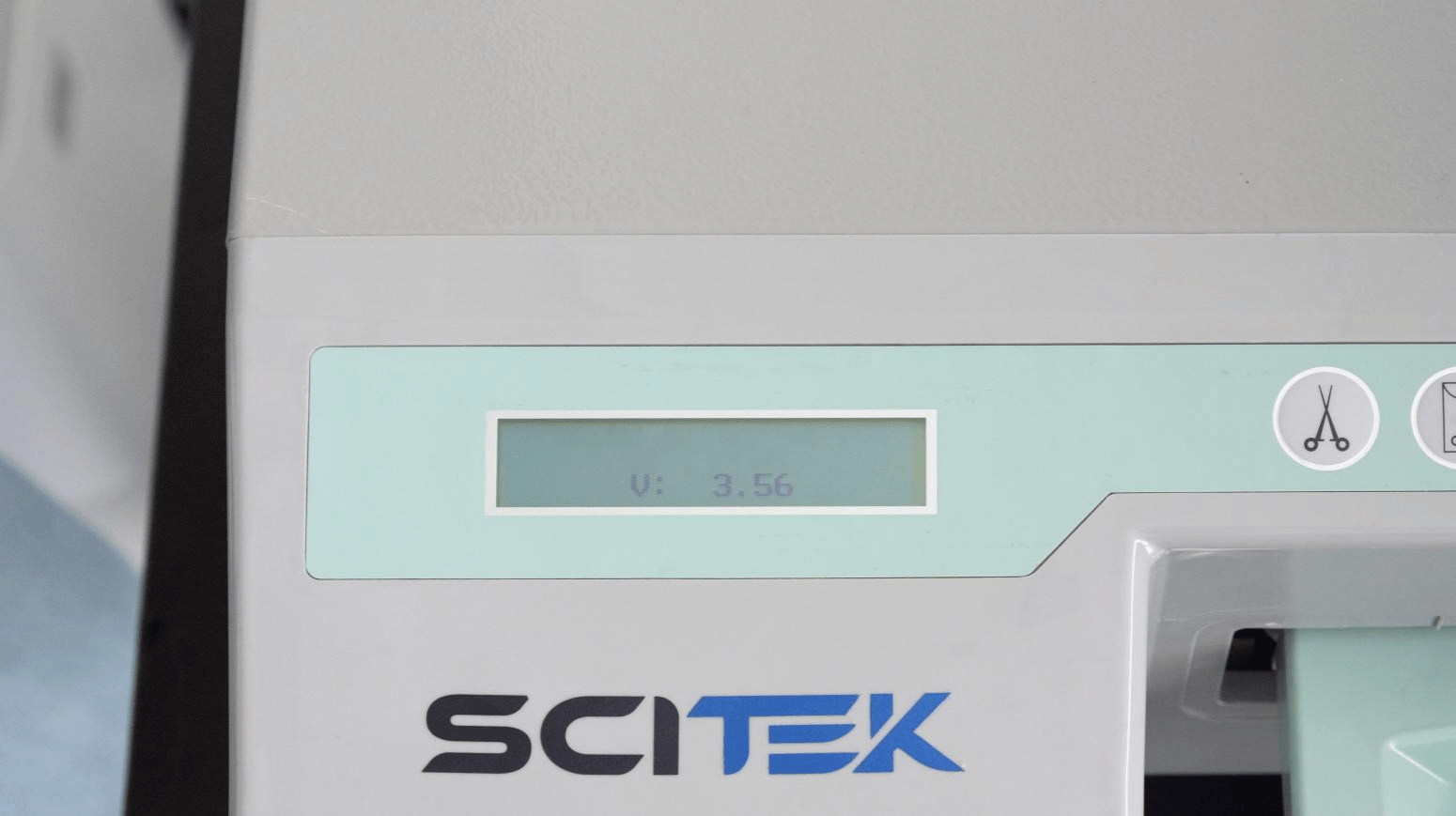

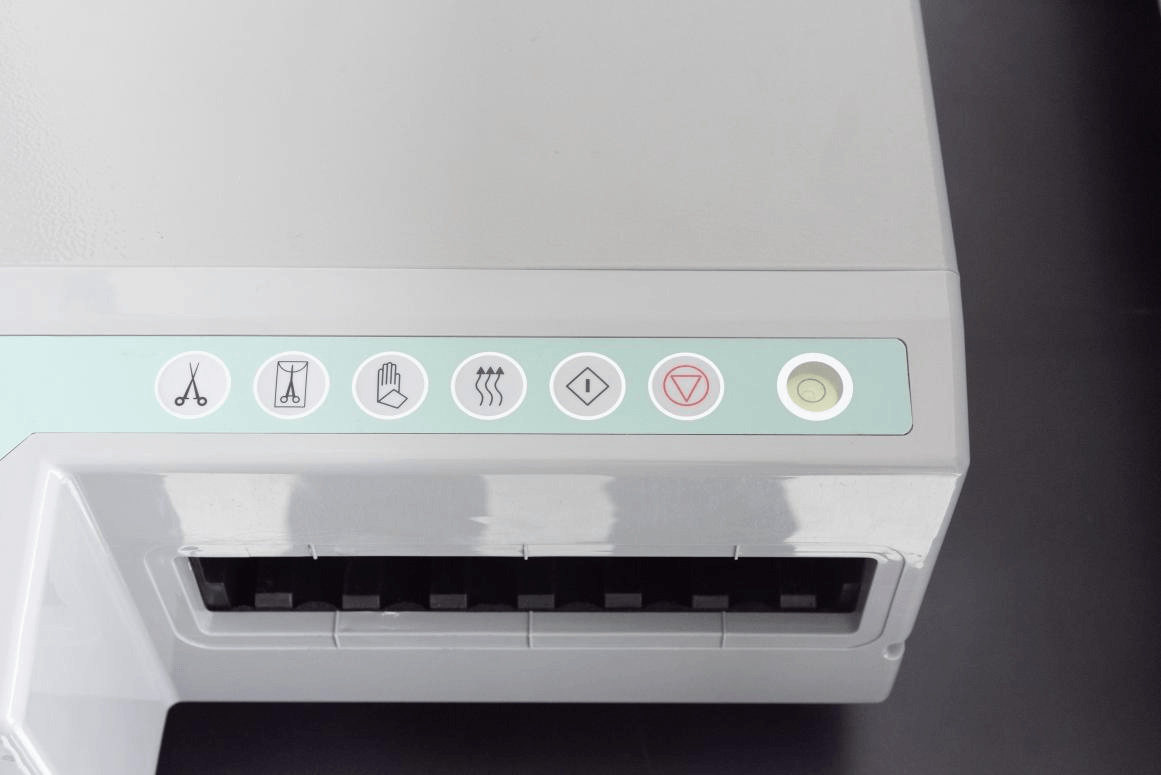

Easy operation with a display screen showing the system operation. Sterilization procedures can be safely interrupted at any time.
Self-detection system automatically stops and displays an error code on the screen if a problem occurs during operation.
Suitable for sterilizing instruments with cavities and solid instruments, offering the option for non-wrapped sterilization.
Details of Cassette Sterilizer:
Built with durable materials and a secure, airtight chamber, it guarantees optimal safety and effectiveness. Ideal for clinics, hospitals, and research laboratories, the Cassette Sterilizer provides fast, consistent sterilization results, maintaining strict hygiene standards and improving workflow efficiency.
Prevents condensation from overflowing, ensures a clean and tidy operating environment, and reduces the risks that may arise during the sterilization process.

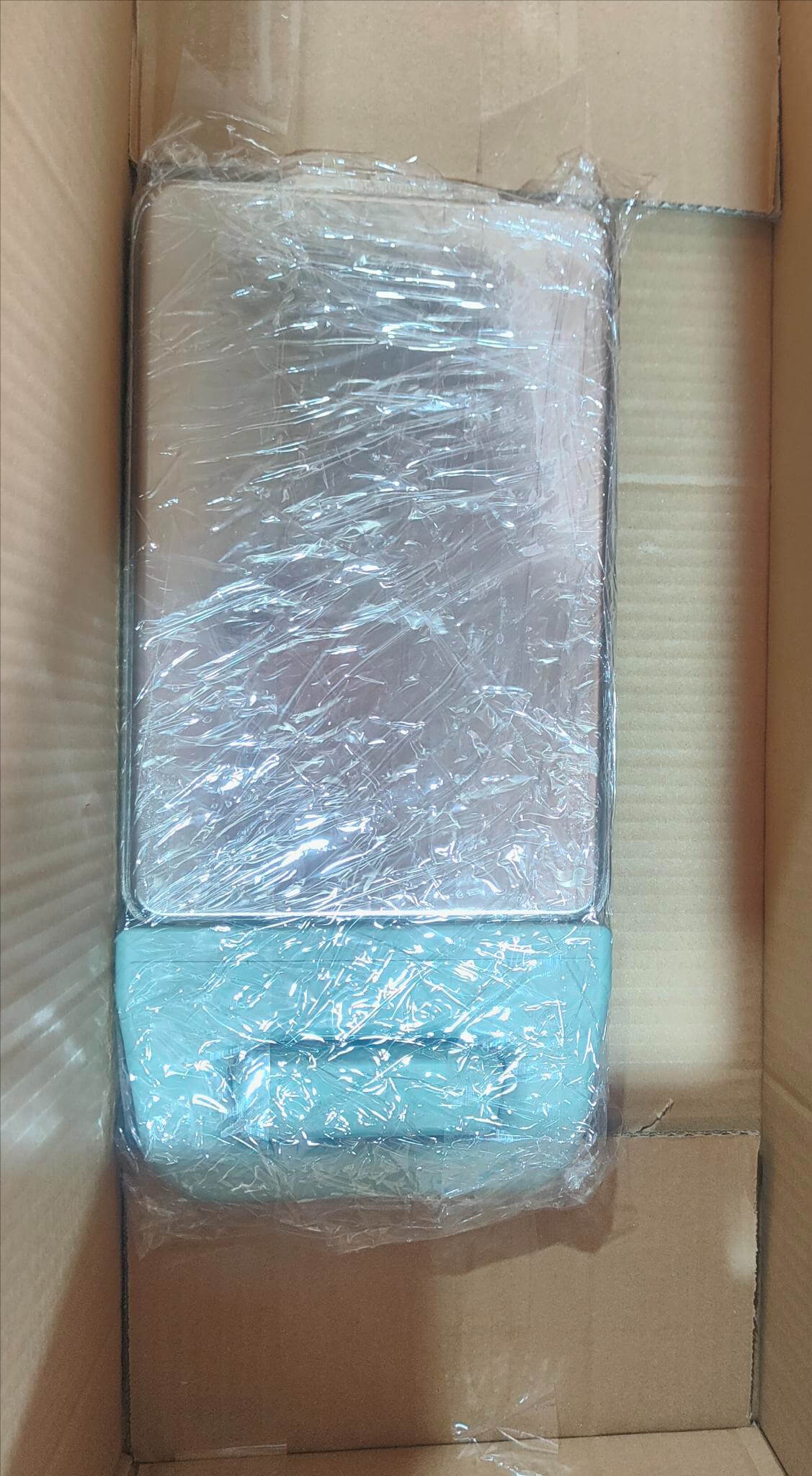

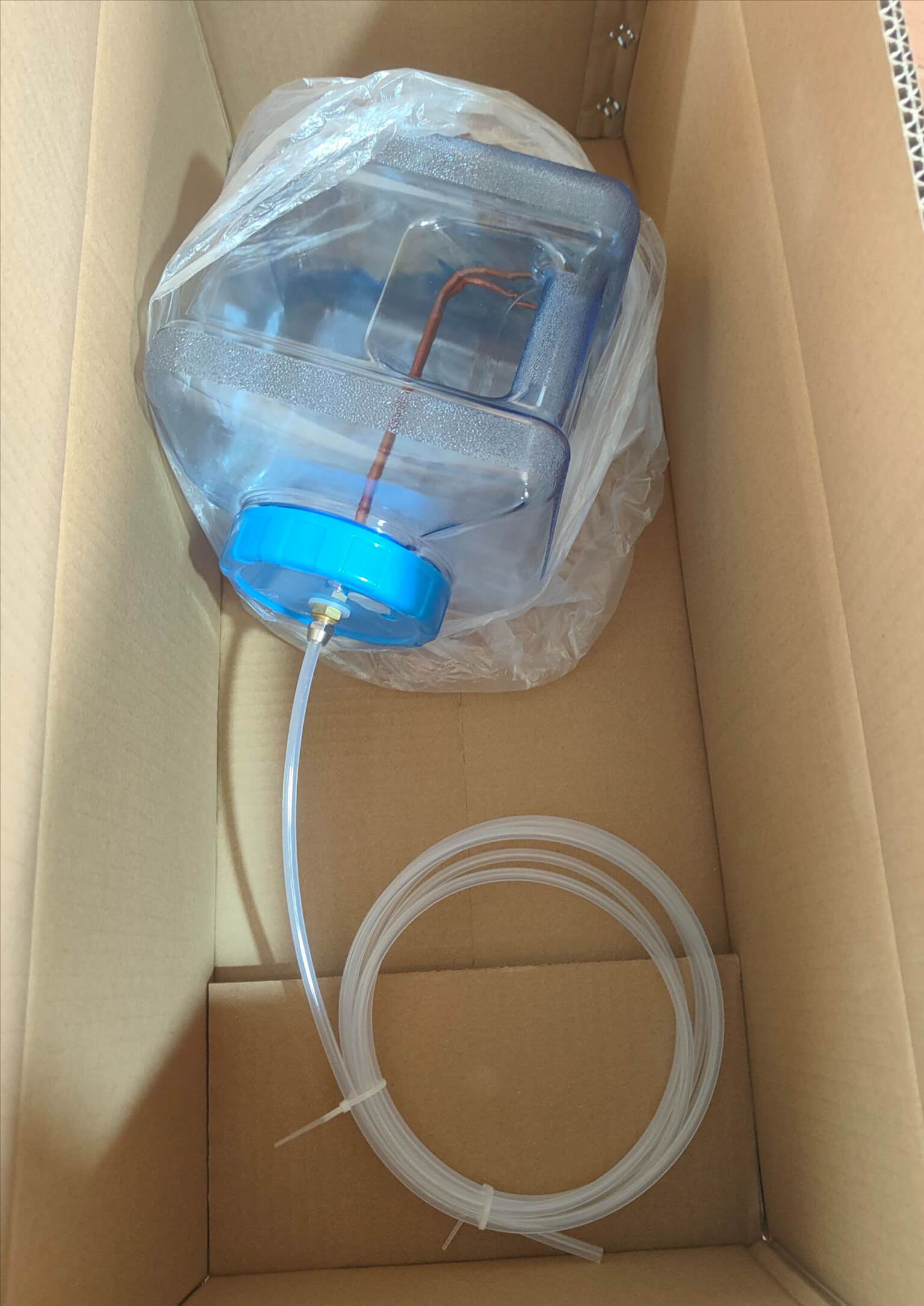

The sealing film wrap ensures that the sterilizer is securely fastened during transportation and is water and moisture resistant. This careful packaging ensures that the equipment remains intact even over long distances, increasing transportation reliability and customer satisfaction.
