1. Featuring a high-performance embedded intelligent touch screen, it ensures user-friendly operation and precise control. The intuitive human-machine interface allows users to effortlessly perform intelligent operations guided by on-screen instructions.
2. Capable of measuring viscosity across samples of varying specific gravities and at different temperatures.
3. Equipped with an interactive time calibration function for enhanced accuracy.
4. Includes an interactive intelligent temperature compensation feature.
5. Supports interactive calibration for viscosity tube parameters.
6. Offers interactive selection of liquid transparency, expanding the range of measurable samples and enabling multi-field application of Burgess viscosity measurement.
7. Supports dual-language operation (English and Chinese) with one-key switching.
8. Provides historical data query function and printing options.
Incorporates advanced automatic fault detection, self-diagnosis, and alarm functions for improved reliability and maintenance.

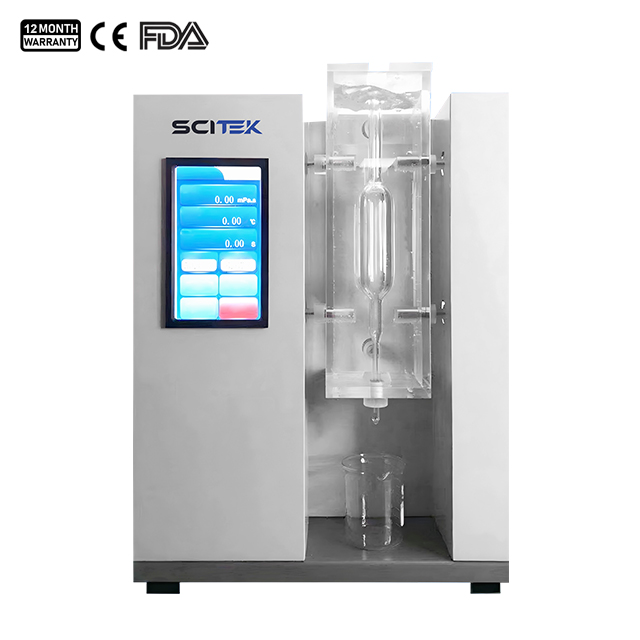

Rotational Viscometer Specifications:
Model
VSC-B5
viscosity measurement range
0-99.99 mPa. S
viscosity value display resolution
0.01 mPa. S
instrument measurement accuracy
±0.02 mPa. S
time measurement range
0-5000 S
time measurement precision
≤ 0.01 S
time display resolution
milliseconds
temperature control range of water bath
R.T. -70 ℃
water bath temperature control setting resolution
0.1 ℃
temperature control accuracy of water bath
±0.1 ℃
water bath temperature display resolution
0.01 ℃
viscometer volume
100 ml
volumetric error of the viscometer
± 0.5ml
longitudinal center moment of measuring device
152 mm ± 0.5 mm
Power supply
110V/220V,50/60HZ
Consumption
500W
Shipping Size
465*370*610mm
Gross Weight
16kg
Burgers viscometer Features:
1. Featuring a high-performance embedded intelligent touch screen, it ensures user-friendly operation and precise control. The intuitive human-machine interface allows users to effortlessly perform intelligent operations guided by on-screen instructions.
2. Capable of measuring viscosity across samples of varying specific gravities and at different temperatures.
3. Equipped with an interactive time calibration function for enhanced accuracy.
4. Includes an interactive intelligent temperature compensation feature.
5. Supports interactive calibration for viscosity tube parameters.
6. Offers interactive selection of liquid transparency, expanding the range of measurable samples and enabling multi-field application of Burgess viscosity measurement.
7. Supports dual-language operation (English and Chinese) with one-key switching.
8. Provides historical data query function and printing options.
Incorporates advanced automatic fault detection, self-diagnosis, and alarm functions for improved reliability and maintenance.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
