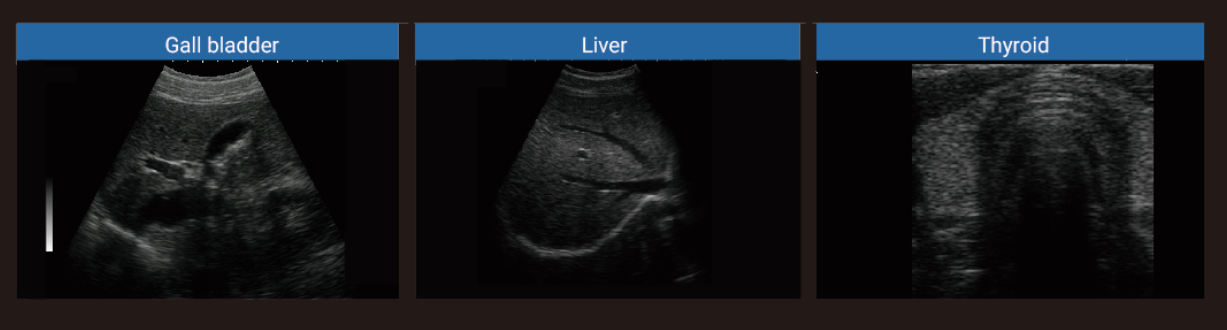

| Measurement | M mode; Obstetrical; Urology; Gynecological; Thyroid; Renal |
| Display Mode | B, B + B, B + M, M, 4B |
| Probe Port | 2 |
| Optional Probe Detail | Convex array probe
| 2.0MHz/2.5MHz/3.5MHz/5.0MHz, adjustable;
depth adjustment: level 15, adjustment range 70-268mm; |

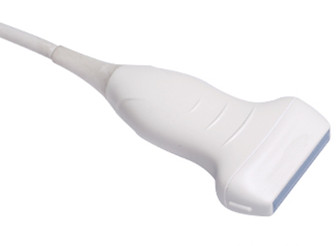

| Linear array probe | 5.5MHz/6.5MHz/7.5MHz/9.0MHz, adjustable;
depth adjustment: level 15, adjustment range 55-173mm; |
| Trans-vaginal probe | 4.5MHz/5.5MHz/6.5MHz/7.5MHz, adjustable;
depth adjustment: level 10, adjustment range 40-90mm |
| Display Screen | 15-inch 1024x768 resolution HD LCD screen |
| System Language | Chinese, English, Spanish, French, Russian, Portuguese |
| Reporting Function | Support the registration of patient information and measurement report;
(Including: examination number, name, age, gender, date of examination, examination application, and last menstruation.) |
| Interface | One VGA, one VIDEO, and two USB ports. |
| External Size(mm) | 580x 680x1240 |
| Package Size(mm) | 750x640x950 |
| N.W./G.W. (kg) | 34/41 |
| The 2D-dimensional imaging mode |
| Gain | 0-127, visual and adjustable |
| TGC | 8 segments are adjustable |
| Dynamic Range | 0-127 db |
| Scanning Angle | 80-100 |
| Focus | 4 adjustable focus position, |
| Frame Correlation | Level 4 is visually adjustable |
| Edge Enhancement | Level 4 is visually adjustable |
| Post-processing | Level 8 is visually adjustable |
| Image Optimization | Level 13 is visually adjustable |
| Focus Position Adjustment | Level 15 is adjustable |
| Position Marker | 97 kinds, supporting body position indicator |
| Pseudo Color | 8 kinds |
| M super Scan Speed | Level 8 is visually adjustable |
| Support Time Setting | Date time, date format, time format, etc |
| Functional Key Adjustment | Support 5 sets of functional key adjustment of common parameters |
| Puncture Function | Level 3 angle adjustable |
| Support Screen Cleaning | Clear the measurement markers, measurement results, notes, landmarks and other information in the image area
|
| Support for Image Storage Function | Image saving format is BMP |
| Playback Frame | 256 |
| Notes | Support in upper and lower case in English |
