Scitek biological microscopes are used in diverse applications such as biological research, medical diagnostics, education, forensic analysis, environmental science, agriculture, veterinary medicine, and industrial applications. They enable the observation and analysis of microscopic structures, cells, tissues, microorganisms, and provide valuable insights in these fields.
Biology Microscope Specification:

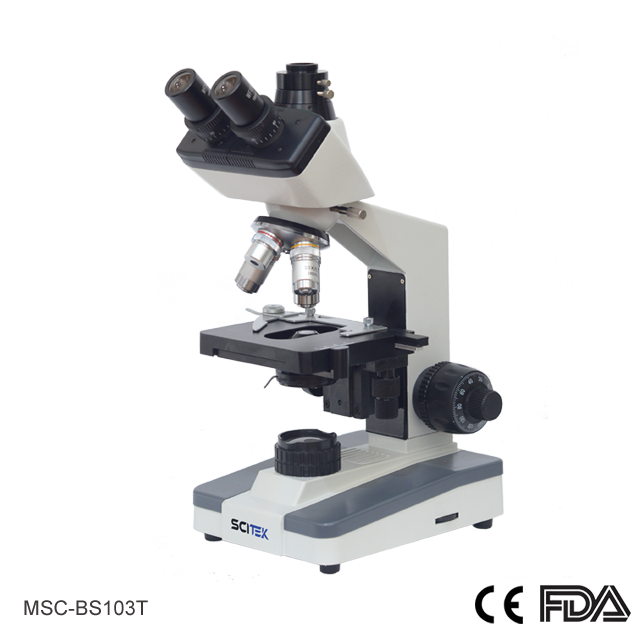

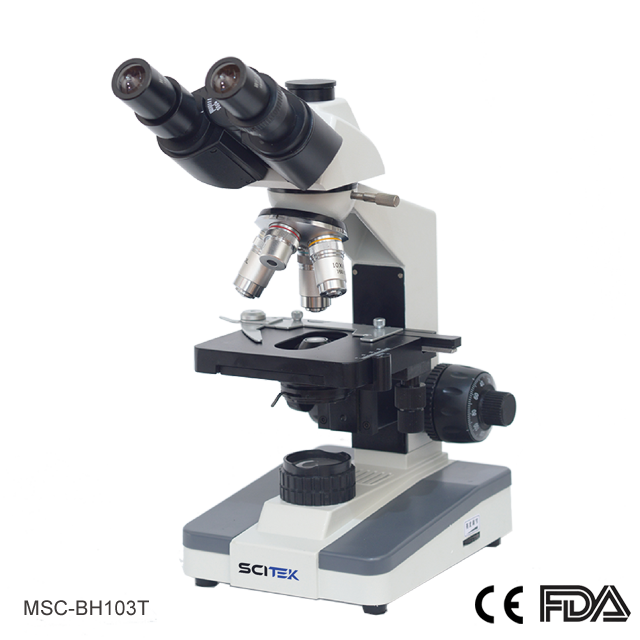

| Model | MSC-BH103T | MSC-BS103T |
|---|
| Optical System | Finite optical system |
| Viewing Head | Siedentopf Trinocular Viewing Head
at 30°IncIined Interpupillary (55-75mm) | Sliding Trinocular Viewing Head
at 45°IncIined Interpupillary (55-75mm) |
| Eyepiece | Wide Field Eyepiece WF10X18mm |
| Nosepiece | Quadruple Nosepiece |
| Objective | Achromatic Objective 4X, 10X, 40X, 100X |
| Stage | Double Layers Mechanical Stage 120X115mm/70X30mm |
| Condense | Abbe NA1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,
Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
| Illumination | LED Illumination, Brightness Adjustable |
| Halogen Lamp 100-240 V/ 6 V 20 W |
| Package | Styrofoam |
| Carton |
| Filter | White Filter |
Shipping Size
(W×D×H) | 370×260×470 mm |
| G.W. | 6 kg |
Biology Microscope Feature:
The observation heads of the microscopes are available in both siedentopf and sliding binocular head options to ensure user comfort and clarity of field of view for different needs.
Eyepieces provide a wider field of view for more comfortable observation.
Achromatic objective lens provides high-quality optical performance for clear and accurate observation.
Four-aperture conversion mechanism provides more choices of objective lenses, enhancing the flexibility and diversity of experiments.
Dual mobile platform design provides users with more operating space.
Variable light bar and filter tray ensure uniformity and adjustable brightness of the light source.
The focusing system adopts coarse and micro-motion coaxial focusing, enabling users to achieve precise focusing operations quickly.
Brightness is continuously adjustable, providing a uniform, bright light source for observation.
